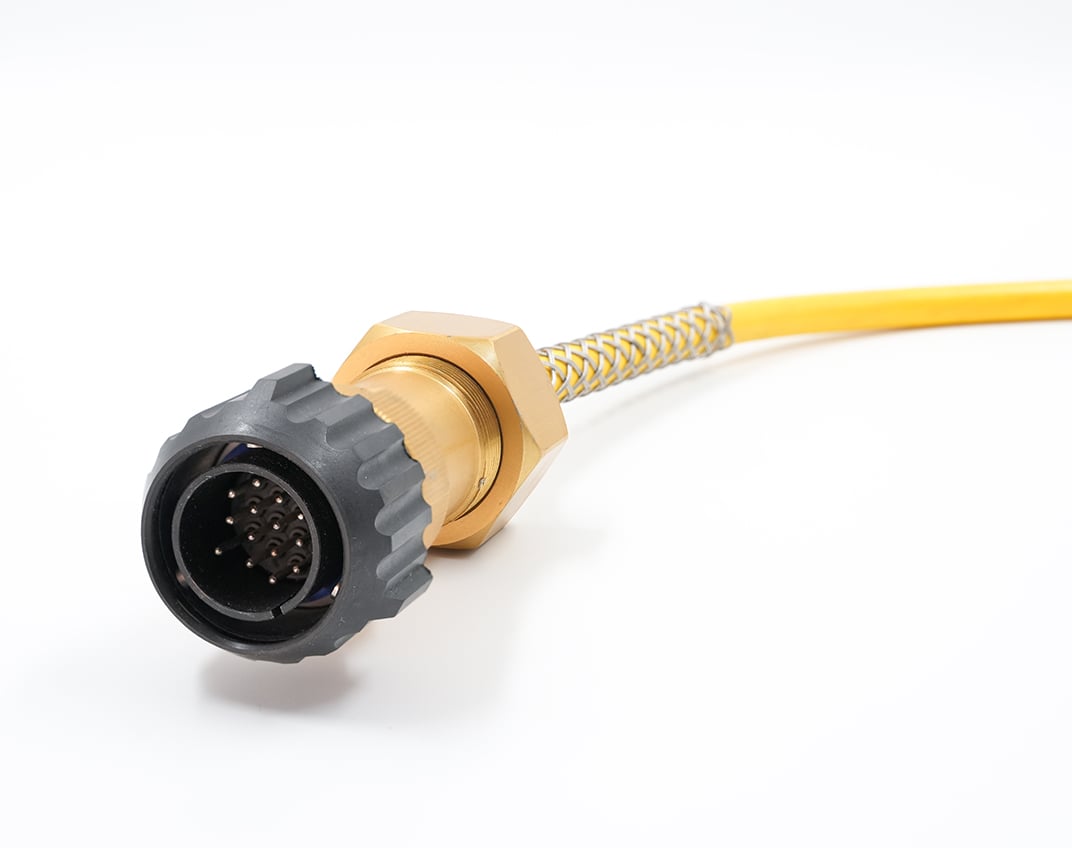

HDLC Series Connector Assemblies

The HDLC connector series was developed specifically to meet the demands of industrial environments and shares the same shell dimensions, contact layouts, and electrical performance characteristics as the common MIL-C-5015 connectors.

The HDLC connector series features three-quarter reverse bayonet coupling system, rubber covered coupling ring, black zinc shell plating and a superior sealing and strain relief system. Available in sizes from #18 to #1/0.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

THREE QUARTER TURN REVERSE BAYONET COUPLING SYSTEM

Easy to connect and disconnect, positive locking indent prevents accidental uncoupling.

RUBBER COVERED COUPLING RING

Protects the nut against damage from impact, provides a large non-slip gripping surface for easy mating.

ENVIRONMENTALLY SEALED

The inserts of the HDLC are environmentally sealed to protect the connection against oil, water and chemical contamination. The endbells are sealed with a tapered grommet sized to the specific cable providing a waterproof seal.

MESH STRAIN RELIEF

Each assembly end comes with a double weave strain relief for pull-out protection as well as flex relief for the cable.

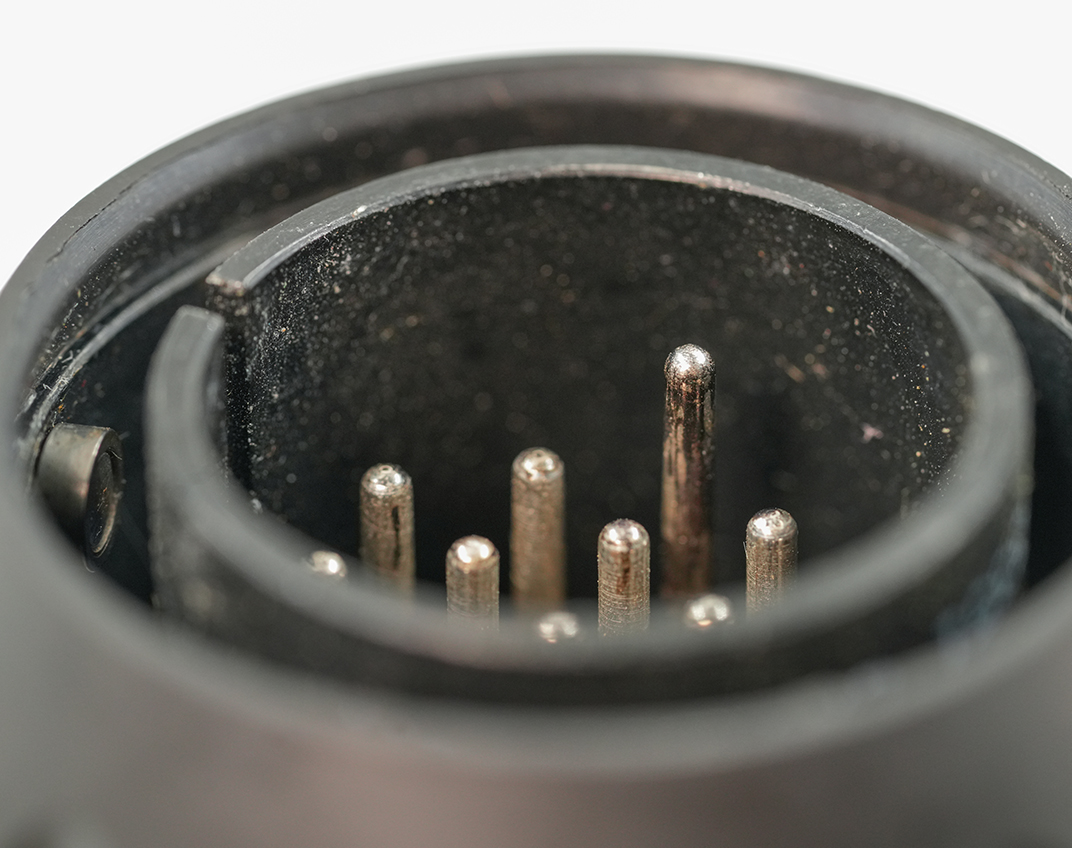

FIRST MATE — LAST BREAK CONTACT

An extended ground pin insures first mate/last break contact for safety.

MACHINED CONTACTS

All contacts are machined, not stamped. This produces a heavier industrial contact that is less likely to crack or break during the crimp process.

SUPERIOR SHOCK AND VIBRATION RESISTANCE

Each connector contains a wave spring and wave spring washer designed to absorb shock and vibration in the coupler before it reaches the contacts. This helps to eliminate pin elongation and damage that may cause arcing and connector failure.

AVAILABLE IN AWG SIZES RANGING FROM #18 TO #1/0

The HDLC connector accepts a wide range of Gauge sizes and configurations to meet your connector needs.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Heavy-Duty Locking Connector Assemblies

Ratings / Characteristics

  • IP67 Rated

  • DIN 40 050 Rated

  • Mating Life: 2,000 Cycles Minimum (Commercial) 500 Cycles Minimum (to VG 95 234)

  • Vibration: 200 m/s2 at 10 to 2,000 Hz. To VG 95 234 Test 5.16

  • Shock: 50g 11ms, Three Major Axes. To VG 95 234 Test 5.17

  • Contact Type: Hard Silver Crimp

  • Number of Circuits: 1 to 65

  • VG 95 234 NATO Specification

  • Operating Temperature Range -55°C to 125°C

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Related Products

mil-5015

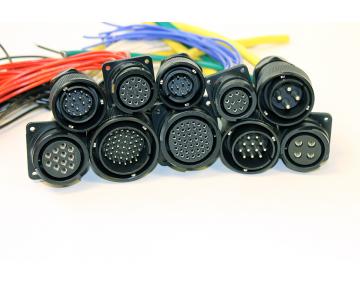

Mil-Spec MIL-C-5015 Assemblies
tpc-mil-c-26482-series-1

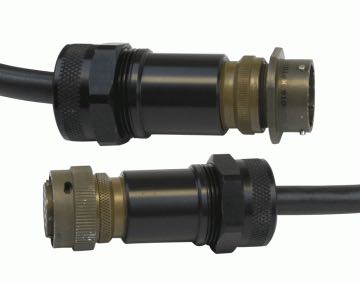

Mil-Spec MIL-C-26482 Series 1 Assemblies
