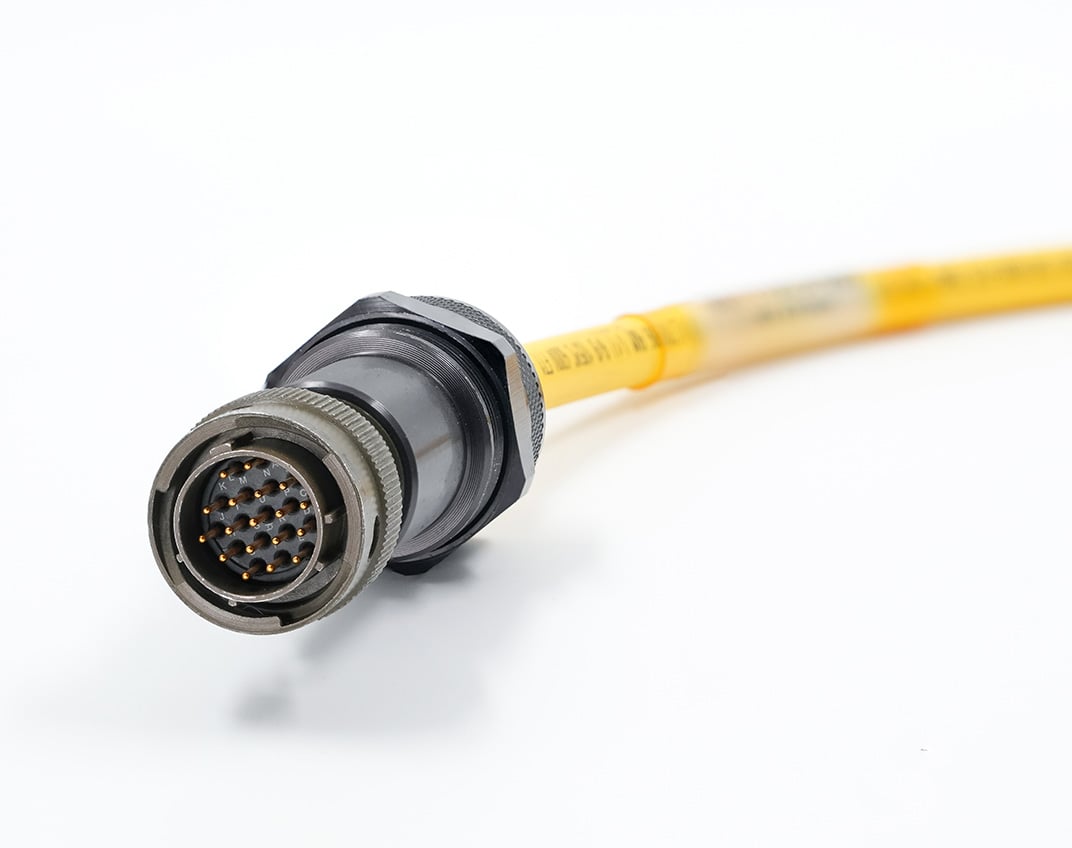

Mil-Spec MIL-C-26482 Series 2 Assemblies

MIL-C-26482 Series 2 connectors are designed with silicone inserts and seals for applications where high temperatures and chemicals cause failure. These connectors are intermateable and interchangeable with all MIL-C-26482 connectors. This style of connector uses a bayonet-style coupling system for quick mating and unmating.

The TPC-designed back shell incorporates a sealing grommet and strain relief for added cable life. The shell design is machined aluminum, incorporating a low profile design and a reduced overall length for tight installations.

Features

MOLDED BACK SHELL

Is machined aluminum incorporating a low profile design and a reduced overall length for tight installations.

27 Contact Layouts

Available ranging from 8 to 24 positions and up to 22 amps per contact.

WIRE RANGE SIZES

12AWG, 16AWG, and 20AWG sizes.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Military Connector Assemblies

Ratings / Characteristics

  • MIL-C-26482

  • Mating Cycles > 500

  • Operating Temperature Range -55°C to 200°C

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing
