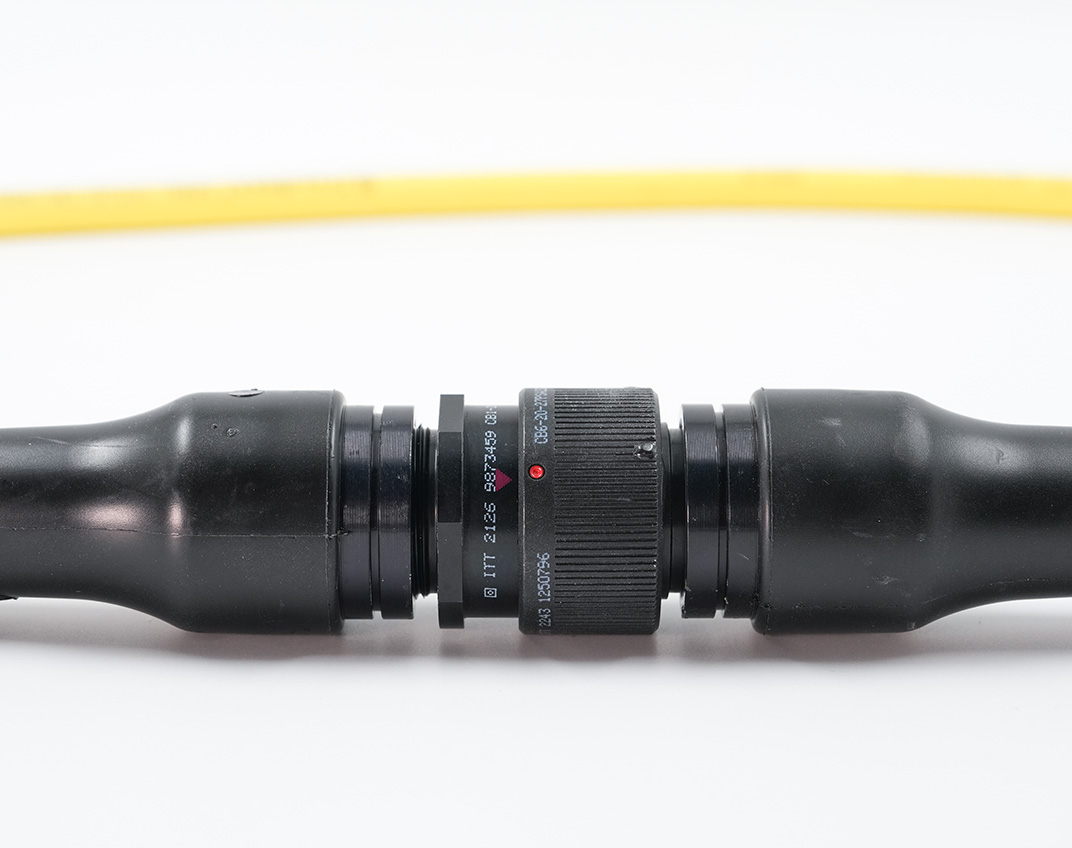

Mil-Spec MIL-C-5015 Assemblies

TPC offers a wide range of circular connector assemblies designed and manufactured to MIL-C-5015 standards. Originally developed by the armed services for use in severe aeronautical and tactical service applications, military connectors are short in length and feature a low-profile design.

TPC’s version also offers a back shell designed to increase the life span of the cable. TPC military connector assemblies are an ideal choice for harsh automotive, metal, wood, food & beverage, marine, and other industrial applications where a rugged, threaded connector is required. The combination of TPC’s high-performance cable, the proven reliability of the MIL-C-5015 connector, and the flex/strain relief of our back shell make for an unbeatable system.

Our assembly options include 180 contact layouts ranging from 1 to 65 positions and up to 150 amps per contact. Our layouts also allow for the mixing of power and signal contacts, power only and signal only.

Features

MOLDED BACK SHELL

The Molded version promotes a fully sealed tamper proof backend with superior cable strain relief. The low profile design allows for easy placement and routing capability during installation.

MECHANICAL BACK SHELL

The Mechanical version contains a sealing grommet that grips the cable jacket to prevent moisture ingress and is also field repairable in the instance of damage.

WIRE RANGE SIZES20 AWG to 0 AWG up to 150 amps.

20 AWG to 0 AWG up to 150 amps.

INSULATION RESISTANCE

>5000 megohms at 77°F (25°C) per MIL-C-5015.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Military Connector Assemblies

CustomCable

Top 5 Featured Layouts

Ratings / Characteristics

  • MIL-C-5015

  • VG 95 234 NATO Specification

  • Operating Temperature Range -55°C to 125°C

  • IP69k (Reverse Bayonet Coupling Only)

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing
