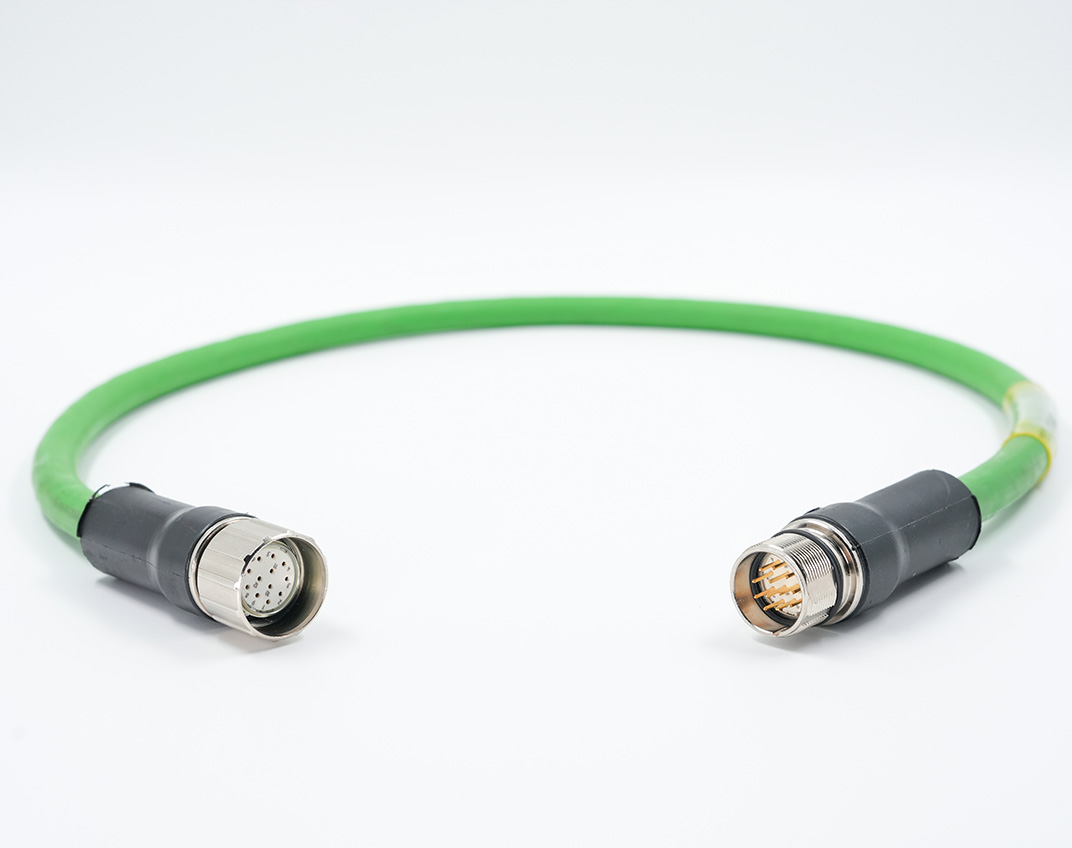

M23 Connector Assemblies

Fully Molded M23 Connector Assemblies are designed with a fully molded backend or a mechanical option. This fully molded M23 Connector cable assembly prevents ingress from water, oil, and dust. The molding also helps prevent conductor failure in the back-end termination area by holding the conductors in place when the cable flexes or gets pulled on.

Our assemblies also use our TPC high performance cables that are designed to reduce failure in applications that see flexing, abrasion, chemicals, and extreme temperatures. TPC M23 connector assemblies are resistant to wear and tear from repetitive motion, continuous flexing and pulling.

These are ideal to keep your line running longer and are the superior choice for servo motor cables used in Rockwell, Allen Bradley and Siemens applications.



Features

FULLY MOLDED BACKEND

Prevents the ingress of dirt and moisture, allows for flexing without cable pulling out of the connector.

NUMEROUS INSERT VARIATIONS

The M23 insert offering is versatile in design accommodating both signal and power applications ranging from 28-14 AWG.

SLIM/LOW PROFILE MOLDED DESIGN

Small molded backend for easy installation and routing.

M23 INTERFACE

Used as the preferred connection in many motor and drive applications and offers both the threaded and quick bayonet locking systems.

SUPERIOR CABLES

TPC offers a wide array of cable products to fit the M23 Product line.

CUSTOMIZABLE

TPC’s engineering group offers custom pinouts and wiring capabilities with numerous cable products at any length you require. You can get the cable assembly you need designed specifically to your application.

FULLY ASSEMBLED

Don’t hassle with the assembly of these connectors in the field. TPC can build all of your molded and mechanical assemblies.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own M23 Connector Assembly

Ratings / Characteristics

  • IP67/IP69K per EN 60 629 (connected)

  • Operating Temperature Range -40° to 125°C

  • Mating Cycles > 1000

  • Nickel Plated Housing Surface
