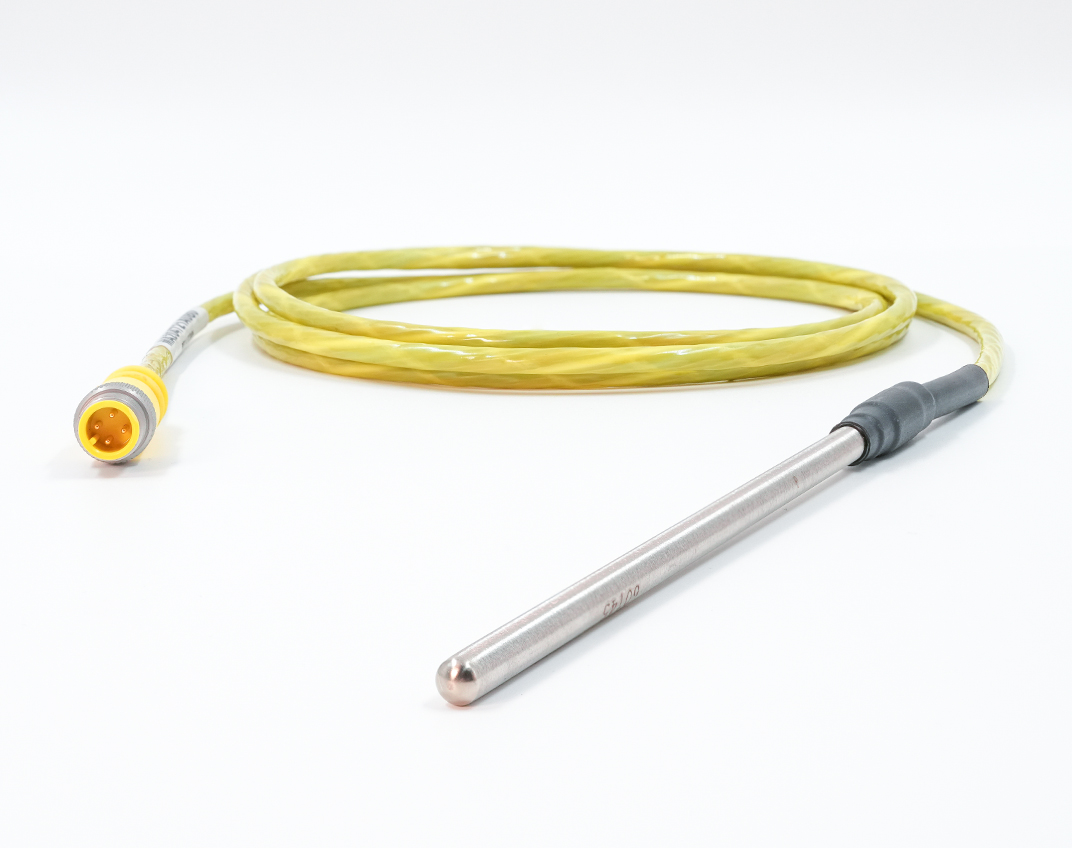

RTD Thermoprobe M12 3_Web

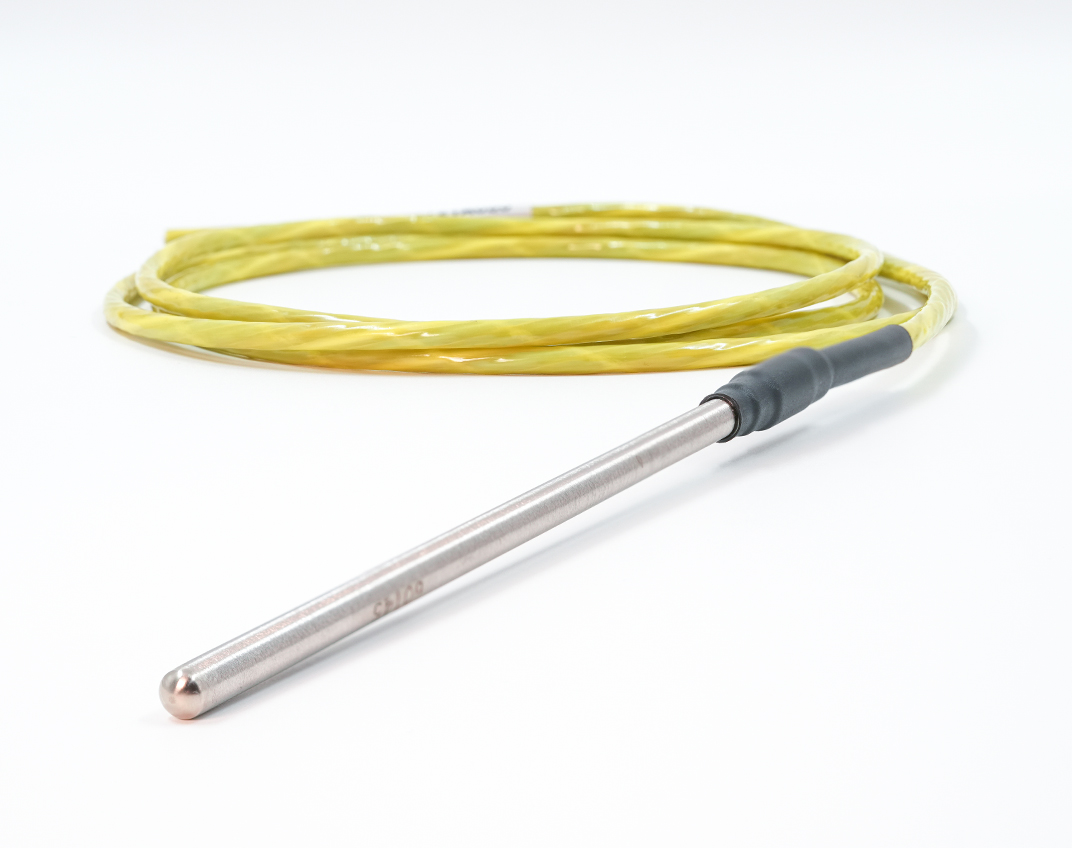

RTD Thermoprobe 2_Web-1

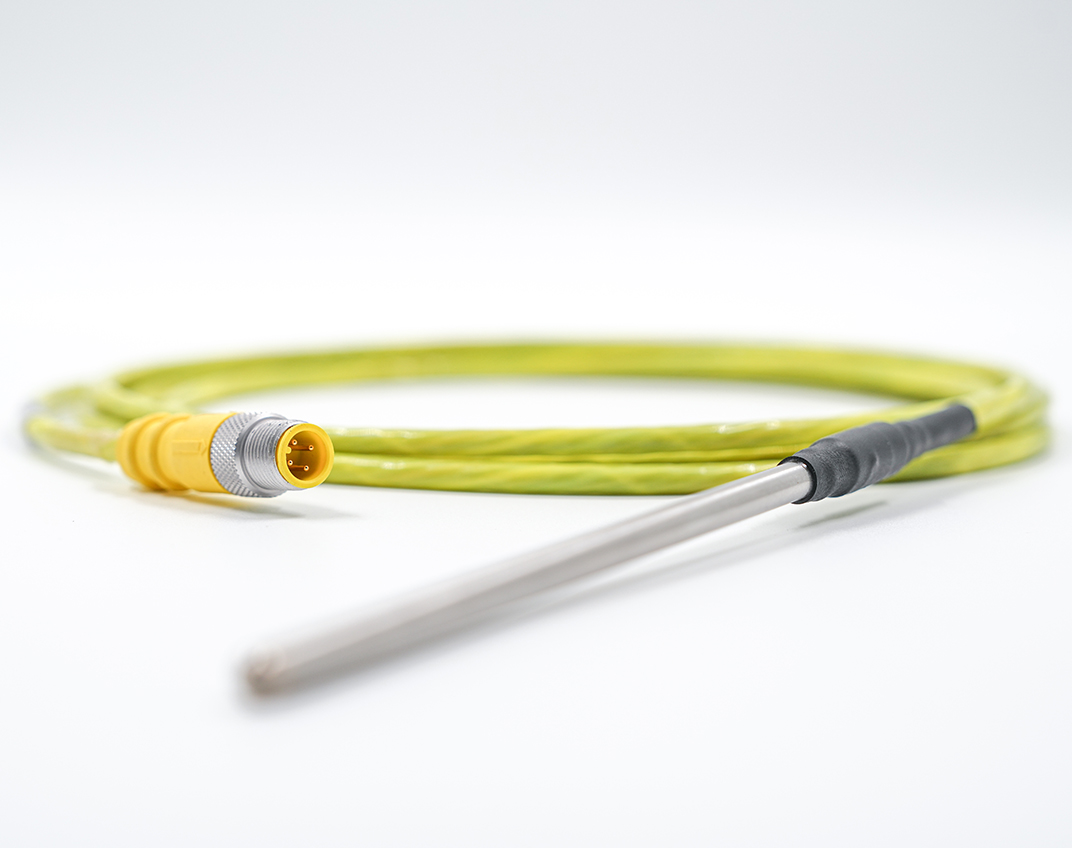

RTD Thermoprobe M12 1_Web

RTD Probe Assemblies

TPC specializes in the design and manufacturing of a wide range of RTD probe connector assembly applications. With TPC’s high-performance cable offerings and a wide range of probe materials and customizations, RTD Probe Connector Assemblies are built to withstand the most extreme temperature sensing applications.



Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

TPC High-Performance Cable

TPC’s full line of high-performance cables are available to use, offering different jacket and insulation types to meet your specific application requirements.

Sealed RTD

RTD element is sealed in its sheath and the connection point is protected with either 6:1 glue shrink, or chemical/heat resistant heat shrink.

Connector Offerings

Variety of connector choices for the cold end, ranging from molded M12 DC Micro’s to durable Mil-Spec 5015’s or 26482’s.

Material and Type Customizations

Full customization of probe elements, types and materials to meet your specific application requirements.

Applications

abrasions-icon

Abrasion

heat-icon

High-Temperature

cold-icon

Cold Temperature

chemicals-icon

Chemicals

Part Numbers

MA Probe Diameter (in) Element Configuration Type Sheath Material Temperature Range Probe Length (in) TPC Cable A Cable Length (in)
MA 375 (0.375") S2 (Single 2-Wire) E1 (100 Ω Pt 385) 30 (304 SS) A (-200°C - 260°C) X XXXXX A XXX
- 250 (0.250") S3 (Single 3-Wire) J1 (100 Ω Pt 392) 32 (316 SS) B (-200°C - 315°C) - - - -
- 215 (0.215") S4 (Single 4-Wire) E3 (500 Ω Pt 385) 39 (Inconel 600) C (-260°C - 860°C) - - - -
- 188 (0.188") D4 (Dual 2-Wire) E4 (1,000 Ω Pt 385) - D (-200°C - 482°C) - - - -
- 125 (0.125") D6 (Dual 3-Wire) C6 (10 Ω Cu @ 25°C) - - - - - -
- - D8 (Dual 4-Wire) N7 (120 Ω Ni 672) - - - - - -
- - - - - - - - - -
Example: MA 375 S3 E4 32 A 6 40551 A 120

Description:
TPC Sealed RTD Probe .375" Probe OD, Single 3-Wire Element, 1000Ohm Pt Type, 316 SS Sheath, -200C - 260C Temp Range, 6" Probe Length, TPC 18/3 Chem-Gard 200 RTD Cable, 120" Cable Length

*If customization is needed or connector is required on cold end, please detail requirements to your TPC Sales Rep*
*Part number may change based on engineering requirements*

Related Products

Chem-Gard® 200 RTD Cable 3QV_Web

Chem-Gard® 200 RTD Cable
Thermo-Trex 2800 RTD Cable 3QV_Web

Thermo-Trex® 2800 RTD Cable

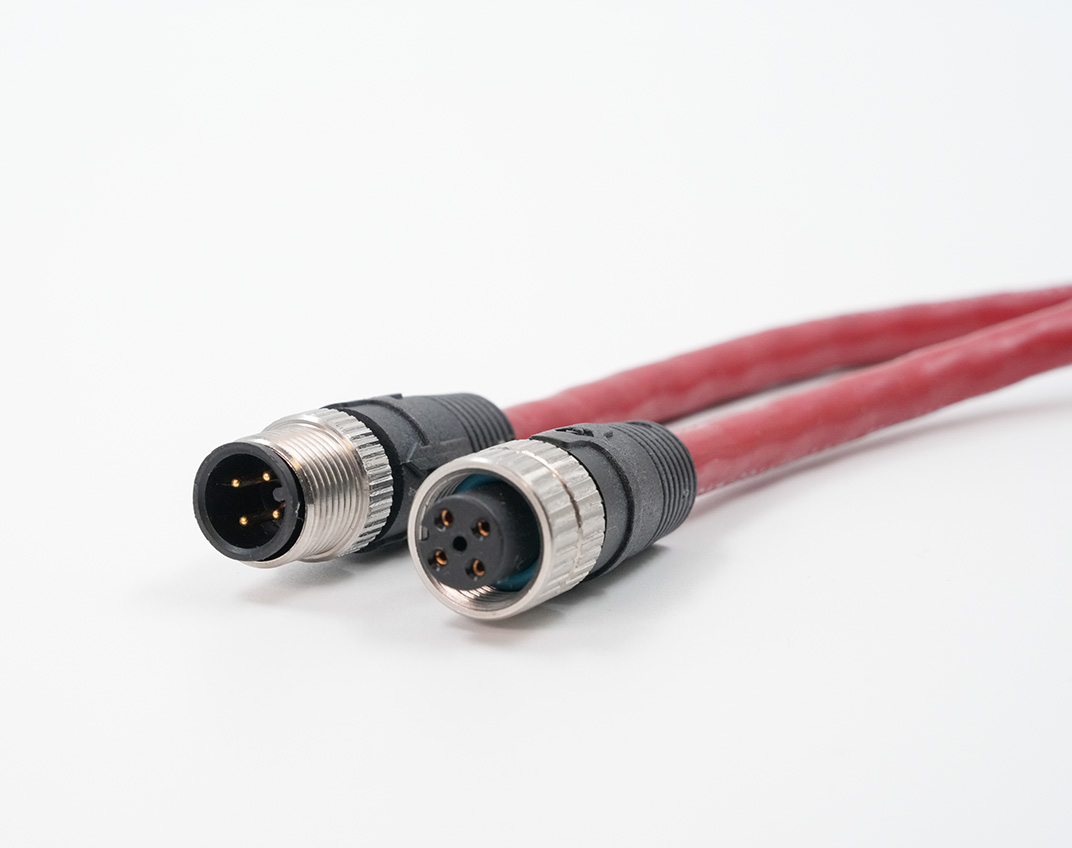

Quick-ConnexTM 18 AWG M12 DC Micro High Temperature Silicone Cordsets 3QV_Web
