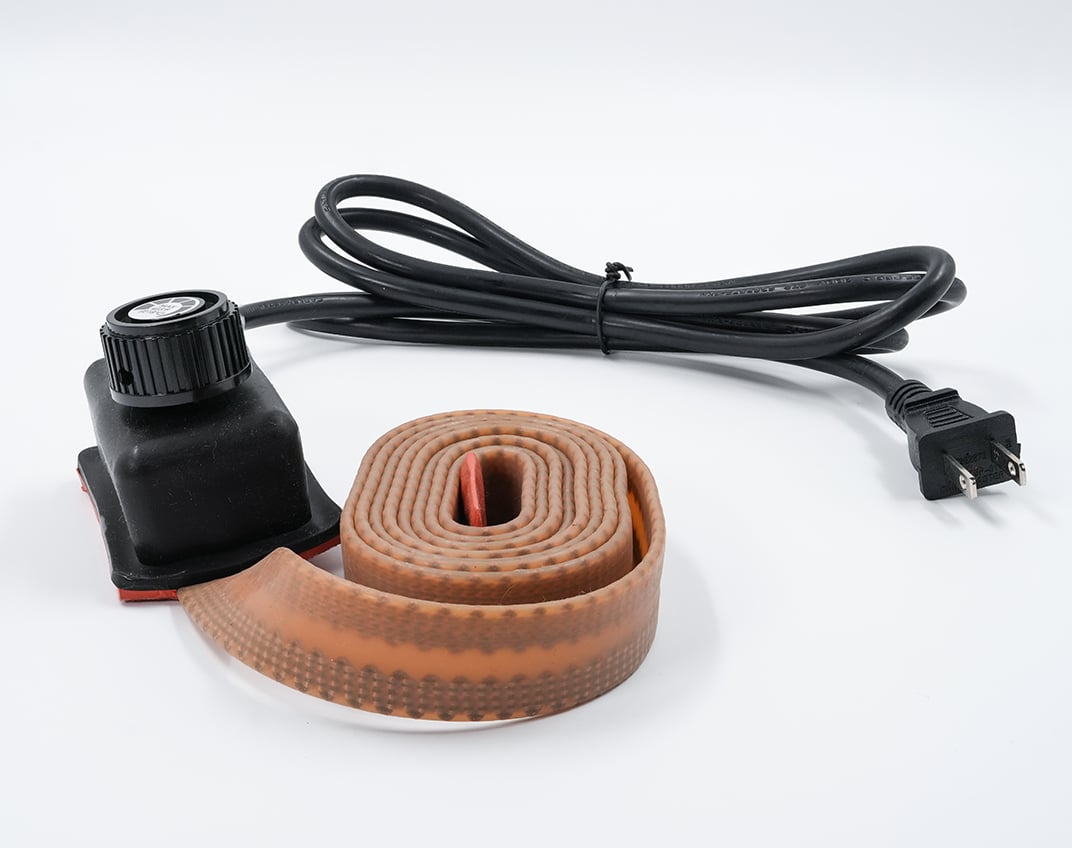

Thermostatically Controlled Heat Trace Assembly

Thermostatically Controlled Heat Trace Assembly is specifically designed for the de-icing of frozen pipes and valves. The adjustable thermostat makes it easy to dial in the temperature you need up to 425°F.

Our flexible silicone heating tape can be wrapped around pipes as small as 0.25" O.D. and features a plug-and-play design to eliminate the need for hardwiring.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

FLEXIBLE SILICONE HEATING TAPE

Can be wrapped around pipes as small as 0.25" O.D. The silicone rubber outer layer is resistant to moisture and chemicals. Multi-stranded nickel chromium resistance wire provides greater flexibility for easier installation, removal and kink resistance. Braided tape element offers more resistance to stretching, fatigue and breakage. Suitable for electrically conductive surfaces.

RUGGED STRAIN RELIEF/SEALED DESIGN

Moisture and chemical resistant sealed construction. Both the tape and the power cord are well-secured inside the rubber, moisture resistant control box.

ADJUSTABLE THERMOSTAT

Dial in the temperature you need up to 425°F / 218 °C.

PLUG & PLAY DESIGN

Eliminates the need for hardwiring.

Resources

Specsheets

Product Overview

Video

Heat Trace Demo Video

Ratings / Characteristics

  • CE 73/23/EEC EN 60519-1, 2

  • 120 VAC

  • Temperature Rated to 425°F / 218 degrees C

Applications

cold-icon

Cold Temperatures

Part Numbers

Part No. (TC-ER*) Type Length
feet		 WT. Per 1000’
lbs		 Shielding Type
TPCHSTAT101002 Adjustable Heat Trace 2 144 No Shielding
TPCHSTAT101004 Adjustable Heat Trace 4 288 No Shielding
TPCHSTAT101006 Adjustable Heat Trace 6 432 No Shielding
TPCHSTAT101010 Adjustable Heat Trace 10 720 No Shielding
TPCHSTAT101008 Adjustable Heat Trace 8 576 No Shielding
TPCHSTAT101020 Adjustable Heat Trace 20 1440 No Shielding
