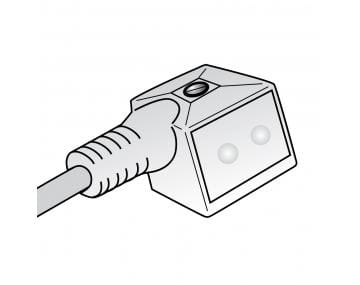

3 Wire Plus Ground DIN 18mm

DIN connector assemblies are available with a Blunt Cut or with a Mini or Micro plug secured to our Trex-Onics® 18 AWG cable which provides a superior first line of defense against tearing, abrasion, impact, oil, ozone and most chemicals. The polyurethane shell seals without the need for a gasket and provides protection up to IP67/NEMA 6.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

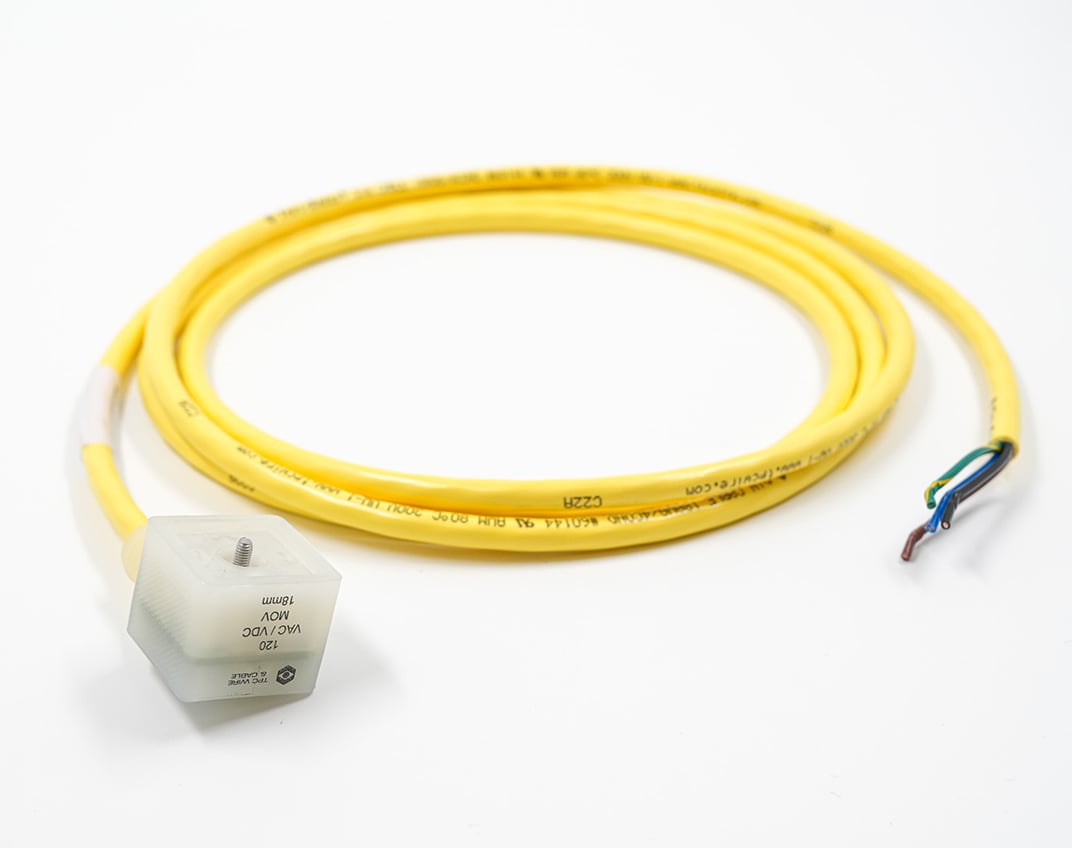

TREX-ONICS® 18/4 CONDUCTOR CABLE WITH HEAVY-DUTY YELLOW POLYURETHANE JACKET

A superior first line defense against tearing abrasion, impact, oil, ozone and most chemicals.

RUGGED POLYURETHANE SHELL DESIGN

Resists damage from impact, abrasion, oil and most chemicals.

ZYTEL INSERT

Durable fiberglass filled nylon insert.

CAPTIVE CENTER SCREW

Easy installation and prevents loss.

MOLDED ASSEMBLY

DIN Plug is secured to the cord to seal the unit, preventing dust and moisture from damaging the internal wiring.

SURGE SUPPRESSION

Built into each Plug to protect against electrical spikes or surges.

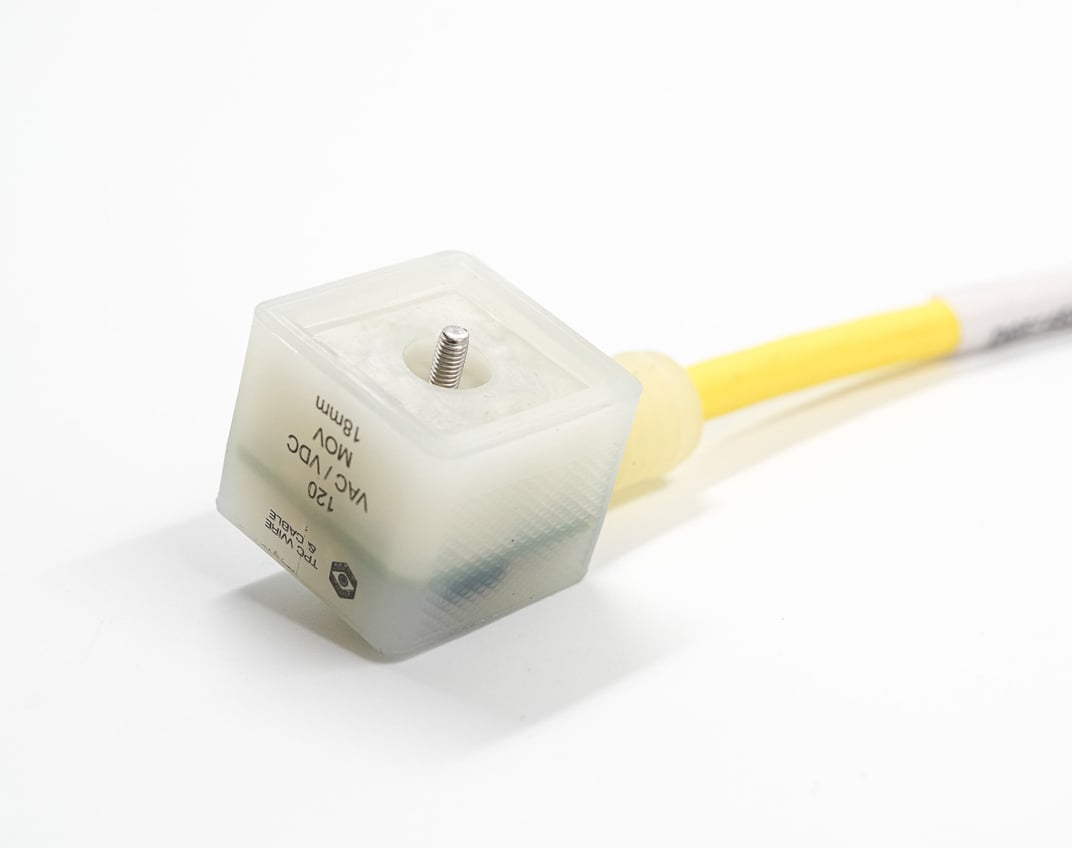

SUPER BRIGHT LED STATUS LIGHT

Incorporated into translucent DIN body, protecting LED from damage. Easily visible from multiple angles.

SELF SEALING UNIT

Polyurethane shell seals without the need for a gasket, providing protection up to IP67/NEMA 6 from dust, moisture and oil.

ALL POLYURETHANE MICRO OR MINI-HEAD DESIGN

Ensures 100% bonding between jacket and head.

DIN CONNECTORS IN INDUSTRY STANDARD CONFIGURATIONS

Available with TPC Mini or Micro Quick-Connects™.

Resources

Specsheets

Product Overview

Specsheets

DIN Connector Assemblies

CustomCable

Build Your Own DIN Connector Cord Sets

Ratings / Characteristics

  • Connection Voltage: 6 – 24 V AC/DC or 120 V AC@ 50/60 Hz

  • Rated Voltage Max: 250V AC 50/60 Hz 300V DC

  • Operating Temperature Range -25°C to 80°C

  • Nominal Current: 10 Amps

  • Connector Material: Durable Polyurethane, White Translucent Body with LED Power Status Indicator

  • Center Screw: M3x 28mm

  • Cable Type: Trex-Onics®

  • Cable Size: 18/4

  • Color Code: Black, Brown, Blue, Green/Yellow

  • NEMA 6 Rated

  • RoHS Compliant

  • Max Conductor Temp 80°C

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

BLUNT CUT PART NO. DESCRIPTION Conductor Size (AWG) Conductor/Pole Count CORD FEET Meters Shielding Type
D05145XXAM002 120V, LED, Suppression, Ground away from cable outlet 18 AWG 4 6.56 2 No Shielding
D05145XXAM003 120V, LED, Suppression, Ground away from cable outlet 18 AWG 4 9.84 3 No Shielding
D05145XXAM004 120V, LED, Suppression, Ground away from cable outlet 18 AWG 4 13.12 4 No Shielding
D05145XXAM005 120V, LED, Suppression, Ground away from cable outlet 18 AWG 4 16.4 5 No Shielding
D05145XXAM006 120V, LED, Suppression, Ground away from cable outlet 18 AWG 4 19.68 6 No Shielding
D05245XXAM002 24V, LED, Suppression, Ground away from cable outlet 18 AWG 4 6.56 2 No Shielding
D05245XXAM003 24V, LED, Suppression, Ground away from cable outlet 18 AWG 4 9.84 3 No Shielding
D05245XXAM004 24V, LED, Suppression, Ground away from cable outlet 18 AWG 4 13.12 4 No Shielding
D05245XXAM005 24V, LED, Suppression, Ground away from cable outlet 18 AWG 4 16.4 5 No Shielding
D05245XXAM006 24V, LED, Suppression, Ground away from cable outlet 18 AWG 4 19.68 6 No Shielding
