Quick-Connex®ISO DIN Form “A” — 18mm

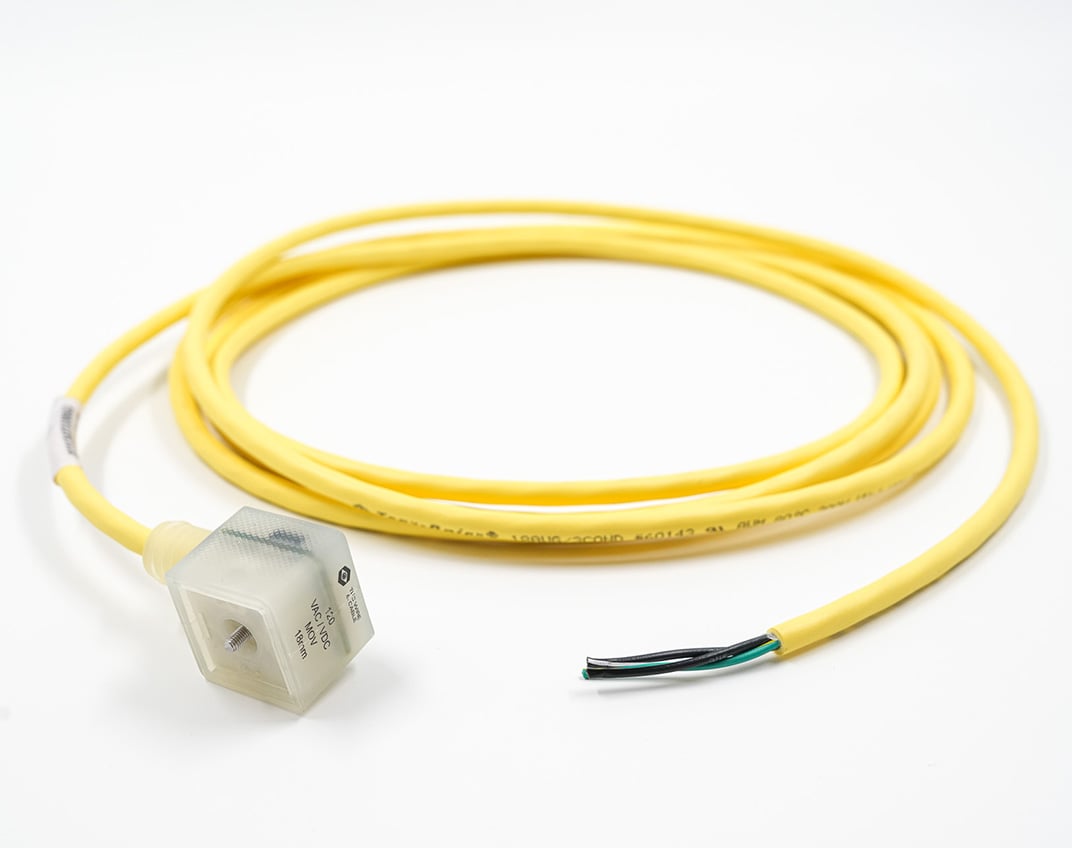

Quick-Connex® DIN connector assemblies feature a self-sealing polyurethane shell design providing environmental protection up to IP67/NEMA 6, an integrated LED connector head, built in surge suppression and secured to our Trex-Onics® 18 AWG cable. Available with a Blunt Cut or with a Mini or Micro connector.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Cordsets made with Trex-Onics® 18AWG/3 Conductor Cable with Heavy-Duty Yellow Polyurethane Jacket

Provides superior first line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Fully Molded, Rugged Polyurethane Shell Design

Completely seals the unit preventing dust, fluids, and contaminants from damaging the internal wiring while providing superior strain relief. Resists damage from impact, abrasion, oil, and most chemicals.

Captive Center Screw

Allows for easy installation and will not fall out, preventing loss.

Surge Suppression

Built into each DIN to protect against electrical spikes or surges.

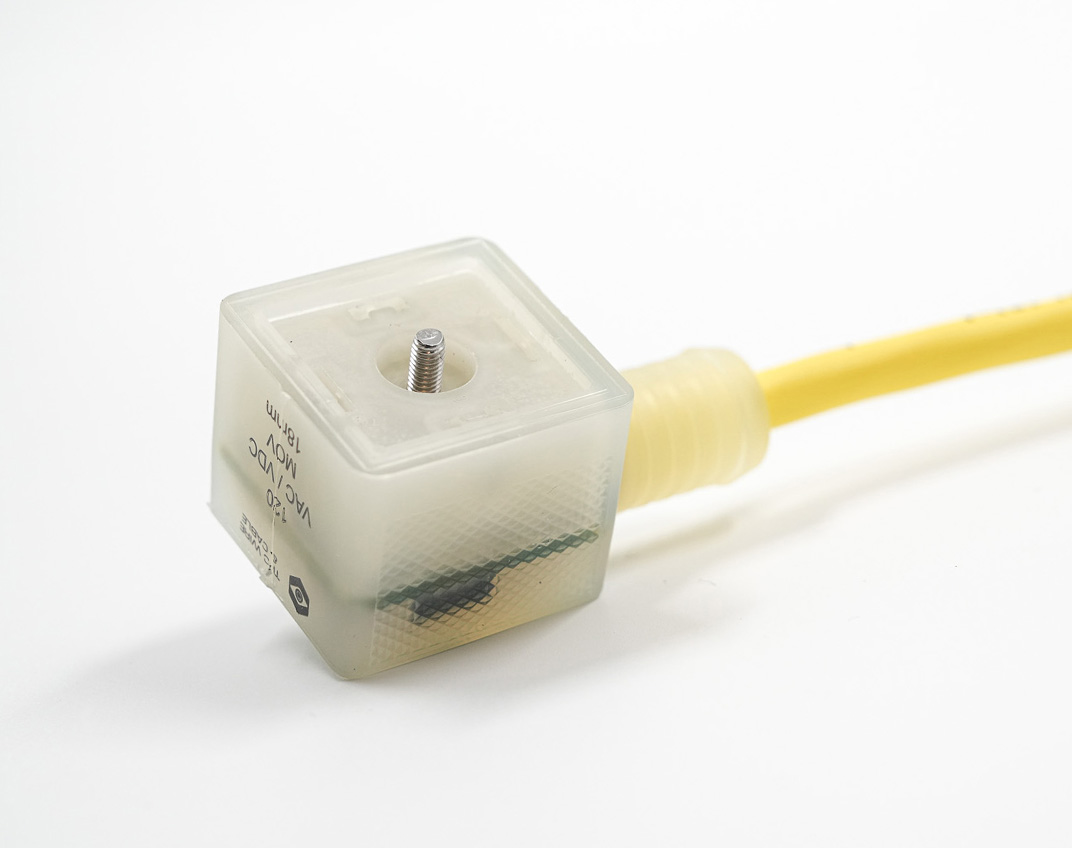

Super Bright LED Status Light

Incorporated into translucent DIN body, protecting LED from damage. Easily visible from multiple angles.

Self-Sealing Gasket-Free Unit

Polyurethane shell seals without the need for a gasket, providing protection up to IP67/NEMA 6 from dust, moisture and oil.

Optional All Polyurethane Micro or Mini-Head Design

Ensures 100% bonding between jacket and connector head while resisting damage from impact, abrasion, oil, and most chemicals.

Resources

Specsheets

Product Overview

TPC-Video Resource Graphic

Amphenol TPC Wire & Cable- DIN Connector Assemblies

Specsheets

DIN Connector Assemblies

CustomCable

Build Your Own DIN Connector Cord Sets

Resource-Color Code

Quick-Connex® ISO DIN Form “A” — 18mm

Ratings / Characteristics

  • RoHS Compliant

  • Connection Voltage: 6 – 24 V AC/DC or 120 V AC@ 50/60 Hz

  • Rated Voltage Max: 250V AC 50/60 Hz 300V DC

  • Nominal Current: 10 Amps

  • IP67/NEMA 6 Rated

  • Operating Temperature Range -25°C to 80°C

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

BLUNT CUT PART NO. AC MICRO PART NO. DC MICRO PART NO. MINI PART NO. DESCRIPTION CORD FEET CORD METERS Conductor Size (AWG) Conductor/Pole Count Shielding Type
D01134XXAM002 D01134GCAM002 - D01134LCAM002 120V DIN Conn w/LED & Suppression 6.56 2 18 AWG 3 No Shielding
D01134XXAM003 D01134GCAM003 - D01134LCAM003 120V DIN Conn w/LED & Suppression 9.84 3 18 AWG 3 No Shielding
D01134XXAM004 D01134GCAM004 - D01134LCAM004 120V DIN Conn w/LED & Suppression 13.12 4 18 AWG 3 No Shielding
D01134XXAM005 D01134GCAM005 - D01134LCAM005 120V DIN Conn w/LED & Suppression 16.4 5 18 AWG 3 No Shielding
D01134XXAM006 D01134GCAM006 - D01134LCAM005 120V DIN Conn w/LED & Suppression 19.68 6 18 AWG 3 No Shielding
D01234XXAM002 D01234GCAM002 D01234FCAM002 D01234LCAM002 24V DIN Conn w/LED & Suppression 6.56 2 18 AWG 3 No Shielding
D01234XXAM003 D01234GCAM003 D01234FCAM003 D01234LCAM003 24V DIN Conn w/LED & Suppression 9.84 3 18 AWG 3 No Shielding
D01234XXAM004 D01234GCAM004 D01234FCAM004 D01234LCAM004 24V DIN Conn w/LED & Suppression 13.12 4 18 AWG 3 No Shielding
D01234XXAM005 D01234GCAM005 D01234FCAM005 D01234LCAM005 24V DIN Conn w/LED & Suppression 16.4 5 18 AWG 3 No Shielding
D01234XXAM006 D01234GCAM006 D01234FCAM006 D01234LCAM006 24V DIN Conn w/LED & Suppression 19.68 6 18 AWG 3 No Shielding
