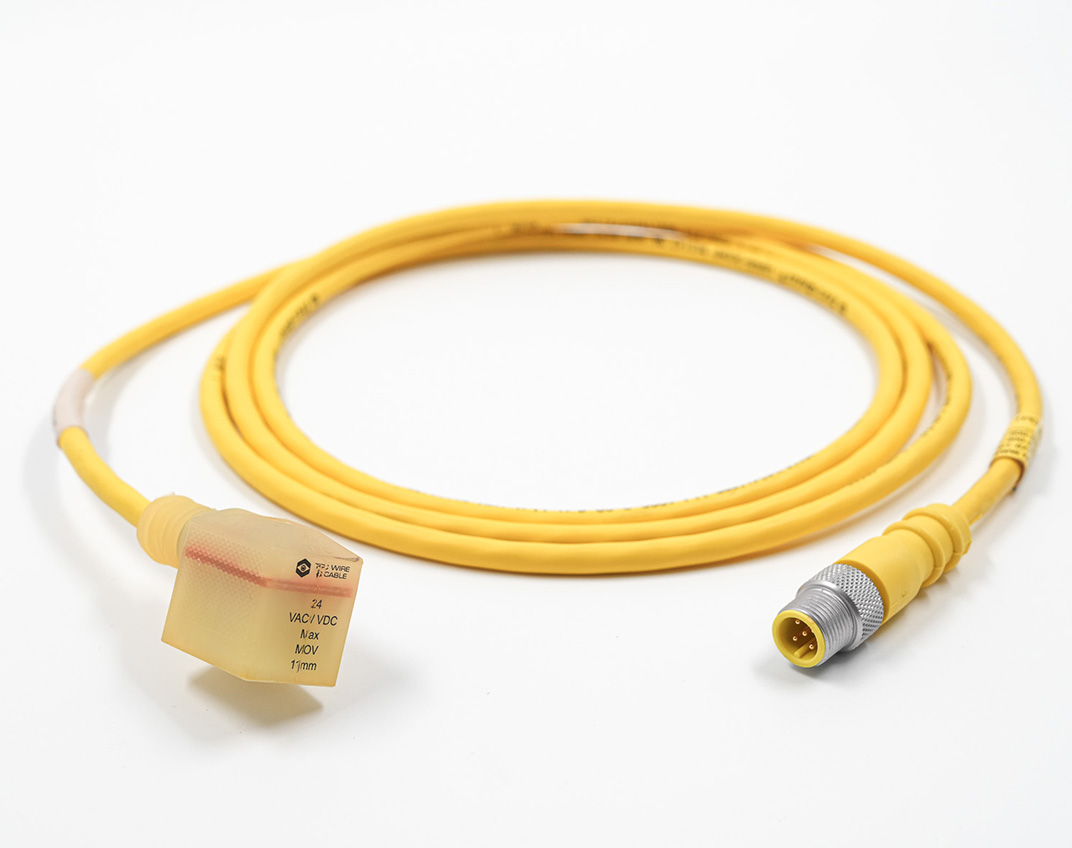

Mini DIN Standard 11mm 3QV_Web

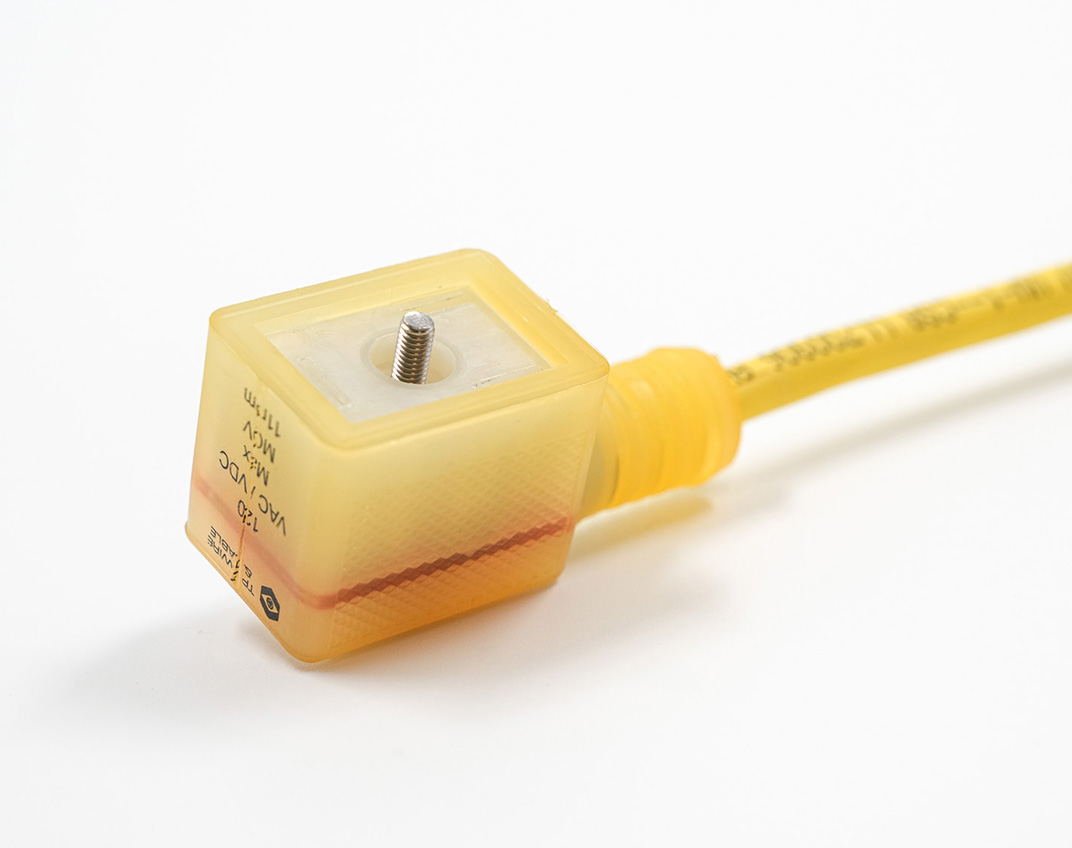

Mini DIN Standard 11mm Macro_Web

Quick-Connex® Mini DIN Standard 11mm

Quick-Connex® DIN connector assemblies feature a self-sealing polyurethane shell design providing environmental protection up to IP67/NEMA 6, an integrated LED connector head, built in surge suppression and secured to our Trex-Onics® 18 AWG cable. Available with a Blunt Cut or with a Mini or Micro connector.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Cordsets made with Trex-Onics® 18AWG/3 Conductor Cable with Heavy-Duty Yellow Polyurethane Jacket

Provides superior first line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Fully Molded, Rugged Polyurethane Shell Design

Completely seals the unit preventing dust, fluids, and contaminants from damaging the internal wiring while providing superior strain relief. Resists damage from impact, abrasion, oil, and most chemicals.

Captive Center Screw

Allows for easy installation and will not fall out, preventing loss.

Surge Suppression

Built into each DIN to protect against electrical spikes or surges.

Super Bright LED Status Light

Incorporated into translucent DIN body, protecting LED from damage. Easily visible from multiple angles.

Self-Sealing Gasket-Free Unit

Polyurethane shell seals without the need for a gasket, providing protection up to IP67/NEMA 6 from dust, moisture and oil.

Optional All Polyurethane Micro or Mini-Head Design

Ensures 100% bonding between jacket and connector head while resisting damage from impact, abrasion, oil, and most chemicals.

SELF SEALING UNIT

Polyurethane shell seals without the need for a gasket, providing protection up to IP67/NEMA 6 from dust, moisture and oil.

ALL POLYURETHANE MICRO OR MINI-HEAD DESIGN

Ensures 100% bonding between jacket and head.

DIN CONNECTORS IN INDUSTRY STANDARD CONFIGURATIONS

Available with TPC Mini or Micro Quick-Connects™.

Resources

Specsheets

Product Overview

TPC-Video Resource Graphic

Amphenol TPC Wire & Cable- DIN Connector Assemblies

Specsheets

DIN Connector Assemblies

CustomCable

Build Your Own DIN Connector Cord Sets

Resource-Color Code

Quick-Connex®Mini DIN Standard 11mm

Ratings / Characteristics

  • RoHS Compliant

  • Connection Voltage: 6 – 24 V AC/DC or 120 V AC@ 50/60 Hz

  • Rated Voltage Max: 250V AC 50/60 Hz 300V DC

  • Nominal Current: 10 Amps

  • IP67/NEMA 6 Rated

  • Operating Temperature Range -25°C to 80°C

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

BLUNT CUT PART NO. AC MICRO PART NO. DC MICRO PART NO. MINI PART NO. DESCRIPTION CORD FEET CORD METERS Conductor Size (AWG) Conductor/Pole Count Shielding Type
D02135XXAM002 D02135GCAM002 - D02135LCAM002 120V DIN Conn w/LED & Suppression 6.56 2 18 AWG 3 No Shielding
D02135XXAM003 D02135GCAM003 - D02135LCAM003 120V DIN Conn w/LED & Suppression 9.84 3 18 AWG 3 No Shielding
D02135XXAM004 D02135GCAM004 - D02135LCAM004 120V DIN Conn w/LED & Suppression 13.12 4 18 AWG 3 No Shielding
D02135XXAM005 D02135GCAM005 - D02135LCAM005 120V DIN Conn w/LED & Suppression 16.4 5 18 AWG 3 No Shielding
D02135XXAM006 D02135GCAM006 - D02135LCAM005 120V DIN Conn w/LED & Suppression 19.68 6 18 AWG 3 No Shielding
D02235XXAM002 D02235GCAM002 D02235FCAM002 D02235LCAM002 24V DIN Conn w/LED & Suppression 6.56 2 18 AWG 3 No Shielding
D02235XXAM003 D02235GCAM003 D02235FCAM003 D02235LCAM003 24V DIN Conn w/LED & Suppression 9.84 3 18 AWG 3 No Shielding
D02235XXAM004 D02235GCAM004 D02235FCAM004 D02235LCAM004 24V DIN Conn w/LED & Suppression 13.12 4 18 AWG 3 No Shielding
D02235XXAM005 D02235GCAM005 D02235FCAM005 D02235LCAM005 24V DIN Conn w/LED & Suppression 16.4 5 18 AWG 3 No Shielding
D02235XXAM006 D02235GCAM006 D02235FCAM006 D02235LCAM006 24V DIN Conn w/LED & Suppression 19.68 6 18 AWG 3 No Shielding
