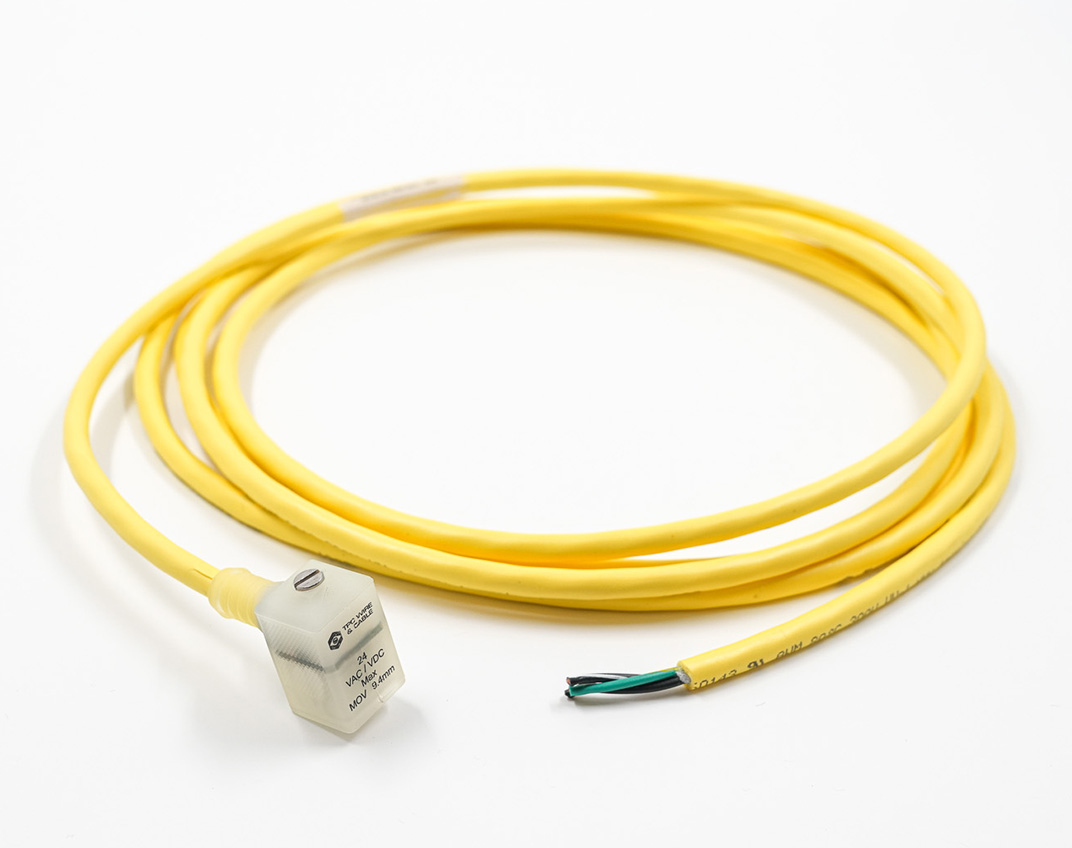

Quick-Connex®Sub-Micro DIN Standard 9.4mm

Quick-Connex® DIN connector assemblies feature a self-sealing
polyurethane shell design providing environmental protection up to IP67/
NEMA 6, an integrated LED connector head, built in surge suppression
and secured to our Trex-Onics® 18 AWG cable. Available with a Blunt
Cut or with a Mini or Micro connector.



Features

Cordsets made with Trex-Onics® 18AWG/3 Conductor Cable with Heavy-Duty Yellow Polyurethane Jacket

Provides superior first line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Fully Molded, Rugged Polyurethane Shell Design

Completely seals the unit preventing dust, fluids, and contaminants from damaging the internal wiring while providing superior strain relief. Resists damage from impact, abrasion, oil, and most chemicals.

Captive Center Screw

Allows for easy installation and will not fall out, preventing loss.

Surge Suppression

Built into each DIN to protect against electrical spikes or surges.

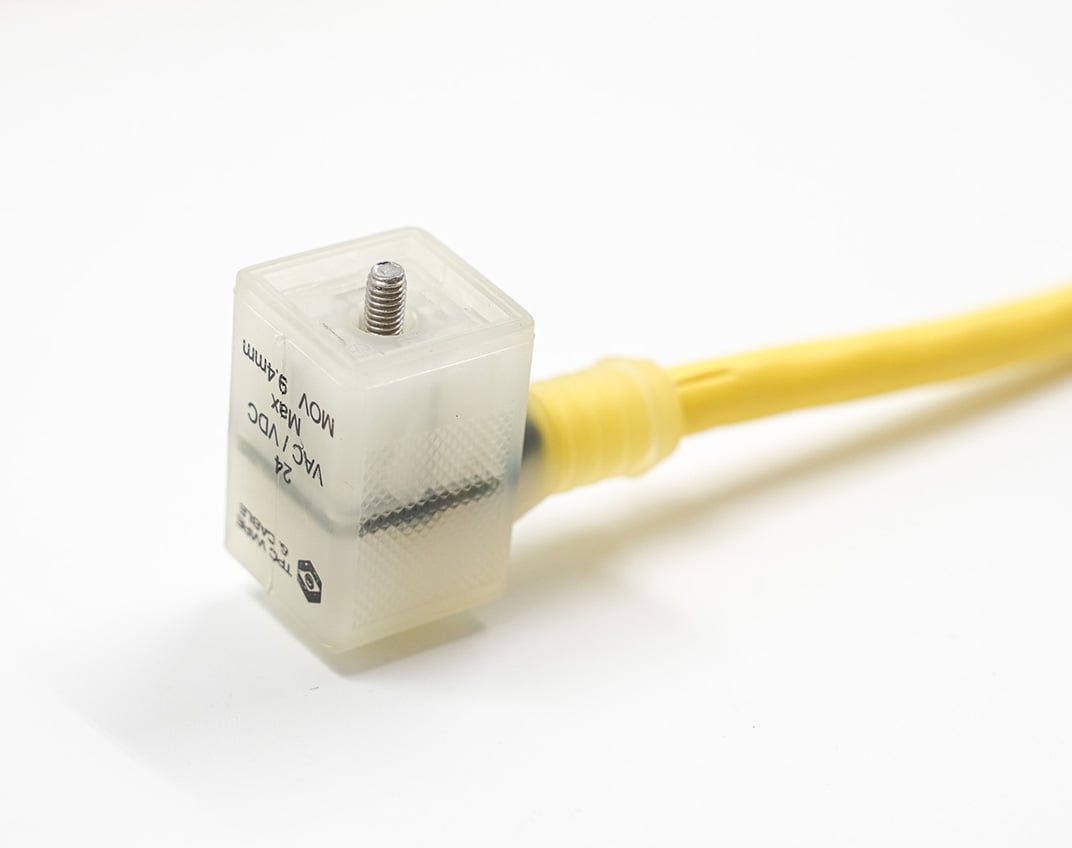

Super Bright LED Status Light

Incorporated into translucent DIN body, protecting LED from damage. Easily visible from multiple angles.

Self-Sealing Gasket-Free Unit

Polyurethane shell seals without the need for a gasket, providing protection up to IP67/NEMA 6 from dust, moisture and oil.

Optional All Polyurethane Micro or Mini-Head Design

Ensures 100% bonding between jacket and connector head while resisting damage from impact, abrasion, oil, and most chemicals.

Resources

Specsheets

Product Overview

Specsheets

DIN Connector Assemblies

CustomCable

Build Your Own DIN Connector Cord Sets

Resource-Color Code

Quick-Connex®Sub-Micro DIN Standard 9.4mm

Ratings / Characteristics

  • RoHS Compliant

  • Connection Voltage: 6 – 24 V AC/DC or 120 V AC@ 50/60 Hz

  • Rated Voltage Max: 250V AC 50/60 Hz 300V DC

  • Nominal Current: 6 Amps

  • Operating Temperature Range -25°C to 80°C

  • IP67/NEMA 6 Rated

  • Bend Radius (Static): 6x Cable O.D.

  • Bend Radius (Dynamic): 8x Cable O.D.

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

BLUNT CUT PART NO. DESCRIPTION CORD FEET Meters Conductor Size (AWG) Conductor/Pole Count Shielding Type
D03134XXAM002 120V, LED, Suppression, Ground at Cable Outlet 6.56 2 18 AWG 3 No Shielding
D03134XXAM003 120V, LED, Suppression, Ground at Cable Outlet 9.84 3 18 AWG 3 No Shielding
D03134XXAM004 120V, LED, Suppression, Ground at Cable Outlet 13.12 4 18 AWG 3 No Shielding
D03134XXAM005 120V, LED, Suppression, Ground at Cable Outlet 16.4 5 18 AWG 3 No Shielding
D03134XXAM006 120V, LED, Suppression, Ground at Cable Outlet 19.68 6 18 AWG 3 No Shielding
D03234XXAM002 24V, LED, Suppression, Ground at Cable Outlet 6.56 2 18 AWG 3 No Shielding
D03234XXAM003 24V, LED, Suppression, Ground at Cable Outlet 9.84 3 18 AWG 3 No Shielding
D03234XXAM004 24V, LED, Suppression, Ground at Cable Outlet 13.12 4 18 AWG 3 No Shielding
D03234XXAM005 24V, LED, Suppression, Ground at Cable Outlet 16.4 5 18 AWG 3 No Shielding
D03234XXAM006 24V, LED, Suppression, Ground at Cable Outlet 19.68 6 18 AWG 3 No Shielding
