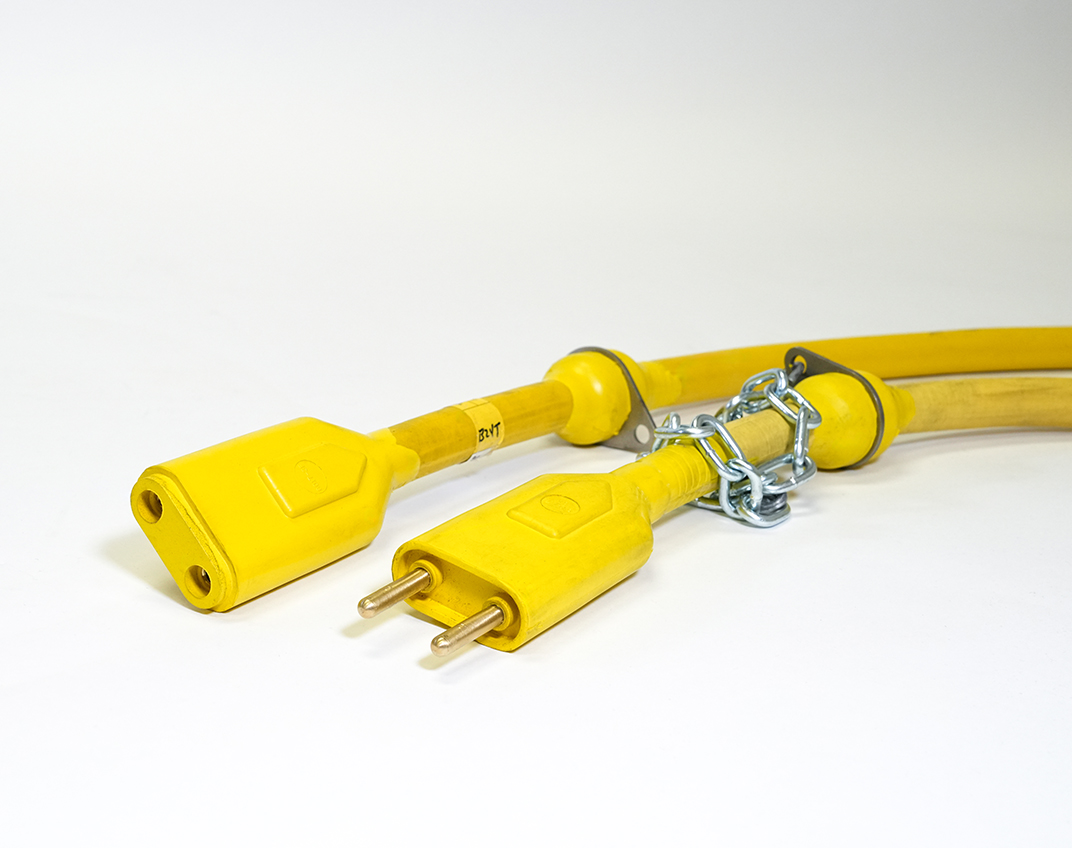

Oval Power Assemblies

The rugged Oval Power Assembly is built with our Super-Trex® Type W Power Cable which provides a superior first line of defense against cutting, tearing, abrasion, and impact.

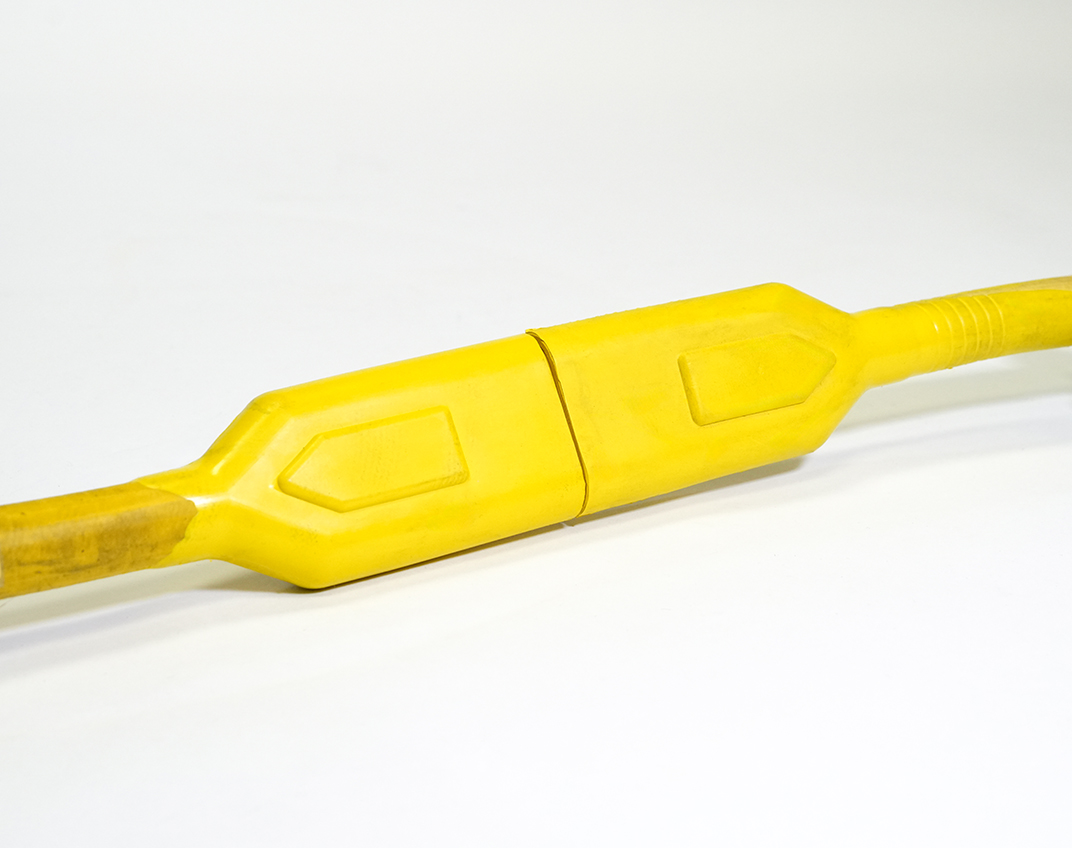

The standard pin and sleeve configuration is interchangeable with most standard connectors.  The rubber collar molded at the base of the male pins forms a "cork seal" connection when plugged into a matching unit from TPC Wire & Cable. This seal reduces carbon arcing and insures ingress protection against dust and liquids.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

SUPER-TREX® TYPE W POWER CABLE

Superior first line defense against cutting, tearing, abrasion and impact. Extreme all-weather flexibility. Flame and heat resistant. Available in Black or Yellow cable.

100% TRANSFER MOLDED TSE PLUG AND CONNECTOR BODY

“No pressure” process prevents induced stresses. Body integrity and complete bonding mean longer life.

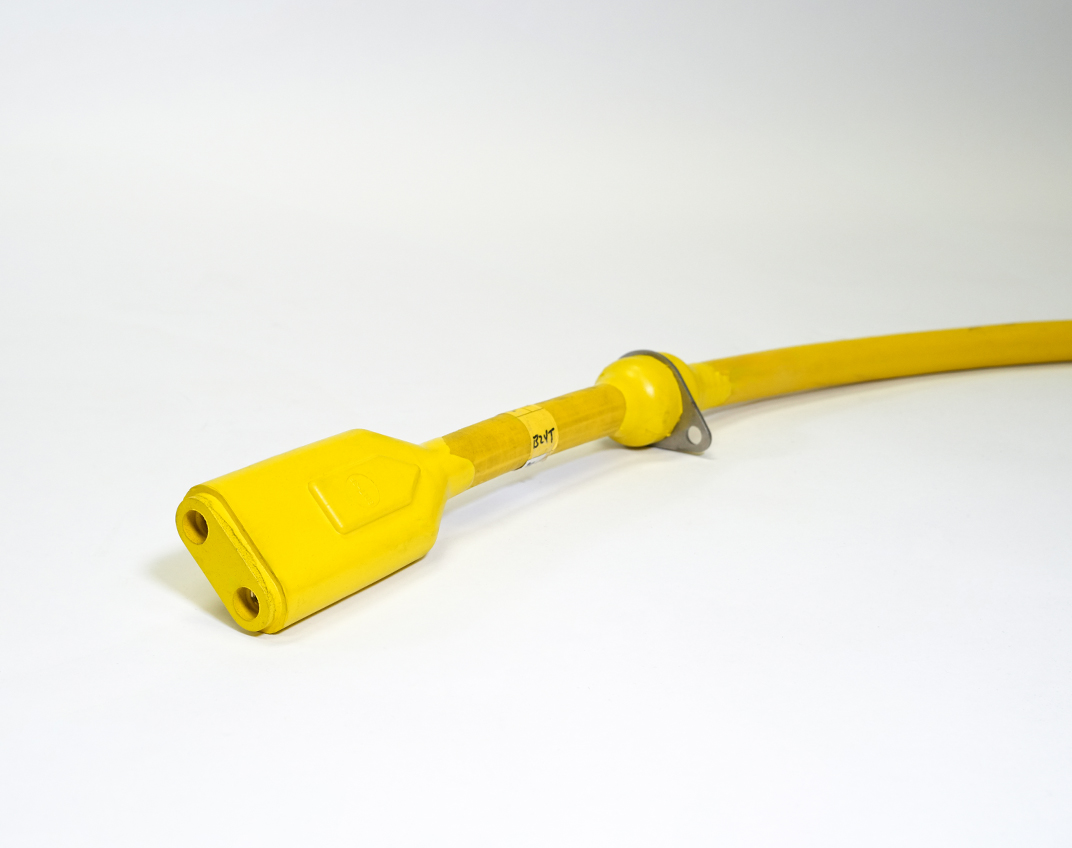

RUBBER COLLAR MOLDED AT BASE OF MALE PINS

Forms a “Cork Seal” when plugged into a TPC matching unit. Provides dust and liquid protection and reduces carbon arcing.

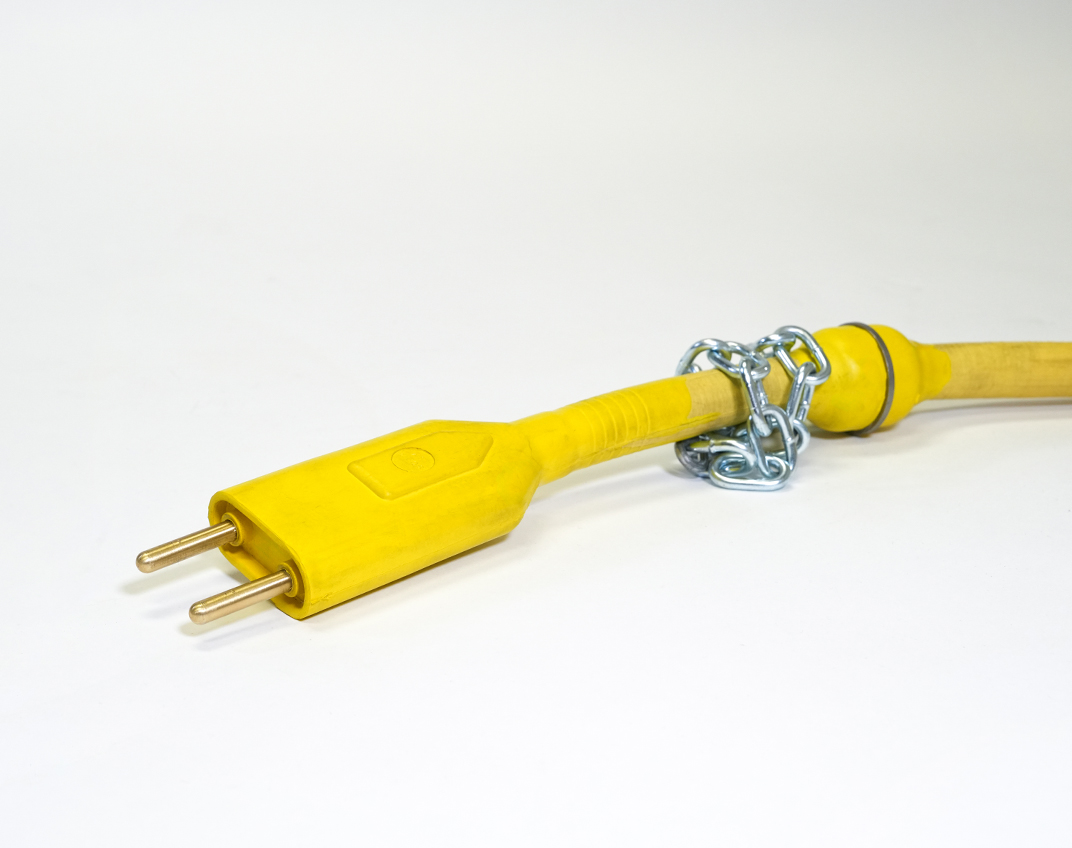

ROTATING SAFETY CHAIN COLLAR

Bearing action will not cut through cable when twisted or flexed.

STANDARD PIN AND SLEEVE CONFIGURATION

Interchangeable with most standard connectors now in use.

BRASS PINS AND CONTACT SLEEVES

Ensures a positive electrical connection.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • 600V

  • Max Conductor Temperature 90°C

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. (TC-ER*) Conductor Size (AWG) Conductor/Pole Count Assembly Length
feet		 Plug Config Standard Pin Size Ampacity Cable Color Safety Chain Shielding Type
85520 6 AWG 2 6 Male/Female 5/16" 65 Black Yes No Shielding
85520Y 6 AWG 2 6 Male/Female 5/16" 65 Yellow Yes No Shielding
85521 6 AWG 2 6 Female 5/16" 65 Black No No Shielding
85521Y 6 AWG 2 6 Female 5/16" 65 Yellow No No Shielding
85526 6 AWG 2 85 Female 5/16" 65 Black No No Shielding
85527 6 AWG 2 100 Female 5/16" 65 Black No No Shielding
85540 6 AWG 2 6 Male 5/16" 65 Black Yes No Shielding
85540Y 6 AWG 2 6 Male 5/16" 65 Yellow Yes No Shielding
85530 2 AWG 2 6 Male/Female 3/8" 100 Black Yes No Shielding
85530Y 2 AWG 2 6 Male/Female 3/8" 100 Yellow Yes No Shielding
85531 2 AWG 2 6 Female 3/8" 100 Black No No Shielding
85532 2 AWG 2 6 Male 3/8" 100 Black Yes No Shielding
