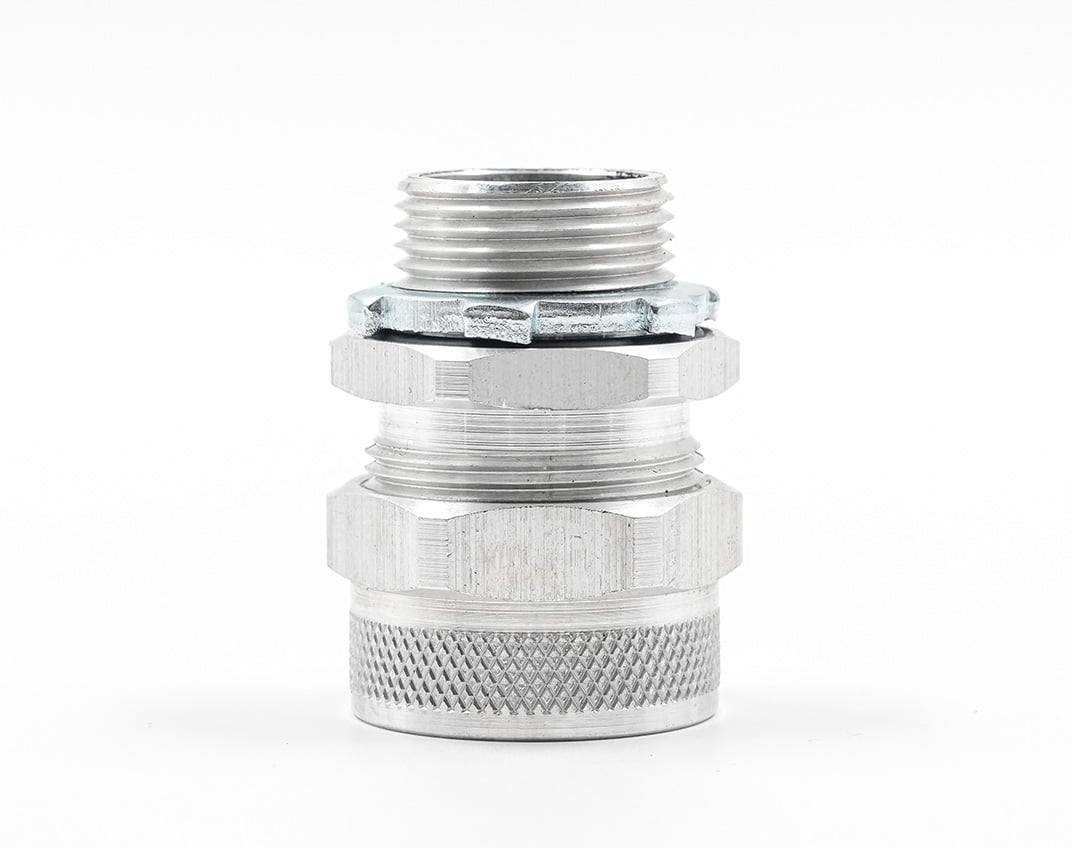

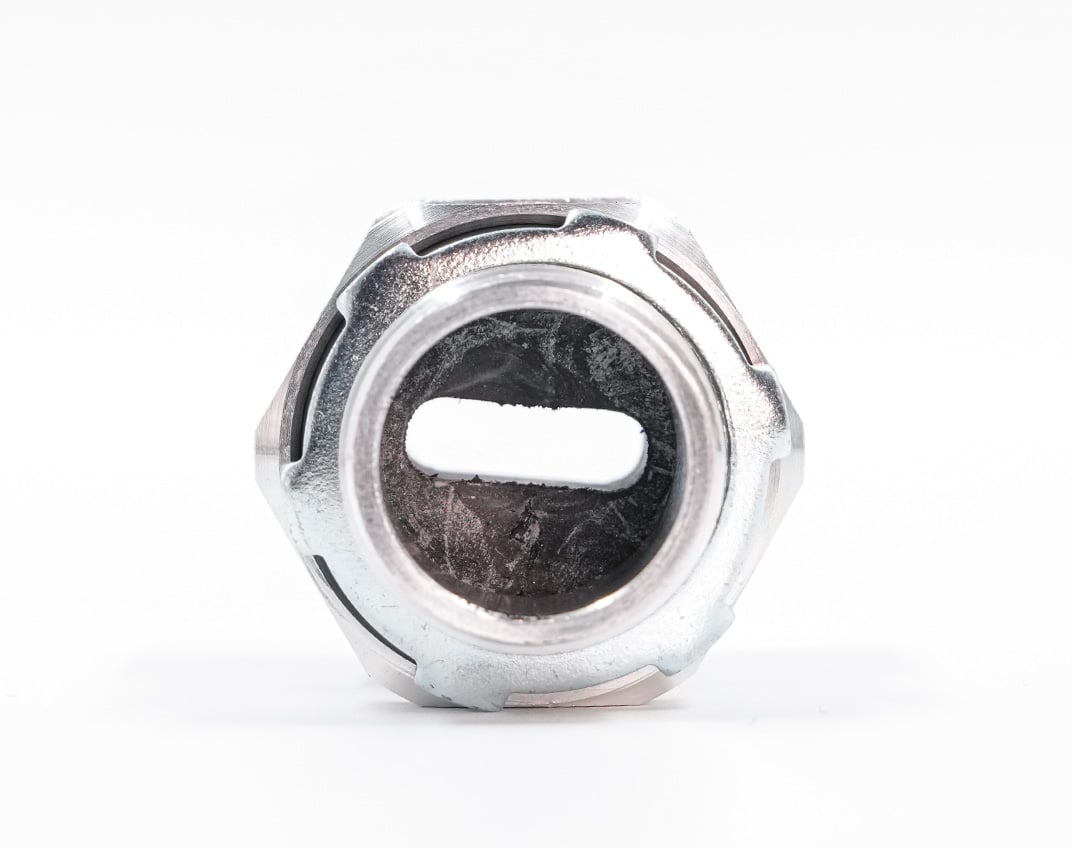

Grip-Seals® Aluminum Cable Glands for Flat Festoon Cable

Each Grip-Seals® Aluminum Cable Glands for Flat Festoon Cable package includes the cable gland body, O-ring and locking nut. Specially designed sealing bushings for flat festoon cables. Our aluminum compression bushing and threaded body is resistant to corrosion and weathering, and has a maximum operating temperature of 121°C. The nickel-plated friction ring provides a uniform compression for a proper environmental seal against dust, moisture and chemicals.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

NICKEL-PLATED FRICTION RING

Provides uniform compression for a proper seal. Prevents bushing damage and results in a tight, uniform seal on the cord surface.

SEALING BUSHINGS FOR FLAT FESTOON CABLE

Specially designed bushing provides environmental seal against dust, moisture, chemicals. 121°C maximum operating temperature.

ALUMINUM COMPRESSION BUSHING AND THREADED BODY

Resistant to corrosion and weathering. Easy attachment to pendants and electrical enclosures. Available in both a 90˚ and straight configuration.

SEALING O-RING

Seals out oil, chemicals and other contaminants. Locknut included with each unit.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • REACH Compliant

  • Operating Temperature: -40°C to 121°C

  • Extra Tight Seal

  • Strain Relief

Applications

chemicals-icon

Chemicals

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

Part No. (TC-ER*) Configuration Fitting Size Cable
inches		 Fits TPC Flat Festoon Part No Number of Bushings
55031 Straight 1/2" NPT 0.200 – 0.475 61114 1
55033 Straight 3/4" NPT 0.246 – 0.709 61104 1
55034 Straight 1" NPT 0.220 – 0.600 61124 & 415007 1
55038 Straight 1" NPT 0.190 – 0.870 61118 1
55035 Straight 1" NPT 0.204 – 0.982 61148 1
55037 Straight 1 1/2" NPT 0.190 – 1.255 61112 1
55032 Straight 1-1/2" NPT 0.204 – 1.420 61142 1
55036 Straight 1-1/2" NPT 0.350 – 1.130 61164 1

Related Products

flat-festoon-cable_1

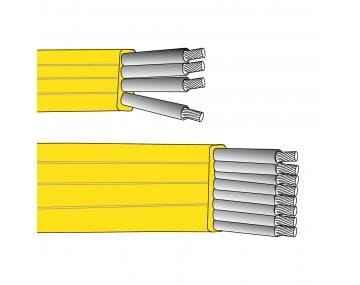

Trex-Onics® Flat Festoon Cable
