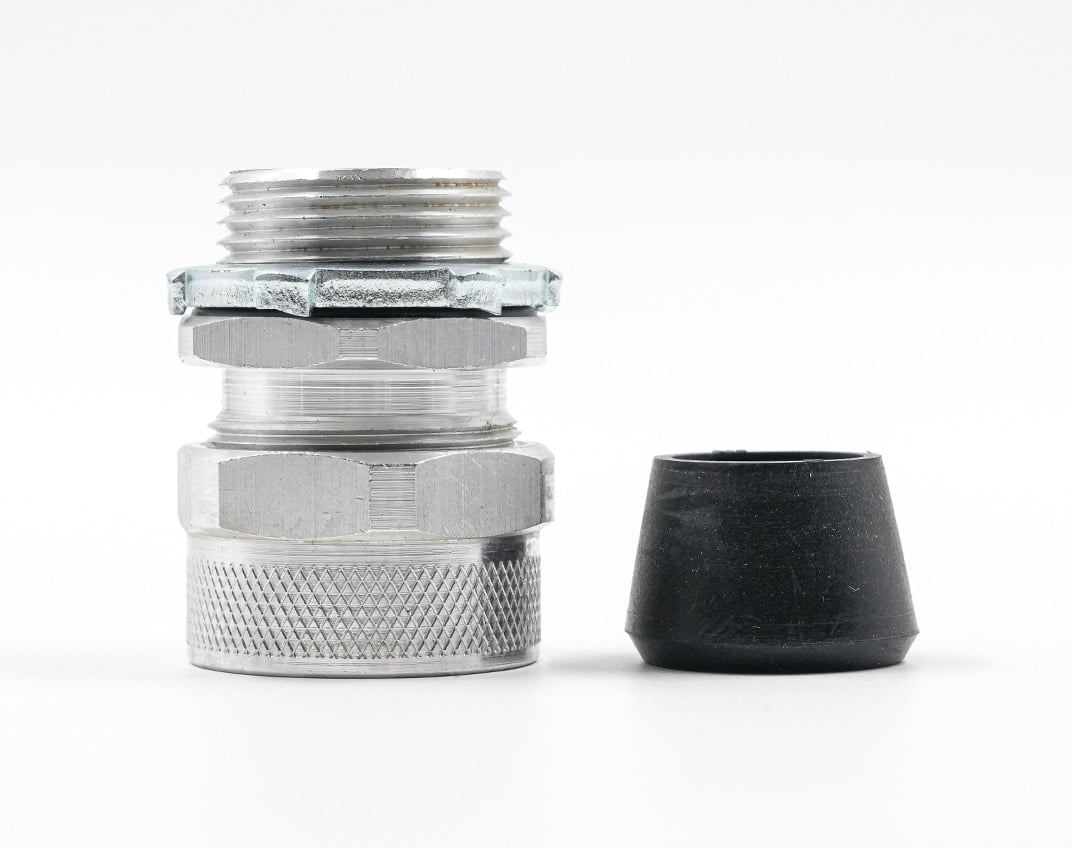

Grip-Seals® Aluminum Cable Glands Side_Web

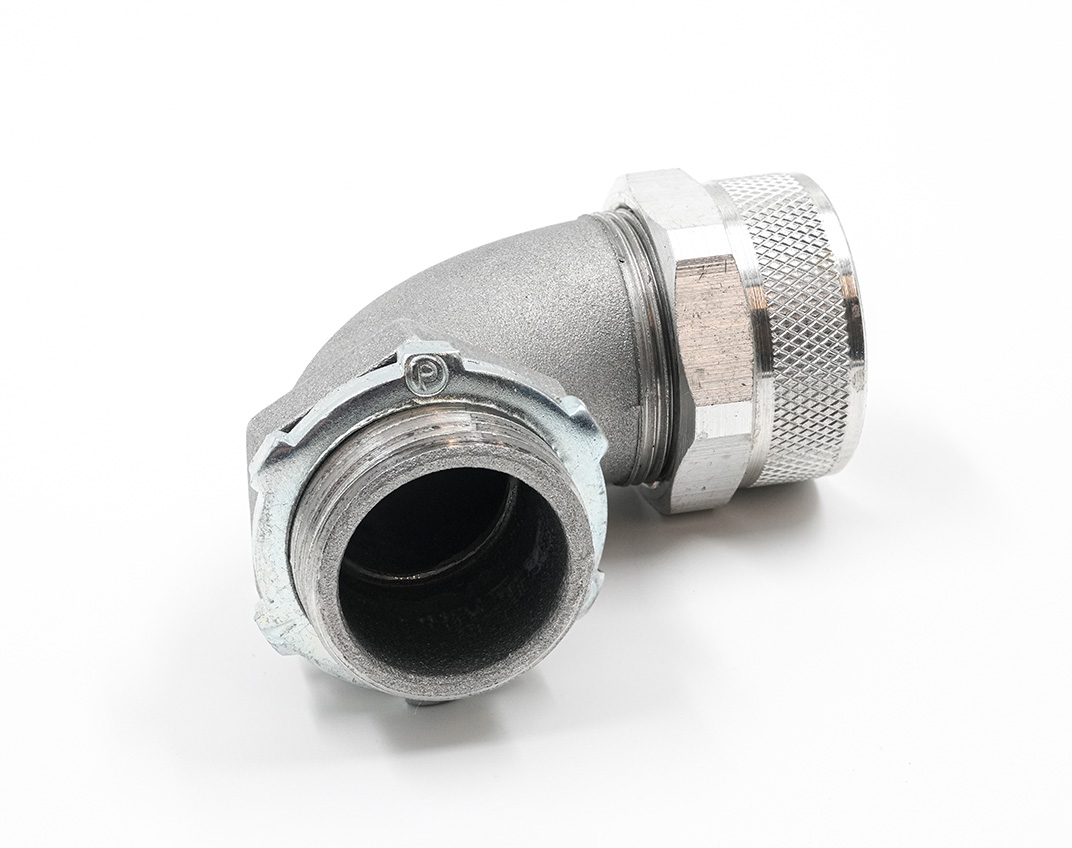

Grip-Seals® Aluminum Cable Glands 90 Degree_Web

Grip-Seals® Aluminum Cable Glands

Each Grip-Seals® Aluminum Cable Gland package includes the cable gland body, O-ring and locking nut. Our aluminum compression bushing and threaded body is resistant to corrosion and weathering, and has a maximum operating temperature of 121°C. The nickel-plated friction ring provides a uniform compression for a proper environmental seal against dust, moisture and chemicals. Our Grip-Seals® Aluminum Cable Gland is available in straight and 90 degree configurations. 

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

NICKEL-PLATED FRICTION RING

Provides uniform compression for a proper seal. Prevents bushing damage and results in a tight, uniform seal on the cord surface.

MULTIPLE SYNTHETIC SEALING BUSHINGS

One part number covers a variety of cord diameters.

ALUMINUM COMPRESSION BUSHING, THREADED BODY AND SEALING O-RING

Resistant to corrosion and weathering. Easy attachment to pendants and electrical enclosures. Seals out water, oil, metal particals and other contaminants.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • REACH Compliant

  • Suitable for hazardous locations per Class I, Div. 2, Class II, Div 1 & 2, and Class III, Div. 1 & 2

  • Operating Temperature: -40°C to 121°C

  • Extra Tight Seal

  • Straight and 90°C Configurations

  • Strain Relief

Applications

chemicals-icon

Chemicals

tension-icon

Tension

Part Numbers

Part No. (TC-ER*) Configuration Fitting Size Cord Diameter Range Number of Bushings
55001 Straight 3/8" NPT 0.188" – 0.312" 2
55002 Straight 3/8" NPT 0.312" – 0.438" 2
55003 Straight 1/2" NPT 0.250" – 0.375" 2
55004 Straight 1/2" NPT 0.375" – 0.500" 2
55005 Straight 1/2" NPT 0.500" – 0.625" 2
550061 Straight 3/4" NPT 0.188" – 0.250" 1
55006 Straight 3/4" NPT 0.500" – 0.688" 2
55007 Straight 3/4" NPT 0.625" – 0.812" 2
55008 Straight 1" NPT 0.688" – 0.875" 2
55009 Straight 1" NPT 0.812" – 1.00" 2
55010 Straight 1-1/4" NPT 0.875" – 1.125" 2
55011 Straight 1-1/4" NPT 1.125" – 1.375" 2
55012 Straight 1-1/2" NPT 0.875" – 1.125" 2
55013 Straight 1-1/2" NPT 1.125" – 1.375" 2
55014 Straight 2" NPT 1.250" – 1.562" 2
55015 Straight 2" NPT 1.562" – 1.812" 2
55016 Straight 2-1/2" NPT 1.812"– 2.062" 2
55017 Straight 2-1/2" NPT 2.062" – 2.312" 2
55020 Straight 3" NPT 2.437" – 2.812" 2
55901 90˚ 3/8" NPT 0.188" – 0.312" 2
55902 90˚ 3/8" NPT 0.312" – 0.438" 2
55903 90˚ 1/2" NPT 0.250" – 0.375" 2
55904 90˚ 1/2" NPT 0.375" – 0.500" 2
55905 90˚ 1/2" NPT 0.500" – 0.625" 2
55906 90˚ 3/4" NPT 0.500" – 0.688" 2
55907 90˚ 3/4" NPT 0.625" – 0.812" 2
55908 90˚ 1" NPT 0.688" – 0.875" 2
55909 90˚ 1" NPT 0.812" – 1.00" 2
55910 90˚ 1-1/4" NPT 0.875" – 1.125" 2
55911 90˚ 1-1/4" NPT 1.125" – 1.375" 2
55914 90˚ 1 1/2" NPT 1.125" – 1.375" 2
55912 90˚ 2" NPT 1.250" – 1.562" 2
55913 90˚ 2" NPT 1.562" – 1.812" 2

Related Products

aluminum-grip-seal-for-flat-festoon_0

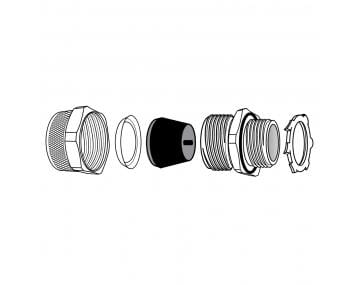

Grip-Seals® Aluminum Cable Glands for Flat Festoon Cable
