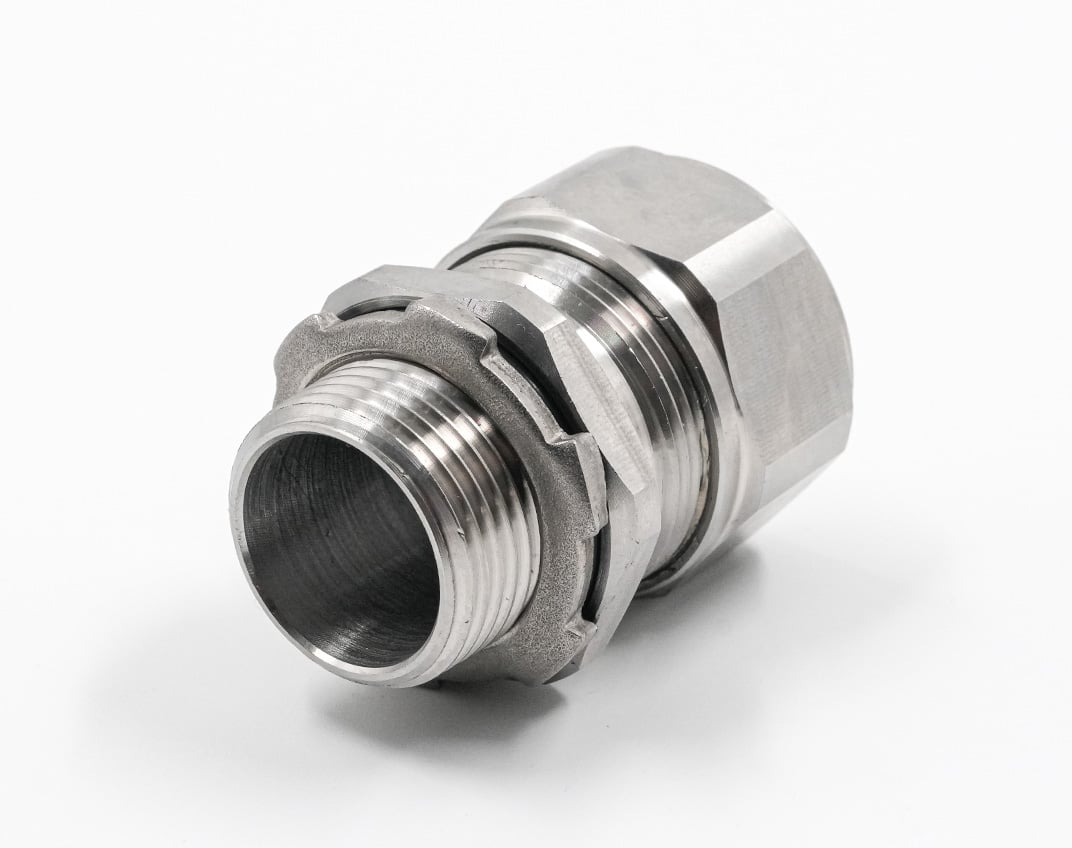

Grip-Seals® Stainless Steel Cable Glands 3QV_Web

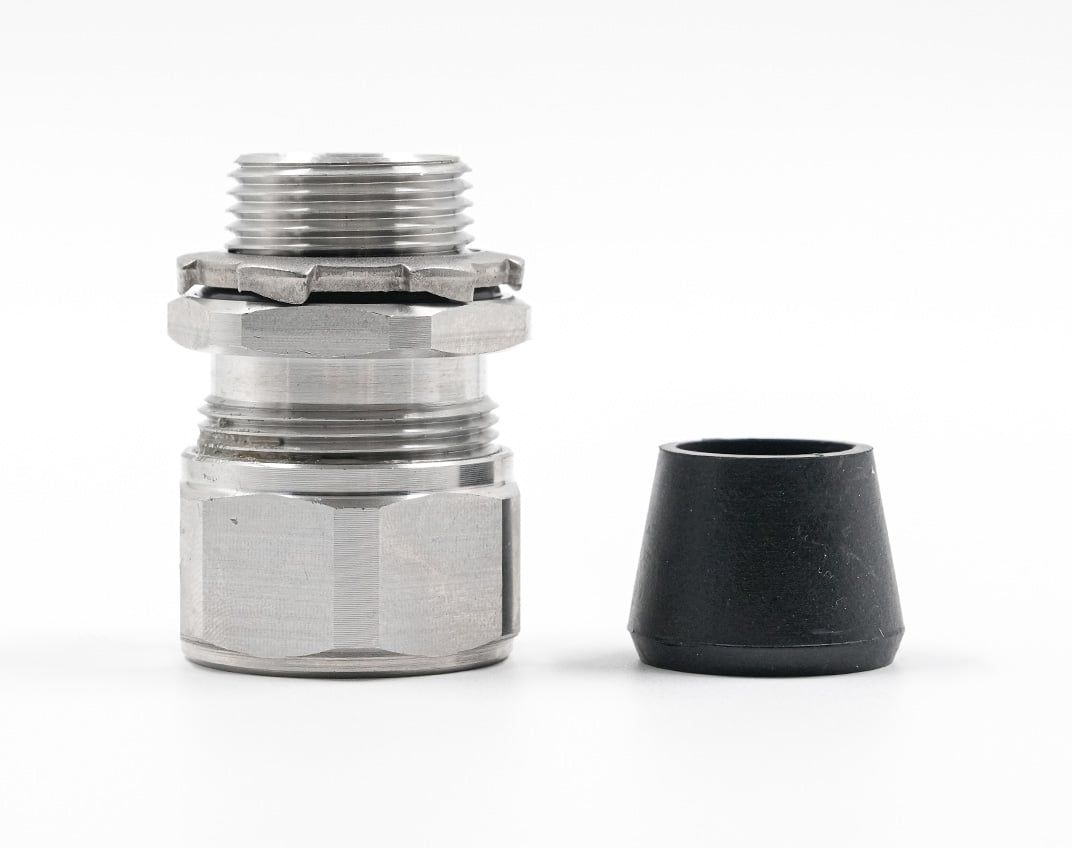

Grip-Seals® Stainless Steel Cable Glands Side_Web
TPC1711 Thumbnail

Grip-Seals® Stainless Steel Cable Glands

Grip-Seals® Stainless Steel Cable Glands have a 304 stainless steel smooth flange compression nut and threaded body ideal for washdown areas. Designed to fit tightly against panel surfaces to keep moisture and other contaminants out. Achieves IP68/NEMA4x rating.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

304 STAINLESS STEEL SMOOTH FLANGE COMPRESSION NUT AND THREADED BODY

Smooth flange compression nut eliminates crevices where bacteria can grow. Ideal for washdown areas. 304 Stainless Steel design resists impact and corrosion. Provides exceptional gripping strength. Easy to install.

MULTIPLE SYNTHETIC SEALING BUSHINGS INCLUDED WITH EACH PRODUCT

One part number covers a variety of cord diameters. Seals out water, oil, metal particles and other contaminants.

SEALING O-RING

Designed to fit tightly against panel surface to keep moisture and other contaminants out of panel. Protects connections from corrosion.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • IP68 Rated

  • NEMA 4X Rated

  • REACH Compliant

  • Operating Temperature: -40°C to 121°C

  • Corrosion Resistant

  • Extra Tight Seal

  • 304 Stainless Steel

  • Sealing O-Ring

  • Strain Relief

Applications

chemicals-icon

Chemicals

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

Part No. (TC-ER*) CORD O.D. RANGE
inches		 Fitting Size Number of Bushings
55505SS 0.180" – 0.430" 3/8" NPT 4
55513SS 0.188" – 0.500" 1/2" NPT 5
55515SS 0.312" – 0.625" 1/2" NPT 5
55516SS 0.188" – 0.625" 1/2" NPT 7
55530SS 0.560" – 0.750" 3/4" NPT 2
55540SS 0.875" – 1.00" "1" NPT 1
55534SS 0.688" - 0.812" ¾" 1
55531SS 0.688" - 1.00" 1" 4
55532SS 0.875" - 1.375" 1-1/4" 4
555331SS 1.688" - 1.938" 2" 2
55533SS 1.25" - 1.81" 2" 4

Related Products

nylon-straight-grip-seal_1 (1)

Grip-Seals® Aluminum Cable Glands
nylon-straight-grip-seal_1 (1)

Grip-Seals® Nylon Cable Glands
heat-and-chemical-resistant-grip-seal_1

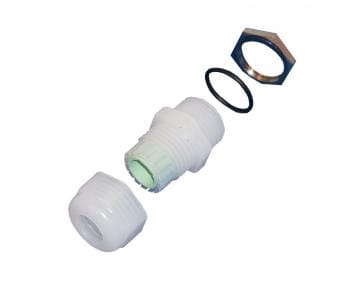

Grip-Seals® Heat & Chemically Resistant Cable Glands
emi-shielded-grip-seal_1

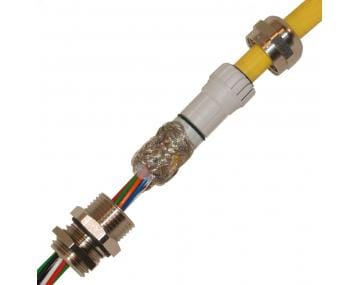

Grip-Seals® EMI Shielded Cable Glands
