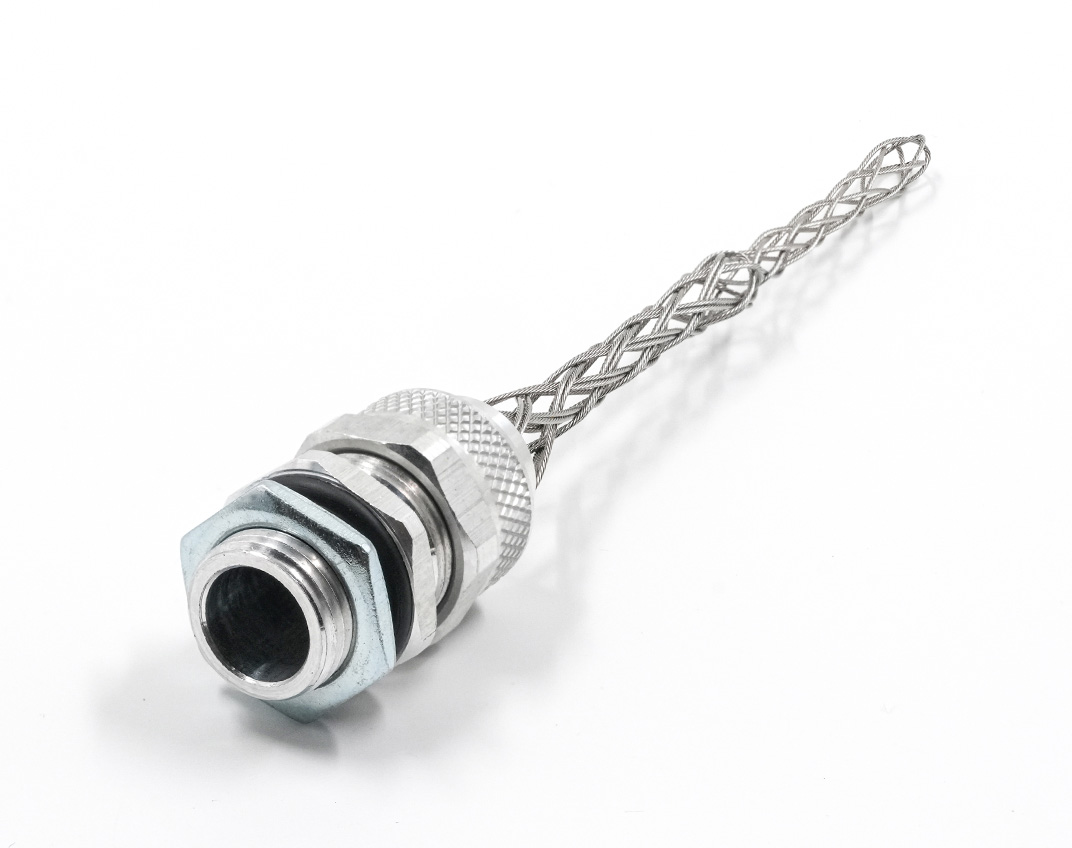

Kord-Gard® Aluminum Steel Mesh Strain Relief 3QV_Web

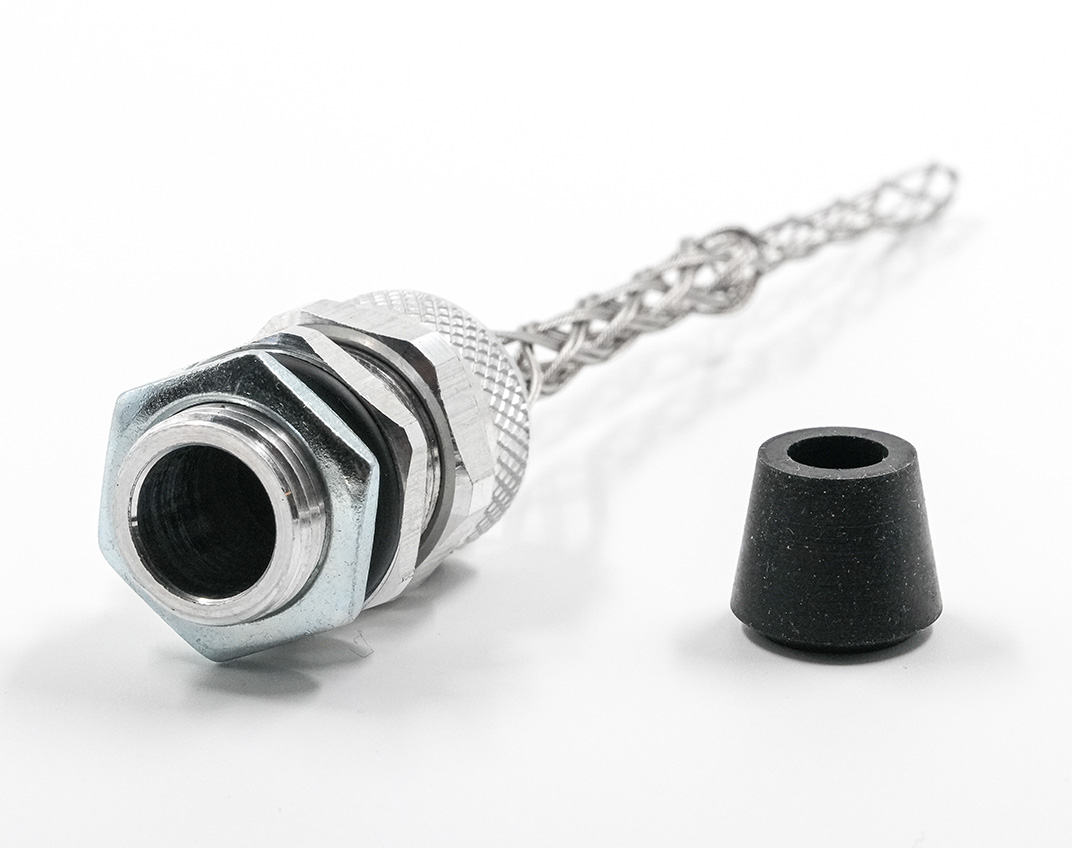

Kord-Gard® Aluminum Mesh Strain Relief 3QV 2_Web

Kord-Gard® Aluminum Mesh Strain Relief

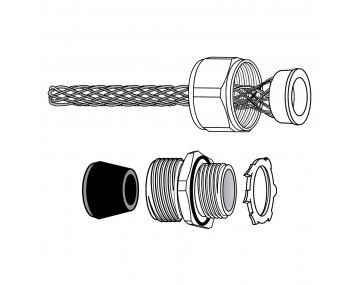

Each Kord-Gard® Aluminum Mesh Strain Relief package includes the mesh, cable gland body, O-ring and locking nut. Our aluminum compression bushing and threaded body is resistant to corrosion and weathering, and has a maximum operating temperature of 121°C The nickel-plated friction ring provides a uniform compression for a proper environmental seal against dust, moisture and chemicals. The full partial double-weave stainless steel mesh is a unique drop-in basket design for easier assembly and provides exceptional gripping strength, longer cord life, and corrosion resistance.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

PARTIAL DOUBLE-WEAVE STAINLESS STEEL MESH 

Provides exceptional gripping strength, longer life. Resists corrosion. 

UNIQUE DROP-IN BASKET DESIGN

Makes for an easier assembly.

NICKEL-PLATED FRICTION RING

Provides uniform compression for a proper seal. Prevents bushing damage and results in a tight, uniform seal on the cord surface.

MULTIPLE SYNTHETIC SEALING BUSHINGS

One part number covers a variety of cord diameters.

ALUMINUM COMPRESSION BUSHING, THREADED BODY AND SEALING O-RING

Resistant to corrosion and weathering. Easy attachment to pendants and electrical enclosures. Seals out water, oil, metal particles and other contaminants.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • Extra Hard-Duty Strain Relief

  • Straight & 90º Configurations

  • Extra Tight Seal

  • Operating Temperature: -40°C to 121°C

  • Extra Hard-Duty Strain Relief

  • Straight & 90° Configurations

  • Extra Tight Seal

Applications

chemicals-icon

Chemicals

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

Straight Part No. 90 DEGREE PART NO CORD O.D. RANGE
inches		 Fitting Size Number of Bushings
55405 59405 0.124" – 0.312" 3/8" NPT 3
55410 59410 0.250" – 0.438" 3/8" NPT 3
55415 55915 0.312" – 0.500" 1/2" NPT 3
55420 59420 0.437" – 0.625" 1/2" NPT 3
55430 59430 0.562" – 0.750" 3/4" NPT 2
55440 59440 0.687" – 0.875" 3/4" NPT 1
55445 59445 0.745" – 1.000" 1" NPT 2
55450 59450 0.870" – 1.125" 1-1/4" NPT 2
55455 59455 1.125"– 1.375" 1-1/4" NPT 2
55460 59460 1.320"– 1.562" 2" NPT 2
55465 59465 1.413" – 1.655" 2" NPT 2
55470 59470 1.68" – 1.81" 2" NPT 1
554651 - 1.688" - 1.938" 2" NPT 2
55471 - 1.81" – 2.06" 2" NPT 2
55474 - 2.06" – 2.43" 2-1/2" NPT 3
55437 - 2.188" – 2.312" 2-1/2" NPT 1
55476 - 2.312" – 2.438" 3" NPT 1
55439 - 2.812" – 3.25" 3" NPT 2
