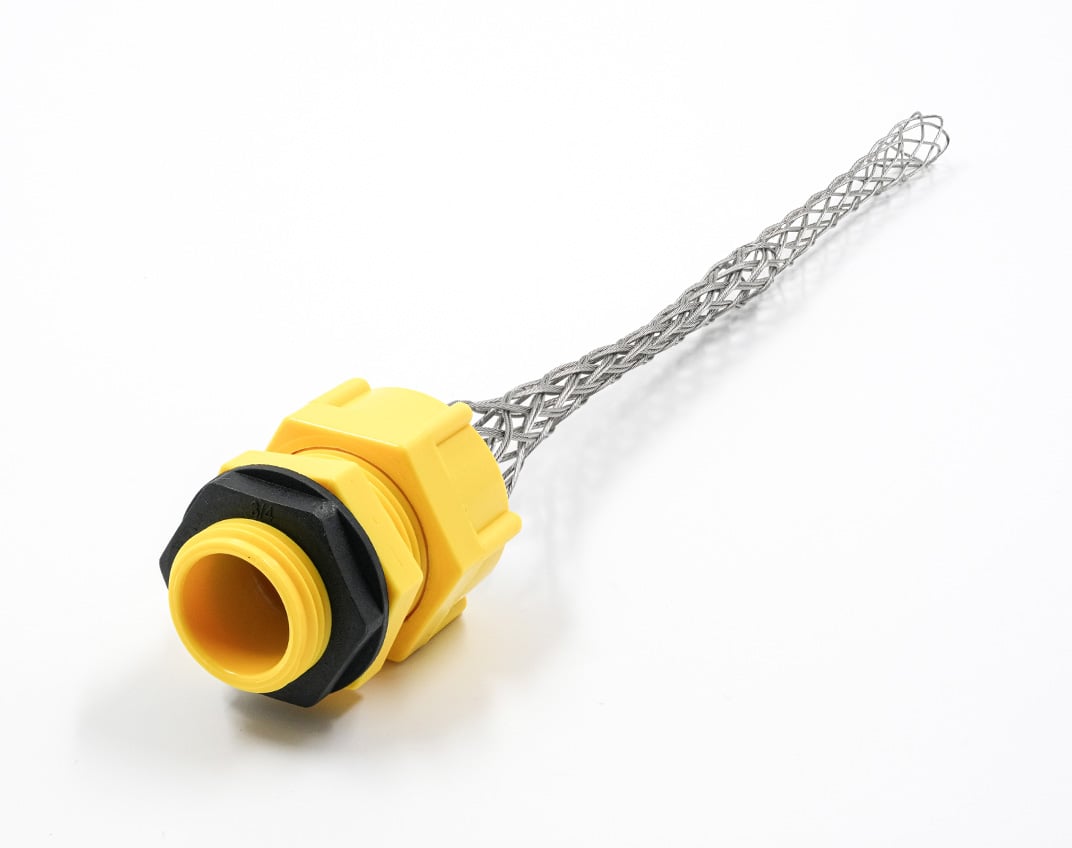

Kord-Gard® Nylon Mesh Strain Relief

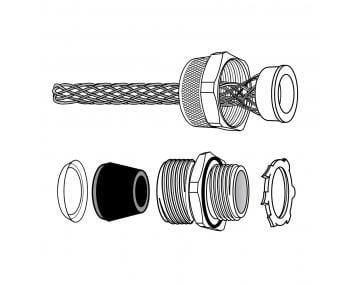

Each Kord-Gard® Nylon Mesh Strain Relief package includes the cable gland body, O-ring and locking nut. Our nylon friction ring provides uniform compression for a proper seal. It prevents bushing damage and results in a tight, uniform seal on the cord surface which seals out oil, chemicals and other contaminants. The partial double-weave stainless steel mesh is a unique drop-in basket design for easier assembly and provides exceptional gripping strength, longer cord life and corrosion resistance.



Features

PARTIAL DOUBLE-WEAVE STAINLESS STEEL MESH

Provides exceptional gripping strength. Resists corrosion.

UNIQUE DROP-IN BASKET DESIGN

Makes for an easier assembly.

NYLON FRICTION RING

Provides uniform compression for a proper seal. Prevents bushing damage and results in a tight, uniform seal on the cord surface.

MULTIPLE SYNTHETIC SEALING BUSHINGS INCLUDED WITH EACH PRODUCT

One part number covers a variety of cord diameters.

SECURITY YELLOW NYLON COMPRESSION NUT, THREADED BODY AND SEALING O-RING

Resists impact and corrosion. Provides exceptional gripping strength. Easy to remove and reuse. Seals out water, oil, metal particles and other contaminants.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • REACH Compliant

  • Suitable for hazardous locations per Class I, Div. 2, Class II, Div 1 & 2, and Class III, Div. 1 & 2

  • Operating Temperature: -40°C to 107°C

  • Corrosion Resistant

  • Extra Hard-Duty Strain Relief

  • Extra Tight Seal

Applications

chemicals-icon

Chemicals

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

Part No. (TC-ER*) CORD O.D. RANGE
inches
FITTING SIZE NUMBER OF GROMMETS
55310 0.18" – 0.31" 3/8" NPT 2
55311 0.31" – 0.44" 3/8" NPT 2
55320 0.37" – 0.50" 1/2" NPT 2
55321 0.50" – 0.57" 1/2" NPT 2
55330 0.56" – 0.69" 3/4" NPT 1
