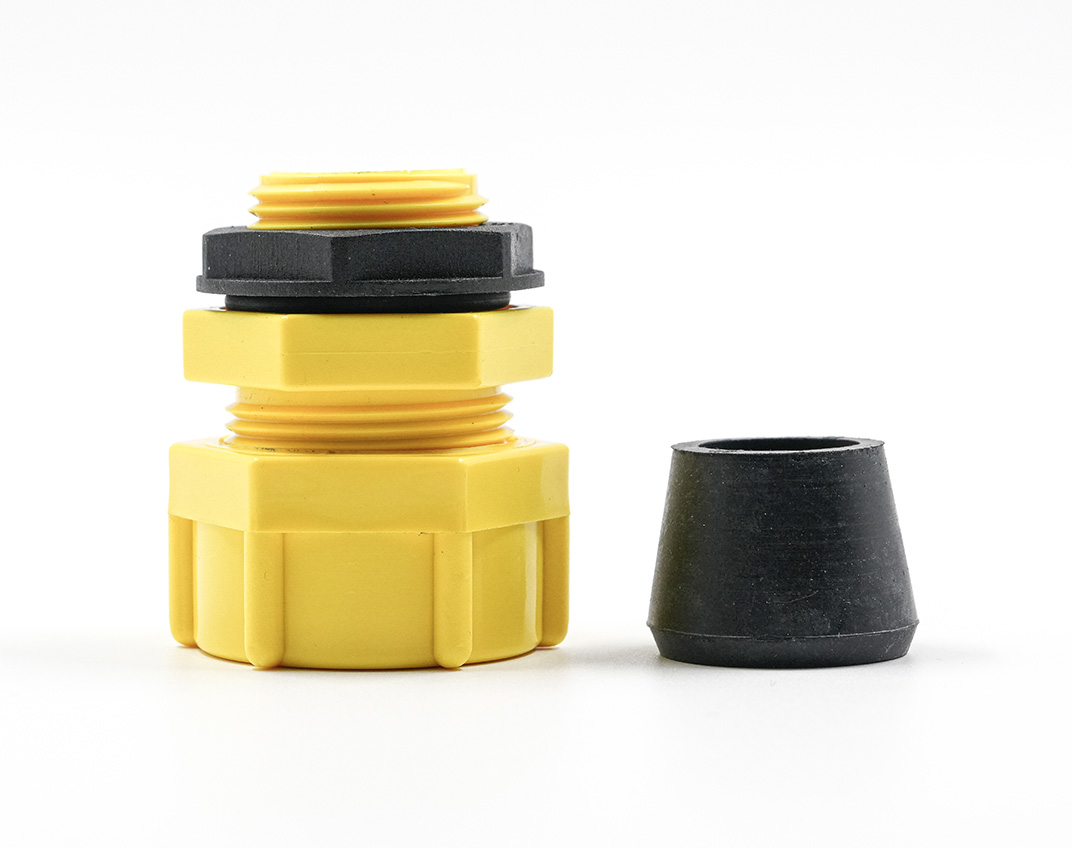

Grip-Seals® Nylon Cable Glands Side_Web

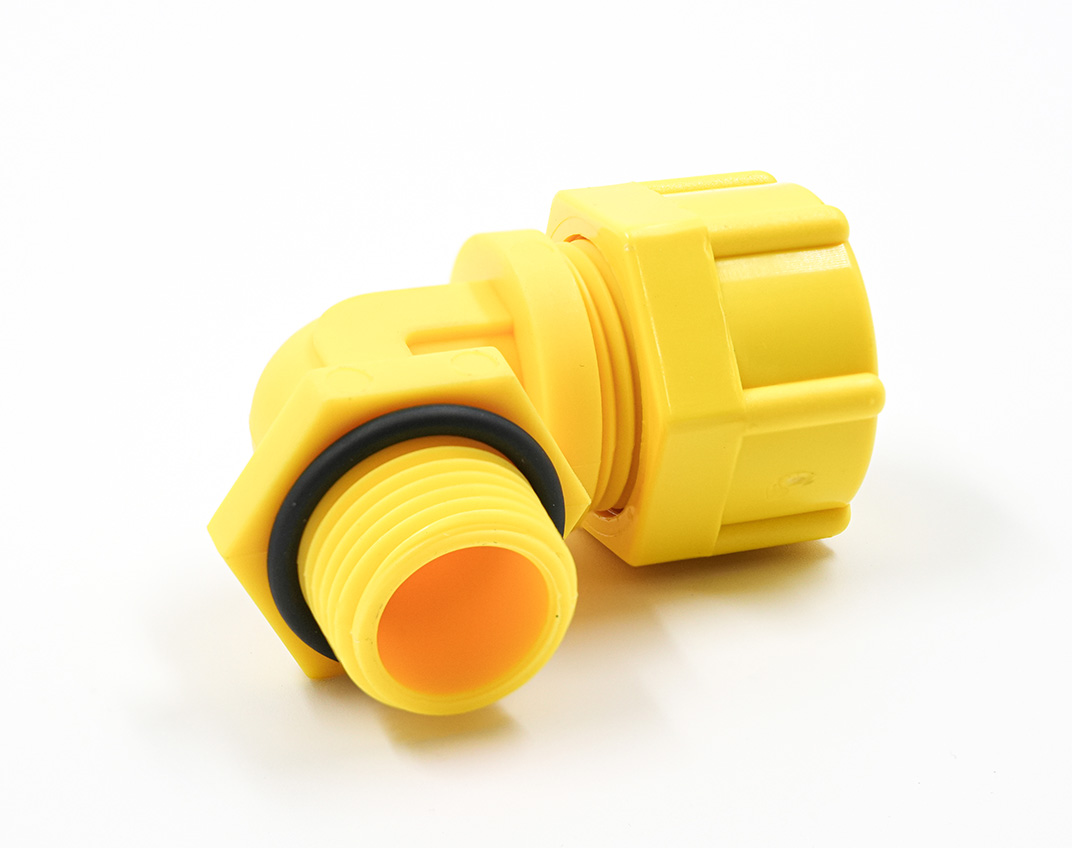

Grip-Seals® Nylon Cable Glands 90 Degree_Web
TPC1711 Thumbnail

Grip-Seals® Nylon Cable Glands

Each Grip-Seals® Nylon Cable Gland package includes the cable gland body, O-ring and locking nut. Our nylon friction ring provides uniform compression for a proper seal. It prevents bushing damage and results in a tight, uniform seal on the cord surface which seals out oil, chemicals and other contaminants. Our Grip-Seals Nylon Cable Glands are available in straight and 90° configurations.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

NYLON FRICTION RING

Provides uniform compression for a proper seal. Prevents bushing damage and results in a tight, uniform seal on the cord surface.

MULTIPLE SYNTHETIC SEALING BUSHINGS INCLUDED WITH EACH PRODUCT

One part number covers a variety of cord diameters.

SECURITY YELLOW NYLON COMPRESSION NUT, THREADED BODY AND SEALING O-RING

Resists impact and corrosion. Provides exceptional gripping strength. Easy to remove and reuse. Seals out water, oil, metal particles and other contaminants.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • REACH Compliant

  • Suitable for hazardous locations per Class I, Div. 2, Class II, Div 1 & 2, and Class III, Div. 1 & 2

  • Operating Temperature: -40°C to 107°C

  • Corrosion Resistant

  • Extra Tight Seal

  • Straight and 90° Configurations

Applications

chemicals-icon

Chemicals

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

Part No. (TC-ER*) Configuration Cord Diameter Range Fitting Size Number of Bushings
55505 Straight 0.180" – 0.430" 3/8" NPT 4
55513 Straight 0.188" – 0.500" 1/2" NPT 5
55516 Straight 0.188" – 0.625" 1/2" NPT 7
55515 Straight 0.312" – 0.625" 1/2" NPT 5
555180 Straight 0.562" – 0.688" 1/2" NPT 1
55530 Straight 0.560" – 0.750" 3/4" NPT 2
555340 Straight 0.562" – 0.688" 3/4" NPT 1
55592 90° 0.188" – 0.625" 1/2" NPT 7
555189 90° 0.562" – 0.688" 1/2" NPT 5
555349 90° 0.562" – 0.688" 3/4" NPT 1
55593 90° 0.562" – 0.750" 3/4" NPT 2
