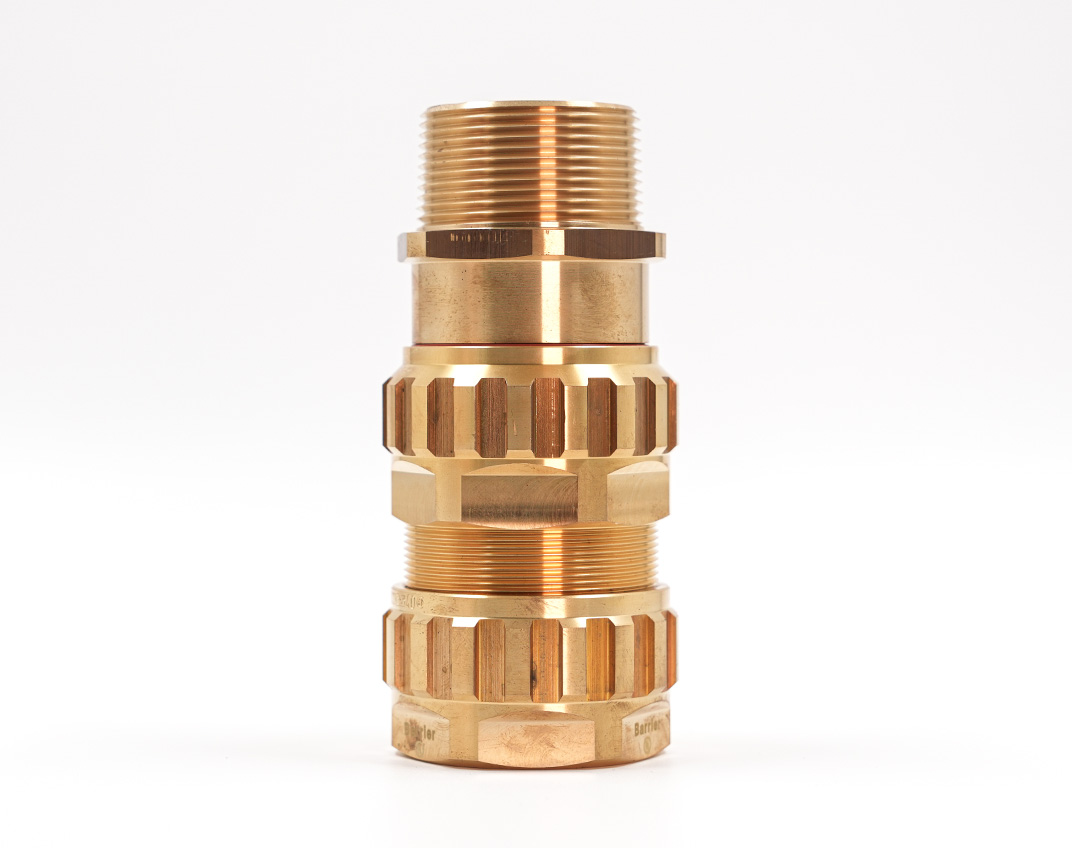

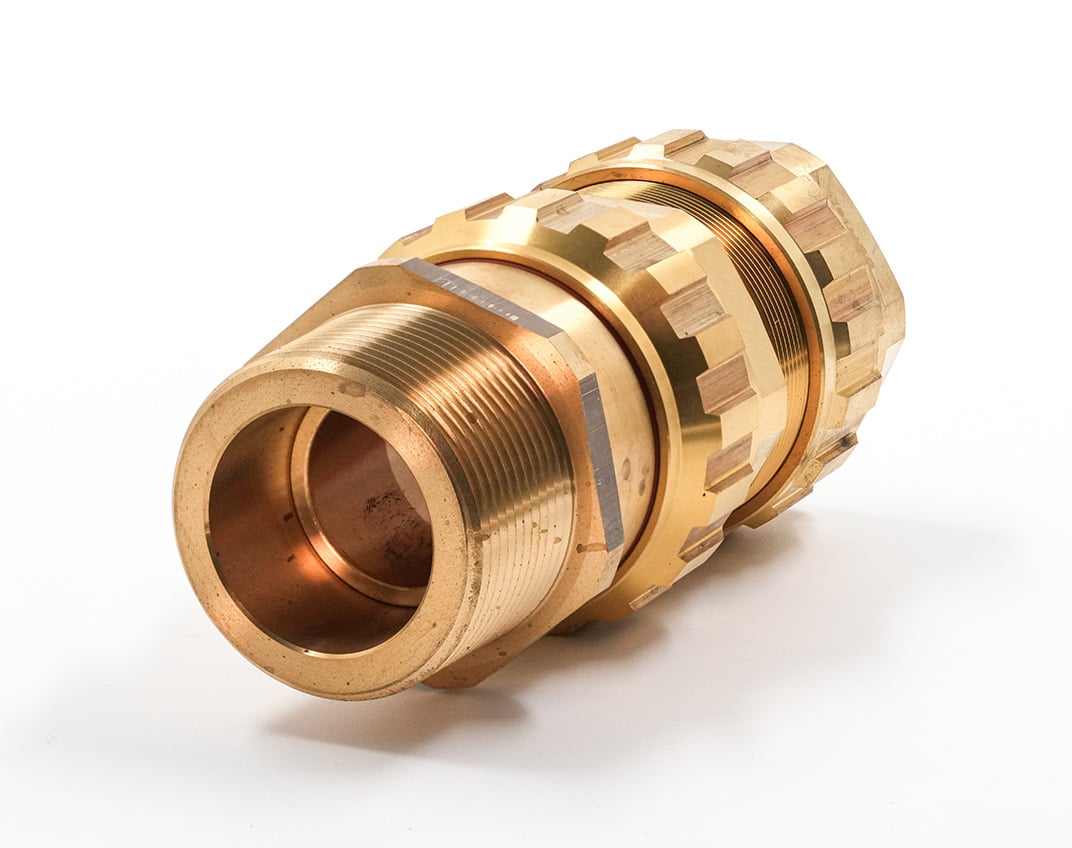

Sealcon Exios Cable Glands

Sealcon Exios cable glands offer strain relief suitable for hazardous duty locations, dust-tight, high-pressure wash down locations, or even submersible applications.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

LIQUID TIGHT

Submersible to 300 ft., NEMA 4x & 6 (IP68/IP69K).

HIGHEST PRESSURE RATING

Patented form seal meets 150 PSIG (10 BAR).

FLAME-PROTECTED

V0 Rated according to UL 94 Halogen and Phosphorous-Free Materials.

LARGE SELECTION

Cable O.D. range from .08” (2 mm) to 3.54” (90 mm).

NON-CORROSIVE

Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.

Ratings / Characteristics

  • NEMA 4X & 6

  • IP68

  • RoHS Compliant

  • Deca BDE

  • Suitable for Class I, II, III, Division 1 & 2*

  • UL94

  • UL 2225

  • UL 514 B

  • CSA 22.2

  • Operating Temperature Range -25°C to 85°C

  • Corrosion Resistant

  • Extra Tight Seal

  • Halogen and Phosphorous-Free

Applications

chemicals-icon

Chemicals

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

Raw Brass Part Number Nickel-Plated Brass Part Number Fitting Size Cord O.D. Range (Inches) Clearance Hole (Inches)
YU13NM-B1 YU13NM-BR 1/2" NPT 0.35-0.63 0.83
YU13NL-B1 YU13NL-BR 1/2" NPT 0.49-0.81 0.83
YU21NK-B1 YU21NK-BR 3/4" NPT 0.67-1.02 1.05
YU29NK-B1 YU29NK-BR 1" NPT 0.87-1.30 1.35
YU29LK-B1 YU29LK-BR 1-1/4" NPT 1.10-1.61 1.65
YU36NK-B1 YU36NK-BR 1-1/2" NPT 1.10-1.61 1.92
YU50NK-B1 YU50NK-BR 2" NPT 1.42-2.07 2.375
YU52NK-B1 YU52NK-BR 2-1/2" NPT 1.81-2.57 2.875
YU30NK-B1 YU30NK-BR 3" NPT 2.24-3.07 3.5
Note: Please contact us for more sizes and configurations.

Related Products

Grip-Seals® Aluminum Cable Glands for Flat Festoon Cable 3QV_Web

Grip-Seals® Aluminum Cable Glands
Grip-Seals® Nylon Cable Glands Side_Web_Small

Grip-Seals® Nylon Cable Glands

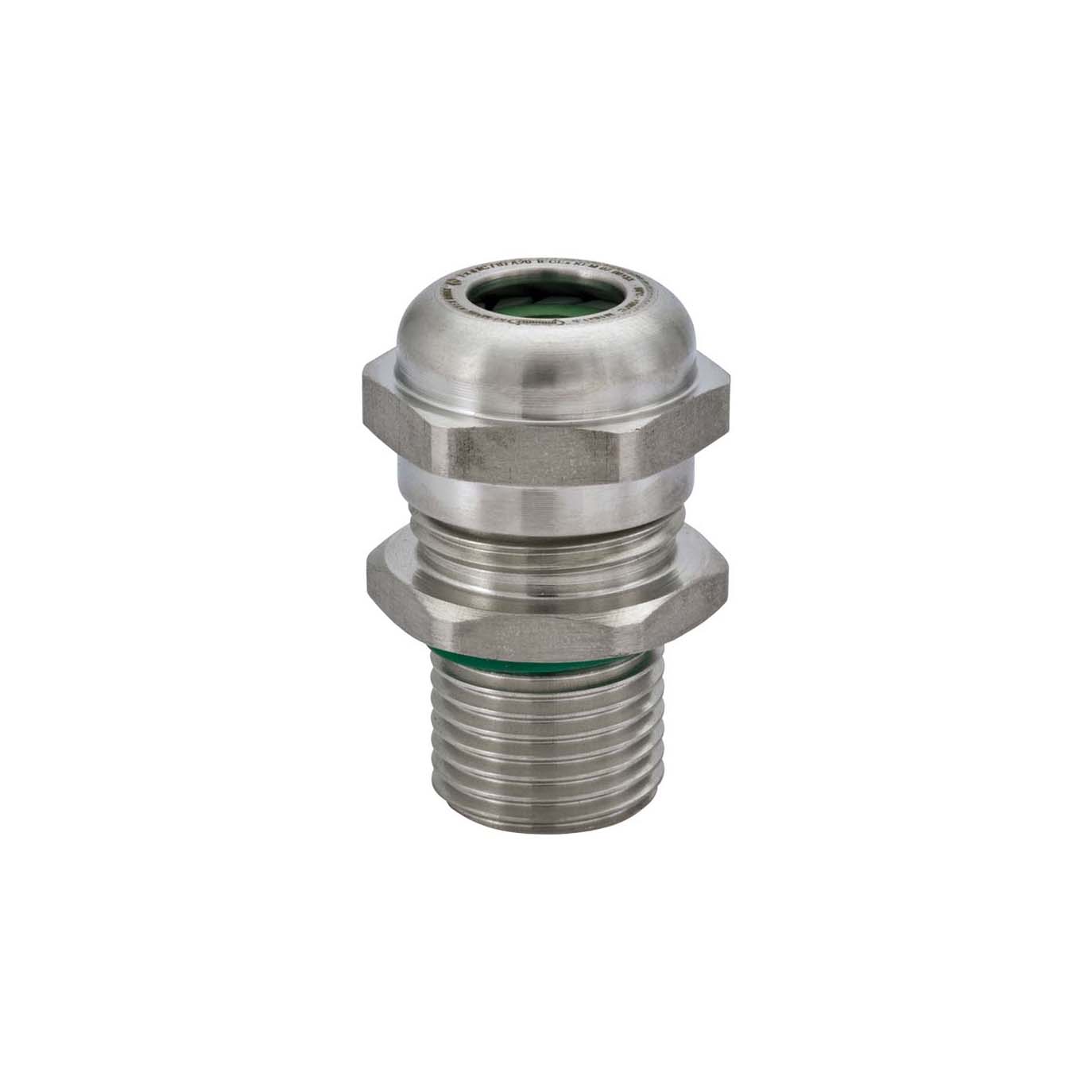

Grip-Seals® Stainless Steel Cable Glands 3QV_Web_Small
