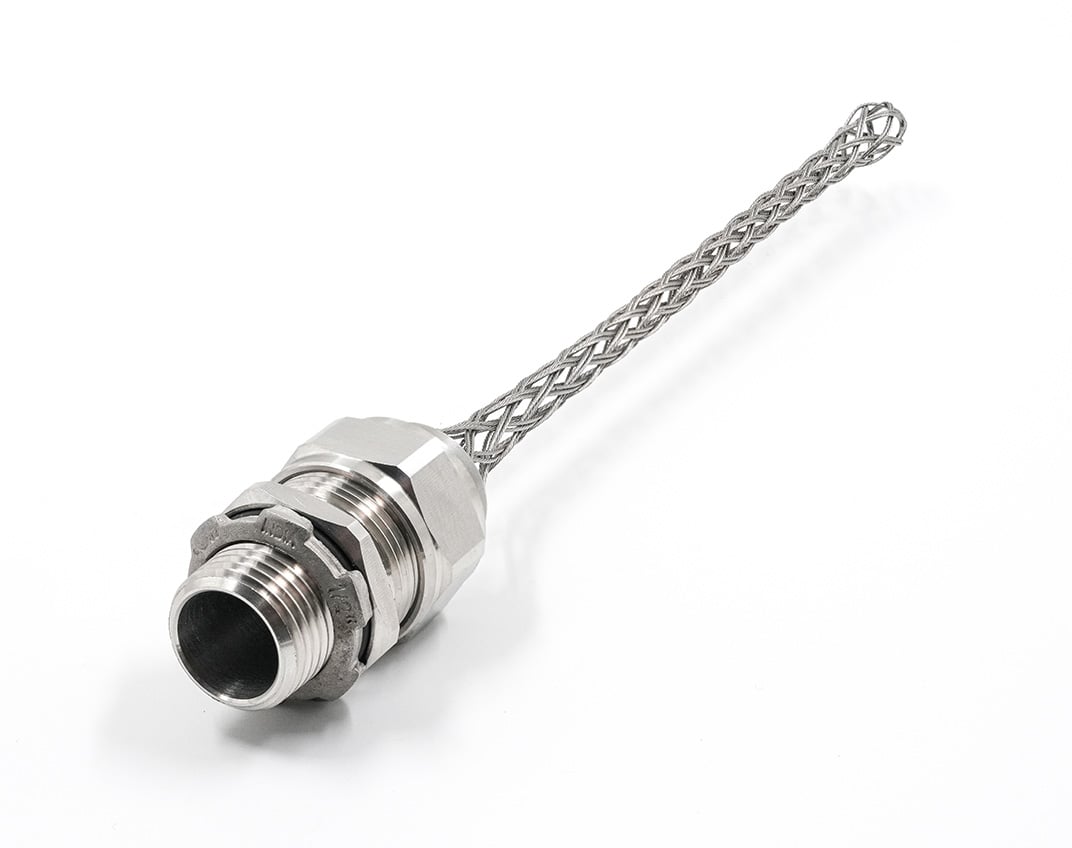

Kord-Gard® Stainless Steel Mesh Strain Relief

Kord-Gard® Stainless Steel Mesh Strain Relief Cable Glands have a 304 stainless steel smooth flange compression nut and threaded body ideal for washdown areas. Designed to fit tightly against panel surfaces to keep moisture and other contaminants out. Achieves IP68/NEMA4x rating. The partial double-weave stainless steel mesh is a unique drop-in basket design for easier assembly and provides exceptional gripping strength, longer cord life and corrosion resistance.


Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

FULLY DOUBLE-WOVEN STAINLESS STEEL MESH

Provides exceptional gripping strength, extends cable life and resists corrosion.

304 STAINLESS STEEL SMOOTH FLANGE COMPRESSION NUT AND THREADED BODY

Smooth flange compression nut eliminates crevices where bacteria can grow. Ideal for washdown areas. 304 Stainless Steel design resists impact and corrosion. Provides exceptional gripping strength. Easy to install.

MULTIPLE SYNTHETIC SEALING BUSHINGS INCLUDED WITH EACH PRODUCT

One part number covers a variety of cord diameters. Seals out water, oil, metal particles and other contaminants.

SEALING O-RING

Designed to fit tightly against panel surface to keep moisture and other contaminants out of panel. Protects connections from corrosion.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • REACH Compliant

  • IP68 Rated

  • NEMA 4X Rated

  • Operating Temperature: -40°C to 121°C

  • Extra Heavy-Duty Strain Relief

  • Corrosion Resistant

  • Extra Tight Seal

Applications

chemicals-icon

Chemicals

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

Part No. (TC-ER*) CORD O.D. RANGE
inches		 Fitting Size Number of Bushings
55310SS 0.180" – 0.310" " 3/8" NPT 2
55311SS 0.312" – 0.438" " 3/8" NPT 2
55320SS 0.370" – 0.500" 1/2" NPT 2
55321SS 0.500" – 0.570" 1/2" NPT 2
55330SS 0.560" – 0.690" 3/4" NPT 1
55343SS 0.688" – 0.875" "1" NPT 2
55341SS 0.875" – 1.250" 1-1/4" NPT 3
55319SS 0.25" - 0.37" ½" 2
55340SS 0.625" - 0.75" 1" 1
55313SS 0.688" - 0.812" 1" 1
55314SS 0.750" - 0.875" 1" 1
55315SS 0.812" - 0.938" 1" 1
55351SS 0.875" - 1.375" 1-1/2" 4
55333SS 3SS 1.250" - 1.812" 2" 4

Related Products

kord-gard-mesh-cord-grip_1

Kord-Gard® Aluminum Mesh Strain Relief
nylon-kord-gard-mesh-cord-grip_1

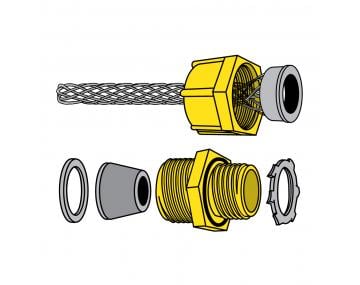

Kord-Gard® Nylon Mesh Strain Relief
