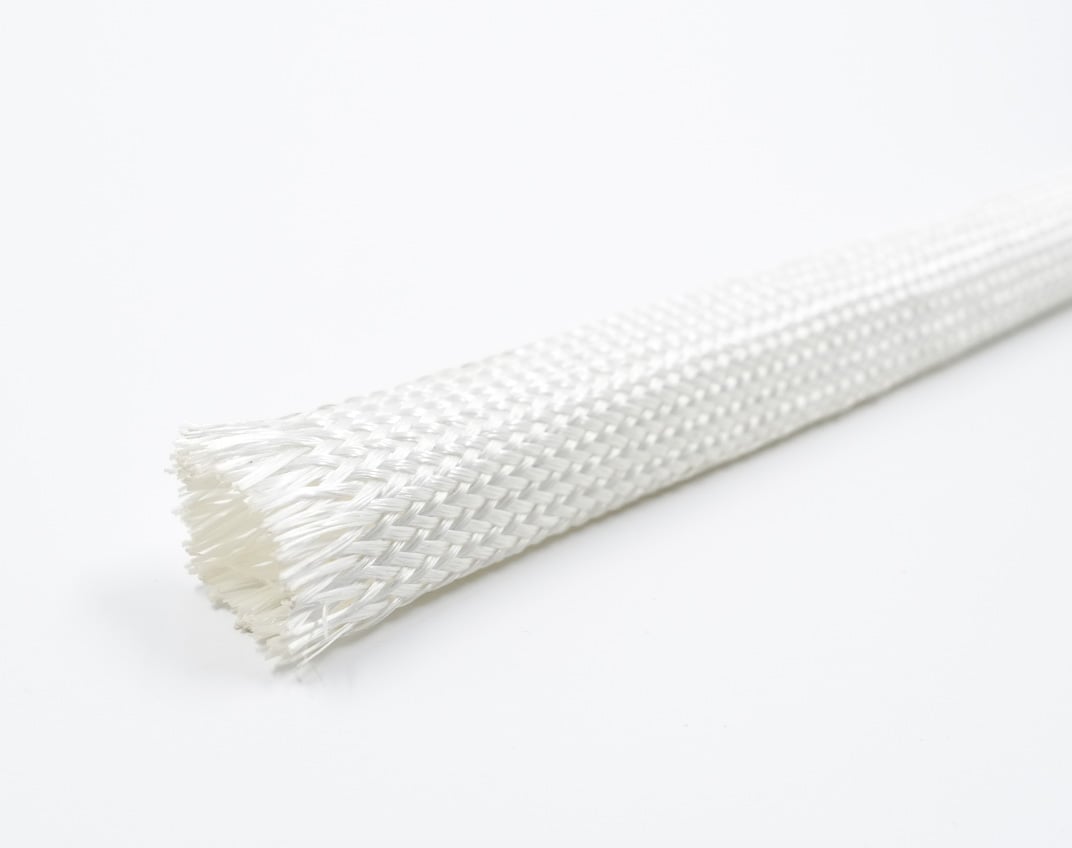

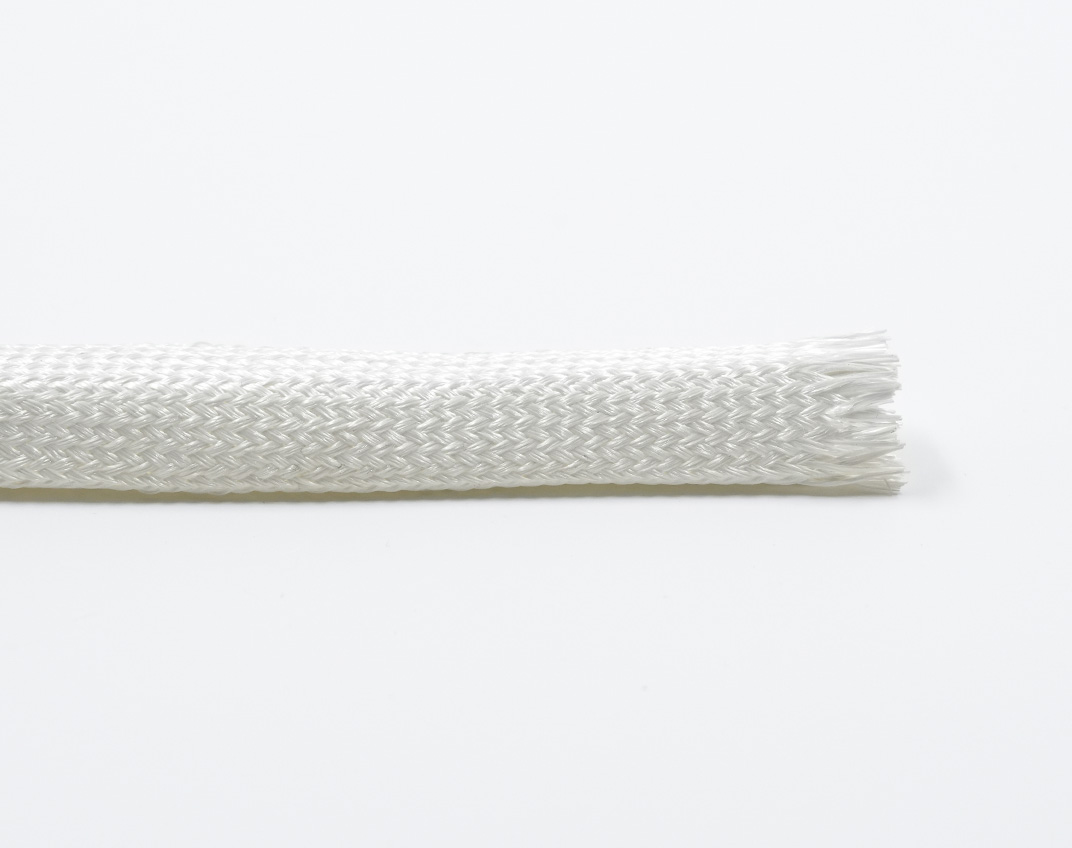

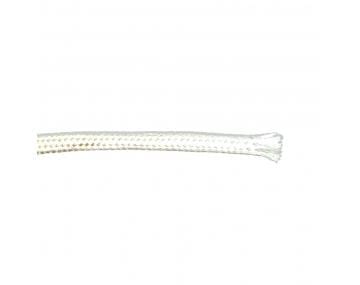

Thermo-Trex® Ceramic Ultra-Sleeve High Temperature Sleeving

Ceramic Ultra-Sleeve High Temperature Sleeving is a protective sleeve that is ideal for those areas where your cable runs through a particularly harsh environment of flash heat or flame, chemical or mechanical abuse. The Ceramic Ultra-Sleeve offers excellent heat and flame resistance.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers

Features

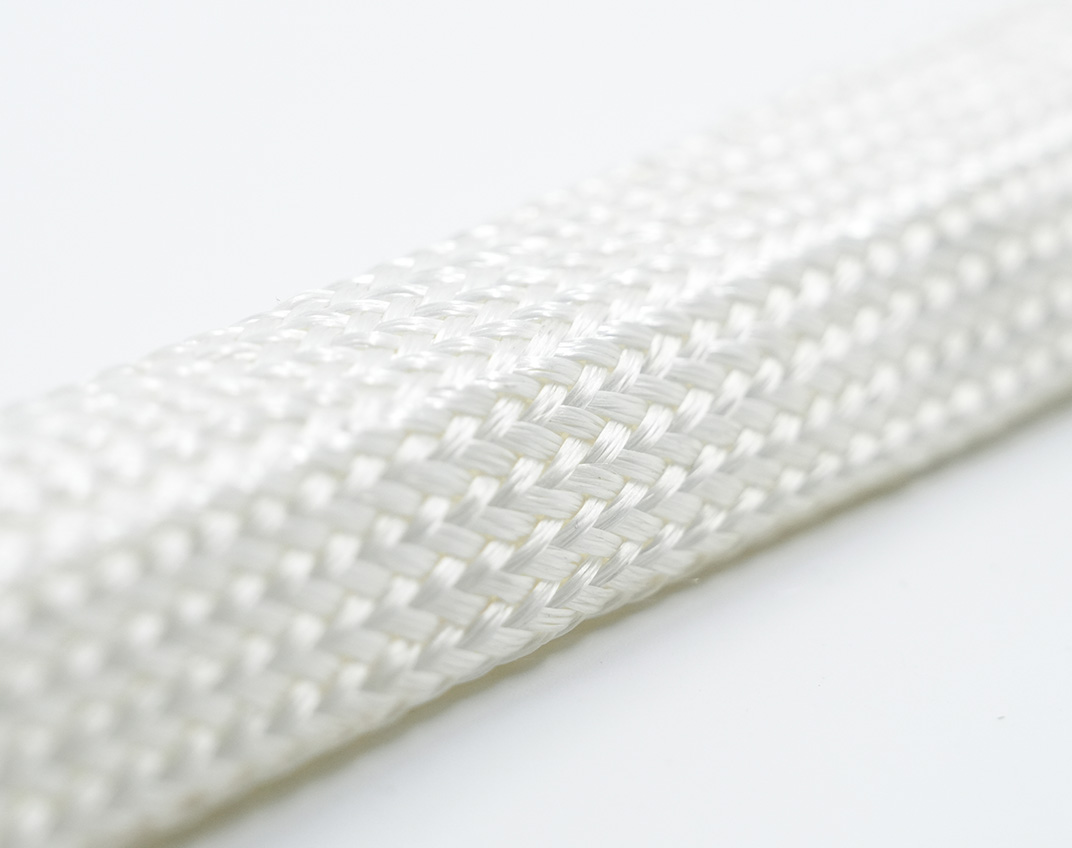

Finely Stranded Spun Ceramic Fibers

Finer strands mean more flexibility. A higher density of ceramic fibers per square inch increases the protection of the cable.

Extra Thick Braid

Braided ceramic fibers for superior resistance to very high temperatures.

Extreme Temperature Properties

Suitable for continuous use at 1200°C and intermittent use up to 1420°C. Offers superior protection for cables, assemblies or hoses exposed to extreme heat and flames.

Available in Multiple Diameters

Can expand and contract by approximately 20% of its nominal size to allow for selection of the right size sleeve for the application.

Resources

Specsheets

Product Spec Sheet

Ratings / Characteristics

  • RoHS Compliant

  • Continuous Temperature Range 1200C / 2200°F

  • Intermittent Temperatures up to 1420C / 2600°F

  • Flame Resistance: Outstanding

  • Weld Spatter Resistance: Excellent

  • Molten Splash Resistance: Excellent

  • Flexibility: Outstanding

  • Abrasion Resistance: Moderate

  • Water and Oil Resistance: Moderate

Applications

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. INNER DIAMETER
inches
49300 0.25
49301 0.5
49302 1
49303 1.5
