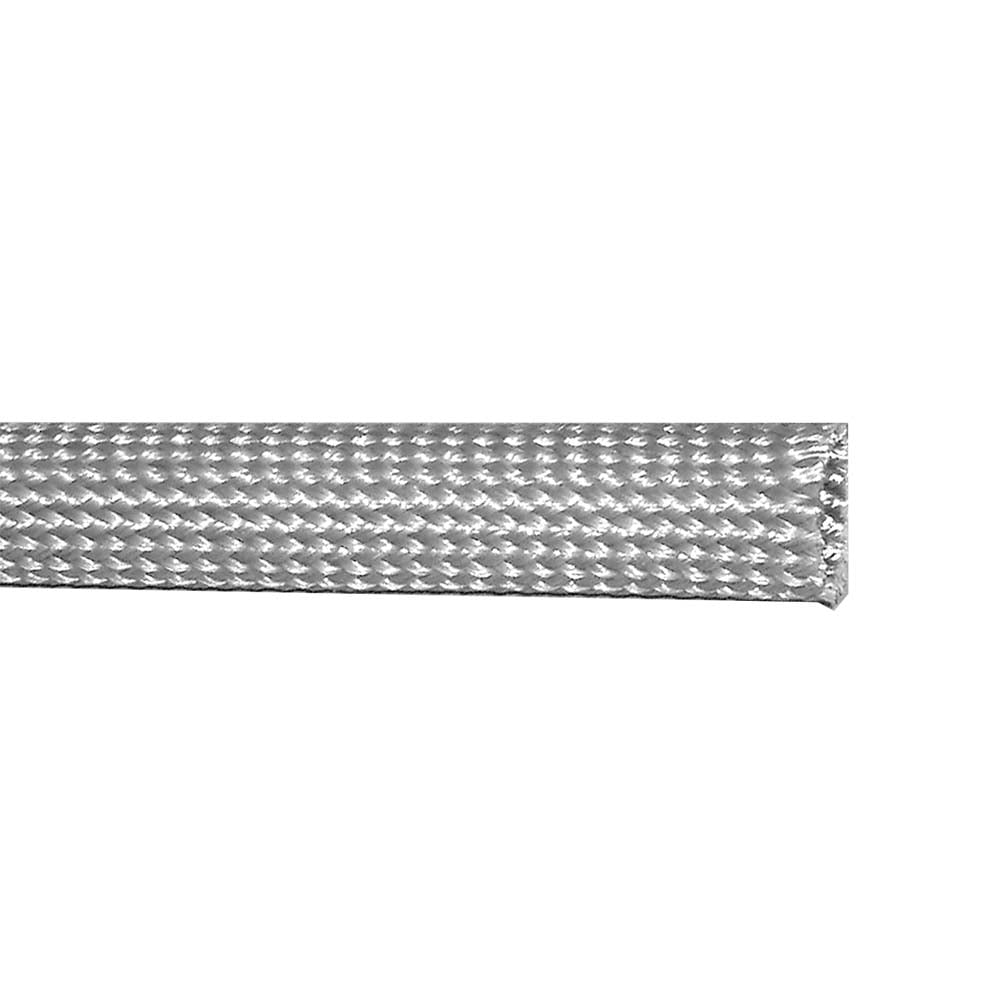

CERAM5BW
fiberglass-sleeve-exposed

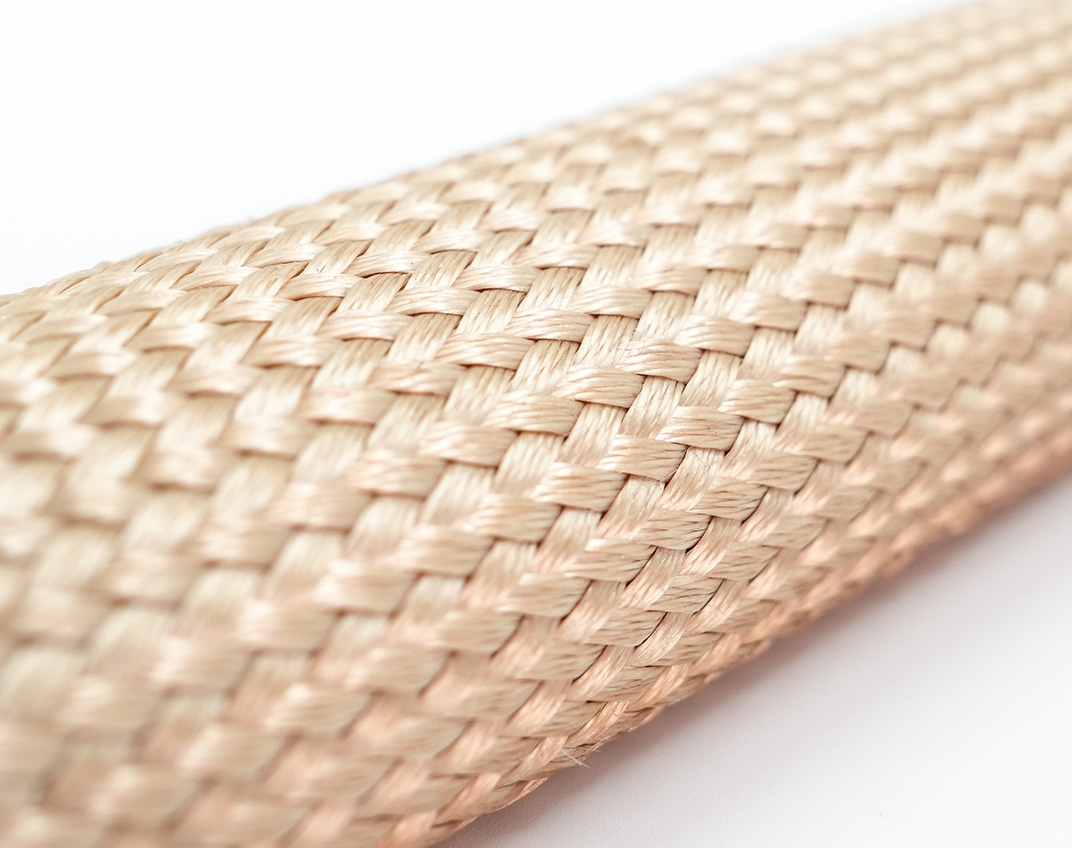

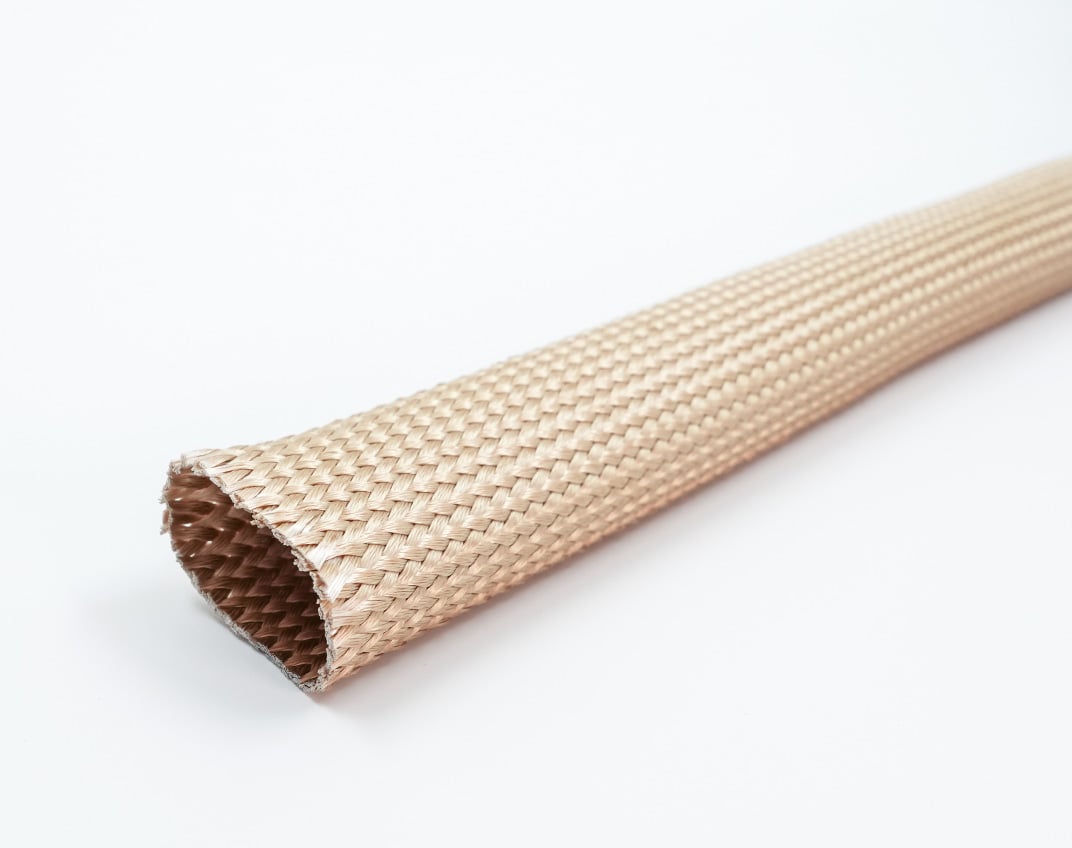

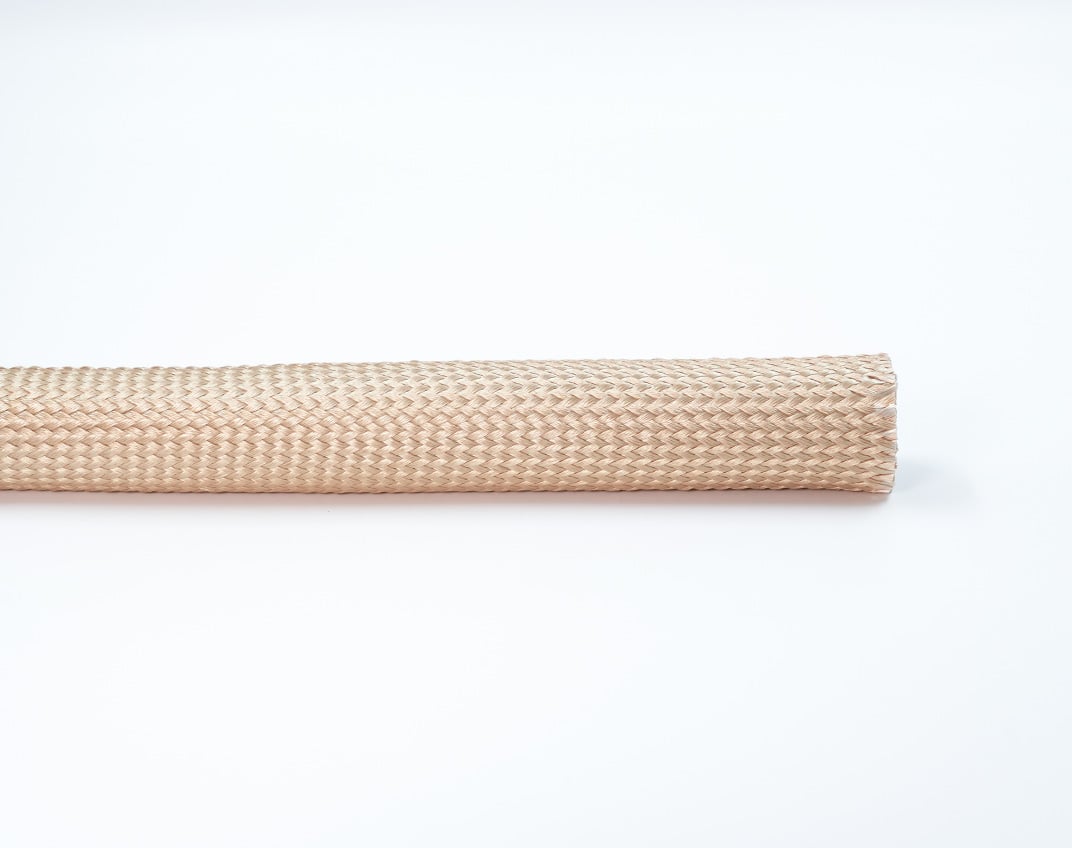

Fiberglass Ultra-Sleeve-High Temperature Sleeving

Fiberglass Ultra-Sleeve High-Temperature Sleeving is a protective sleeve that is ideal for those areas where your cable runs through a particularly harsh environment of flash heat or flame, chemical or mechanical abuse. The Fiberglass Ultra-Sleeve offers great heat resistance up to 538°C. Available in inner diameters from ¼” to 2-1/2” to fit cable ranges from 1/8” to 4”.

Request a Quote Download Spec Sheet
Features
Ratings
Applications
Part Numbers

Features

EXTRA THICK BRAID

Made from E-glass fiber yarn with superior high temperature resistance.

FINELY STRANDED SPUN GLASS FIBERS

Finer strands mean more flexibility. Higher density of fibers per square inch increases protection of cable.

SPECIAL FINISHING COMPOUNDS

Adds stiffness and reduces friction for easier installation.

BRAIDED SLEEVE WILL ADAPT TO FIT A SIZE RANGE

Ratings / Characteristics

  • RoHS Compliant

  • Continuous Temperature Range 538C / 1000°F

  • Intermittent Temperature Range to 650C / 1200F

  • Abrasion and Cutting Resistance

  • Fits Cable Sizes from 0.25" to 2.5" with ranges from 1/8" to 4"

Applications

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. INNER DIAMETER
inches		 Size Range
Inches
49200 0.25 3/8 to 5/8
49201 0.75 5/8 to 7/8
49202 1 7/8 to 1-1/4
49203 1.5 1-3/8 to 2-1/4
49204 1.75 2-3/8 to 4
