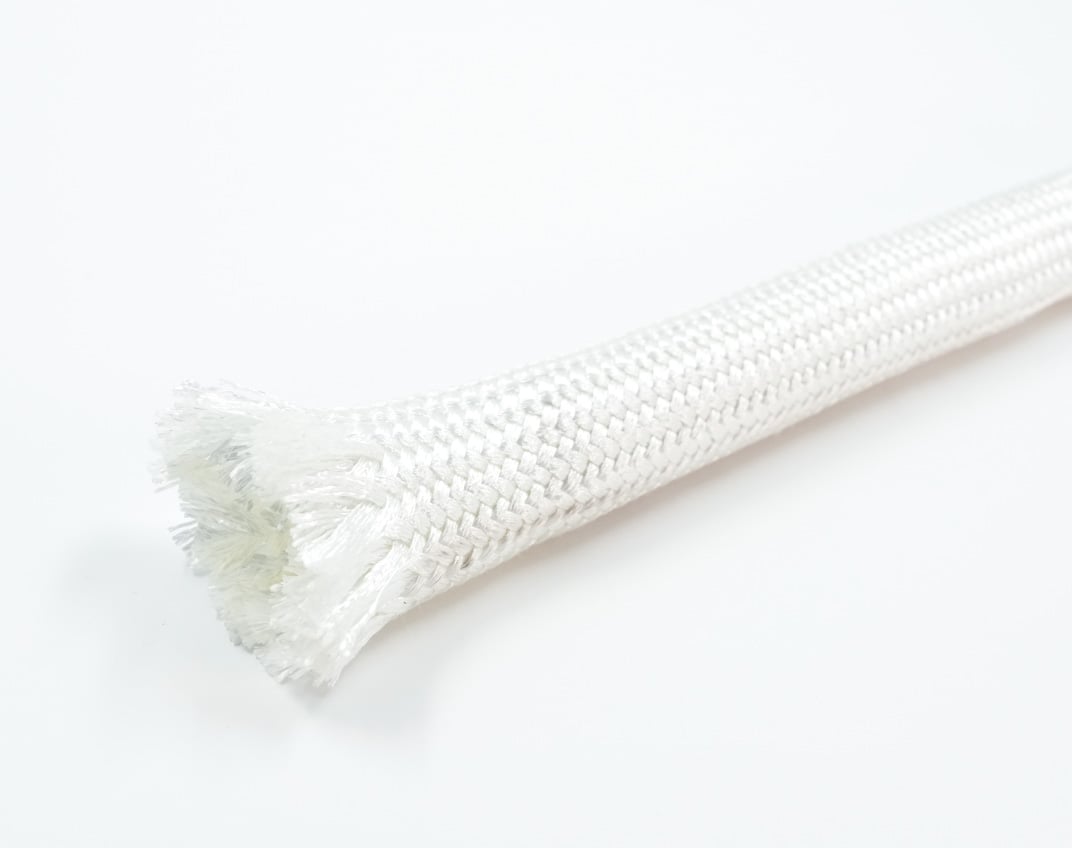

Silica Ultra-Sleeve High Temperature Sleeving 3QV_Web

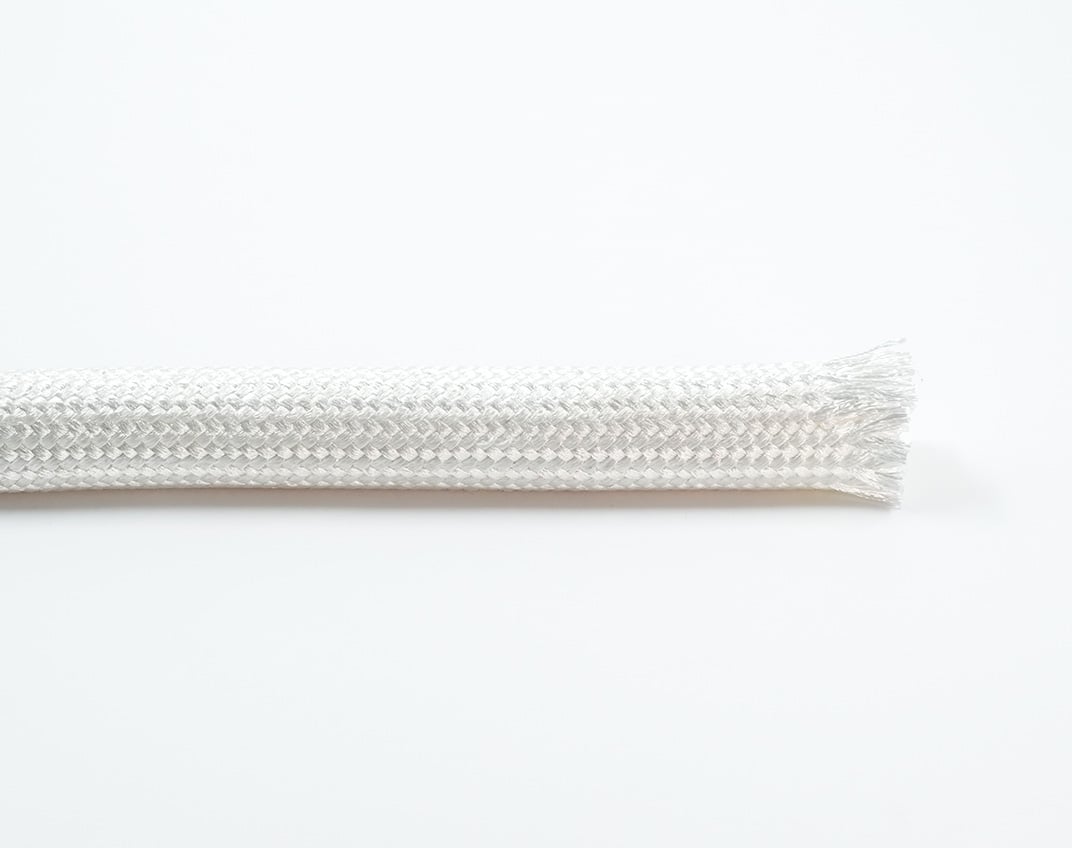

Silica Ultra-Sleeve High Temperature Sleeving Side_Web

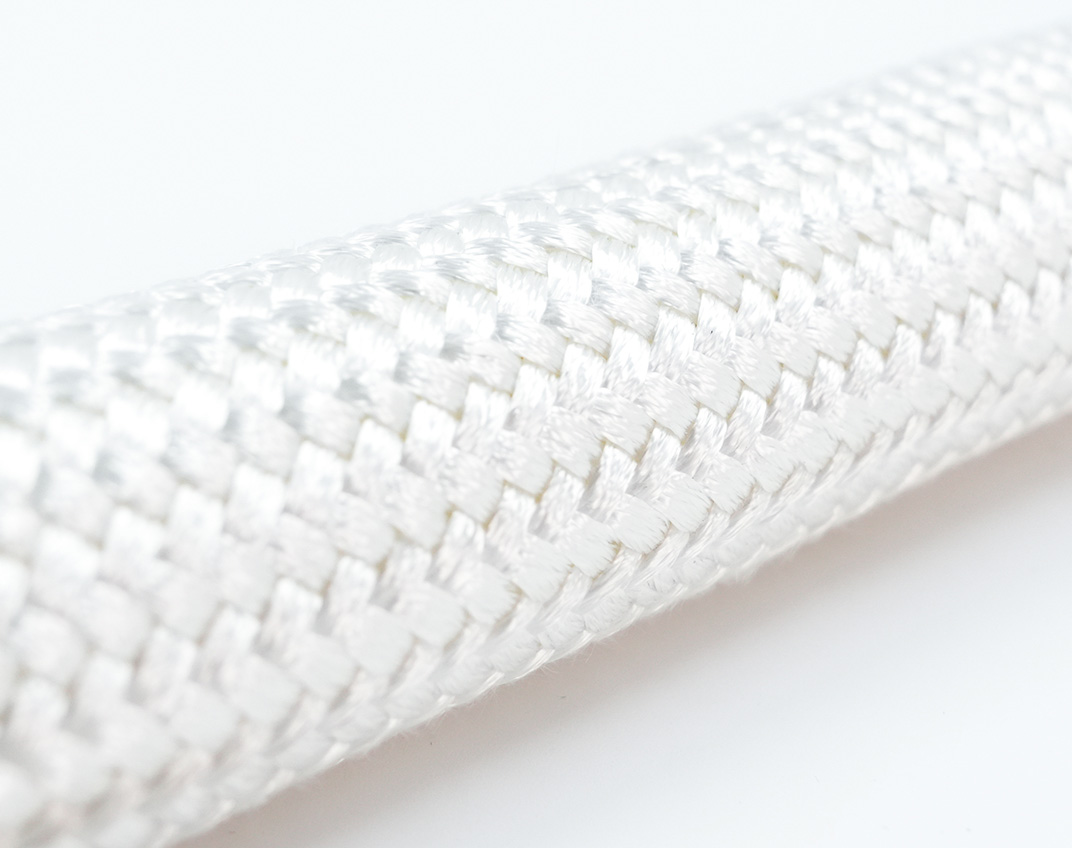

Silica Ultra-Sleeve High Temperature Sleeving Macro_Web

Thermo-Trex® Silica Ultra-Sleeve High Temperature Sleeving

Silica Ultra-Sleeve is a braided silica fiber that is 96% pure. Silica offers temperature resistance up to 1260°C / 2300F while offering outstanding flame resistance, flexibility and tensile strength. It also doesn’t have the negative health effects associated with asbestos or ceramic sleeves.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Heavy Wall Braided Silica Sleeve Made of 96% Pure Silica Fiber

An excellent replacement for asbestos material that will resist most corrosive fluids and will not generate smoke or fumes even under the most severe heat conditions.

Extreme Temperature Properties

Suitable for continuous use at 982°C and intermittent use up to 1260°C. Offers superior protection for cables, assemblies or hoses exposed to extreme heat and flames.

Excellent Alternative to Asbestos

Protects hoses, cables and other equipment from extreme heat, molten metals, sparks and flames in a wide range of welding and heat-treating operations.

Available in Multiple Diameters

Can expand and contract by approximately 20% of its nominal size to allow for the selection of the right size sleeve for the application.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • Continuous Temperatures up to 1800°F ( 982°C)

  • Extreme Low Temperature -40°F in Dry Applications

  • Intermittent Exposure: 2300°F (1260°C)

  • Flame Resistance: Outstanding

  • Weld Splatter Resistance: Excellent

  • Molten Splash Resistance: Good

  • Flexibility: Outstanding

  • Abrasion Resistance: Moderate

  • Water and Oil Resistance: Moderate

Applications

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. INNER DIAMETER
INCHES
49900 0.25
49901 0.5
49902 0.75
49903 1
49904 1.5
49905 2
49906 3
