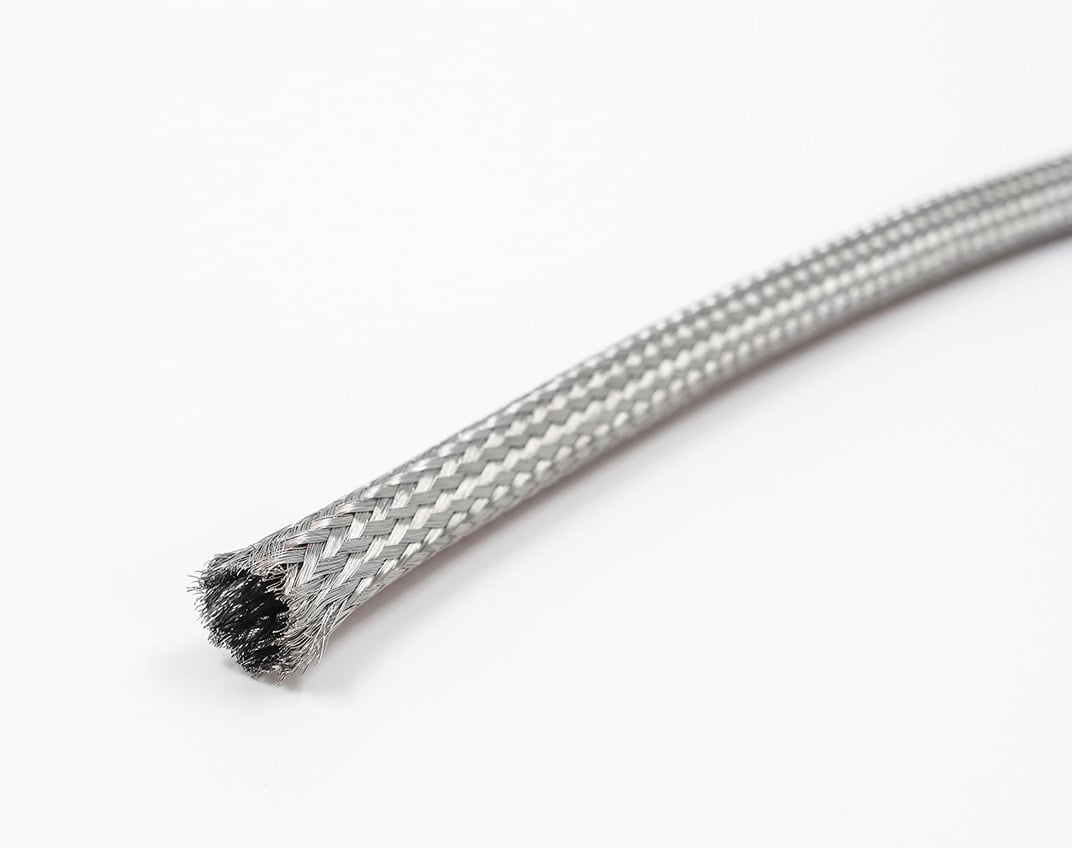

Stainless Steel Braided Ultra-Sleeve 3QV_Web

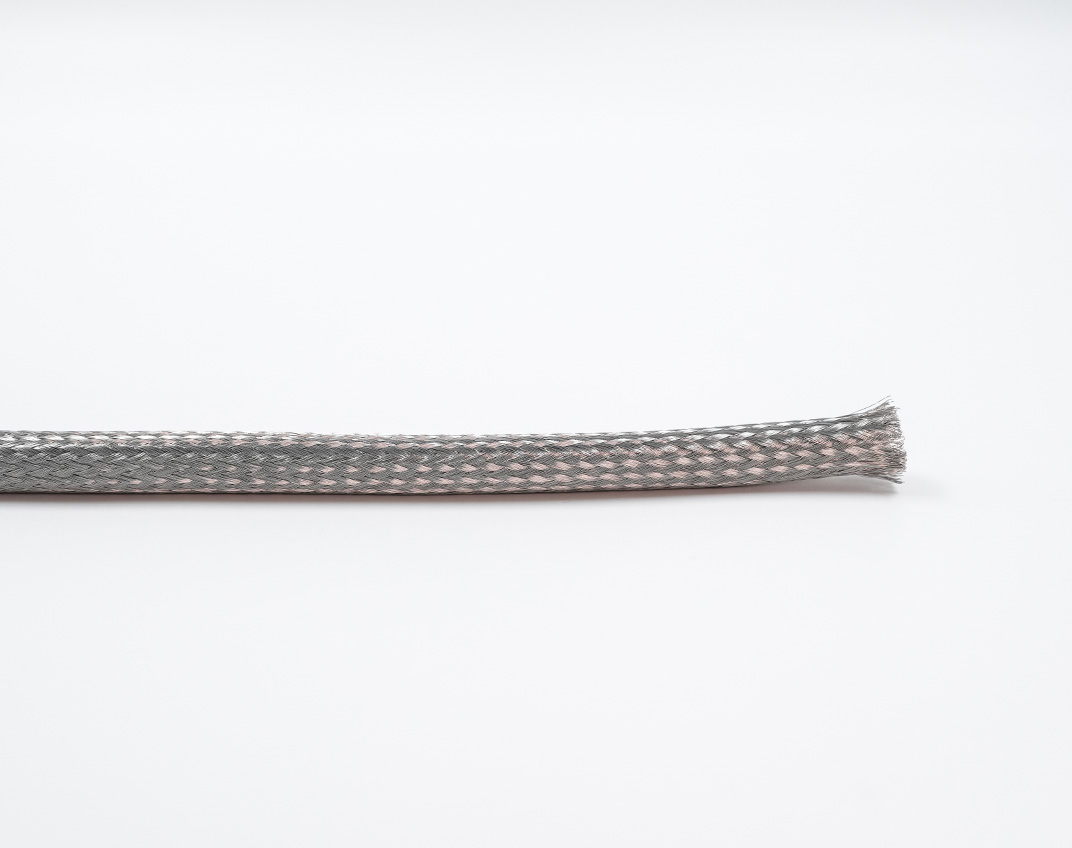

Stainless Steel Braided Ultra-Sleeve Side_Web

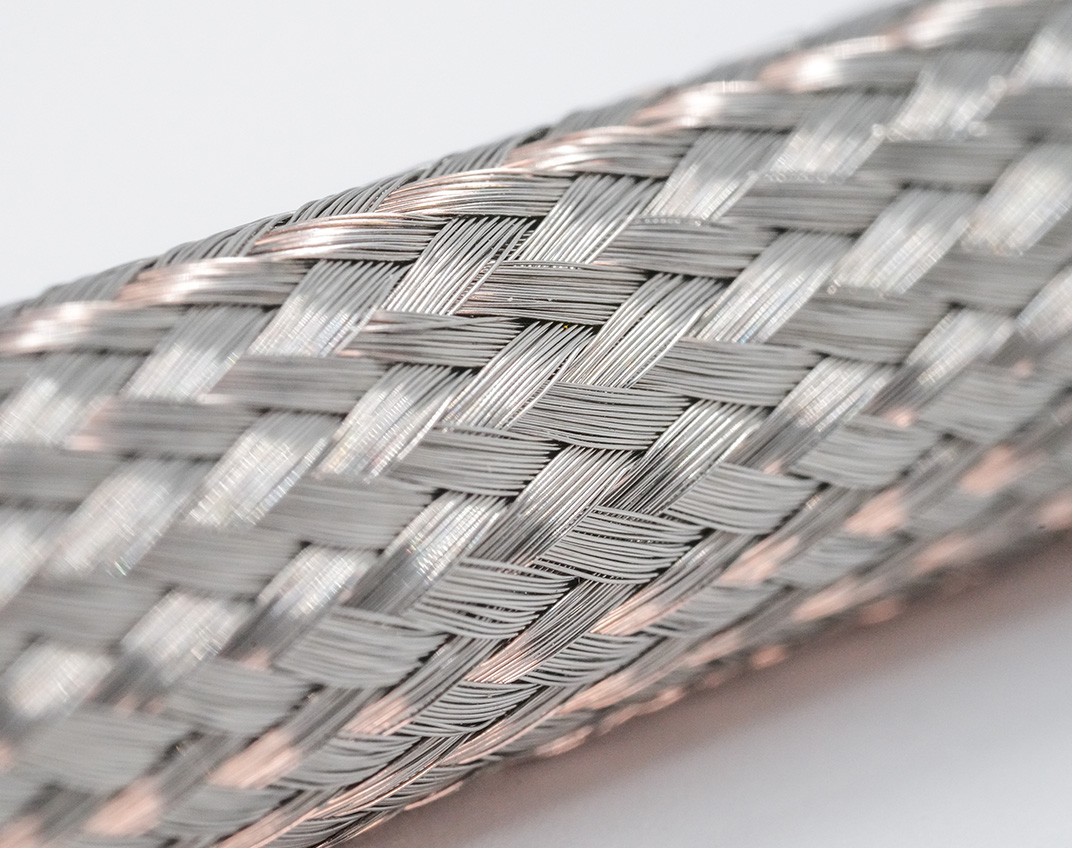

Stainless Steel Braided Ultra-Sleeve Macro_Web
1785 Thumbnail

Stainless Steel Braided Ultra-Sleeve

ATPC's braided stainless steel Ultra-Sleeve protects hoses from wear, abrasion and UV rays. Made of 304 stainless steel, it’s virtually indestructible but economical for multiple applications. Can be cut easily with industrial shears or serrated scissors to precise lengths. Offers the same protection as custom stainless steel braided hoses and cables at a fraction of the price.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

BRAIDED 304 GRADE STAINLESS STEEL

Excellent protection against abrasion and mechanical abuse. Resists discoloration and rust.

SUITABLE FOR INDOOR AND OUTDOOR USE

Superior resistance to abrasion, UV, and most fluids including petroleum-based chemicals.

DESIGNED FOR EASY INSTALLATION

Cut to length with shears or serrated scissors. Slide it over the cable or hose and secure the cut ends with clamps.

AVAILABLE IN MULTIPLE DIAMETERS 

Can expand and contract by approximately 25% of its nominal size to allow for selection of the right size sleeve for the application.

Resources

Specsheets

Product Overview

Configurations

  • RoHS Compliant

  • High Melt Temperature: 1450°C (2650°F)

  • Flame Resistance: Very Good

  • Weld Spatter Resistance: Excellent

  • Molten Splash Resistance: Excellent

  • Flexibility: Very Good

  • Abrasion Resistance: Outstanding

  • Water and Oil Resistance: Excellent

Applications

abrasions-icon

Abrasion

impact-icon

Impact

Part Numbers

Part No. Inner Diameter
Inch		 Size Range
Inch
49522 1/4 3/16 - 13/32
49523 3/8 1/4 - 5/8
49524 1/2 3/8 - 3/4
49525 3/4 1/2 - 1-1/4
49526 1 5/8 - 1-5/16
49527 1-1/4 3/4 - 1-3/4
49528 1-1/2 1 - 2-1/8
