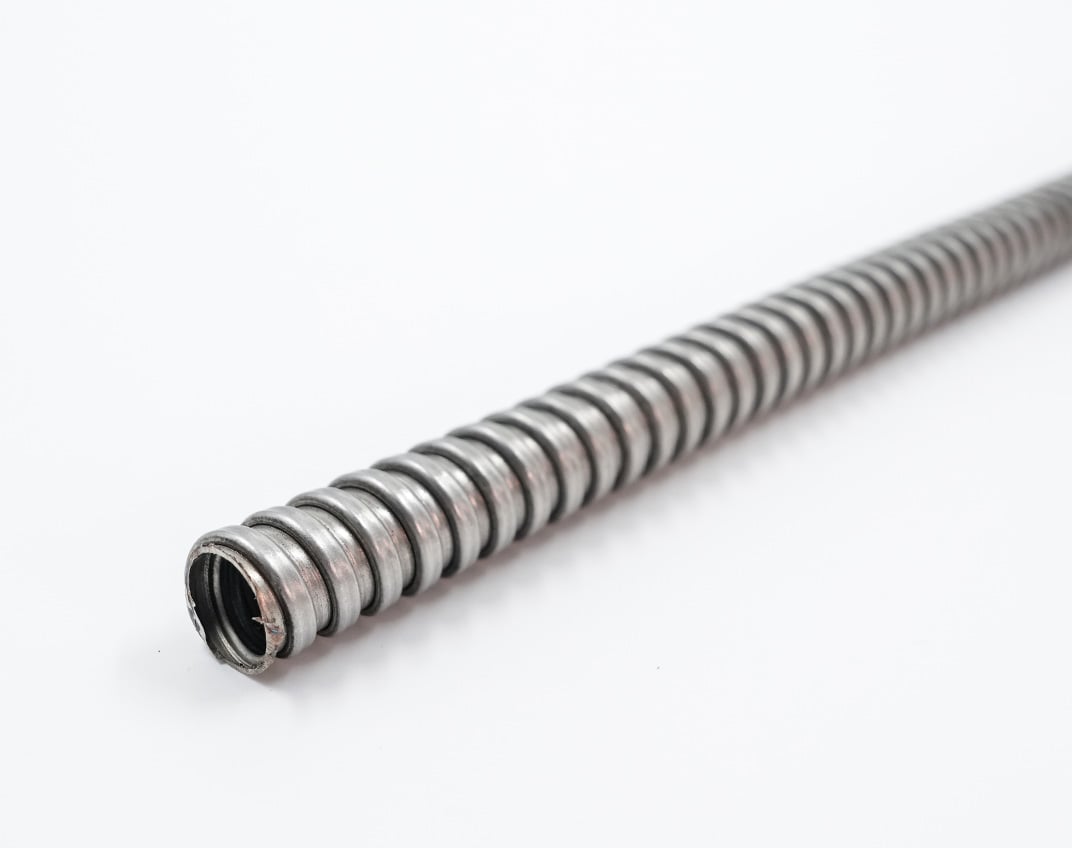

Stainless Steel Flexible Tubing 3QV_Web

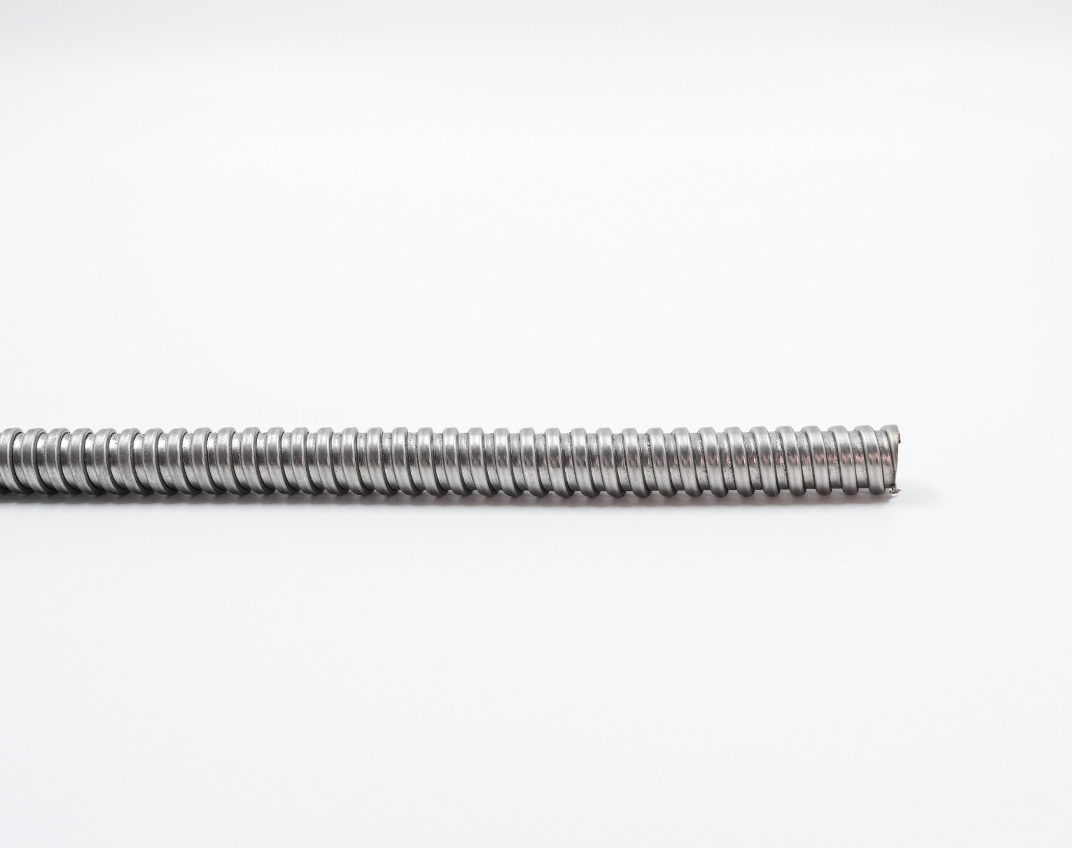

Stainless Steel Flexible Tubing Side_Web

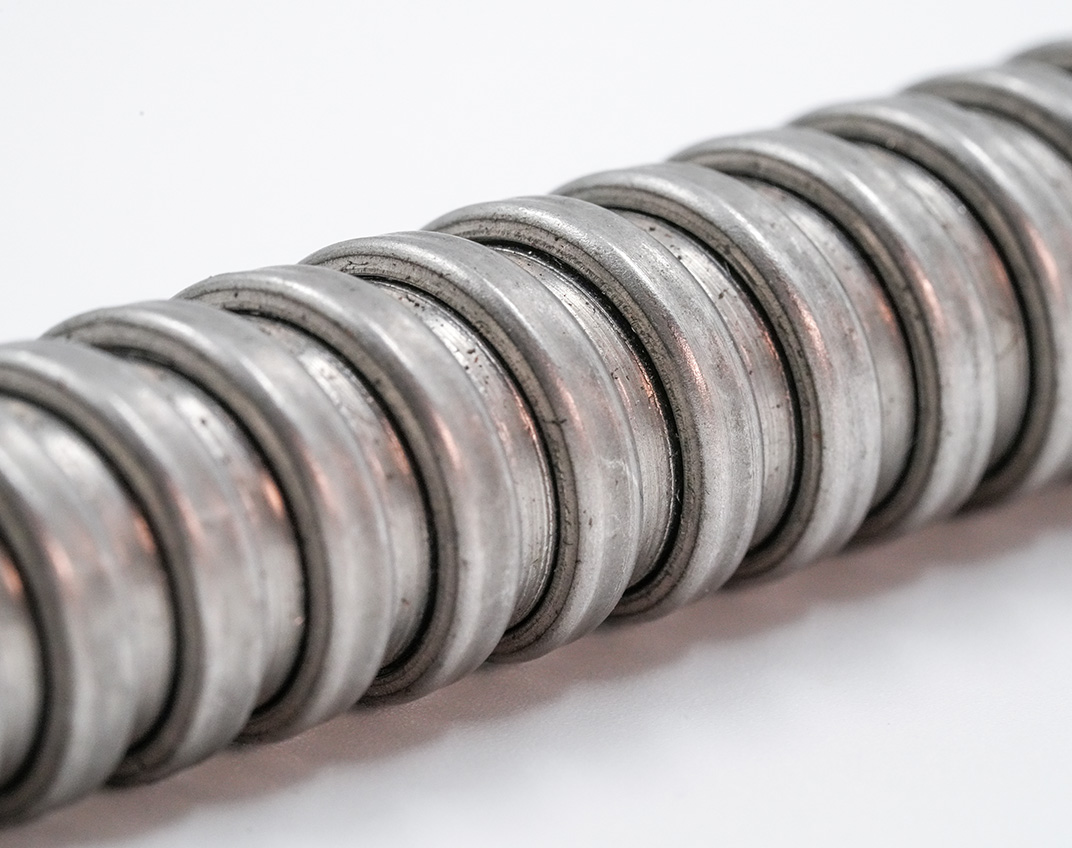

Stainless Steel Flexible Tubing Macro_Web
1785 Thumbnail

Stainless Steel Flexible Tubing

Fully Interlocked Flexible Stainless Steel Tubing protects cable from damage due to sharp edges, metal chips, impact and abrasion in indoor and outdoor environments. Available in sizes from 0.25" inner diameter to 3" inner diameter to accommodate most cable sizes.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Fully Interlocked Flexible Metal Tubing

Protects cable from sharp edges, metal chips, impact and outdoor environments.

304 Grade Stainless Steel

Excellent protection against abrasion and mechanical abuse. Resists discoloration and rust.

Wall Thickness of 10-12 mils with 300 lbs. of Linear Break Strength

Provides defense against impact and abrasion.

Available in Multiple Diameters Ranging from 0.25” ID to 3.0” ID

Allows for selection of the right size sleeve for the application. Fits over most electrical cables and rubber or plastic hoses.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • High Temperature Resistance: 538°C (1000°F)

  • Flame Resistance: Very Good

  • Weld Spatter Resistance: Very Good

  • Molten Splash Resistance: Very Good

  • Flexibility: Excellent

  • Abrasion Resistance: Excellent

  • Water and Oil Resistance: Outstanding

Applications

chemicals-icon

Chemicals

abrasions-icon

Abrasion

impact-icon

Impact

flexing-icon

Flexing

Part Numbers

Part No. Nominal I.D
inches		 Nominal O.D.
inches		 INSIDE BENDING DIAMETER
inches		 WT. Per 100’
lbs
49320 1/4 0.375 3 11
49321 3/8 0.5 4 14
49322 1/2 0.625 6 16
49324 3/4 0.875 6-1/2 20
49325 1 1.13 7-1/2 28
49328 1-1/4 1.38 9-/1/2 36
49330 1-1/2 1.65 11 48
49334 2 2.16 15 66
49342 3 3.16 22 102
