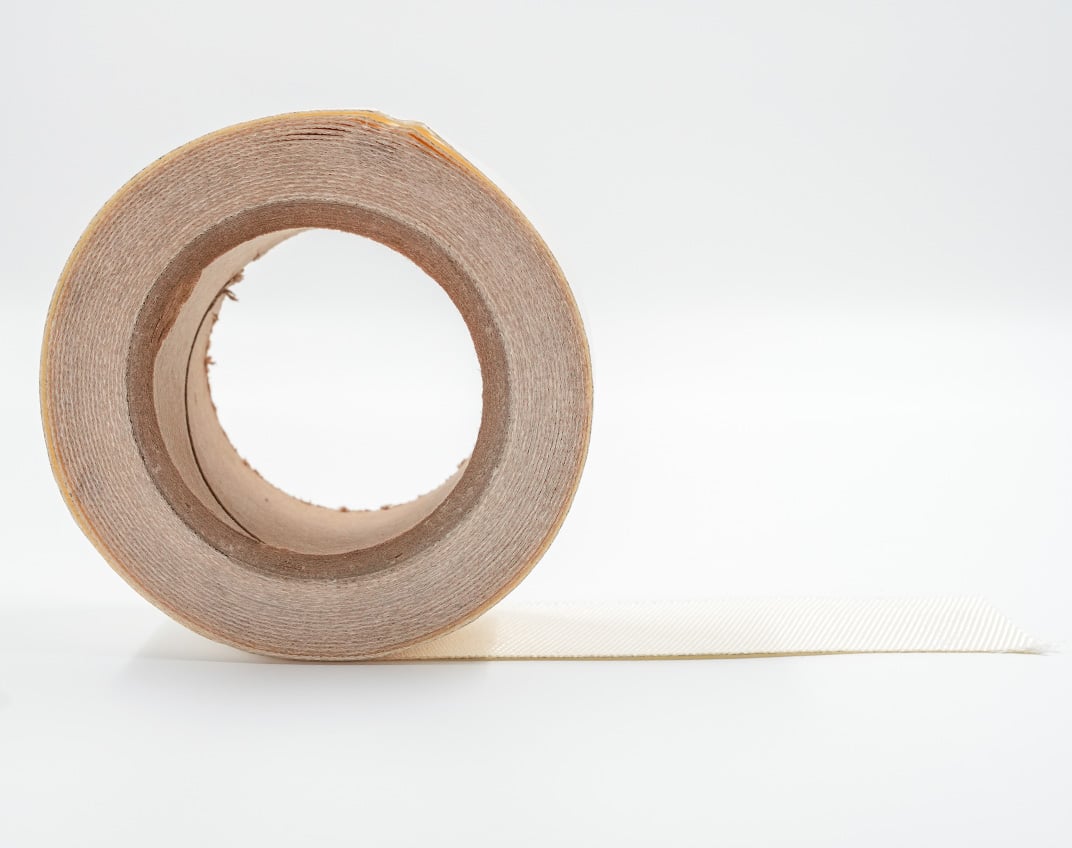

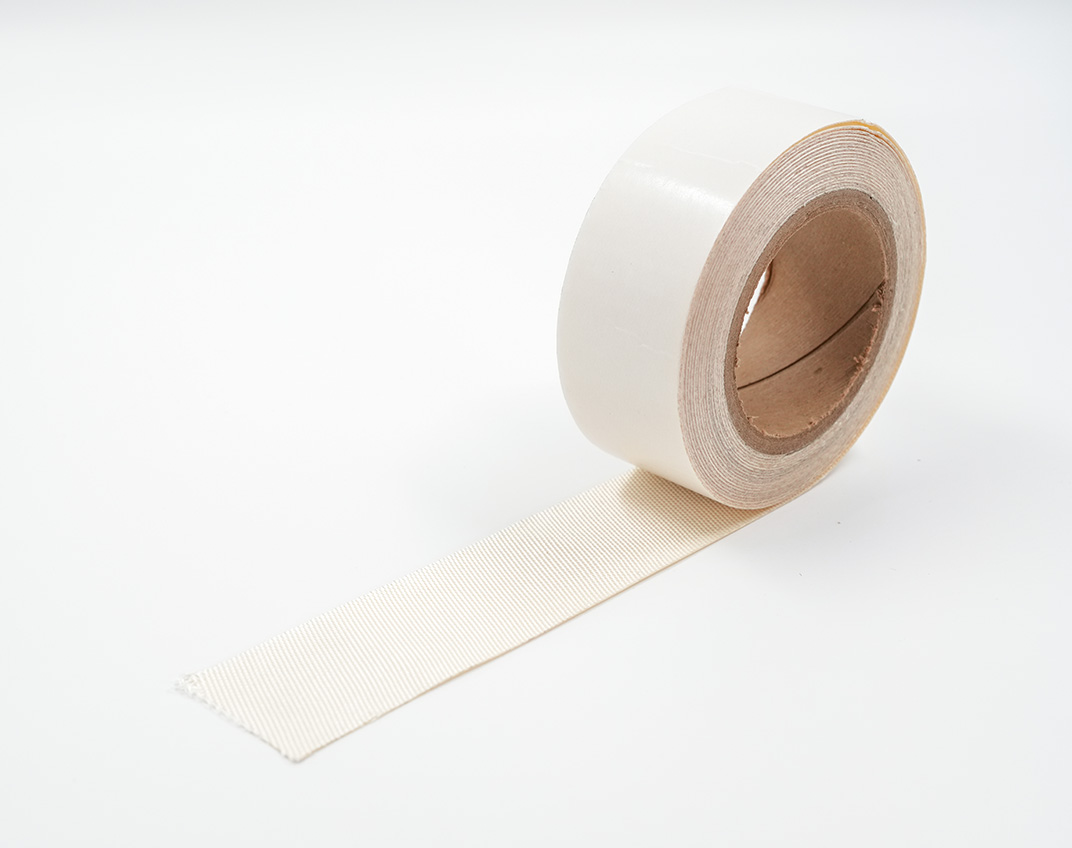

High Temperature Silica Tape

High Temperature Silica Tape is made of 96% pure SiO2 silica fiber which offers superior resistance to radiant heat and flame. It’s an ideal solution for electrical cables that are exposed to extreme heat. It is suitable for continuous use at 982°C (1,800°F) and will withstand short term exposure with temperatures as high as 1260°C (2,300°F). This wrap will not unravel or pull back from extreme heat. Adhesive backing decomposes when heated, leaving a perfectly wrapped hose, cable or assembly.

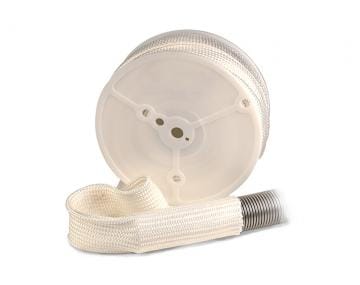

Protect your hydraulic and pneumatic lines and electrical cables from exposure to high and extreme heat conditions. Use our High Temperature Silica Tape to fasten our Ultra-Sleeves to your lines, pipes and cables

Features

UNIQUE SILICA BASED TAPE

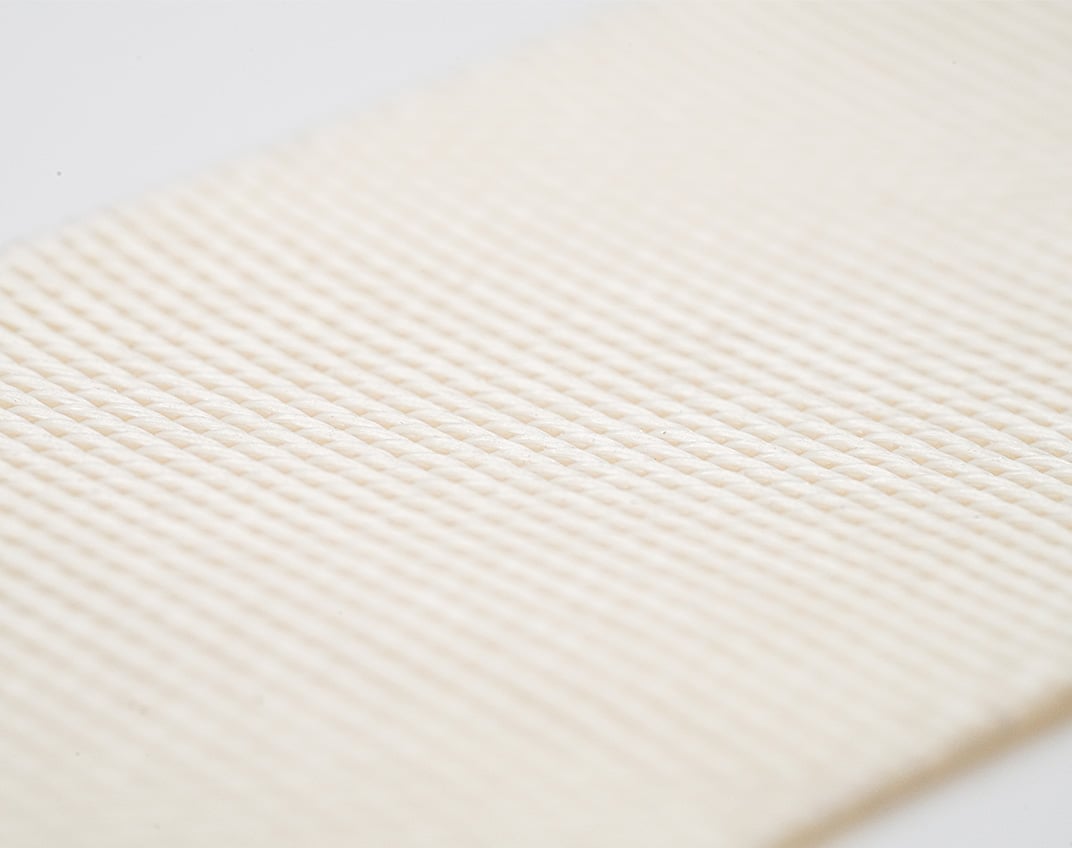

Designed using 96% pure SiO2 silica fiber offers superior resistance to radiant heat and flame.

EASE OF INSTALLATION

Adhesive backed tape provides for ease of installation, no need to disconnect hoses or cables. Simply remove the backing tape and wrap it around object to be protected.

EXTREME TEMPERATURE PROPERTIES

Suitable for continuous use at 982C / 1800°F and able to withstand short term exposure up to 1260C / 3000°F. Offers superior protection for cables, assemblies or hoses exposed to extreme heat or flame.

SUPERIOR ABRASION AND CUT RESISTANCE

Proprietary hydrocarbon coatings enhance abrasion resistance, cut through and tensile strength.

SELF SEALING DESIGN

The wrap will not unravel or pull back from extreme heat. Adhesive backing decomposes when heated, leaving a perfectly wrapped hose, cable or assembly.

AVAILABLE IN THREE EASY TO INSTALL WIDTHS

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • Continuous Temperatures up to 982C /1800°F

  • Intermittent Exposure up to 1260°C / 2300F

Applications

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. NOMINAL WIDTH
INCHES
NOMINAL LENGTH/ROLL
FEET
NOMINAL THICKNESS INCLUDING BACKING
INCHES
91110 1 25 0.03
91111 2 25 0.03
91113

4 50 0.03
