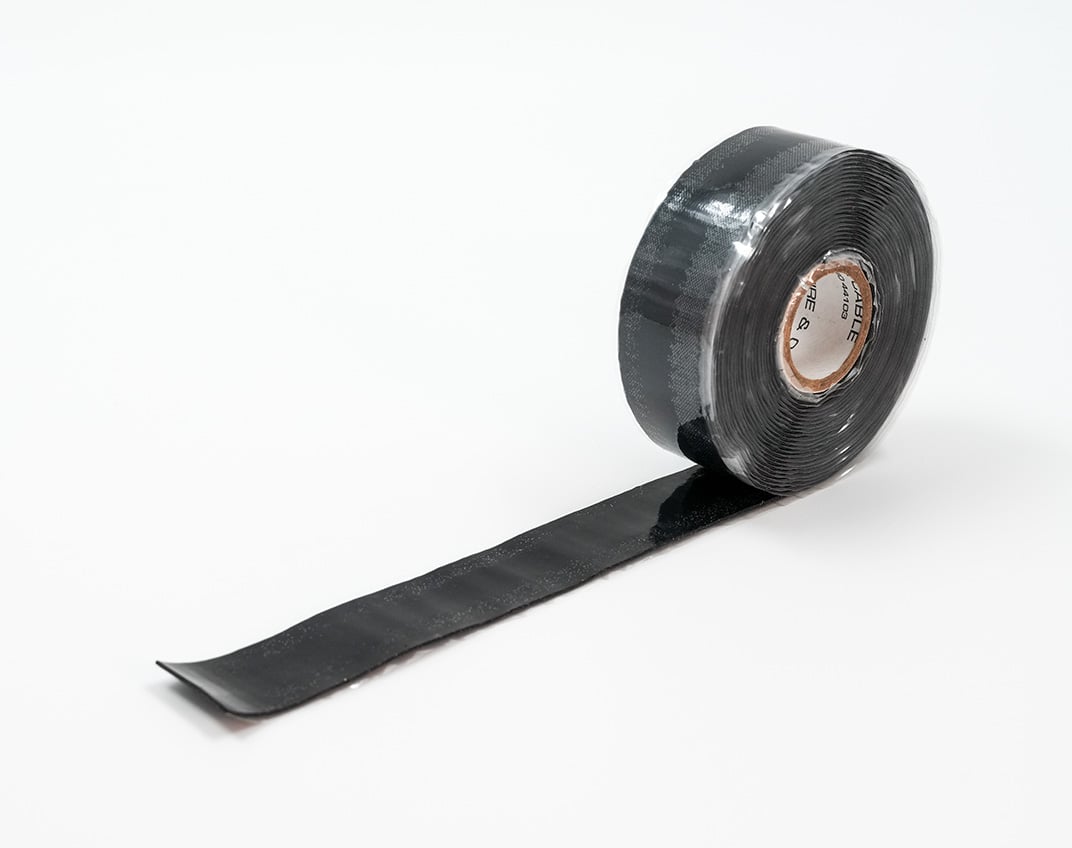

Vulko-Wrap Black Reinforced 3QV_Web

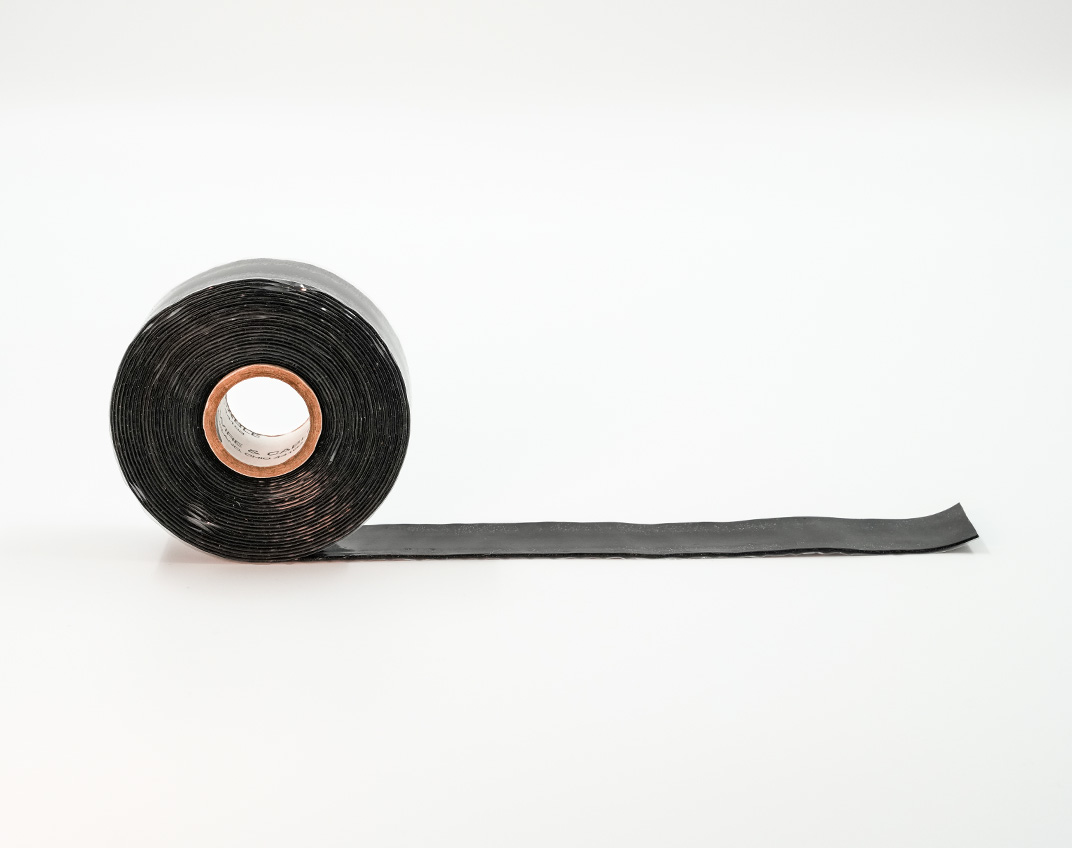

Vulko-Wrap Black Reinforced Side_Web

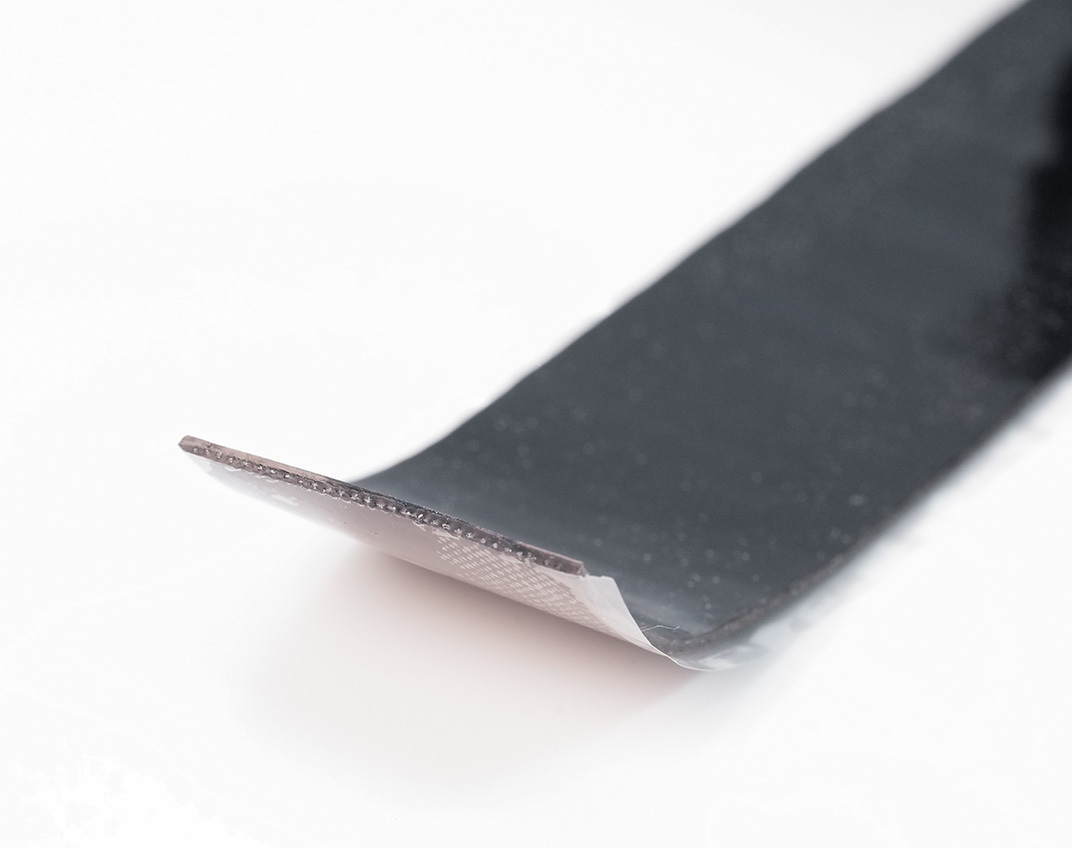

Vulko-Wrap Black Reinforced Macro_Web

Vulko-Wrap Black Reinforced

Reinforced Vulko-Wrap™ has the same excellent properties as Vulko- Wrap, but has been embedded with a glass yarn fiber braid for added strength while maintaining the flexibility. Reinforced Vulko-Wrap has a temperature rating of -60°F to +400°F and has a dielectric strength of 500 volts per mil. One roll has 36 feet of tape that is one inch wide. It is available in 40 mil thickness in the color black only.

Features

HIGH DIELECTRIC STRENGTH

Effective for all electrical connections.

SPECIALLY COMPOUNDED, SYNTHETIC SILICONE ELASTOMER

Resistant to oil, water, ozone, and many chemicals as well as temperatures from -60°F to +400°F.

REINFORCED WITH GLASS YARN BRAID 

Reinforcing braid embedded in the center of material provides enhanced mechanical strength while still allowing the product to cover irregular shapes. 

IMMEDIATE VULCANIZATION

Requires no heat – becomes fully bonded in 24 hours at room temperature. Remains pliable over time.

ADHESIVE-FREE

Easy to remove – leaves no residue. Covered fittings are immediately reusable.

40 MIL THICKNESS

Extra thick design allows wrapping over sharp and irregular surfaces without tearing or puncturing. 

Resources

Specsheets

Product Overview

Specsheets

Vulko-Wrap™ Instruction Sheet

Video

Vulko-Wrap Insulating Tape Demo

Video

Product Showcase- Vulko-Wrap™ Self-vulcanizing Insulating Wrap

Ratings / Characteristics

  • RoHS Compliant

  • MIL-I-22444C

  • Temperature Rating -60°F to 400°F

  • Elongation (Per ASTM D-412): 15% Minimum

  • Self-Vulcanizing  

  • High Dielectric Strength 

  • Reinforced with Glass Yarn Fiber

Applications

chemicals-icon

Chemicals

heat-icon

High Temperature

cold-icon

Cold Temperature

flexing-icon

Flexing

tension-icon

Tension

Part Numbers

Part No.
1 Roll
Part No.
5 Roll
Part No.
Sample Roll
Nominal Thickness Nominal Width Nominal Length Wrap Color Guideline Color Dielectric Strength/Per Mil
18412 18412D - 40 Mils 1 in (2.54 cm) 36 ft (1100 cm) Black None 500 Volts
