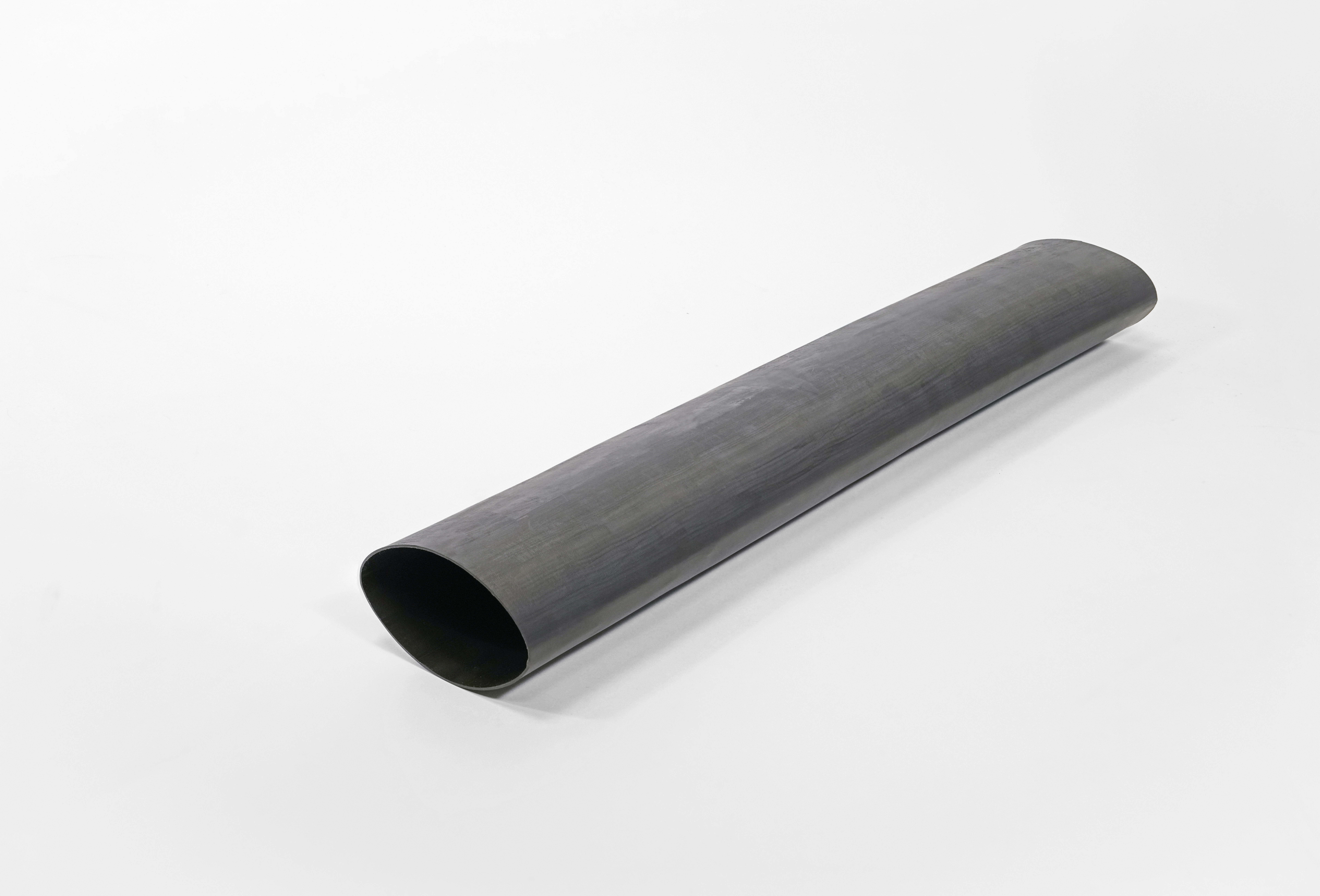

6-1 Shrink Tubing 3QV_Print

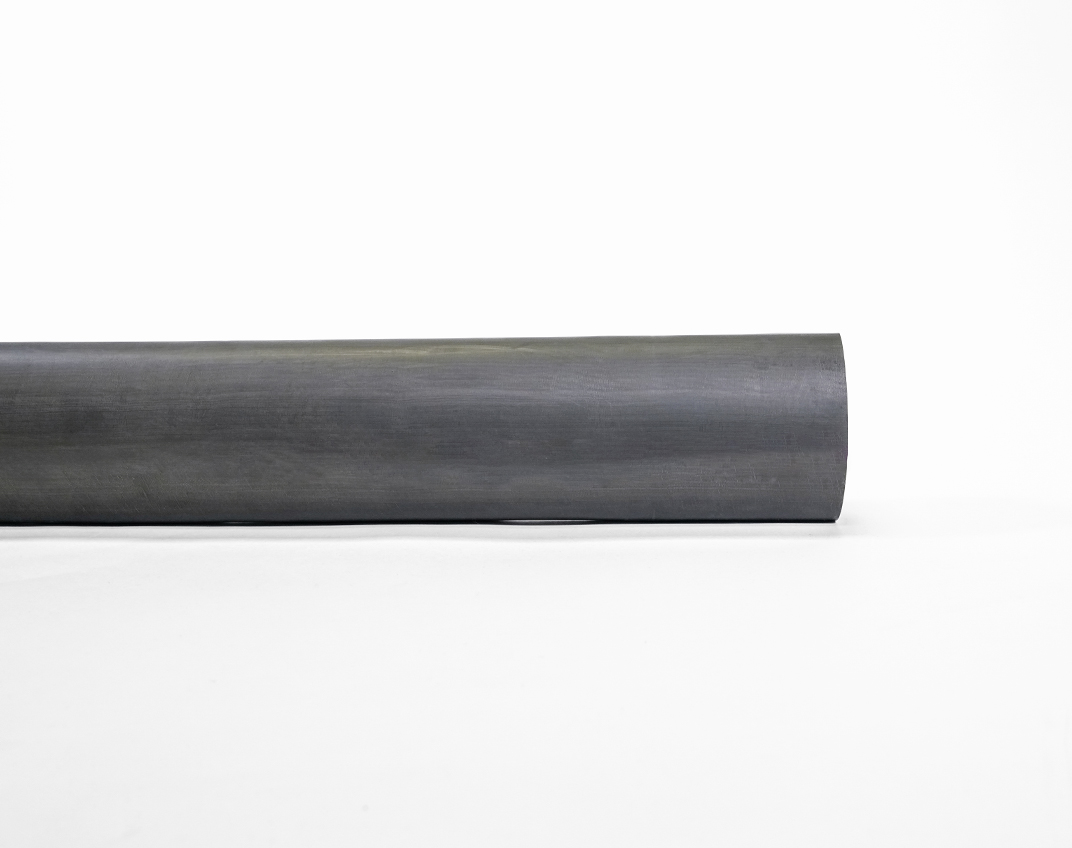

6-1 Shrink Tubing Side_Web

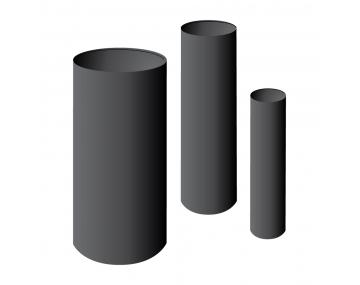

6:1 Shrink Tubing

The Heavy-Duty High Ratio 6 to 1 cross-linked polyolefin, flame retardant Heat Shrink Tubing is universal. It easily fits over and seals large, bulky connections and only four sizes are needed to cover cable and connections from 1.7 to 4.7 inches.  The inner adhesive provides a watertight seal, excellent strain relief, and added tensile strength. With high dielectric strength and protection against wet or underground environments.

Features

Self-Sealing

Inner adhesive provides a watertight seal, ideal for wet and corrosive locations and underground applications.

Wide Application Range

Four sizes needed to cover a wide range of cable diameters.

Greater Strength

Provides excellent strain relief and tensile strength.

Versatile

Designed to adhere to cable jackets and other non-oily surfaces.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • Continuous Operating Temperature -55°C to 110°C

  • Shrink Temperature 120°C

  • IEC 60684-3-247

  • Dielectric Strength: 20kV/mm per IEC 60684-2

  • Tensile Strength: >14 MPa per IEC 60684-2

  • Elongation: 550% per IEC 60684-2

  • Hardness [Shore D]: 50D per ASTM D2240 Test Method

  • Water Absorption: <0.2% per 60684-2

  • Fungus Resistance: No growth per ASTM G21 Test Method

  • Tensile Strength after immersion in oil & gasoline [24 hours @ 23C]: >10 MPa per IEC 60684-2

  • Flame Retardant

Applications

abrasions-icon

Abrasion

tension-icon

Tension

Part Numbers

Part No. (TC-ER*) Length
inches
Unit of Measure O.D. Before Shrinking
inches
WALL THICKNESS Before Shrinking
inches
O.D. After Shrinking
inches
WALL THICKNESS After Shrinking
inches

75000

24 Each 1.3 0.040 0.220 0.135
75002 24 Each 2.0 0.045 0.330 0.170
75003 24 Each 3.5 0.048 0.673 0.170
75004 48 Each 4.7 0.048 0.900 0.190
