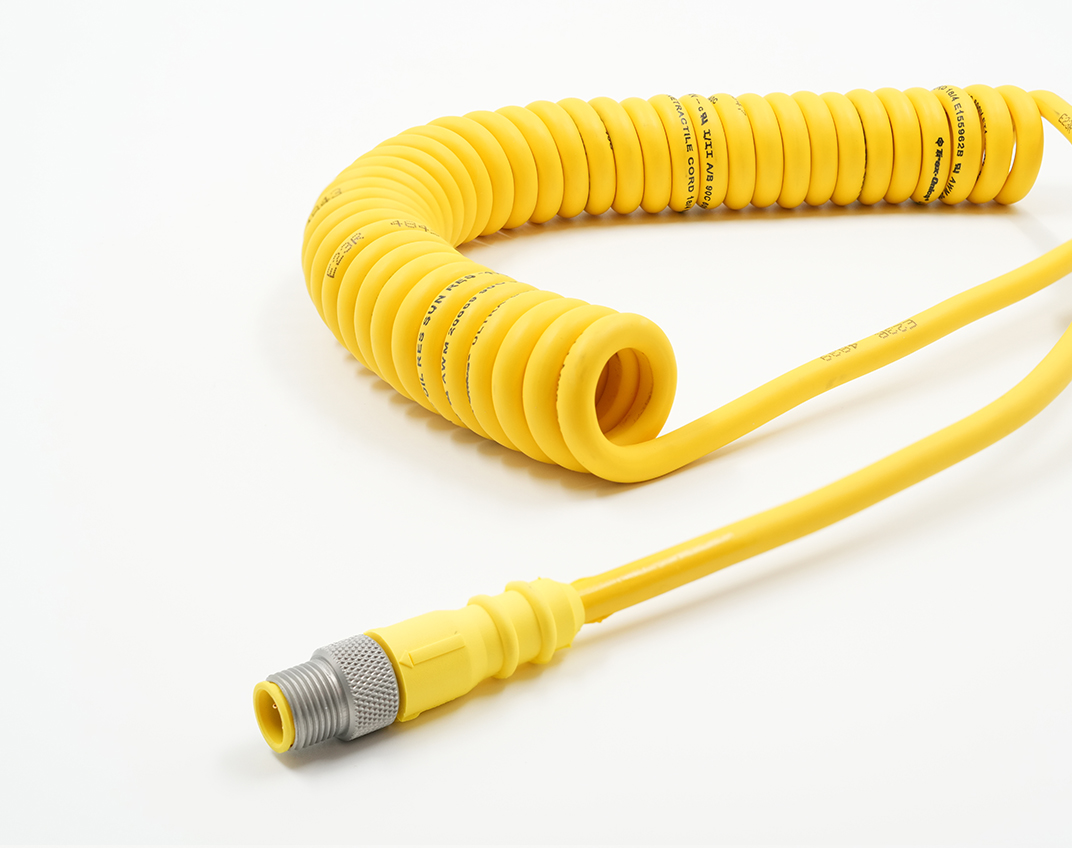

Quick-Connex® 18 AWG Retractile Dual-Key AC Micro Cordsets_Web

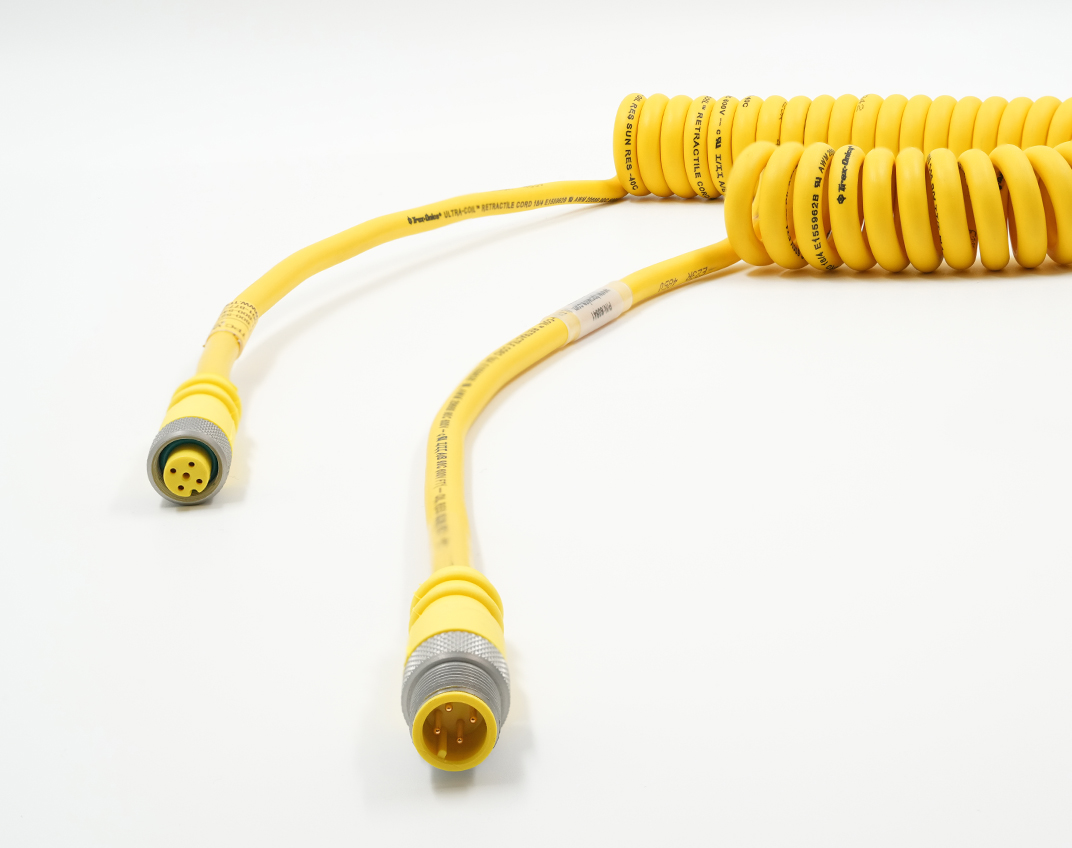

Quick-Connex® 18 AWG Retractile M12 DC Micro Cordsets 2_Web

Quick-Connex® 18 AWG Retractile Dual-Key AC Micro Cordsets

Quick-Connex® 18 AWG Retractile Dual-Key AC Micro Cordsets are made with Trex-Onics® High-Flex Ultra-Coil Retractile cord, first line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Built to last with a unique design that provides a very durable yet lightweight retractile cord while preserving superior coil retention and snappiness.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CORDSETS MADE WITH TREX-ONICS® HIGH-FLEX ULTRA-COIL RETRACTILE CORD

Superior first line defense against tearing, abrasion, impact, oil ozone and most chemicals. Extreme all-weather flexible 16 and 18 AWG cables.

CONNECTOR BODY IS SPECIALLY COMPOUNDED, THERMOPLASTIC ELASTOMER

Provides long flex life, resists heat and oil deterioration.

MOLDED AND KEYED ASSEMBLY

Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.

SOLID BRASS CONTACT PINS ARE NICKEL COATED AND GOLD PLATED, MACHINE CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.

HARD COATED ANODIZED ALUMINUM KNURLED COUPLING NUT

Resists corrosion, provides quick and secure assembly.

QUICK-CONNEX ® COMPATIBLE DESIGN

Uniquely designed to add TPC’s fully molded Quick-Connex® Mini or Micro connectors in 3, 4 and 12 conductor configurations.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • Mini – 600V

  • AC/DC Micro – 300V

  • Max Conductor Temperature 90°C

  • Operating Temperature Range -20°C to 80°C

  • Trex-Onics® High-Flex Ultra Coil Retractile Cord has a 5X multiple between a retracted and extended coil.

  • Sunlight Resistant

  • Oil Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Description Ampacity Coil Length Retracted
feet		 Coil Length Extended
feet		 Pigtail Length
inches		 Shielding Type
60801 18 AWG 3 3 Pole AC Micro Male/Female 4 1 5 12 No Shielding
60803 18 AWG 3 3 Pole AC Micro Male/Female 4 3 15 12 No Shielding
60821 18 AWG 4 4 Pole AC Micro Male/Female 4 1 5 12 No Shielding
60823 18 AWG 4 4 Pole AC Micro Male/Female 4 3 15 12 No Shielding
