Quick-Connex® AC Micro Cordsets Female_Web
Quick-Connex® AC Micro Cordsets Male_Web

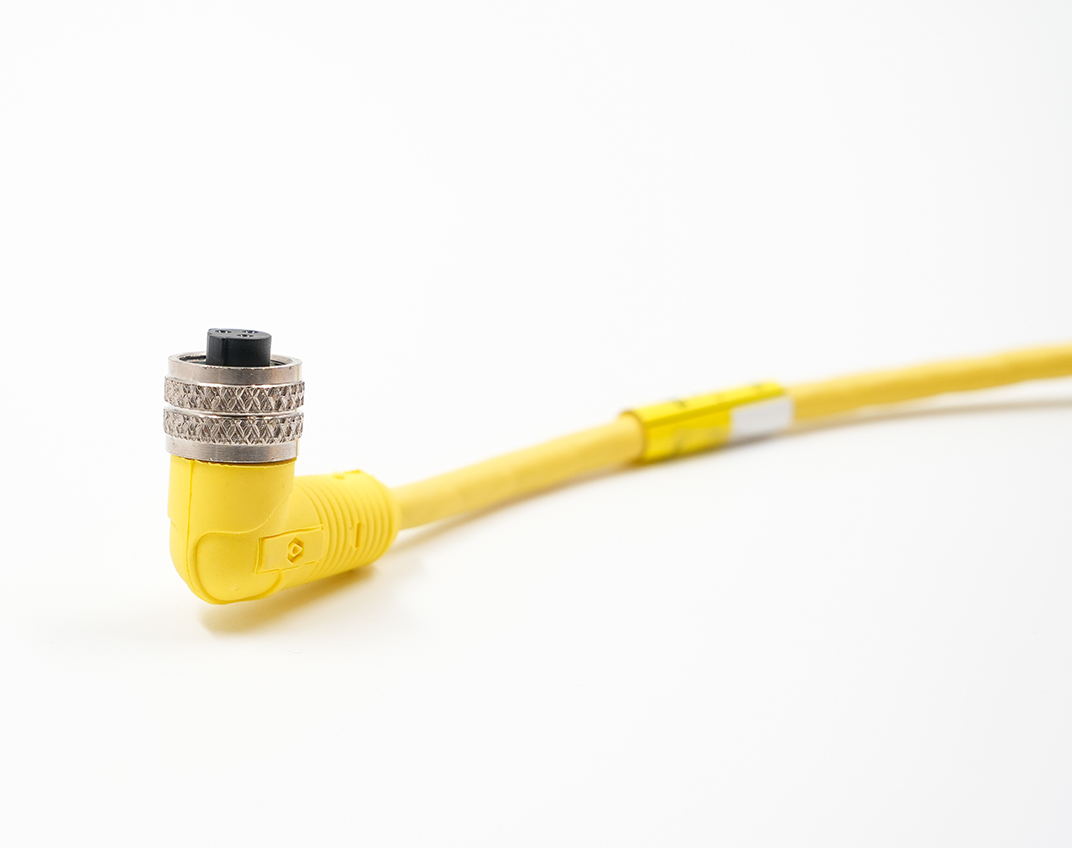

Quick-Connex® AC Micro Cordsets 90_Web

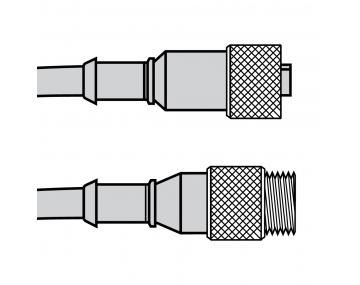

Quick-Connex® AC Micro Cordsets

Quick-Connex® AC Micro Cordsets make replacement of electrical and electronic control devices quick and simple. Cordsets are made with Trex-Onics® Control Cable are designed for high cycle, constant motion applications and provides excellent defense against impact, cutting, abrasion, oil and chemicals. The molded and keyed cordset provides rapid and secure connection and disconnect and ensures a water, oil and dust tight seal.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CORDSETS MADE WITH TREX-ONICS® CONTROL CABLE, RATED 80°C

Designed for high cycle, constant motion applications for all weather flexibility. Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

CONNECTOR BODY IS SPECIALLY COMPOUNDED, THERMOPLASTIC ELASTOMER

Provides long life, resists heat and oil deterioration.

MOLDED AND KEYED ASSEMBLY

Provides rapid and secure connection and disconnect. Ensures a water, oil, and dust tight seal.

SOLID BRASS CONTACT PINS ARE NICKEL COATED AND GOLD PLATED, MACHINED CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity AC applications.

HARD COATED METAL ALLOY KNURLED COUPLING NUT 

Resists corrosion, provides quick and secure assembly.

RUBBER O-RING 

Seals out oil, chemicals and other contaminants. Provides a positive seal on mated components. 

COUPLING NUT ½"-20 THREAD WITH TWO KEYWAYS ON CONNECTOR FACE

Industry standard for AC Micro connectors.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own AC Micro Cordsets

Ratings / Characteristics

  • UL Recognized

  • cUL

  • RoHS Compliant

  • 300V

  • Max Conductor Temperature 80°C

  • IP69K Rated

  • Operating Temperature: -20° to 80°C

  • Bend Radius of Trex-Onics® Control Cable: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

  • UV Resistant

  • Oil Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

product_no Conductor Size (AWG) Conductor/Pole Count Feet Meters Description Shielding Type
65303 18 AWG 3 3 0.91 Female Plug No Shielding
65306 18 AWG 3 6 1.83 Female Plug No Shielding
65312 18 AWG 3 12 3.66 Female Plug No Shielding
65320 18 AWG 3 20 6.1 Female Plug No Shielding
69393 18 AWG 3 3 0.91 90¡ Female Plug No Shielding
69396 18 AWG 3 6 1.83 90¡ Female Plug No Shielding
69392 18 AWG 3 12 3.66 90¡ Female Plug No Shielding
69390 18 AWG 3 20 6.1 90¡ Female Plug No Shielding
67323 18 AWG 3 3 0.91 M/F Ext. Set No Shielding
67326 18 AWG 3 6 1.83 M/F Ext. Set No Shielding
67327 18 AWG 3 9 2.7 M/F Ext. Set No Shielding
67332 18 AWG 3 12 3.66 M/F Ext. Set No Shielding
67333 18 AWG 3 15 4.6 M/F Ext. Set No Shielding
67340 18 AWG 3 20 6.1 M/F Ext. Set No Shielding
67923 18 AWG 3 3 0.91 Male 90¡/Female Straight Ext. Set No Shielding
67926 18 AWG 3 6 1.83 Male 90¡/Female Straight Ext. Set No Shielding
67932 18 AWG 3 9 2.7 Male 90¡/Female Straight Ext. Set No Shielding
69923 18 AWG 3 3 0.91 Straight Male/90¡ Female Ext. Set No Shielding
69926 18 AWG 3 6 1.83 Straight Male/90¡ Female Ext. Set No Shielding
67927 18 AWG 3 9 2.7 Straight Male/90¡ Female Ext. Set No Shielding
69933 18 AWG 3 15 4.6 Straight Male/90¡ Female Ext. Set No Shielding
69940 18 AWG 3 20 6.1 Straight Male/90¡ Female Ext. Set No Shielding
65403 18 AWG 4 3 0.91 Female Plug No Shielding
65406 18 AWG 4 6 1.83 Female Plug No Shielding
65412 18 AWG 4 12 3.66 Female Plug No Shielding
65420 18 AWG 4 20 6.1 Female Plug No Shielding
69493 18 AWG 4 3 0.91 90¡ Female Plug No Shielding
69496 18 AWG 4 6 1.83 90¡ Female Plug No Shielding
69492 18 AWG 4 12 3.66 90¡ Female Plug No Shielding
69490 18 AWG 4 20 6.1 90¡ Female Plug No Shielding
67423 18 AWG 4 3 0.91 M/F Ext. Set No Shielding
67426 18 AWG 4 6 1.83 M/F Ext. Set No Shielding
67427 18 AWG 4 9 2.7 M/F Ext. Set No Shielding
67432 18 AWG 4 12 3.66 M/F Ext. Set No Shielding
67433 18 AWG 4 15 4.6 M/F Ext. Set No Shielding
67434 18 AWG 4 18 5.5 M/F Ext. Set No Shielding
67440 18 AWG 4 20 6.1 M/F Ext. Set No Shielding
65503 18 AWG 5 3 0.91 Female Plug No Shielding
65506 18 AWG 5 6 1.83 Female Plug No Shielding
65512 18 AWG 5 12 3.66 Female Plug No Shielding
65520 18 AWG 5 20 6.1 Female Plug No Shielding
69593 18 AWG 5 3 0.91 90¡ Female Plug No Shielding
69596 18 AWG 5 6 1.83 90¡ Female Plug No Shielding
69592 18 AWG 5 12 3.66 90¡ Female Plug No Shielding
69590 18 AWG 5 20 6.1 90¡ Female Plug No Shielding
67523 18 AWG 5 3 0.91 M/F Ext. Set No Shielding
67526 18 AWG 5 6 1.83 M/F Ext. Set No Shielding
67527 18 AWG 5 9 2.7 M/F Ext. Set No Shielding
67532 18 AWG 5 12 3.66 M/F Ext. Set No Shielding
67533 18 AWG 5 15 4.6 M/F Ext. Set No Shielding
67540 18 AWG 5 20 6.1 M/F Ext. Set No Shielding

Cable Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Stranding Nominal O.D. WT. Per 1000'
lbs		 Shielding Type
62013 18 AWG 3 41/34 0.22 35.1 No Shielding
62014 18 AWG 4 41/34 0.24 41.5 No Shielding
62015 18 AWG 5 41/34 0.255 50.3 No Shielding
