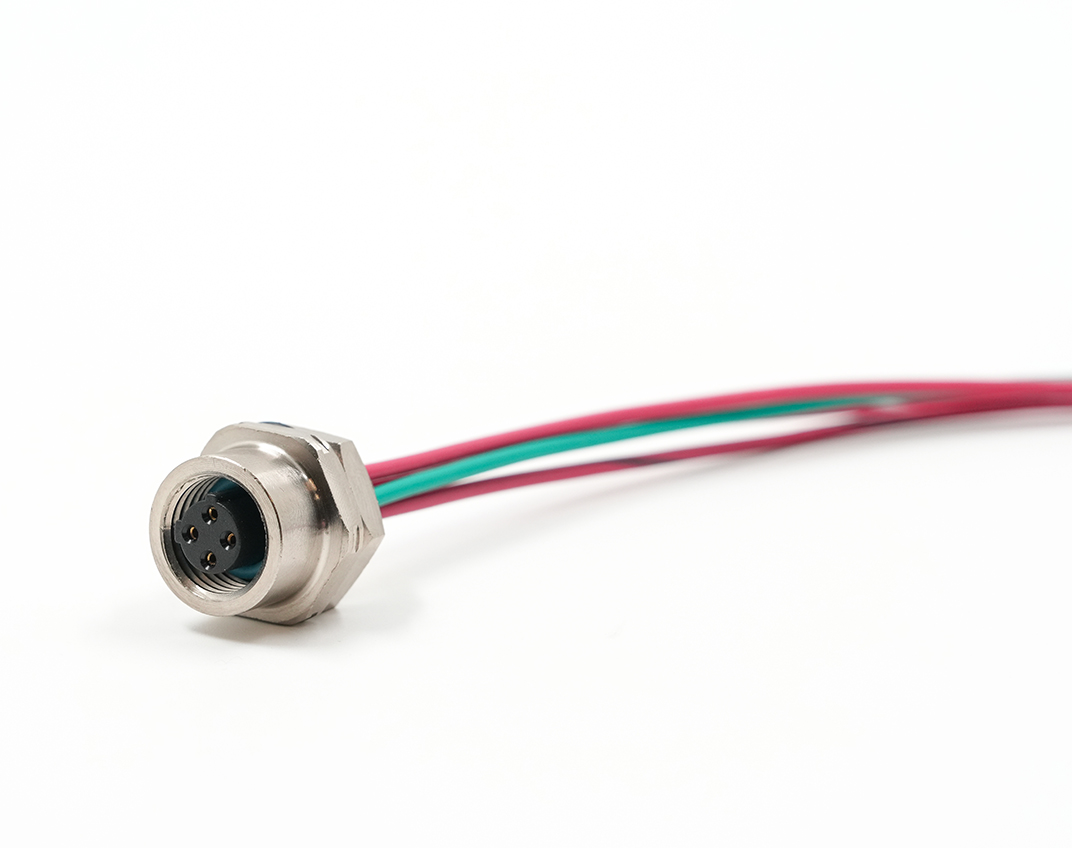

Quick-Connex® Dual-Key AC Micro Receptacles Female 2_Web

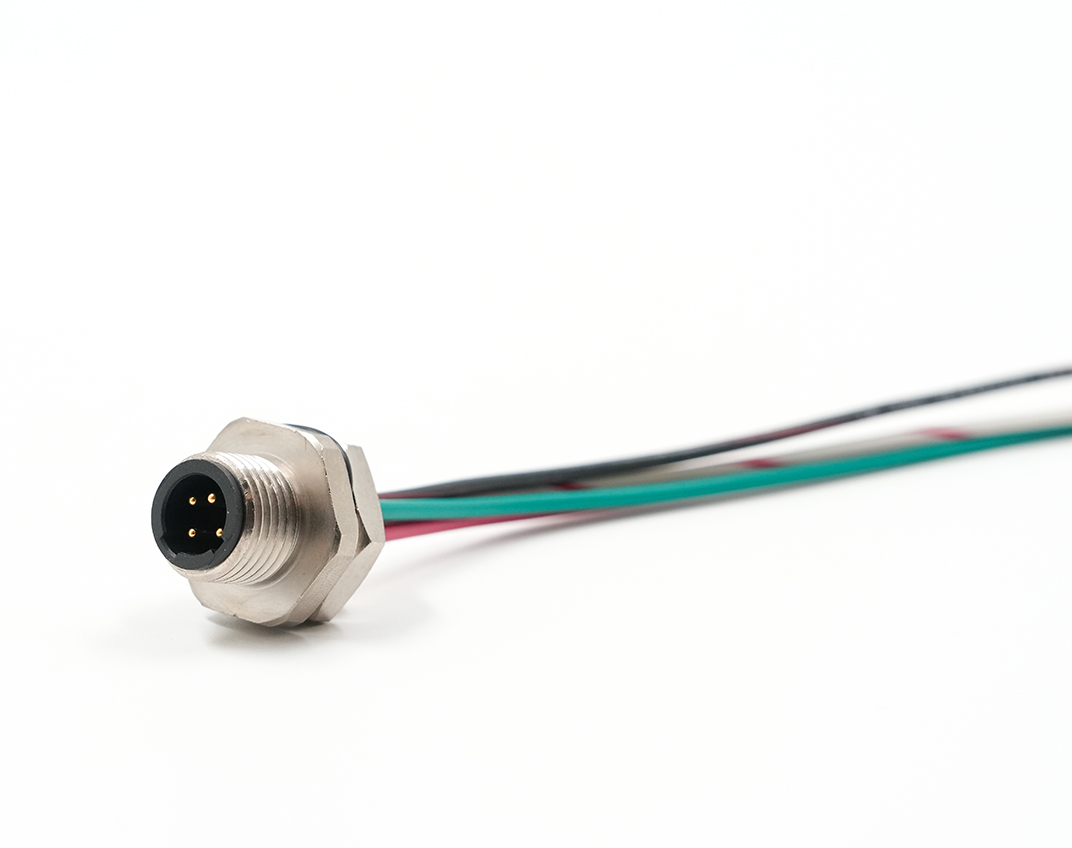

Quick-Connex® Dual-Key AC Micro Receptacles Male 2_Web

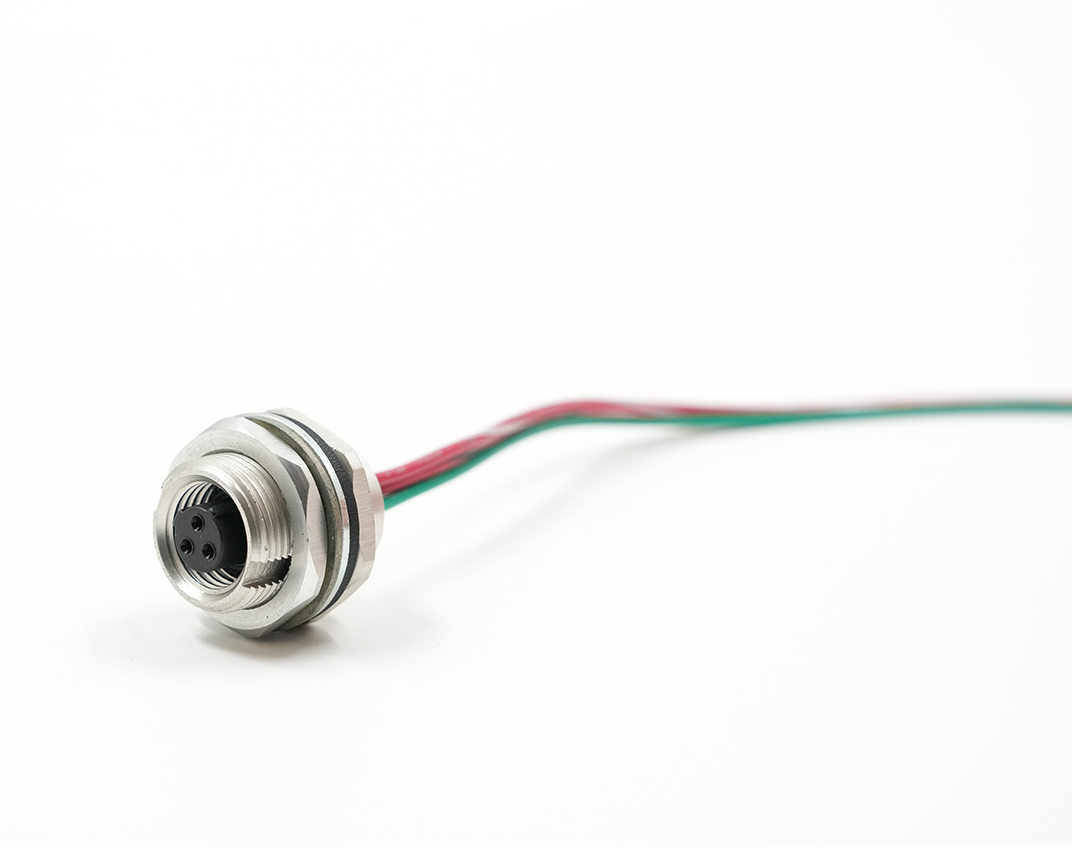

Quick-Connex® Dual-Key AC Micro Receptacles Female 1_Web

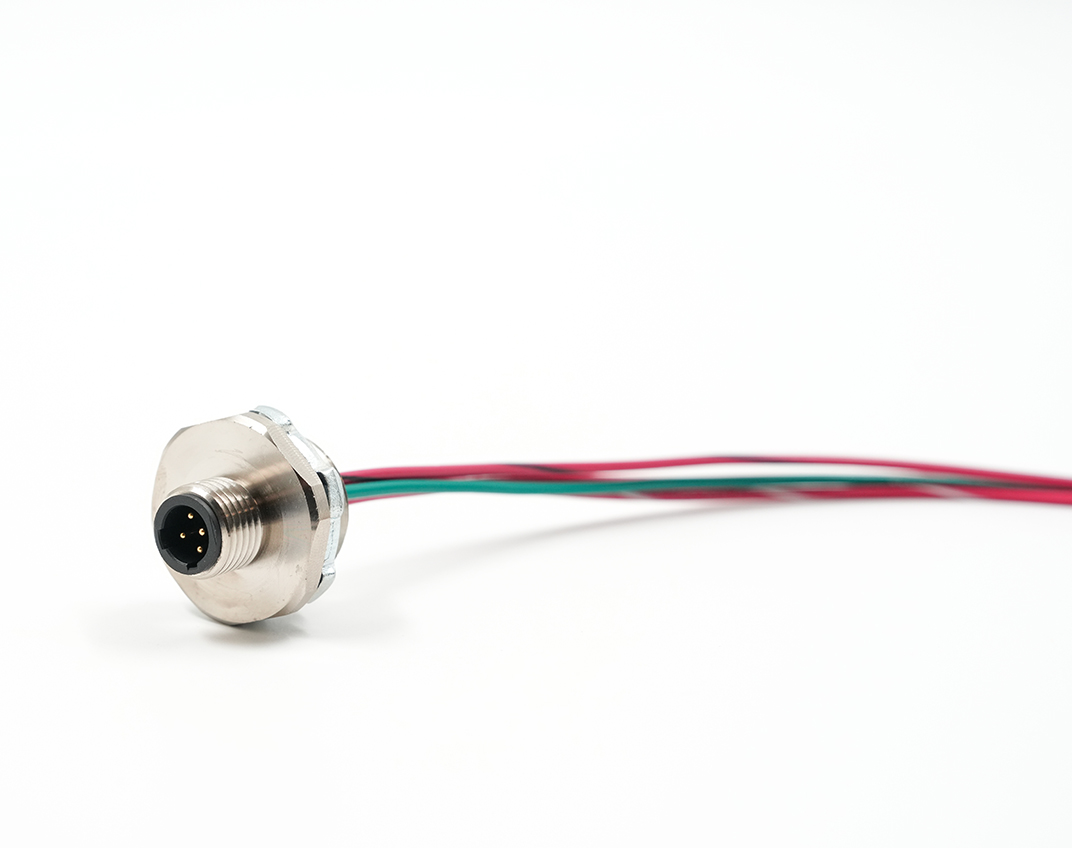

Quick-Connex® Dual-Key AC Micro Receptacles Male 1_Web

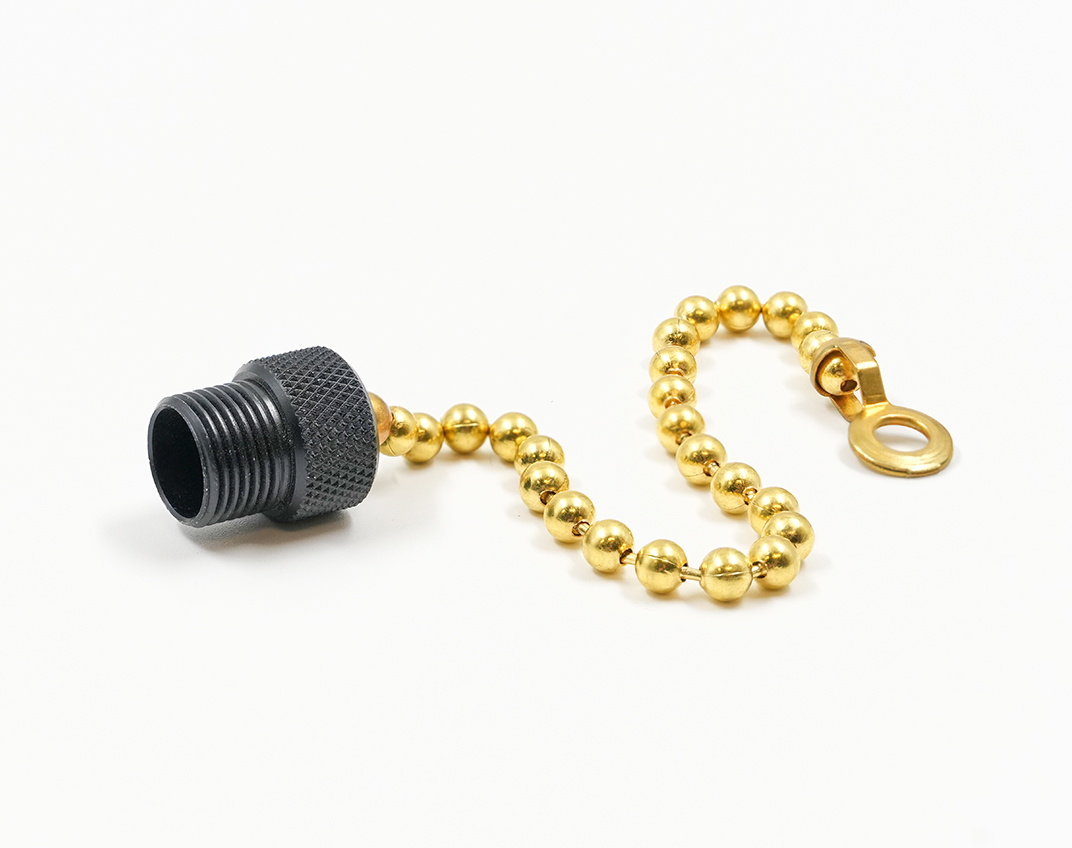

Quick-Connex® Dual-Key AC Micro Receptacles Closure Cap_Web

Quick-Connex® AC Micro Receptacles

Quick-Connex® AC Micro Receptacles are available in Female and Male, panel mount and back mount or switch body mount styles. O-Ring and locknut included; AC Micro closure caps with chain are sold separately.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Specially Compounded Thermoplastic Elastomer Receptacle Insert

Provides long flex-life, resists deterioration due to heat and oil exposure.

Hard Coated Metal Alloy Receptacle Shell

Resists corrosion and provides quick and secure assembly.

Molded and Keyed Assembly

Provides rapid and secure connection and disconnect. Ensures water, oil and dust tight seal.

Nickel-Coated and GoldPlated Solid Brass Contact Pins Machined Crimped to Conductors

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity AC applications.

Rubber Sealing O-Ring and Steel Locknut

Seals out oil, chemicals, and other contaminants. Locknut included with each unit.

18 AWG Stranded, Tinned Copper Pigtails Insulated with 105°C Cross-Linked Polyethylene

Provides excellent oil and heat resistance.

Mating Dimensions: ½”-20 Thread with Two Keyways on Receptacle Face

Industry standard AC Micro Receptacles.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own AC Micro Cordsets

Ratings / Characteristics

  • IP69K Rated

  • RoHS Compliant

  • cUL Listed

  • UL Registered

  • 300v

  • Operating Temperature: -20° to 80°C

  • Oil and Heat Resistant

Part Numbers

PART NO. PART NO. Conductor Size (AWG) Conductor/Pole Count Description Pigtail Length Shielding Type
67308 RG13Q28F004 18 AWG 3 3P Female Back Mount 48" No Shielding
67408 RG14Q29F004 18 AWG 4 4P Female Back Mount 48" No Shielding
67508 RG15Q30F004 18 AWG 5 5P Female Back Mount 48" No Shielding
67302 RG13T28F004 18 AWG 3 3P Female Panel Mount 48" No Shielding
67402 RG14T29F004 18 AWG 4 4P Female Panel Mount 48" No Shielding
67502 RG15T30F004 18 AWG 5 5P Female Panel Mount 48" No Shielding
65302 RG13R28F001 18 AWG 3 3P Male Panel Mount 12" No Shielding
65402 RG14R29F001 18 AWG 4 4P Male Panel Mount 12" No Shielding
65502 RG15R30F001 18 AWG 5 5P Male Panel Mount 12" No Shielding
- RG13R28F004 18 AWG 3 3P Male Panel Mount 48" No Shielding
- RG14R29F004 18 AWG 4 4P Male Panel Mount 48" No Shielding
- RG15R30F004 18 AWG 5 5P Male Panel Mount 48" No Shielding
65307 RG13S28F001 18 AWG 3 3P Male Switch Body 12" No Shielding
65407 RG14S29F001 18 AWG 4 4P Male Switch Body 12" No Shielding
65507 RG15S30F001 18 AWG 5 5P Male Switch Body 12" No Shielding
- RG13S28F004 18 AWG 3 3P Male Switch Body 48" No Shielding
- RG14S29F004 18 AWG 4 4P Male Switch Body 48" No Shielding
- RG15S30F004 18 AWG 5 5P Male Switch Body 48" No Shielding

Closer Caps Part Numbers

Part No. Description
64901 Closure Cap with 6" Chain for Male Plug & Receptacles with External Thread
64901S Stainless Steel Closure Cap with 6" Chain for Male Plug & Receptacles with External Thread
64902 Closure Cap with 6" Chain for Female Plug & Receptacles with Internal Thread
64902S Stainless Steel Closure Cap with 6" Chain for Female Plug & Receptacles with Internal Thread

Related Products
