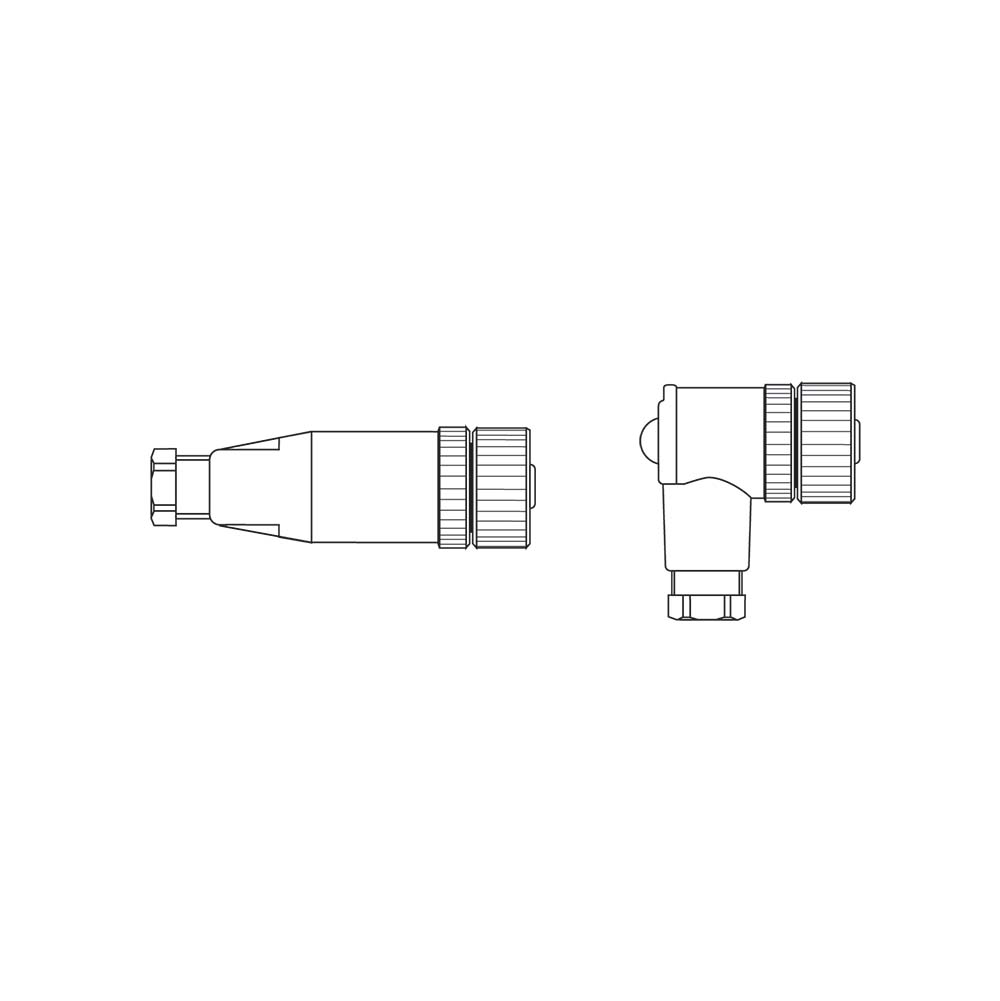

Quick-Connex® Field Installable Micro Connectors

Quick-Connex® Field Installable Dual-Key AC Micro Connectors can be paired with Trex-Onics® 22-18AWG cables to make ‘do-it-yourself' cordsets.  IP67 rated to provide a liquid-tight seal to protect the connection from dust and water contamination.  Ideal for a quick on-site repair.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Cordsets can be made with Trex-Onics® 22-18 AWG Cables, Rated 80°C

Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Extreme all-weather flexibility.

Polyamide Connector Body, PVC Insert & Rubber Sealing Bushing

Impact and crush resistant with an IP67 rating to provide internal protection from dust and fluid spray.

Copper Alloy Pins are Gold Plated

Provides long life, resist corrosion, easy positive engagement.

Screw Locking System

Secure connection using only a screwdriver. Nylon pressing screw threads into body sleeve and compresses pinch ring and seal to grip cable to prevent conductors from pulling out of connector.

Nickel-Plated Brass Coupling Nut

Resists corrosion and gives quick, secure assembly.

Coupling Nuts are M12 x1.0 DC and ½”-20 UNF AC

Industry standard for DC and AC connectors.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • IP67 Rated

  • Operating Temperature -40°C to 105°C

  • Fit Trex-Onics® 22AWG to 18AWG cables, verify cable OD

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Description Cord O.D. Range
inches		 Shielding Type
30801 - 3 3 Pole Male Straight AC 0.118 – 0.236 No Shielding
30301 - 3 3 Pole Female Straight AC 0.118 – 0.236 No Shielding
39801 - 3 3 Pole Male 90º AC 0.118 – 0.236 No Shielding
39301 - 3 3 Pole Female 90º AC 0.118 – 0.236 No Shielding
