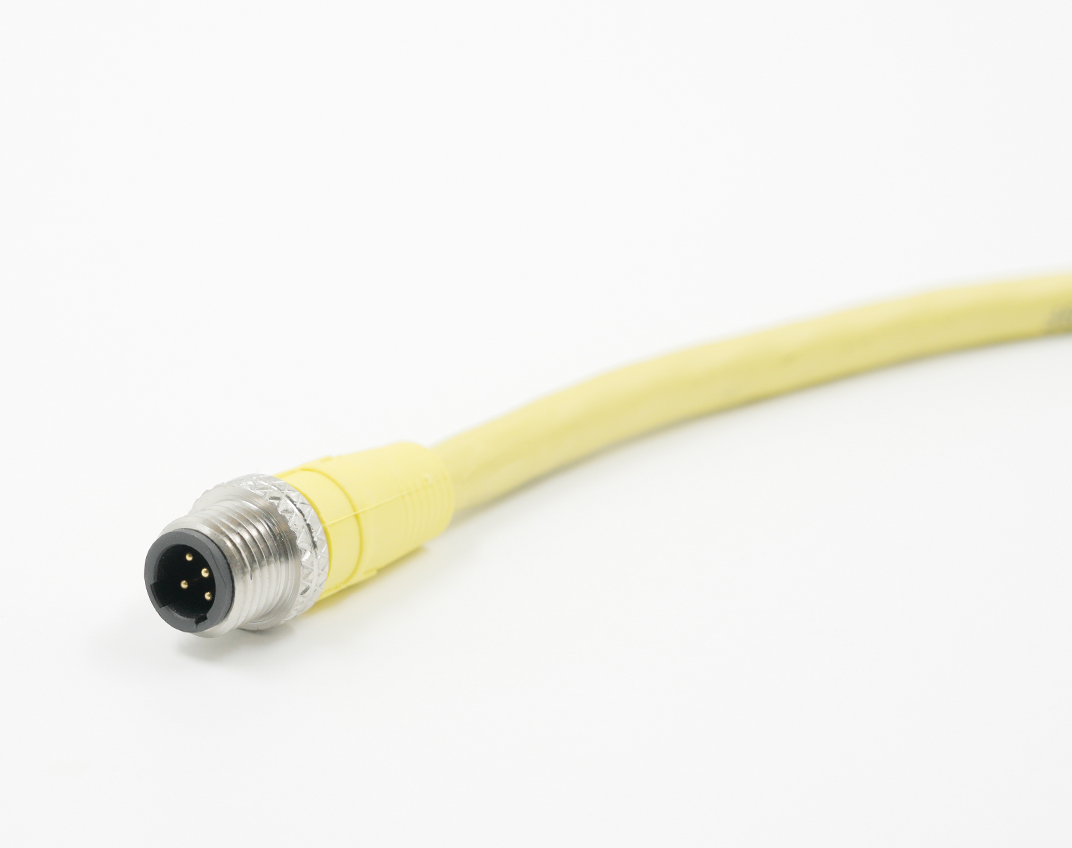

Quick-Connex® SJOO AC Micro Cordsets Male_Web
Quick-Connex® SJOO AC Micro Cordsets Female_Web

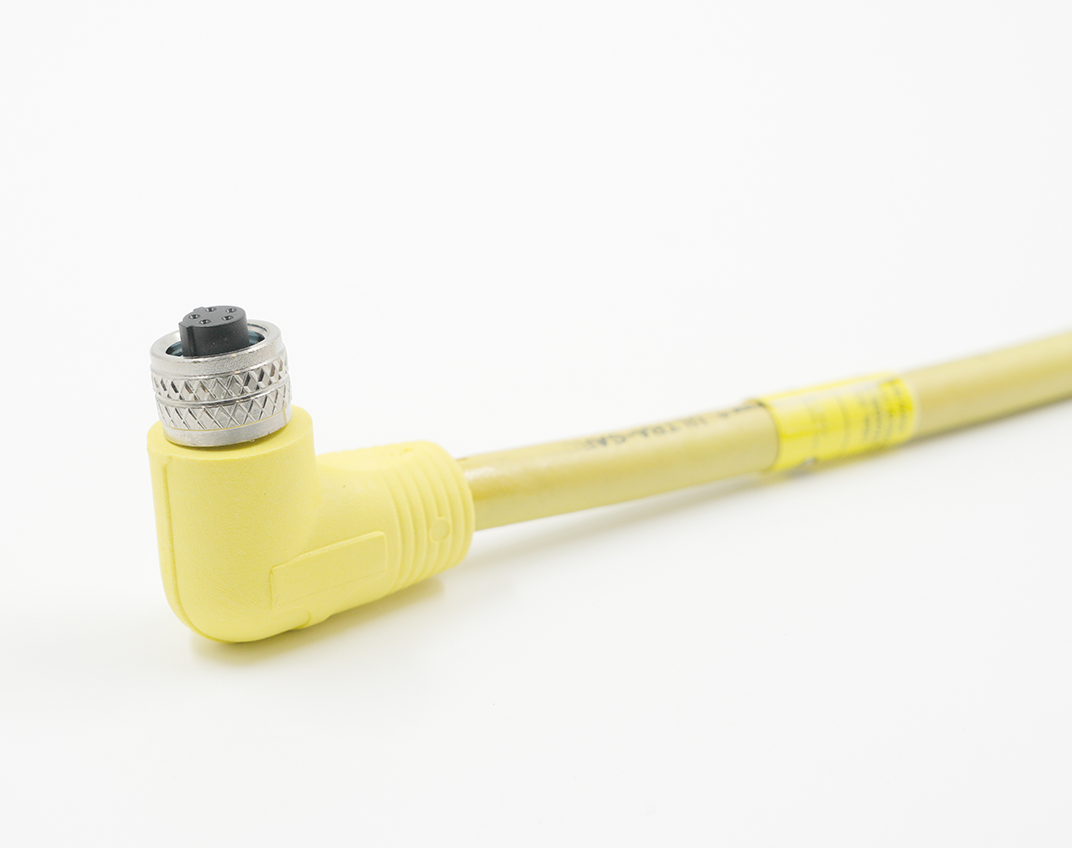

Quick-Connex® SJOO AC Micro Cordsets 90_Web

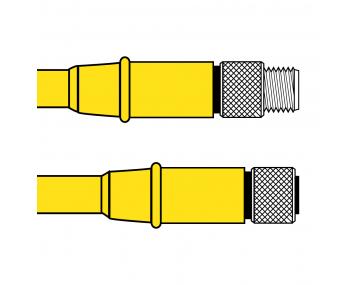

Quick-Connex™ SJOO AC Micro Cordsets

Quick-Connex® SJOO AC Micro Cordsets make replacement of electrical and electronic control devices quick and simple. Cordsets are made with Super-Trex® SJOO Ultra-Gard® Portable Cord, a superior first-line of defense against tearing, abrasion, impact, oil, ozone and most chemicals. The molded and keyed, thermoplastic elastomer cordset provides rapid and secure connect and disconnect and ensures a water, oil and dust tight seal.

Features

Cordsets Made With Super-Trex® SJOO Cable, Rated 90°C

Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Connector Body Is Specially Compounded, Thermoplastic Elastomer

Provides long life, resists heat and oil deterioration.

Molded And Keyed Assembly

Provides rapid and secure connection and disconnect. Ensures a water, oil, and dust tight seal.

Solid Brass Contact Pins Are Nickel Coated And Gold Plated, Machined Crimped To Conductors

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity AC applications.

Hard Coated Metal Alloy Knurled Coupling Nut

Resists corrosion, provides quick and secure assembly.

Rubber O-Ring

Seals out oil, chemicals and other contaminants. Provides a positive seal on mated components.

Coupling Nut ½" - 20 UNF Thread With Two Keyways On Connector Face

Industry standard for AC Micro connectors.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own AC Micro Cordsets

Ratings / Characteristics

  • UL Recognized

  • cUL

  • RoHS Compliant

  • 300V

  • Max Conductor Temperature 90°C

  • IP69K Rated

  • Operating Temperature: -20° to 80°C

  • Bend Radius of Super-Trex® SJOO Cable: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

  • UV Resistant

  • Oil Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Cable Part Numbers

Part No. (TC-ER*) Configuration Fitting Size Cord Diameter Range Number of Bushings
55001 Straight 3/8" NPT 0.188" – 0.312" 2
55002 Straight 3/8" NPT 0.312" – 0.438" 2
55003 Straight 1/2" NPT 0.250" – 0.375" 2
55004 Straight 1/2" NPT 0.375" – 0.500" 2
55005 Straight 1/2" NPT 0.500" – 0.625" 2
550061 Straight 3/4" NPT 0.188" – 0.250" 1
55006 Straight 3/4" NPT 0.500" – 0.688" 2
55007 Straight 3/4" NPT 0.625" – 0.812" 2
55008 Straight 1" NPT 0.688" – 0.875" 2
55009 Straight 1" NPT 0.812" – 1.00" 2
55010 Straight 1-1/4" NPT 0.875" – 1.125" 2
55011 Straight 1-1/4" NPT 1.125" – 1.375" 2
55012 Straight 1-1/2" NPT 0.875" – 1.125" 2
55013 Straight 1-1/2" NPT 1.125" – 1.375" 2
55014 Straight 2" NPT 1.250" – 1.562" 2
55015 Straight 2" NPT 1.562" – 1.812" 2
55016 Straight 2-1/2" NPT 1.812"– 2.062" 2
55017 Straight 2-1/2" NPT 2.062" – 2.312" 2
55020 Straight 3" NPT 2.437" – 2.812" 2
55901 90˚ 3/8" NPT 0.188" – 0.312" 2
55902 90˚ 3/8" NPT 0.312" – 0.438" 2
55903 90˚ 1/2" NPT 0.250" – 0.375" 2
55904 90˚ 1/2" NPT 0.375" – 0.500" 2
55905 90˚ 1/2" NPT 0.500" – 0.625" 2
55906 90˚ 3/4" NPT 0.500" – 0.688" 2
55907 90˚ 3/4" NPT 0.625" – 0.812" 2
55908 90˚ 1" NPT 0.688" – 0.875" 2
55909 90˚ 1" NPT 0.812" – 1.00" 2
55910 90˚ 1-1/4" NPT 0.875" – 1.125" 2
55911 90˚ 1-1/4" NPT 1.125" – 1.375" 2
55914 90˚ 1 1/2" NPT 1.125" – 1.375" 2
55912 90˚ 2" NPT 1.250" – 1.562" 2
55913 90˚ 2" NPT 1.562" – 1.812" 2

Part Numbers

Product_no Conductor Size (AWG) Conductor/Pole Count Description Feet Meters Shielding Type
CG13C28F003 18 AWG 3 Female Plug 3 0.91 No Shielding
CG13C28F006 18 AWG 3 Female Plug 6 1.83 No Shielding
CG13C28F012 18 AWG 3 Female Plug 12 3.66 No Shielding
CG13C28F020 18 AWG 3 Female Plug 20 6.1 No Shielding
CG13C28F030 18 AWG 3 Female Plug 30 9.15 No Shielding
CG13D28F003 18 AWG 3 90¡ Female Plug 3 0.91 No Shielding
CG13D28F006 18 AWG 3 90¡ Female Plug 6 1.83 No Shielding
CG13D28F012 18 AWG 3 90¡ Female Plug 12 3.66 No Shielding
CG13D28F020 18 AWG 3 90¡ Female Plug 20 6.1 No Shielding
CG13D28F030 18 AWG 3 90¡ Female Plug 30 9.15 No Shielding
CG23E28A018 18 AWG 3 M/F Ext. Set 1.5 0.45 No Shielding
CG23E28F003 18 AWG 3 M/F Ext. Set 3 0.91 No Shielding
CG23E28F006 18 AWG 3 M/F Ext. Set 6 1.83 No Shielding
CG23E28F009 18 AWG 3 M/F Ext. Set 9 2.74 No Shielding
CG23E28F012 18 AWG 3 M/F Ext. Set 12 3.66 No Shielding
CG23E28F015 18 AWG 3 M/F Ext. Set 15 4.75 No Shielding
CG23E28F020 18 AWG 3 M/F Ext. Set 20 6.1 No Shielding
CG23E28F030 18 AWG 3 M/F Ext. Set 30 9.15 No Shielding
CG23F28A018 18 AWG 3 M/90¡ F 1.5 0.45 No Shielding
CG23F28F003 18 AWG 3 M/90¡ F 3 0.91 No Shielding
CG23F28F006 18 AWG 3 M/90¡ F 6 1.83 No Shielding
CG23F28F012 18 AWG 3 M/90¡ F 12 3.66 No Shielding
CG23F28F020 18 AWG 3 M/90¡ F 20 6.1 No Shielding
CG23F28F030 18 AWG 3 M/90¡ F 30 9.15 No Shielding
CG23G28F003 18 AWG 3 90¡ M/F 3 0.91 No Shielding
CG23G28F006 18 AWG 3 90¡ M/F 6 1.83 No Shielding
CG23G28F012 18 AWG 3 90¡ M/F 12 3.66 No Shielding
CG23G28F020 18 AWG 3 90¡ M/F 20 6.1 No Shielding
CG23G28F030 18 AWG 3 90¡ M/F 30 9.15 No Shielding
CG14C29F003 18 AWG 4 Female Plug 3 0.91 No Shielding
CG14C29F006 18 AWG 4 Female Plug 6 1.83 No Shielding
CG14C29F012 18 AWG 4 Female Plug 12 3.66 No Shielding
CG14C29F020 18 AWG 4 Female Plug 20 6.1 No Shielding
CG14C29F030 18 AWG 4 Female Plug 30 9.15 No Shielding
CG14D29F003 18 AWG 4 90¡ Female Plug 3 0.91 No Shielding
CG14D29F006 18 AWG 4 90¡ Female Plug 6 1.83 No Shielding
CG14D29F012 18 AWG 4 90¡ Female Plug 12 3.66 No Shielding
CG14D29F020 18 AWG 4 90¡ Female Plug 20 6.1 No Shielding
CG14D29F030 18 AWG 4 90¡ Female Plug 30 9.15 No Shielding
CG24E29A018 18 AWG 4 M/F Ext. Set 1.5 0.45 No Shielding
CG24E29F003 18 AWG 4 M/F Ext. Set 3 0.91 No Shielding
CG24E29F006 18 AWG 4 M/F Ext. Set 6 1.83 No Shielding
CG24E29F009 18 AWG 4 M/F Ext. Set 9 2.74 No Shielding
CG24E29F012 18 AWG 4 M/F Ext. Set 12 3.66 No Shielding
CG24E29F015 18 AWG 4 M/F Ext. Set 15 4.75 No Shielding
CG24E29F020 18 AWG 4 M/F Ext. Set 20 6.1 No Shielding
CG24E29F030 18 AWG 4 M/F Ext. Set 30 9.15 No Shielding
CG24F29A018 18 AWG 4 M/90¡ F 1.5 0.45 No Shielding
CG24F29F003 18 AWG 4 M/90¡ F 3 0.91 No Shielding
CG24F29F006 18 AWG 4 M/90¡ F 6 1.83 No Shielding
CG24F29F012 18 AWG 4 M/90¡ F 12 3.66 No Shielding
CG24F29F020 18 AWG 4 M/90¡ F 20 6.1 No Shielding
CG24F29F030 18 AWG 4 M/90¡ F 30 9.15 No Shielding
CG24G29F003 18 AWG 4 90¡ M/F 3 0.91 No Shielding
CG24G29F006 18 AWG 4 90¡ M/F 6 1.83 No Shielding
CG24G29F012 18 AWG 4 90¡ M/F 12 3.66 No Shielding
CG24G29F020 18 AWG 4 90¡ M/F 20 6.1 No Shielding
CG24G29F030 18 AWG 4 90¡ M/F 30 9.15 No Shielding
CG15C30F003 18 AWG 5 Female Plug 3 0.91 No Shielding
CG15C30F006 18 AWG 5 Female Plug 6 1.83 No Shielding
CG15C30F012 18 AWG 5 Female Plug 12 3.66 No Shielding
CG15C30F020 18 AWG 5 Female Plug 20 6.1 No Shielding
CG15C30F030 18 AWG 5 Female Plug 30 9.15 No Shielding
CG15D30F003 18 AWG 5 90¡ Female Plug 3 0.91 No Shielding
CG15D30F006 18 AWG 5 90¡ Female Plug 6 1.83 No Shielding
CG15D30F012 18 AWG 5 90¡ Female Plug 12 3.66 No Shielding
CG15D30F020 18 AWG 5 90¡ Female Plug 20 6.1 No Shielding
CG15D30F030 18 AWG 5 90¡ Female Plug 30 9.15 No Shielding
CG25E30A018 18 AWG 5 M/F Ext. Set 1.5 0.45 No Shielding
CG25E30F003 18 AWG 5 M/F Ext. Set 3 0.91 No Shielding
CG25E30F006 18 AWG 5 M/F Ext. Set 6 1.83 No Shielding
CG25E30F009 18 AWG 5 M/F Ext. Set 9 2.74 No Shielding
CG25E30F012 18 AWG 5 M/F Ext. Set 12 3.66 No Shielding
CG25E30F015 18 AWG 5 M/F Ext. Set 15 4.75 No Shielding
CG25E30F020 18 AWG 5 M/F Ext. Set 20 6.1 No Shielding
CG25E30F030 18 AWG 5 M/F Ext. Set 30 9.15 No Shielding
CG25F30A018 18 AWG 5 M/90¡ F 1.5 0.45 No Shielding
CG25F30F003 18 AWG 5 M/90¡ F 3 0.91 No Shielding
CG25F30F006 18 AWG 5 M/90¡ F 6 1.83 No Shielding
CG25F30F012 18 AWG 5 M/90¡ F 12 3.66 No Shielding
CG25F30F020 18 AWG 5 M/90¡ F 20 6.1 No Shielding
CG25F30F030 18 AWG 5 M/90¡ F 30 9.15 No Shielding
CG25G30F003 18 AWG 5 90¡ M/F 3 0.91 No Shielding
CG25G30F006 18 AWG 5 90¡ M/F 6 1.83 No Shielding
CG25G30F012 18 AWG 5 90¡ M/F 12 3.66 No Shielding
CG25G30F020 18 AWG 5 90¡ M/F 20 6.1 No Shielding
CG25G30F030 18 AWG 5 90¡ M/F 30 9.15 No Shielding
