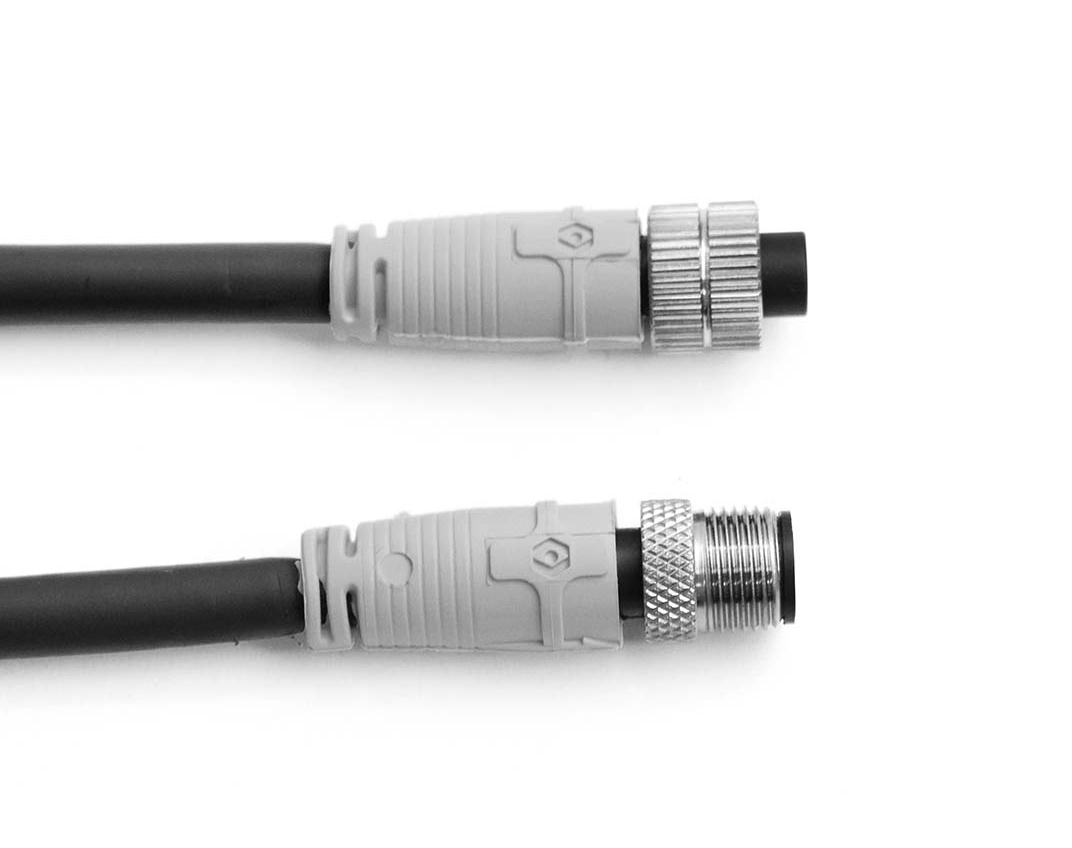

Quick-Connex™ Trex-Onics 4 Pin M12 D-Coded Micro Ethernet Cordsets

Ethernet networking is a growing solution for industrial applications and TPC offers you a complete solution for your Ethernet cable and connector needs.

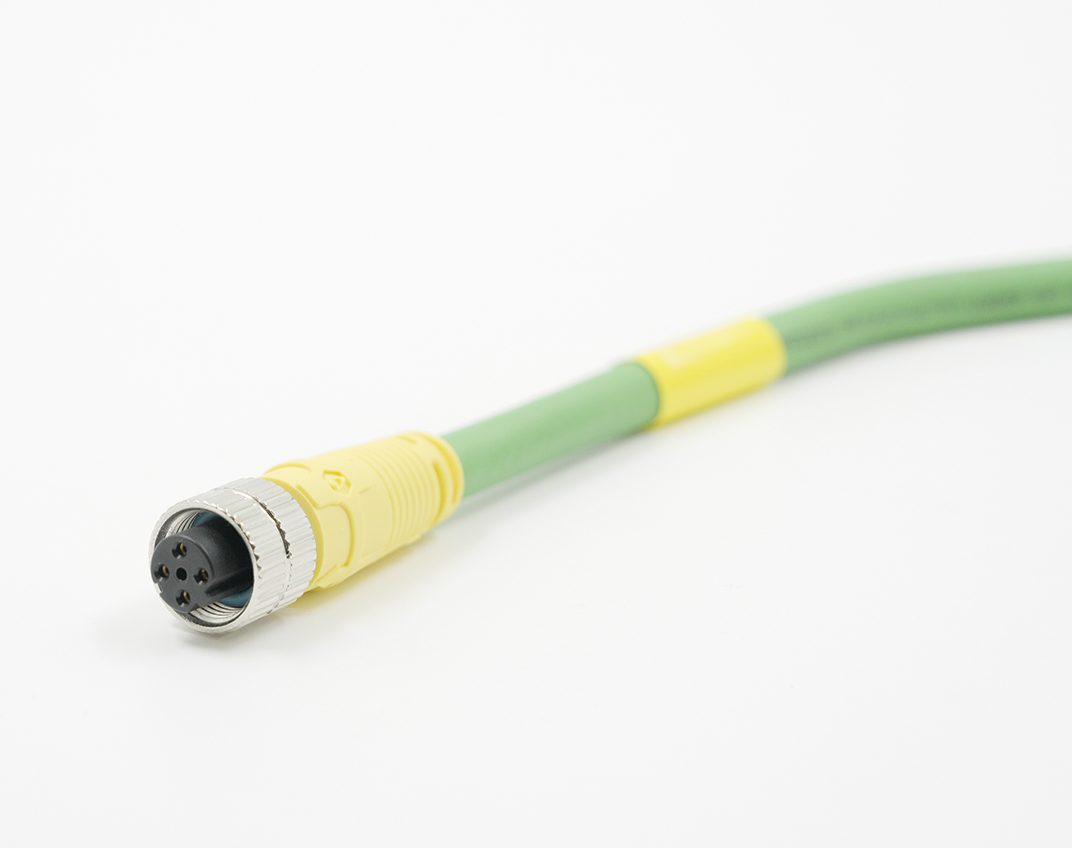

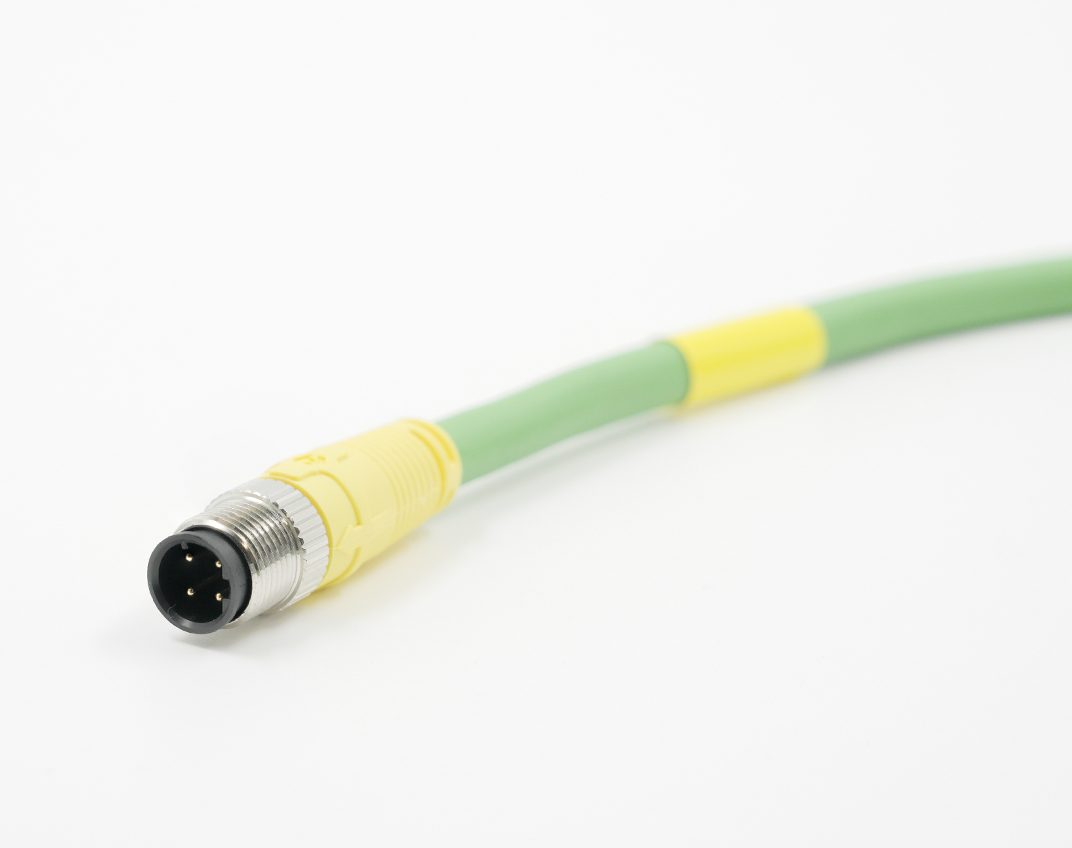

Quick-Connex™ Trex-Onics 4 Pin M12 D-Coded Micro Ethernet Cordsets are engineered to withstand abrasion, high-flex, high-heat and chemical environments. TPC's Quick-Connex™ Ethernet cordsets are designed with over a dozen different head configurations and are built to your specific needs.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CORD SETS MADE WITH TREX-ONICS® HIGH-FLEX 2-PAIR SHIELDED PROFINET CABLE NO. 60061

Designed specifically for industrial applications where continuous flexing or motion control exists.

NICKEL PLATED BRASS COUPLING NUT

Resists corrosion. Ensures a quick, secure connection in the toughest environments.

SOLID BRASS CONTACTS ARE NICKEL COATED AND GOLD PLATED

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low level signal applications.

22AWG 2 PAIR SHIELDED PROFINET CABLE WITH ALUMINUM/POLYESTER FOIL SHIELD AND TINNED COPPER BRAID

100% shielded protection from EM and RF interference. Finely stranded braid provides superior mechanical strength. TPE jacket provides protection against environmental abuse with excellent defense against cutting, abrasion, oil and chemicals.

COMPLETELY MOLDED DESIGN

Provides long life and superior strength.

Resources

Specsheets

Product Overview

Specsheets

Trex-Onics® High-Flex PROFINET

WireCableFinderGuide

Build Your Own Ethernet Cable Assemblies

Ratings / Characteristics

  • Max Conductor Temperature 80°C

Applications

abrasions-icon

Abrasion

flexing-icon

Flexing

chemicals-icon

Chemicals

Part Numbers

PART NO. Conductor Size (AWG) Conductor/Pole Count DESCRIPTION METERS FEET Shielding Type
EC2M5E2SM001 22 AWG 4 4 Pin M12 D-Coded Micro Male/Female w/ Profinet Cable 1 3.27 Overall Shielded, Individually Shielded Pairs
EC2M5E2SM003 22 AWG 4 4 Pin M12 D-Coded Micro Male/Female w/ Profinet Cable 3 9.84 Overall Shielded, Individually Shielded Pairs
EC2M5E2SM006 22 AWG 4 4 Pin M12 D-Coded Micro Male/Female w/ Profinet Cable 6 19.67 Overall Shielded, Individually Shielded Pairs
EC2M5E2SM010 22 AWG 4 4 Pin M12 D-Coded Micro Male/Female w/ Profinet Cable 10 32.8 Overall Shielded, Individually Shielded Pairs
EC2M5E2SM015 22 AWG 4 4 Pin M12 D-Coded Micro Male/Female w/ Profinet Cable 15 49.21 Overall Shielded, Individually Shielded Pairs
EC2P5E2SM001 22 AWG 4 4 Pin M12 D-Coded Micro Male/Male w/ Profinet Cable 1 3.27 Overall Shielded, Individually Shielded Pairs
EC2P5E2SM003 22 AWG 4 4 Pin M12 D-Coded Micro Male/Male w/ Profinet Cable 3 9.84 Overall Shielded, Individually Shielded Pairs
EC2P5E2SM006 22 AWG 4 4 Pin M12 D-Coded Micro Male/Male w/ Profinet Cable 6 19.67 Overall Shielded, Individually Shielded Pairs
EC2P5E2SM010 22 AWG 4 4 Pin M12 D-Coded Micro Male/Male w/ Profinet Cable 10 32.8 Overall Shielded, Individually Shielded Pairs
EC2P5E2SM015 22 AWG 4 4 Pin M12 D-Coded Micro Male/Male w/ Profinet Cable 15 49.21 Overall Shielded, Individually Shielded Pairs
