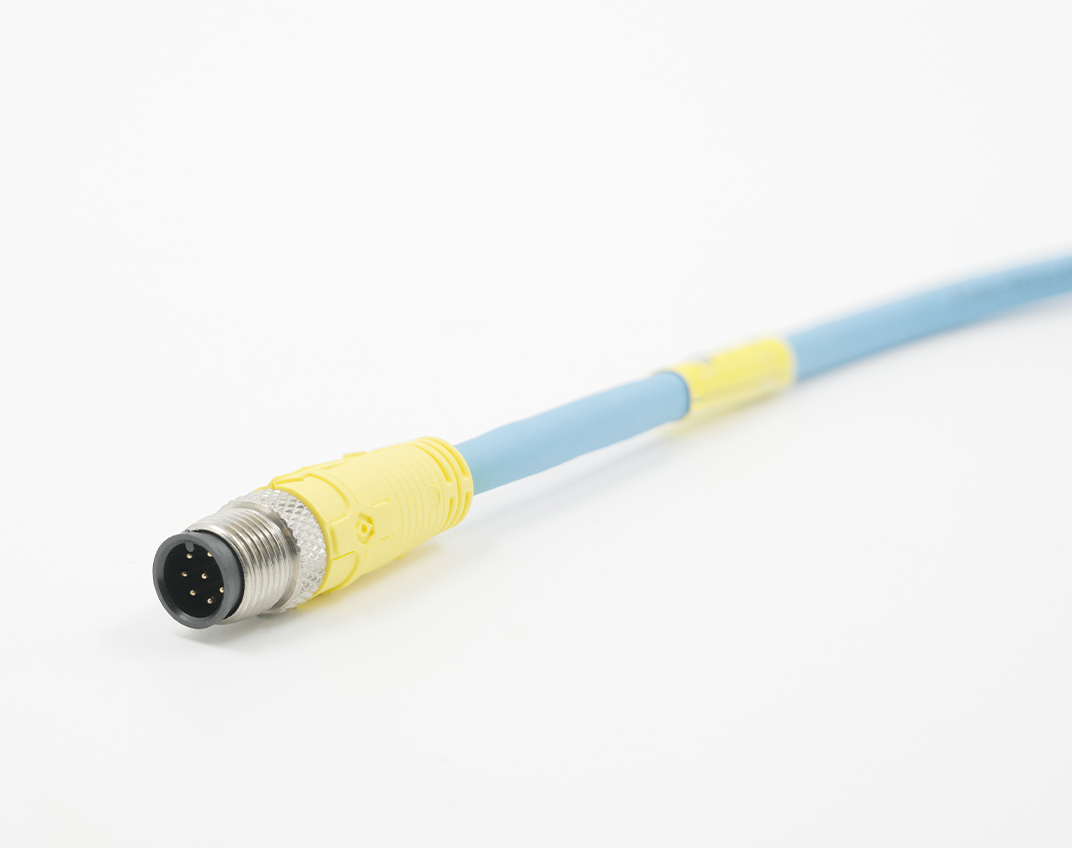

Quick-Connex® Trex-Onics RJ45 and 8 Pin M12 DC Micro Ethernet Cordsets 1_Web

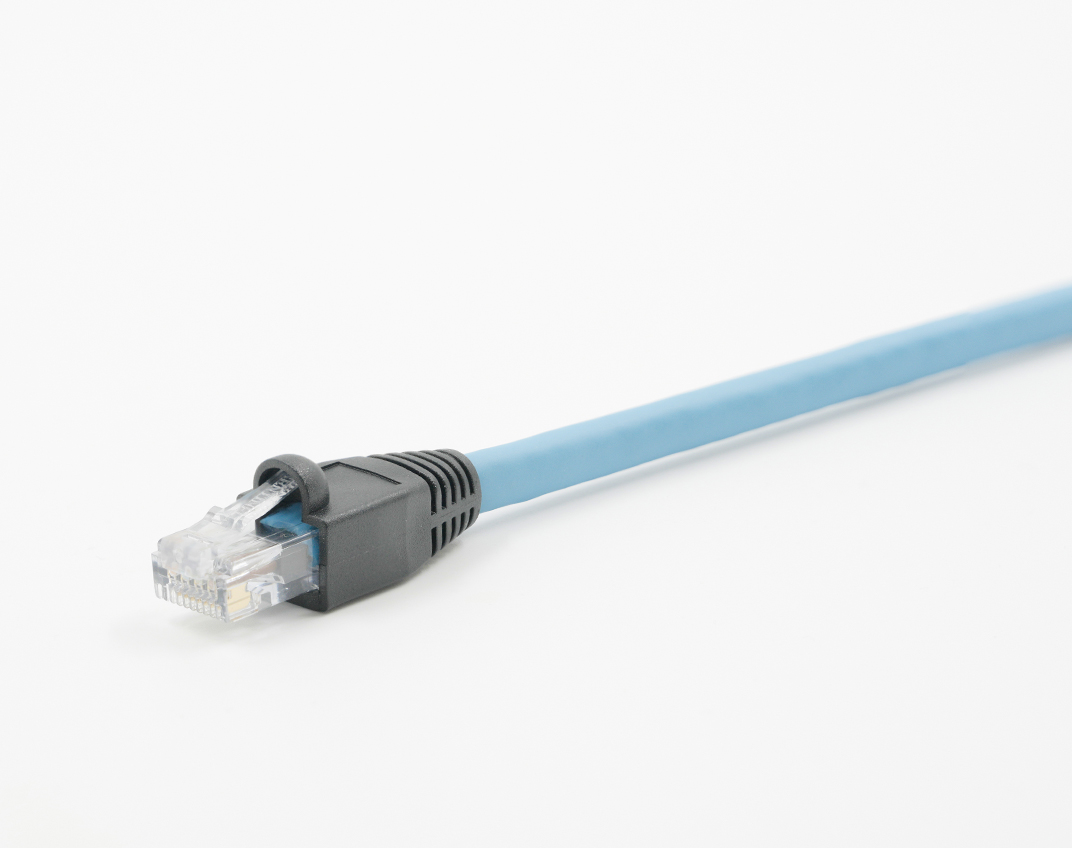

Quick-Connex® Trex-Onics RJ45 and 8 Pin M12 DC Micro Ethernet Cordsets 2_Web

Quick-Connex™ Trex-Onics RJ45 and 8 Pin M12 DC Micro Ethernet Cordsets

Ethernet networking is a growing solution for industrial applications and TPC offers you a complete solution for your Ethernet cable and connector needs.

Quick-Connex™ Trex-Onics RJ45 and 8 Pin M12 DC Micro Ethernet Cordsets are engineered to withstand abrasion, high-flex, high-heat and chemical environments. TPC's Quick-Connex™ Ethernet cordsets are designed with over a dozen different head configurations and are built to your specific needs.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CORD SETS MADE WITH TREX-ONICS® INDUSTRIAL ETHERNET CAT7A CABLE NO. 60067

Designed with finely stranded conductors that provide high flexibility and longer flex-life. Cable jacket provides protection from environmental abuse and offers resistance to UV light, cutting, abrasion, oil and chemicals.

26AWG 4-PAIR CABLE WITH ULTRA-SHIELD CONFIGURATION AND ALUMINUM/ POLYESTER FOIL SHIELD AROUND EACH PAIR

Reduces radiated and conducted electrical noise interference.

CONNECTORS CONSTRUCTED OF COPPER ALLOY CONTACTS WITH GOLD OVER NICKEL PLATING, CONNECTOR INTERFACE SEALING O-RING, TPU OVERMOLD MATERIAL

Ensures electrical integrity with abrasion and chemical resistance.

CONNECTOR WITH NICKEL PLATED BRASS COUPLING NUT

Resists corrosion. Ensures a quick, secure connection in the toughest environments.

RJ45 CONNECTOR FEATURES INTEGRAL C CRIMP

For increased effectiveness, added cable stress relief and strength for high speed applications. Contact material is Phosphor Bronze with gold plating, polycarbonate insert with PVC boot. Tested for 1,000 minimum insertion / extraction life.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Ethernet Cable Assemblies

Ratings / Characteristics

  • 8 Pin M12 DC Micro 300V

  • RJ45 Voltage 30VAC/32VDC @ 1.5 amps

  • Max Conductor Temperature 70°C

  • Operating Temperature: 70C

  • IP67

Applications

abrasions-icon

Abrasion

flexing-icon

Flexing

chemicals-icon

Chemicals

Part Numbers

PART NO. Conductor Size (AWG) Conductor/Pole Count DESCRIPTION METERS FEET Shielding Type
EC2G7AM001 26 AWG 8 8 Pin M12 DC Micro Male/Female w/ CAT7A Cable 1 3.27 Overall Shielded, Individually Shielded Pairs
EC2G7AM003 26 AWG 8 8 Pin M12 DC Micro Male/Female w/ CAT7A Cable 3 9.84 Overall Shielded, Individually Shielded Pairs
EC2G7AM006 26 AWG 8 8 Pin M12 DC Micro Male/Female w/ CAT7A Cable 6 19.67 Overall Shielded, Individually Shielded Pairs
EC2G7AM010 26 AWG 8 8 Pin M12 DC Micro Male/Female w/ CAT7A Cable 10 32.8 Overall Shielded, Individually Shielded Pairs
EC2G7AM015 26 AWG 8 8 Pin M12 DC Micro Male/Female w/ CAT7A Cable 15 49.21 Overall Shielded, Individually Shielded Pairs
EC2D7AM001 26 AWG 8 RJ45/RJ45 w/ CAT7A Cable 1 3.27 Overall Shielded, Individually Shielded Pairs
EC2D7AM003 26 AWG 8 RJ45/RJ45 w/ CAT7A Cable 3 9.84 Overall Shielded, Individually Shielded Pairs
EC2D7AM006 26 AWG 8 RJ45/RJ45 w/ CAT7A Cable 6 19.67 Overall Shielded, Individually Shielded Pairs
EC2D7AM010 26 AWG 8 RJ45/RJ45 w/ CAT7A Cable 10 32.8 Overall Shielded, Individually Shielded Pairs
EC2D7AM015 26 AWG 8 RJ45/RJ45 w/ CAT7A Cable 15 49.21 Overall Shielded, Individually Shielded Pairs
