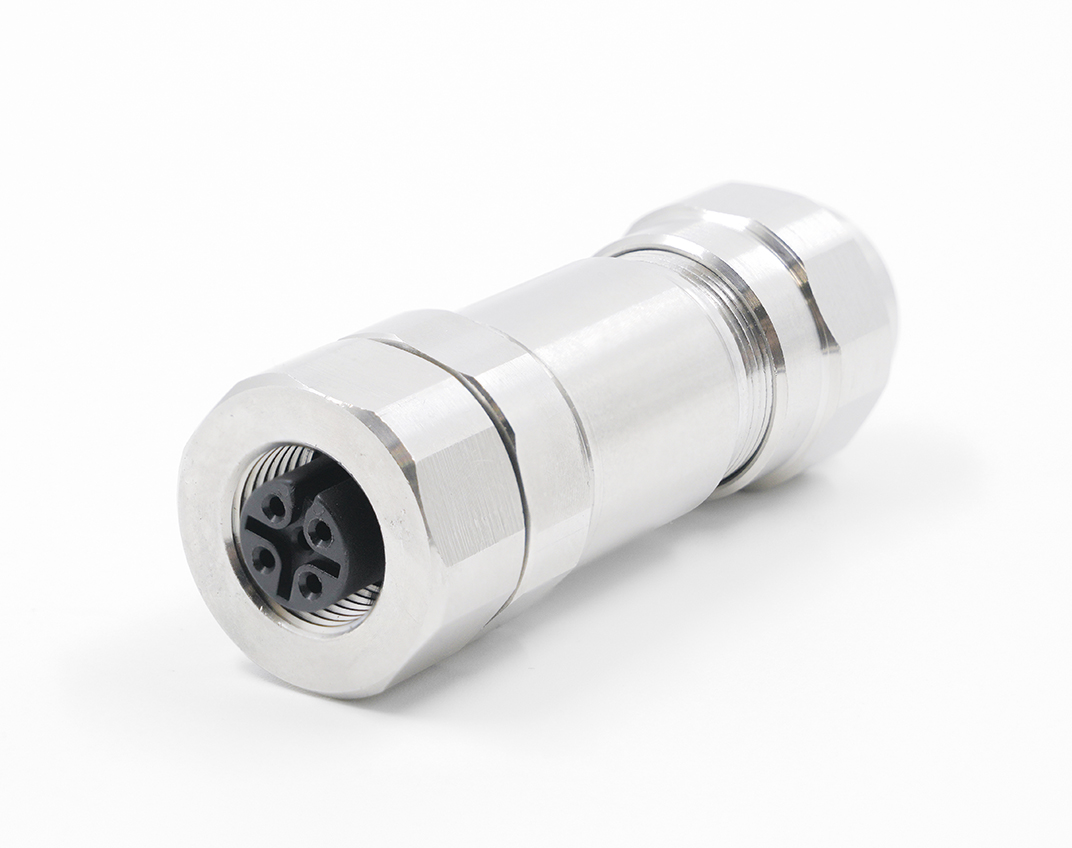

Quick-Connex® Chem-Gard® Extreme Duty Stainless Steel M12 DC Micro Female_Web

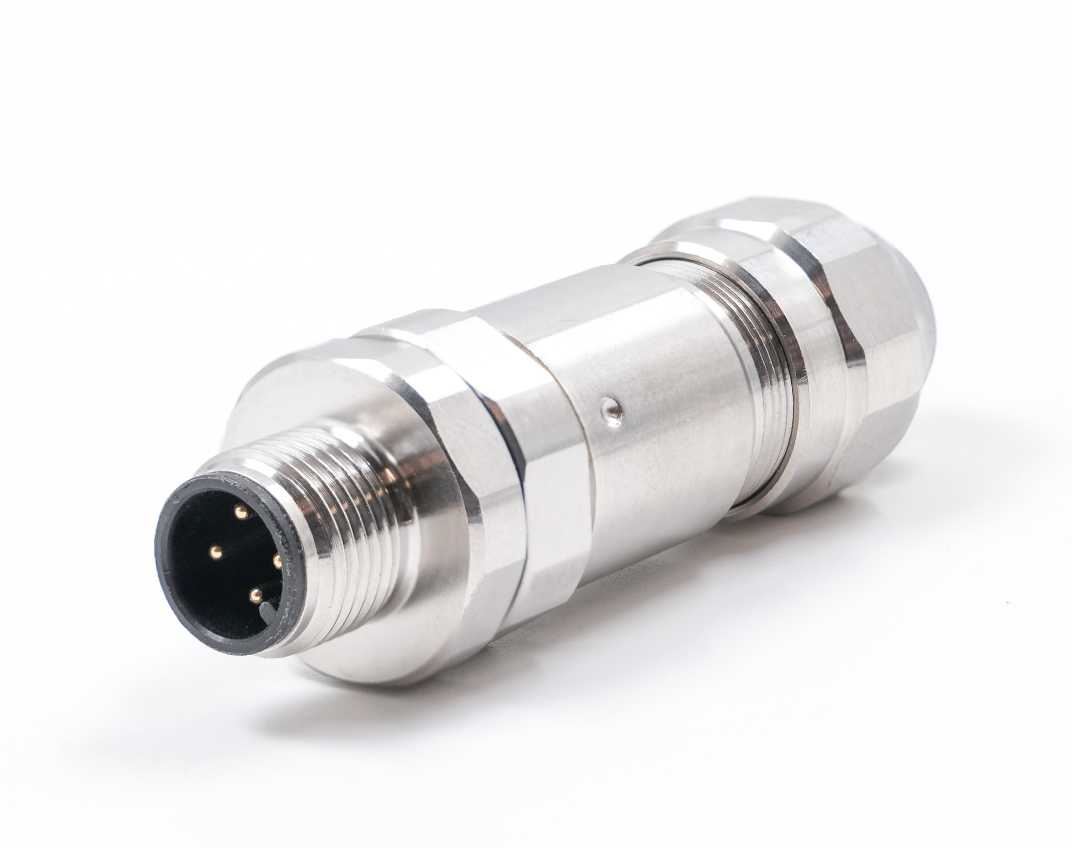

Quick-Connex® Chem-Gard® Extreme Duty Stainless Steel M12 DC Micro Male_Web

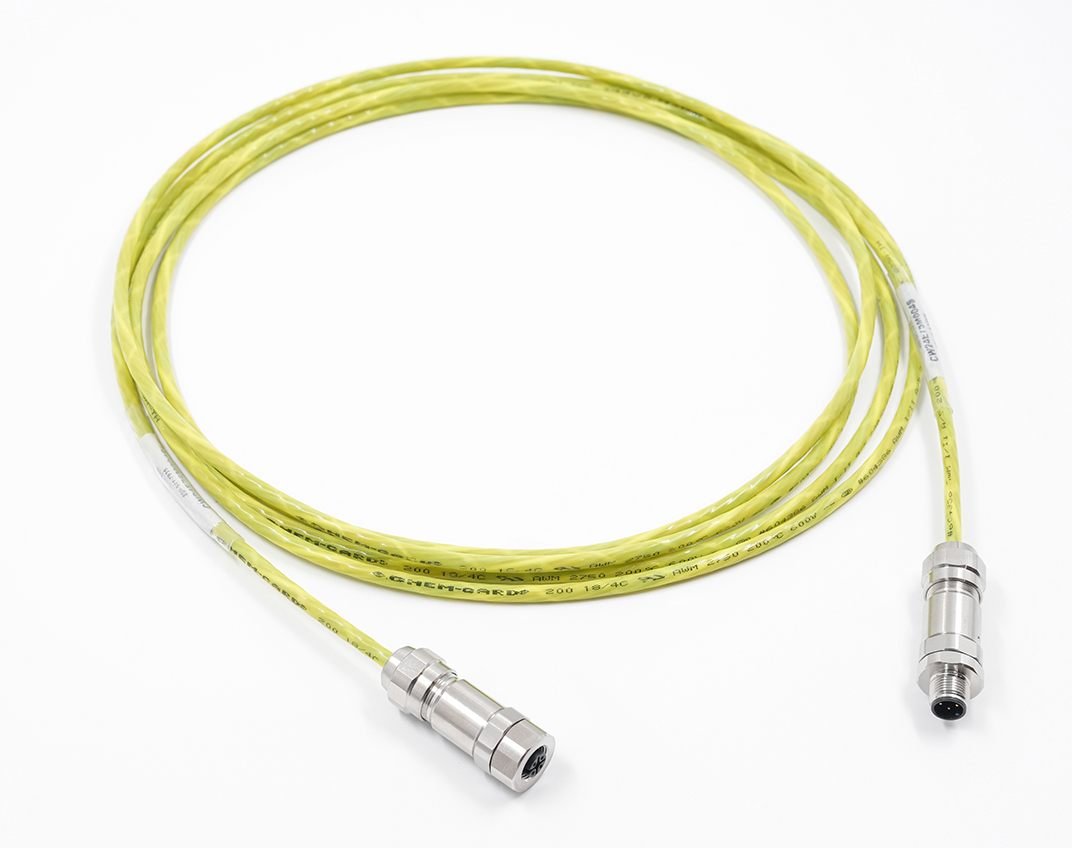

Quick-Connex® Chem-Gard® Extreme Duty Stainless Steel M12 DC Micro Cable Assemblies 4_Web

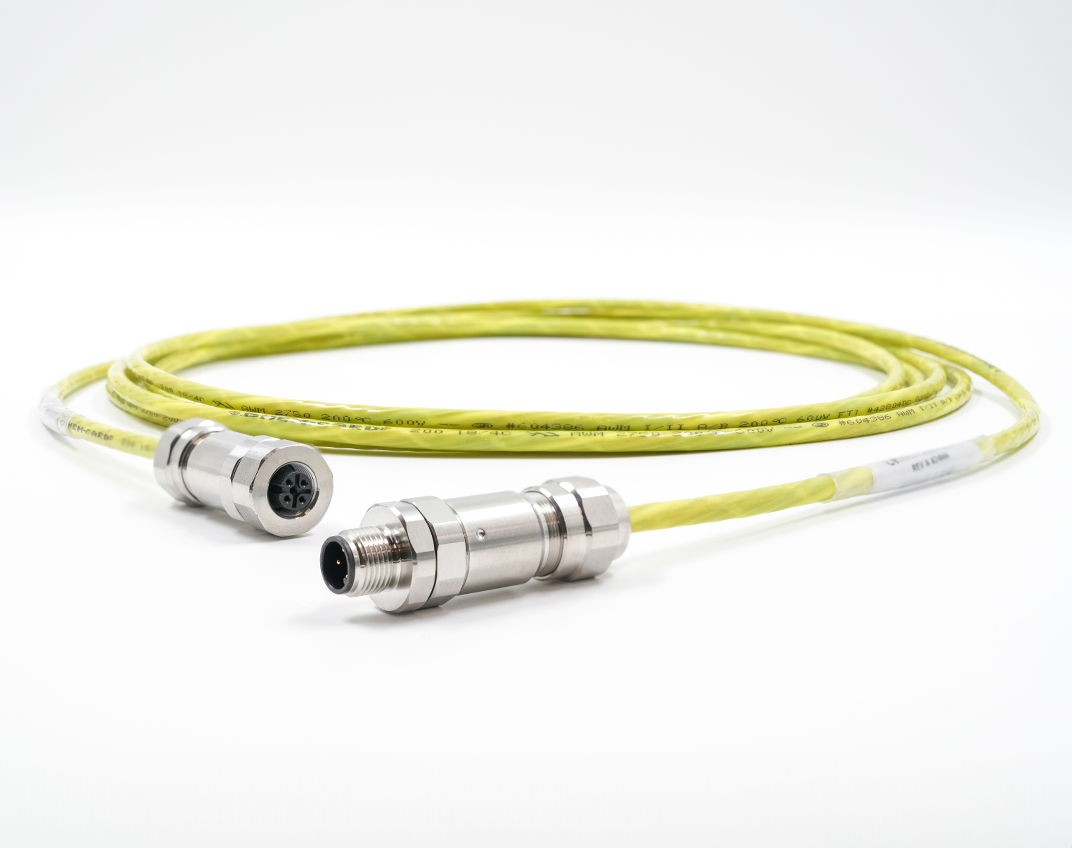

Quick-Connex® Chem-Gard® Extreme Duty Stainless Steel M12 DC Micro Cable Assemblies_Web

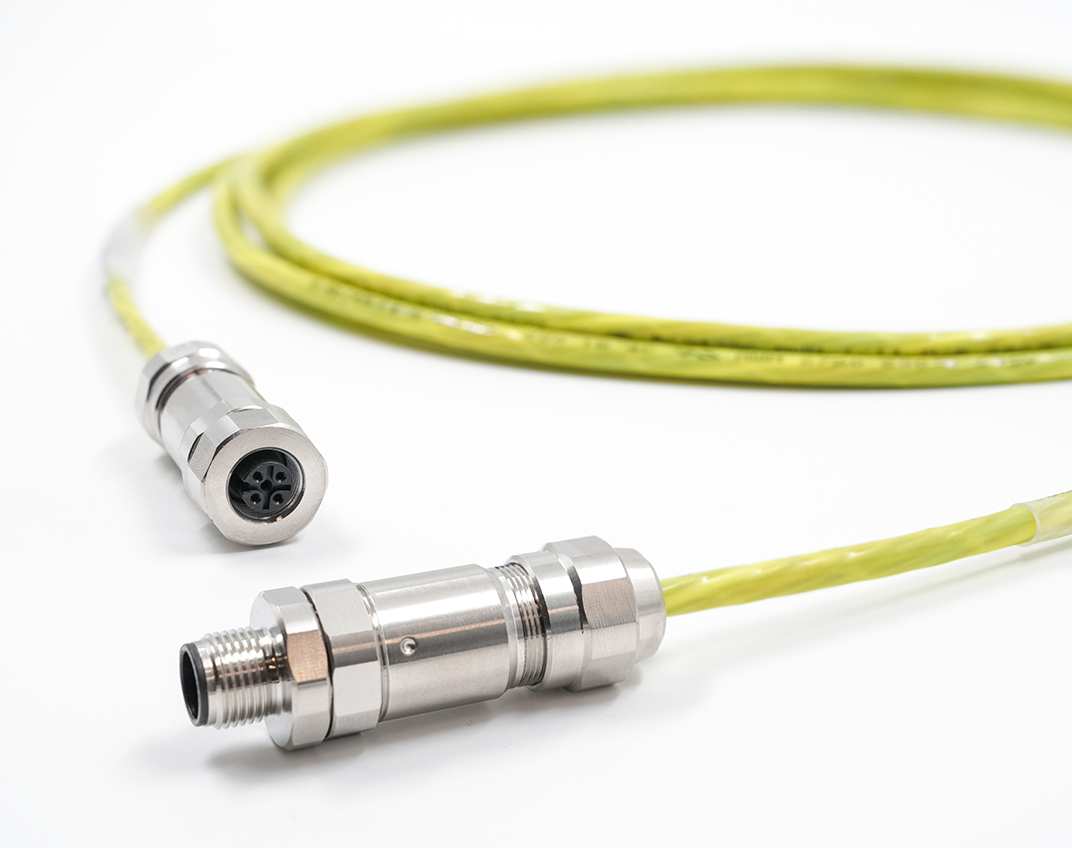

Quick-Connex® Chem-Gard® Extreme Duty Stainless Steel M12 DC Micro Cable Assemblies 3_Web

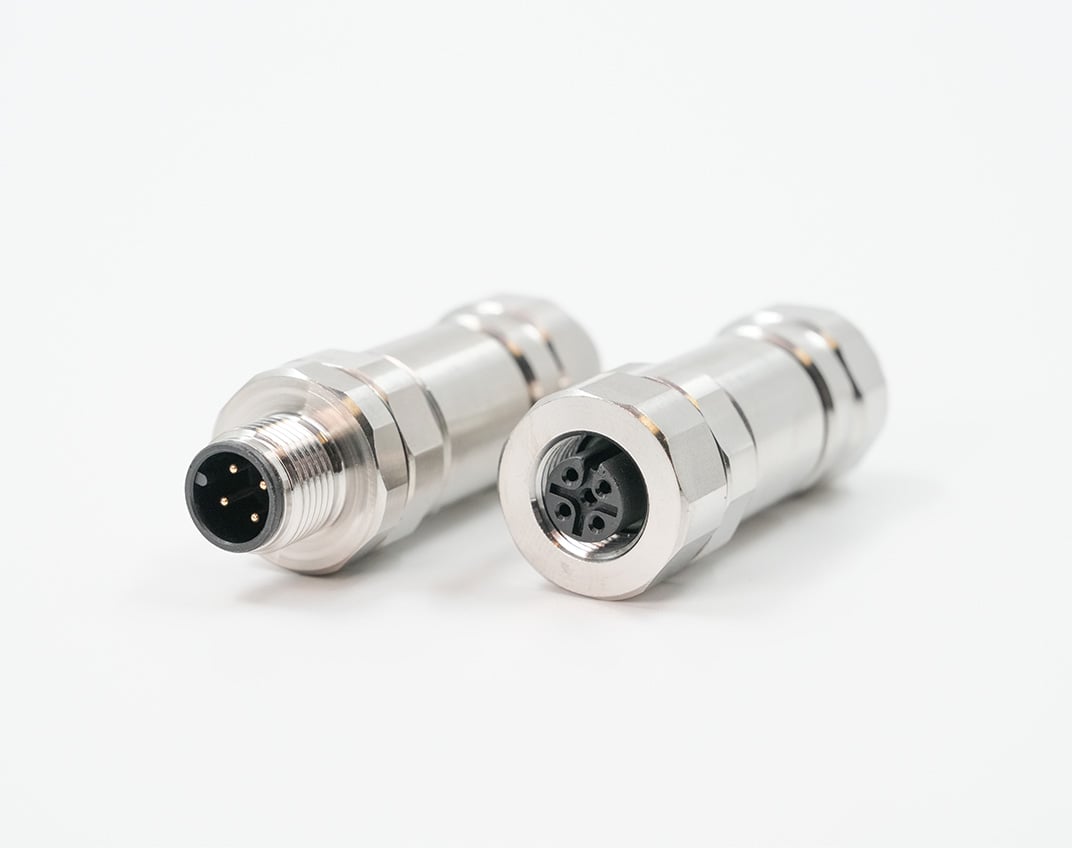

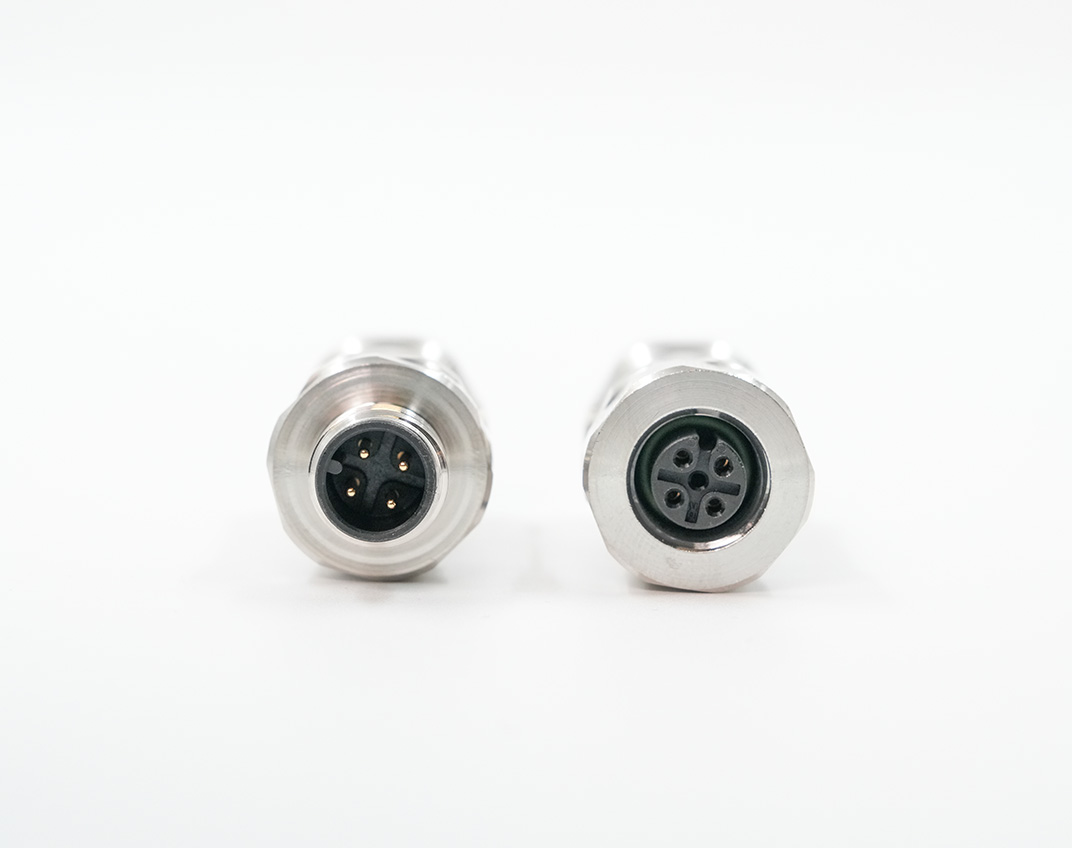

Chem-Gard® Extreme Duty Stainless Steel M12 DC Micro Quick-Connex™

Quick-Connex® M12 DC Micro Extreme Duty Chem-Gard® cordsets are made with Stainless Steel Field Installable connectors for use on job sites or for temporary repairs.  Built with our Chem-Gard® 200°C cable providing excellent resistance to chemicals, high heat and abrasion for use in harsh environments.  The combination of Stainless Steel M12 DC Micro Connectors and Chem-Gard cable make this one tough connector assembly.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers

Features

CORD SETS MADE WITH CHEM-GARD® 200°C CABLE

Unique fluoropolymer cable design provides resistance to chemicals and high heat. Superior first line defense against abrasion, tearing, cutting, impact and ozone.

CONNECTOR BODY IS 316 STAINLESS STEEL

Provides long life, resists heat, impact and oil deterioration.

MOLDED AND KEYED ASSEMBLY

Provides rapid and secure connection and disconnect. Ensures a water, oil, and dust tight seal.

SOLID BRASS CONTACT PINS ARE GOLD PLATED

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity DC applications.

SPECIALLY COMPOUNDED NYLON INSERTS

Seals out oil, chemicals and other contaminants. Provides a positive seal on mated components. 

STAINLESS STEEL COUPLING NUT 

Resists corrosion, provides quick and secure assembly.

COUPLING NUT M12 X 1.0 THREAD WITH ONE KEYWAY ON CONNECTOR FACE

Industry standard for M12 DC Micro connectors.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • 250V

  • Max Conductor Temperature of Chem-Gard 200 cable: 200°C

  • IP68 Rated

  • Operating Temperature: -25° to 85°C

  • Bend Radius of Chem-Gard® 200 Cable: (Static) 12x Cable OD, (Dynamic) 15x Cable OD

  • Superior Chemical Resistance

  • Abrasion and Impact Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part NO. Description Conductor/Pole Count feet meters Shielding Type
CW14A75M001S 4P Male Plug 4 3.27 1 -
CW14A75M002S 4P Male Plug 4 6.56 2 -
CW14A75M004S 4P Male Plug 4 13.08 4 -
CW14A75M006S 4P Male Plug 4 19.67 6 -
CW14A75M010S 4P Male Plug 4 31.8 10 -
CW14C75M001S 4P Female Plug 4 3.27 1 -
CW14C75M002S 4P Female Plug 4 6.56 2 -
CW14C75M004S 4P Female Plug 4 13.08 4 -
CW14C75M006S 4P Female Plug 4 19.67 6 -
CW14C75M010S 4P Female Plug 4 31.8 10 -
CW24E75M001S 4P Male to Female Ext. Set 4 3.27 1 -
CW24E75M002S 4P Male to Female Ext. Set 4 6.56 2 -
CW24E75M004S 4P Male to Female Ext. Set 4 13.08 4 -
CW24E75M006S 4P Male to Female Ext. Set 4 19.67 6 -
CW24E75M010S 4P Male to Female Ext. Set 4 31.8 10 -
30400SS Female - for 0.120" to 0.215" O.D. Cable - - - -
30700SS Male - for 0.120" to 0.215" O.D. Cable - - - -
64801S Closure Cap for Male Plug - with 6" Chain - - - -
64802S Closure Cap for Female Plug - with 6" Chain - - - -
48204DC Chem-Gard® 200ºC Cable 18 AWG/4c Unshielded - - - -
RF14T75F004S Female Panel Mt. Recept. w/ Chem-Gard¨ 4 ft Leads - - - -
RF14R75F001S Male Panel Mt. Recept. w/ Chem-Gard¨ 1 ft Leads - - - -
RF14S75F001S Male Switch Mt. Recept. w/ Chem-Gard¨ 1 ft Leads - - - -
