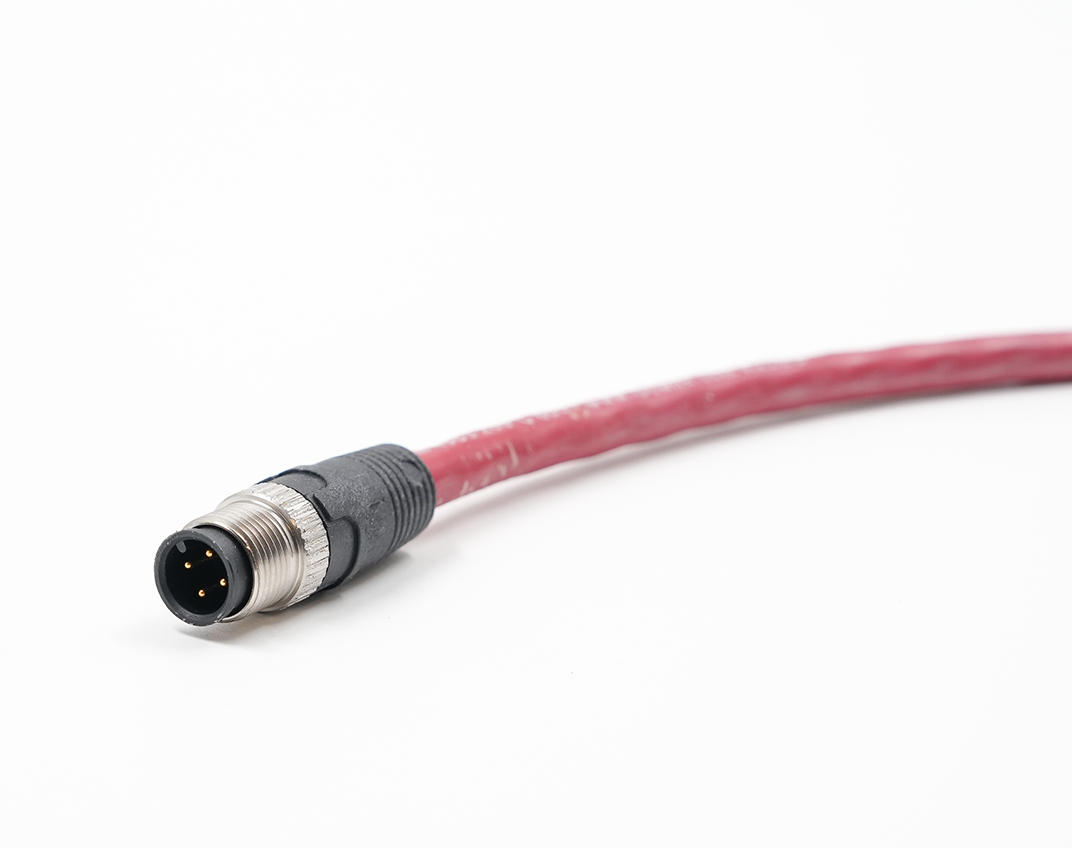

Quick-Connex® 18 AWG M12 DC Micro High Temperature Silicone Cordsets Male_Web

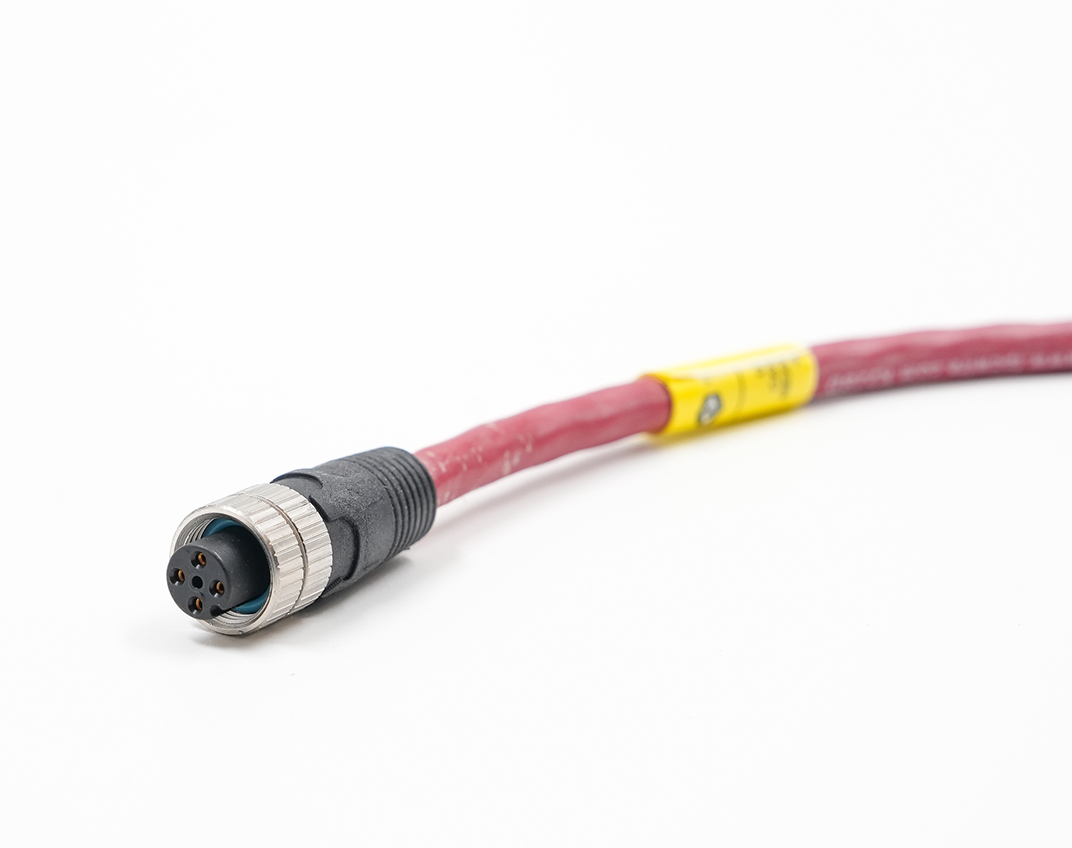

Quick-Connex® 18 AWG M12 DC Micro High Temperature Silicone Cordsets Female_Web

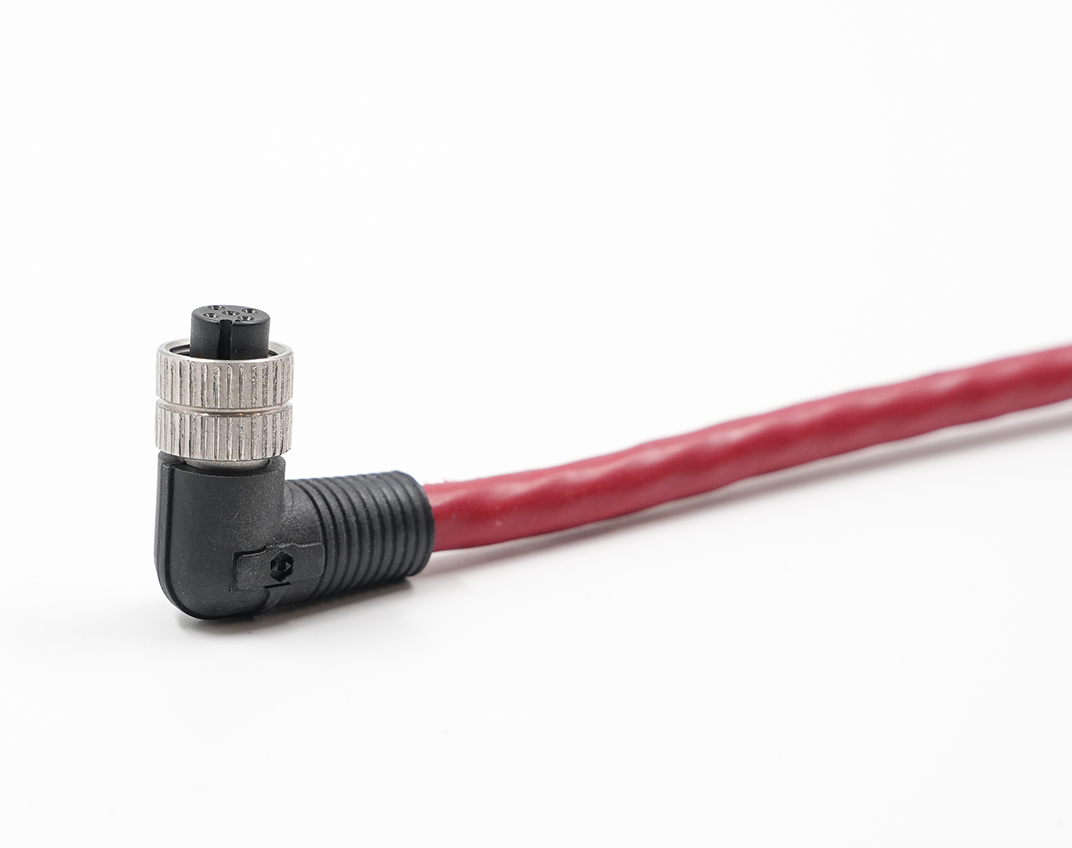

Quick-Connex® 18 AWG M12 DC Micro High Temperature Silicone Cordsets 90_Web

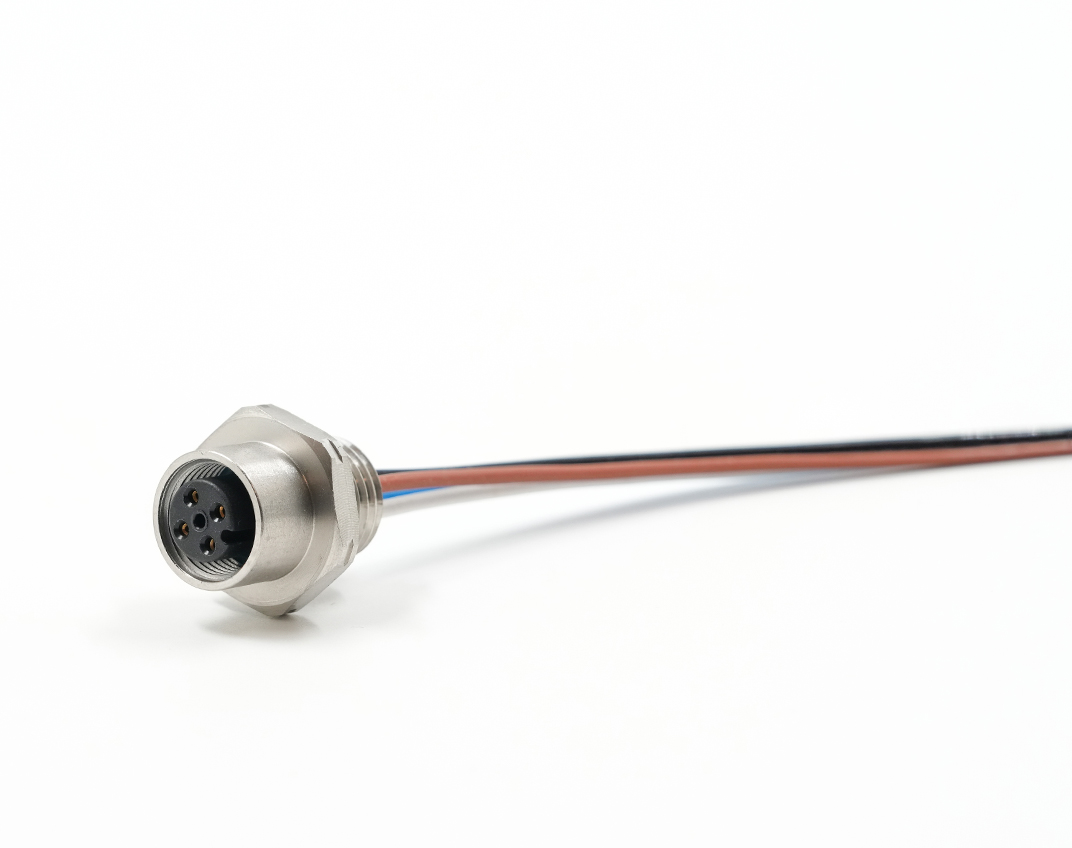

Quick-Connex® 18 AWG M12 DC Micro High Temperature Silicone Cordsets Female Receptacle_Web

Quick-Connex™ 18 AWG M12 DC Micro High Temperature Silicone Cordsets

Quick-Connex® M12 DC Micro High Temperature Silicone Cordsets make the replacement of electrical and electronic control devices quick and easy. Plug sets are made with Thermo-Trex® 600-Plus High Temperature 200°C Silicone Cable, offering excellent resistance to moisture, oils, lubricants and industrial chemicals. The fine stranding provides all-weather flexibility in dynamic applications and longer conductor life.

Stainless Steel coupling nuts and Stainless Steel receptacle bodies resist corrosion and provide a rapid and secure connection.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Cordsets Made with Thermo-Trex® 600-PlusSilicone Cable, Rated 200°C

Designed for high heat resistance with superior resistance to oils, lubricants and common industrial chemicals. Extreme all-weather flexibility.

Connector Body is Specially Compounded High Heat Resistant Elastomer

Provides long life, resists high heat and oils deterioration.

Molded and Keyed Assembly

Provides rapid and secure connection and disconnect. Ensures a water, oil, and dust tight seal.

Copper Alloy Contact Pins are Nickel Coated and Gold Plated, Machine Crimped to Conductors

Provides long life, resists corrosion with easy positive engagement, ensuring electrical integrity.

Stainless Steel Coupling Nut

Resists corrosion and ensures a quick, secure connection in the toughest environments and high vibration applications.

Silicone Interface SealingO-Ring

Seals out moisture, oils and other contaminants, providing a positive seal on mated components.

Receptacles have 18 AWG Stranded, Nickel Plated Copper 200°C Fluoropolymer Insulated Pigtails

Provide excellent oil and heat resistance up to 200°C.

Coupling Nut M12 x 1.0Thread with One Keyway on Connector Face

Industry standard for M12 DC Micro connectors.

Receptacle Body is Stainless Steel

Resists corrosion and provides quick and secure assembly.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own High Temperature M12 DC Micro Cordsets with Thermo-Trex 600-Plus Cable

Ratings / Characteristics

  • Max conductor temperature 200°C

  • 300 V

  • IP68 Rated

  • Chemical Resistant

  • Heat Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

High Temperature

Related Products

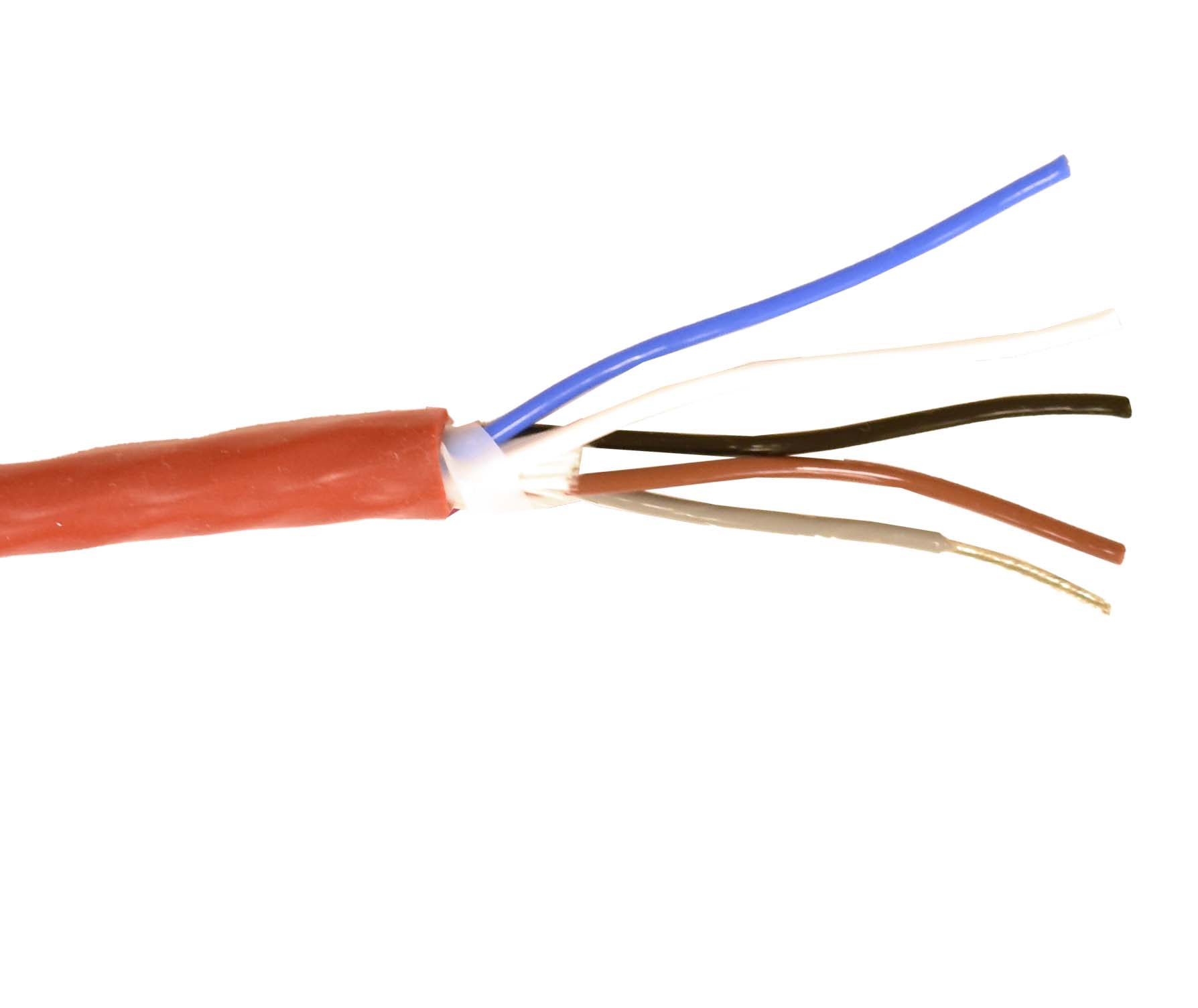

ThermoTrex-600[3688]

Thermo-Trex® 600-Plus Silicone Cable
chem-gard-dc-micro-quick-connects_1

Quick-Connex™ 18 AWG M12 DC Micro High Temperature Chem-Gard Cordsets
18-awg-sjoo-quick-connect_1

Quick-Connex™ SJOO M12 DC Micro Cordsets
18-awg-micro-m12-quick-connect_1

Quick-Connex™ M12 DC Micro Cordsets

Part Numbers

product_no Conductor Size (AWG) Conductor/Pole Count Description feet meters Pigtail Length Shielding Type
CK13C93M002 18 AWG 3 Straight Female DC Plug 6.56 2 - No Shielding
CK13C93M004 18 AWG 3 Straight Female DC Plug 13.12 4 - No Shielding
CK13C93M006 18 AWG 3 Straight Female DC Plug 19.68 6 - No Shielding
CK14C94M002 18 AWG 4 Straight Female DC Plug 6.56 2 - No Shielding
CK14C94M004 18 AWG 4 Straight Female DC Plug 13.12 4 - No Shielding
CK14C94M006 18 AWG 4 Straight Female DC Plug 19.68 6 - No Shielding
CK14C94M010 18 AWG 4 Straight Female DC Plug 32.8 10 - No Shielding
CK15C95M002 18 AWG 5 Straight Female DC Plug 6.56 2 - No Shielding
CK15C95M004 18 AWG 5 Straight Female DC Plug 13.12 4 - No Shielding
CK15C95M006 18 AWG 5 Straight Female DC Plug 19.68 6 - No Shielding
CK15C95M010 18 AWG 5 Straight Female DC Plug 32.8 10 - No Shielding
CK13D93M002 18 AWG 3 90° Female Plug 6.56 2 - No Shielding
CK13D93M004 18 AWG 3 90° Female Plug 13.12 4 - No Shielding
CK13D93M006 18 AWG 3 90° Female Plug 19.68 6 - No Shielding
CK14D94M002 18 AWG 4 90° Female Plug 6.56 2 - No Shielding
CK14D94M004 18 AWG 4 90° Female Plug 13.12 4 - No Shielding
CK14D94M006 18 AWG 4 90° Female Plug 19.68 6 - No Shielding
CK14D94M010 18 AWG 4 90° Female Plug 32.8 10 - No Shielding
CK15D95M002 18 AWG 5 90° Female Plug 6.56 2 - No Shielding
CK15D95M004 18 AWG 5 90° Female Plug 13.12 4 - No Shielding
CK15D95M006 18 AWG 5 90° Female Plug 19.68 6 - No Shielding
CK15D95M010 18 AWG 5 90° Female Plug 32.8 10 - No Shielding
CK23E93M002 18 AWG 3 Male/Female DC Extension Cordset 6.56 2 - No Shielding
CK23E93M004 18 AWG 3 Male/Female DC Extension Cordset 13.12 4 - No Shielding
CK23E93M006 18 AWG 3 Male/Female DC Extension Cordset 19.68 6 - No Shielding
CK24E94M002 18 AWG 4 Male/Female DC Extension Cordset 6.56 2 - No Shielding
CK24E94M004 18 AWG 4 Male/Female DC Extension Cordset 13.12 4 - No Shielding
CK24E94M006 18 AWG 4 Male/Female DC Extension Cordset 19.68 6 - No Shielding
CK24E94M010 18 AWG 4 Male/Female DC Extension Cordset 32.8 10 - No Shielding
CK25E95M002 18 AWG 5 Male/Female DC Extension Cordset 6.56 2 - No Shielding
CK25E95M004 18 AWG 5 Male/Female DC Extension Cordset 13.12 4 - No Shielding
CK25E95M006 18 AWG 5 Male/Female DC Extension Cordset 19.68 6 - No Shielding
CK25E95M010 18 AWG 5 Male/Female DC Extension Cordset 32.8 10 - No Shielding
CK23F93M002 18 AWG 3 Male/90° Female DC Extension Cordset 6.56 2 - No Shielding
CK23F93M004 18 AWG 3 Male/90° Female DC Extension Cordset 13.12 4 - No Shielding
CK23F93M006 18 AWG 3 Male/90° Female DC Extension Cordset 19.68 6 - No Shielding
CK24F94M002 18 AWG 4 Male/90° Female DC Extension Cordset 6.56 2 - No Shielding
CK24F94M004 18 AWG 4 Male/90° Female DC Extension Cordset 13.12 4 - No Shielding
CK24F94M006 18 AWG 4 Male/90° Female DC Extension Cordset 19.68 6 - No Shielding
CK24F94M010 18 AWG 4 Male/90° Female DC Extension Cordset 32.8 10 - No Shielding
CK25F95M002 18 AWG 5 Male/90° Female DC Extension Cordset 6.56 2 - No Shielding
CK25F95M004 18 AWG 5 Male/90° Female DC Extension Cordset 13.12 4 - No Shielding
CK25F95M006 18 AWG 5 Male/90° Female DC Extension Cordset 19.68 6 - No Shielding
CK25F95M010 18 AWG 5 Male/90° Female DC Extension Cordset 32.8 10 - No Shielding
RK13TPTF004 - - RK14TPTF004 - Female Receptacle - Panel Mount 4 1.22 RK15TPTF005 No Shielding
RK13RPTF001 - - RK14RPTF001 - Male Receptacle - Panel Mount 1 .31 RK15RPTF001 No Shielding
