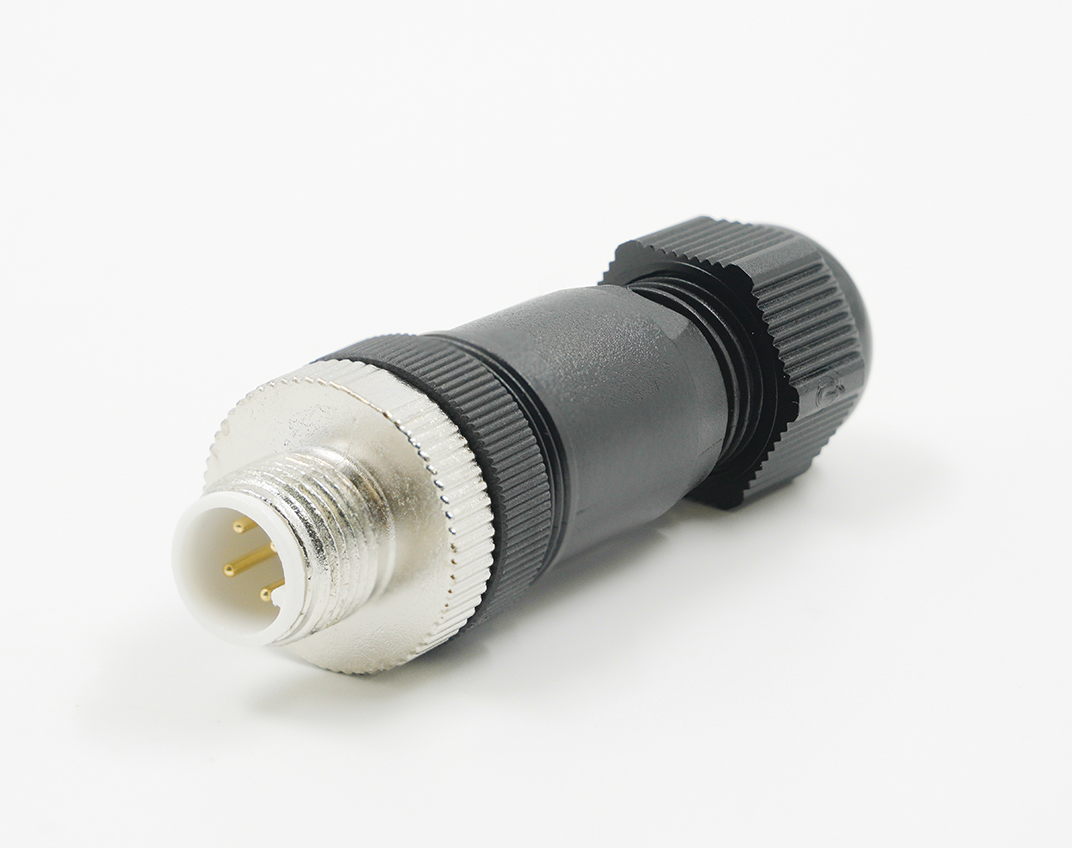

Quick-Connex® Field Installable Micro Connectors 2_Web

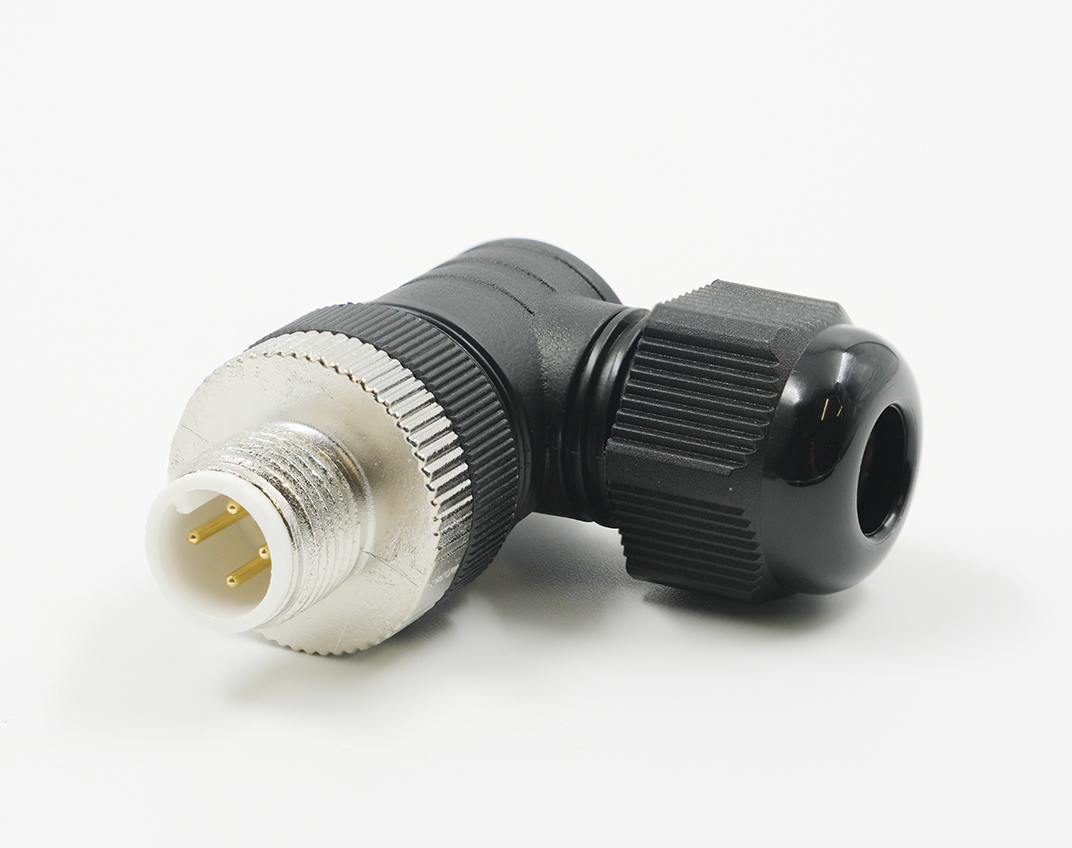

Quick-Connex® Field Installable Micro Connectors 8_Web

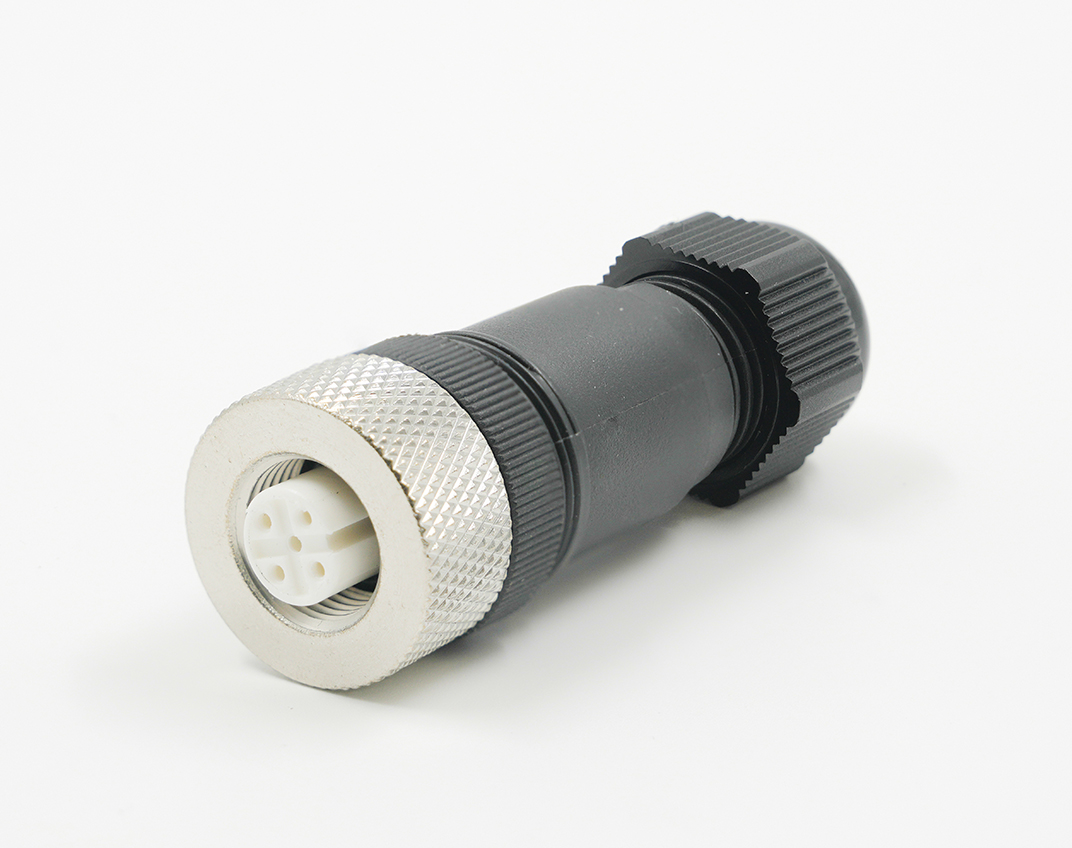

Quick-Connex® Field Installable Micro Connectors 4_Web

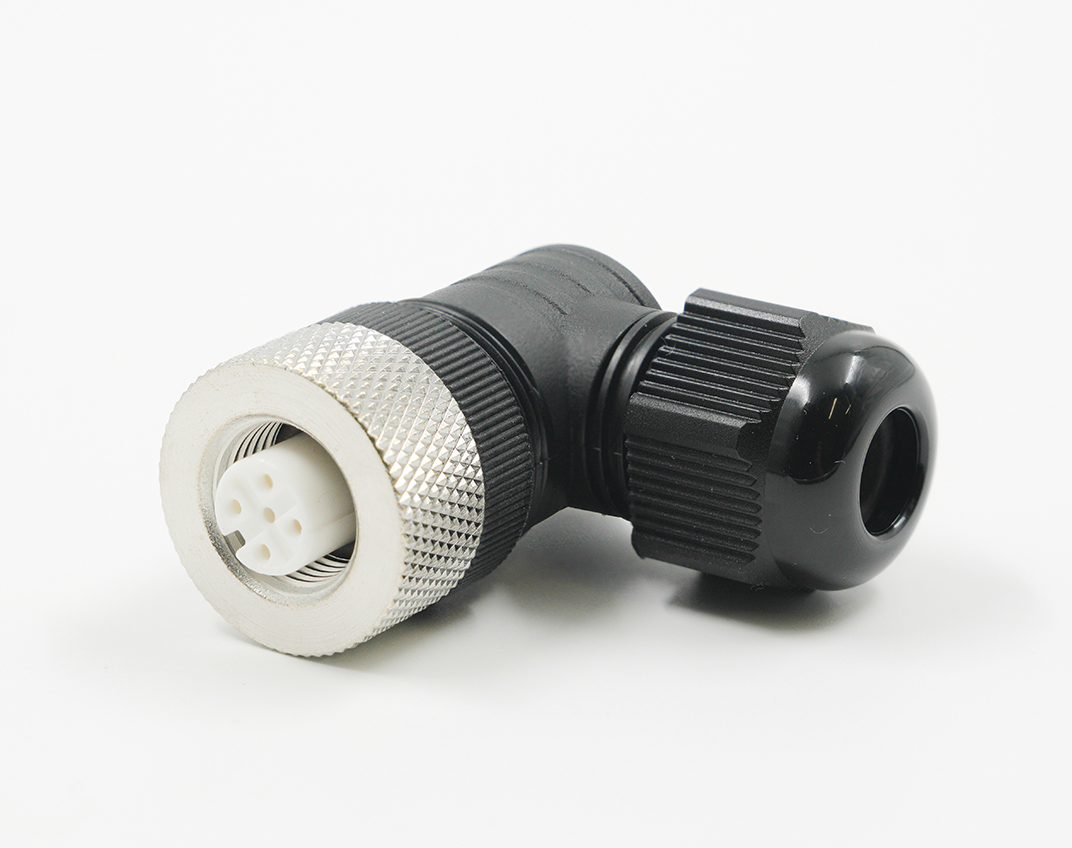

Quick-Connex® Field Installable Micro Connectors 3_Web

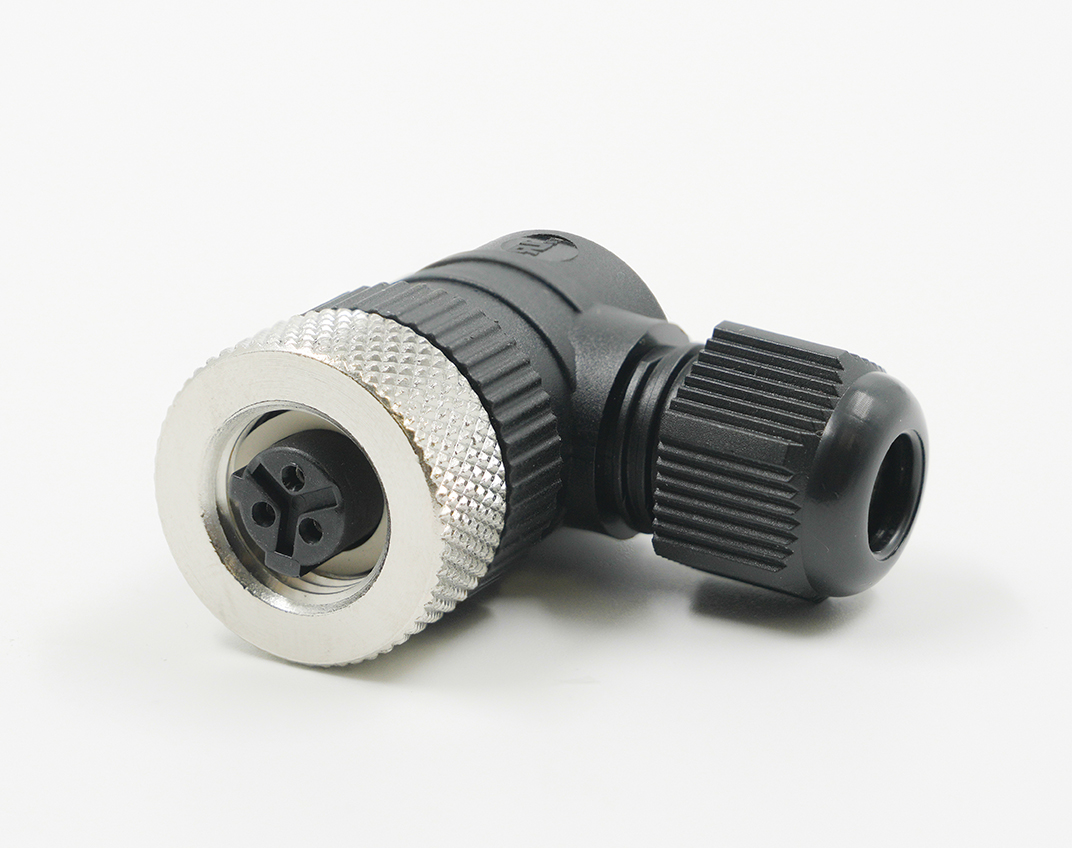

Quick-Connex® Field Installable Micro Connectors 7_Web

Quick-Connex® Field Installable M12 DC Micro Connectors

Quick-Connex® Field Installable AC and M12 DC Micro mechanical connectors can be paired with Trex-Onics® 22-18AWG cables to make ‘do-it-yourself' cordsets.  IP67 rated to provide a liquid-tight seal to protect the connection from dust and water contamination.  Ideal for a quick on-site repair.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CORDSETS CAN BE MADE WITH TREX-ONICS® 22-18AWG CABLES, RATED 80°C

Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Extreme all-weather flexibility.

POLYAMIDE CONNECTOR BODY, PVC INSERT & RUBBER SEALING BUSHING

Impact and crush resistant with an IP67 rating to provide internal protection from dust and fluid spray.

COPPER ALLOY PINS ARE GOLD PLATED

Provides long life, resist corrosion, easy positive engagement.

SCREW LOCKING SYSTEM

Secure connection using only a screwdriver. Nylon pressing screw threads into body sleeve and compresses pinch ring and seal to grip cable to prevent conductors from pulling out of connector.

NICKEL-PLATED BRASS COUPLING NUT

Resists corrosion and gives quick, secure assembly.

COUPLING NUTS ARE M12 X 1.0 DC AND ½”-20 UNF AC

Industry standard for DC and AC connectors.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • RoHS Compliant

  • IP67 Rated

  • DC Micros Operating Temperature -25°C to 85°C

  • AC Micro Operating Temperature -40°C to 105°C

  • Fit Trex-Onics® 22AWG to 18AWG cables, verify cable OD

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Description Cord O.D. Range
INCHES		 Shielding Type

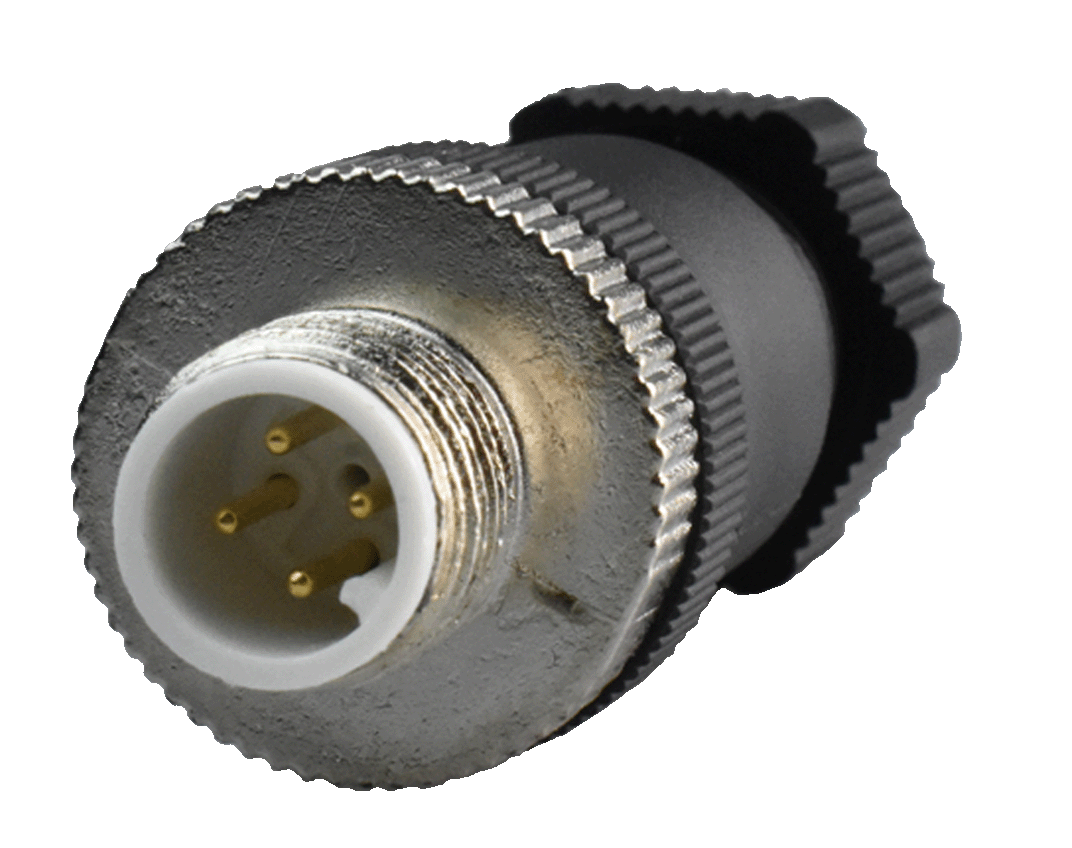

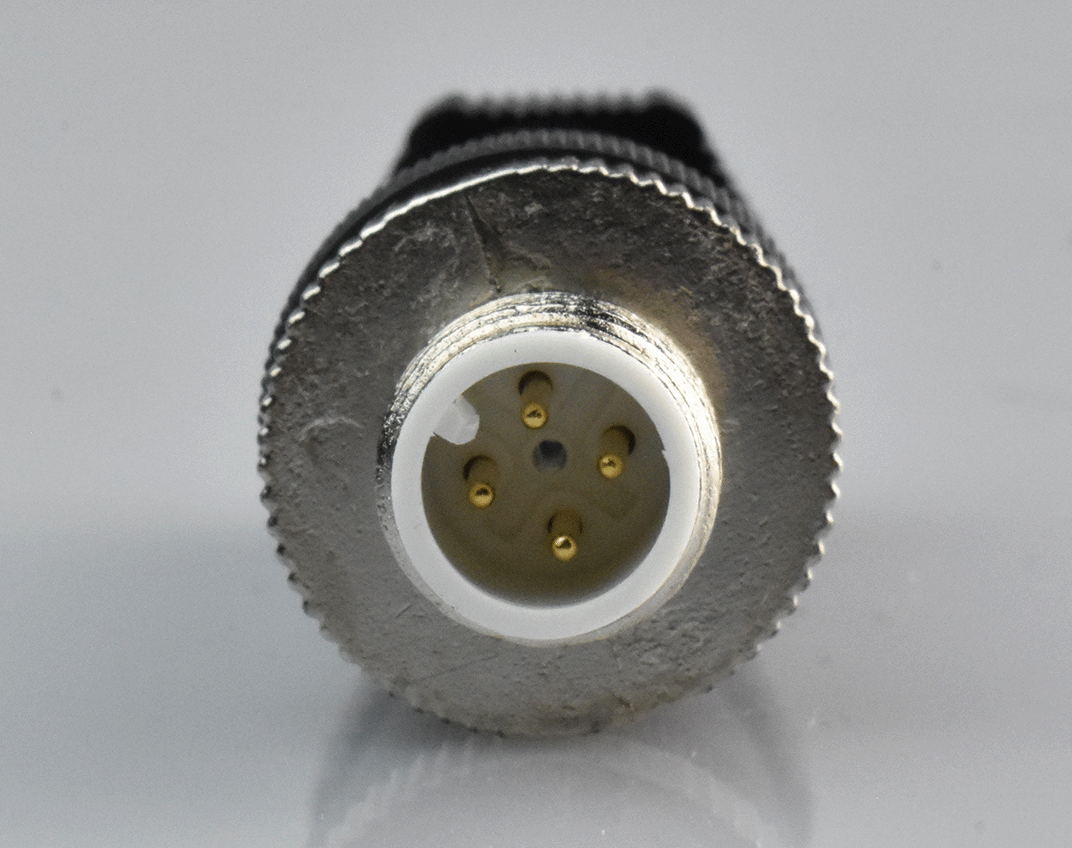

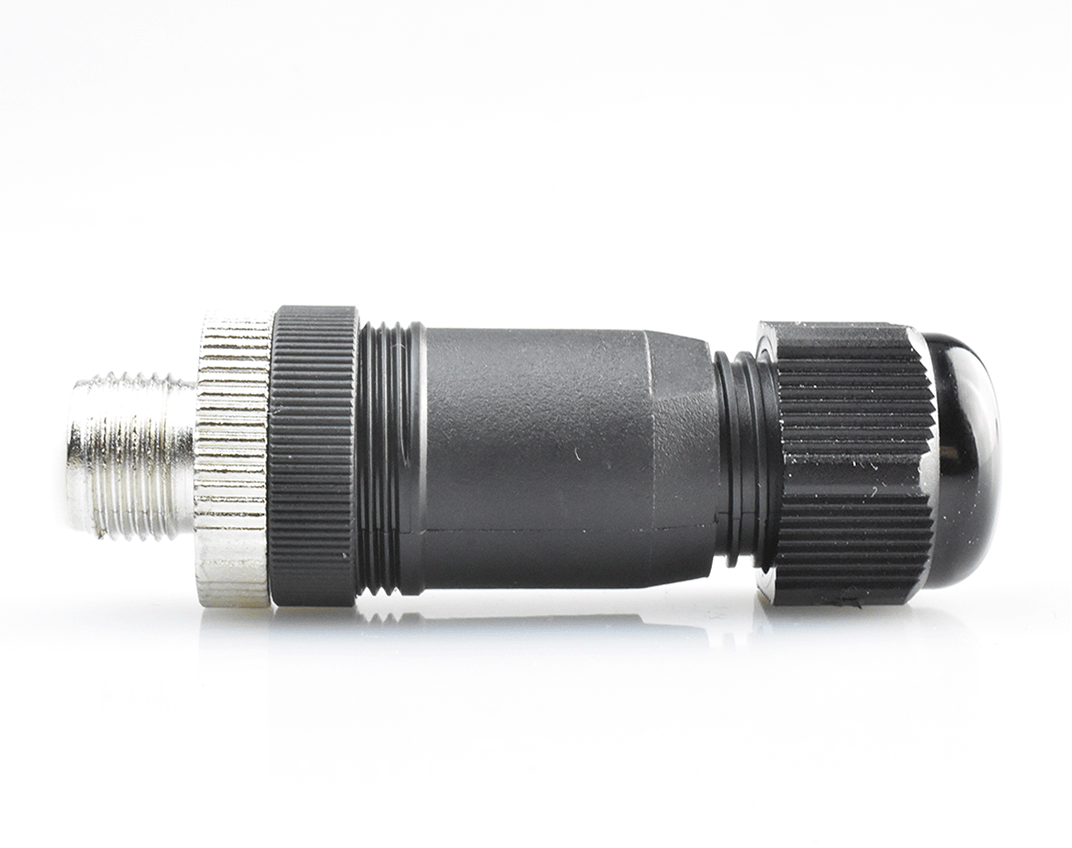

30700 18 AWG 4 4 Pole Male Straight DC 0.157 – 0.315 No Shielding
30600 18 AWG 5 5 Pole Male Straight DC 0.157 – 0.315 No Shielding
30800 18 AWG 8 8 Pole Male Straight DC 0.197 – 0.394 No Shielding
30400 18 AWG 4 4 Pole Female Straight DC 0.157 – 0.315 No Shielding
30500 18 AWG 5 5 Pole Female Straight DC 0.157 – 0.315 No Shielding
30900 18 AWG 8 8 Pole Female Straight DC 0.197 – 0.394 No Shielding
39700 18 AWG 4 4 Pole Male 90º DC 0.157 – 0.315 No Shielding
39600 18 AWG 5 5 Pole Male 90º DC 0.157 – 0.315 No Shielding
39400 18 AWG 4 4 Pole Female 90º DC 0.157 – 0.315 No Shielding
39500 18 AWG 5 5 Pole Female 90º DC 0.157 – 0.315 No Shielding
