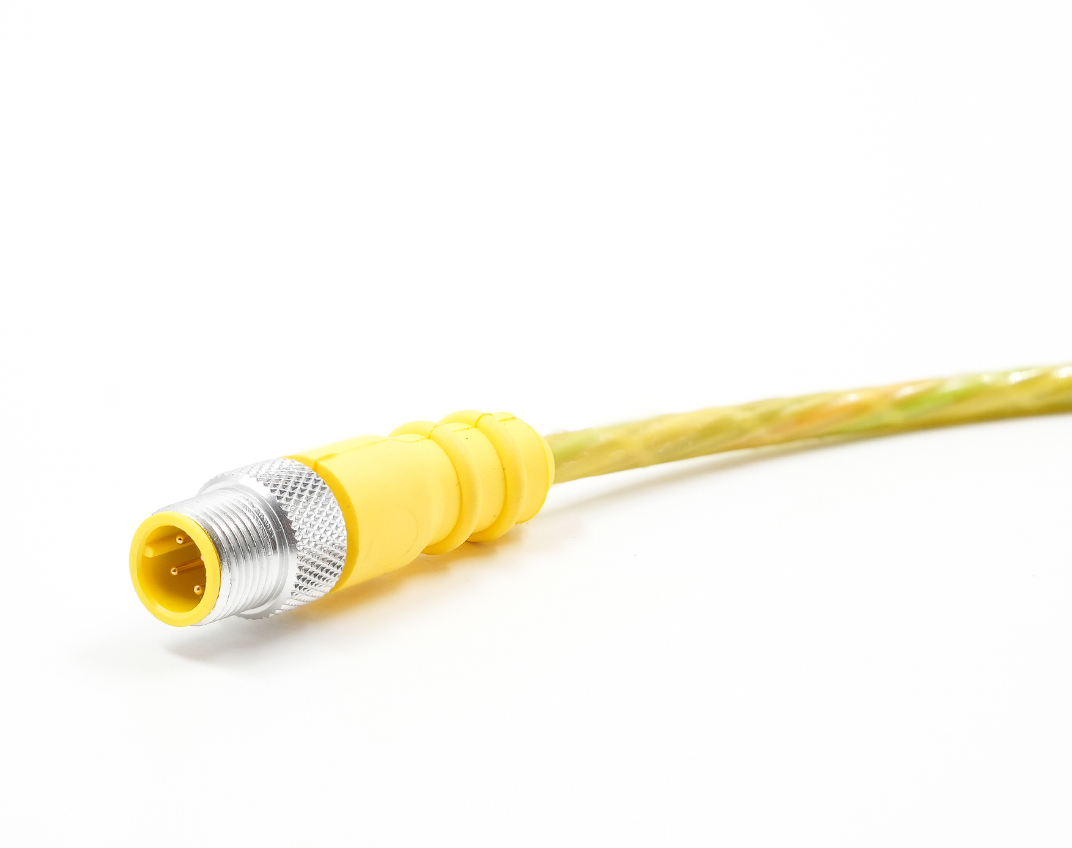

Quick-Connex® 18 AWG M12 DC Micro High Temperature Chem-Gard Cordsets Male_Web

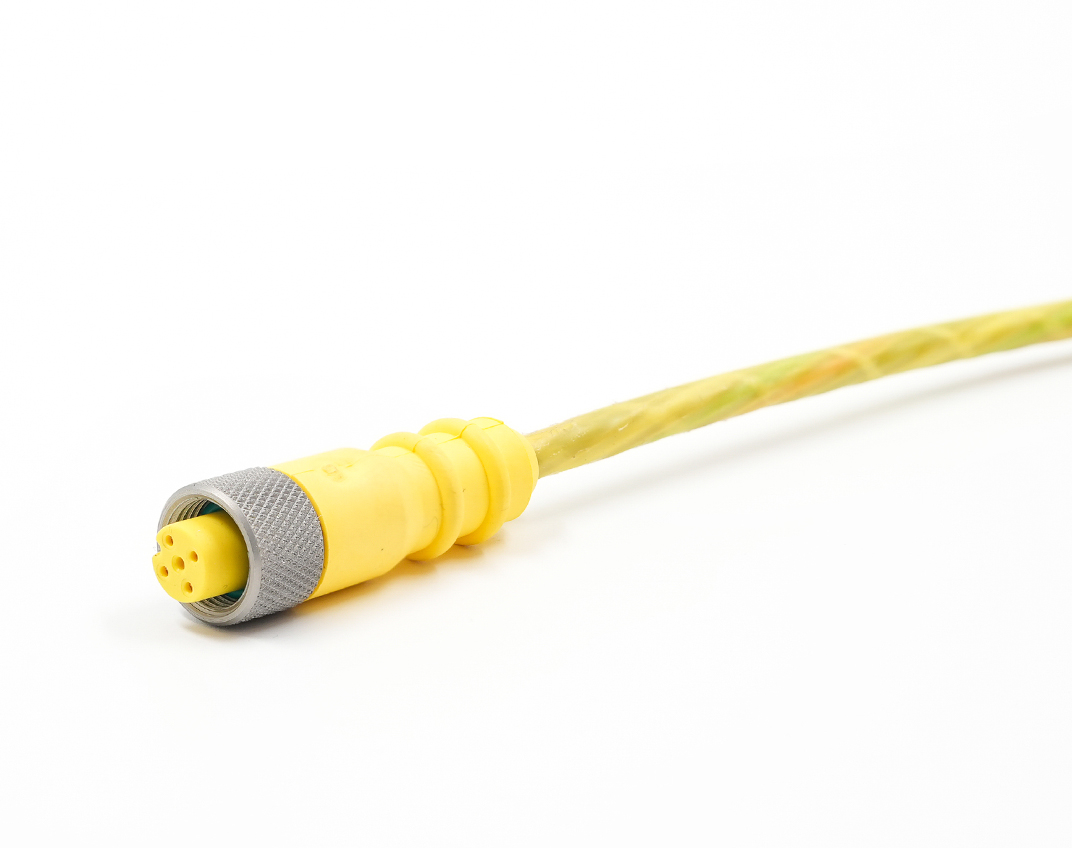

Quick-Connex® 18 AWG M12 DC Micro High Temperature Chem-Gard Cordsets Female_Web

Quick-Connex® M12 DC Micro High Temperature Chem-Gard® Cordsets

Quick-Connex® M12 DC Micro High Temperature Chem-Gard® Cordsets make the replacement of electrical and electronic control devices quick and simple. Cordsets are built with our Chem-Gard® 200°C Cable providing superior resistance to chemicals and high heat and abrasion protection in harsh industrial conditions.

The Chem-Gard® 200°C cable is fully bonded to the connector using a unique process that provides an IP68 seal. Available in straight and 90° Quick-Connex® cordsets.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CORDSETS MADE WITH CHEM-GARD® 200°C CABLE

Unique fluoropolymer cable design provides resistance to chemicals and high heat. Superior first line defense against abrasion, tearing, cutting, impact and ozone.

CONNECTOR BODY IS SPECIALLY COMPOUNDED, THERMOPLASTIC ELASTOMER

Provides long life, resists heat and oil deterioration.

MOLDED AND KEYED ASSEMBLY

Provides rapid and secure connection and disconnect. Ensures a water, oil, and dust tight seal.

SOLID BRASS CONTACT PINS ARE NICKEL COATED AND GOLD PLATED, MACHINED CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity DC applications.

HARD COATED METAL ALLOY KNURLED COUPLING NUT 

Resists corrosion, provides quick and secure assembly.

RUBBER O-RING 

Seals out oil, chemicals and other contaminants. Provides a positive seal on mated components. 

COUPLING NUT M12 X 1.0 THREAD WITH ONE KEYWAY ON CONNECTOR FACE

Industry standard for M12 DC Micro connectors.

M12 DC MICRO RECEPTACLES WITH 18 AWG STRANDED, NICKEL PLATED COPPER PIGTAILS WITH 200°C FLUOROPOLYMER INSULATION

Provides excellent heat and chemical resistance.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Chem-Gard 200 High Temperature M12 DC Micro Cordsets

Ratings / Characteristics

  • RoHS Compliant

  • 300V

  • Max Conductor Temperature of Chem-Gard 200 cable: 200°C

  • IP68 Rated

  • Operating Temperature: -20° to 90°C

  • Bend Radius of Chem-Gard® 200 Cable: (Static) 12x Cable OD, (Dynamic) 15x Cable OD

  • Superior Chemical Resistance

  • UV Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

High Temperature

Part Numbers

Part No. Conductor/Pole Count Conductor Size (AWG) Description Feet Meters Shielding Type
CF14C75M001 18 AWG 4 4 Pole Straight F 3.28 1 No Shielding
CF14C75M002 18 AWG 4 4 Pole Straight F 6.56 2 No Shielding
CF14C75M004 18 AWG 4 4 Pole Straight F 13.12 4 No Shielding
CF14C75M006 18 AWG 4 4 Pole Straight F 19.68 6 No Shielding
CF14D75M001 18 AWG 4 4 Pole 90º F 3.28 1 No Shielding
CF14D75M002 18 AWG 4 4 Pole 90º F 6.56 2 No Shielding
CF14D75M004 18 AWG 4 4 Pole 90º F 13.12 4 No Shielding
CF14D75M006 18 AWG 4 4 Pole 90º F 19.68 6 No Shielding
CF24G75M001 18 AWG 4 4 Pole M 90º Straight 3.28 1 No Shielding
CF24G75M002 18 AWG 4 4 Pole M 90º Straight 6.56 2 No Shielding
CF24G75M004 18 AWG 4 4 Pole M 90º Straight 13.12 4 No Shielding
CF24E75A020 18 AWG 4 4 Pole M / F 1.64 0.5 No Shielding
CF24E75M001 18 AWG 4 4 Pole M / F 3.28 1 No Shielding
CF24E75M002 18 AWG 4 4 Pole M / F 6.56 2 No Shielding
CF24E75M003 18 AWG 4 4 Pole M / F 9.84 3 No Shielding
CF24E75M004 18 AWG 4 4 Pole M / F 13.12 4 No Shielding
CF24E75M005 18 AWG 4 4 Pole M / F 16.4 5 No Shielding
CF24E75M006 18 AWG 4 4 Pole M / F 19.68 6 No Shielding
CF24F75A020 18 AWG 4 4 Pole M Straight / 90º F 1.64 0.5 No Shielding
CF24F75M001 18 AWG 4 4 Pole M Straight / 90º F 3.28 1 No Shielding
CF24F75M002 18 AWG 4 4 Pole M Straight / 90º F 6.56 2 No Shielding
CF24F75M003 18 AWG 4 4 Pole M Straight / 90º F 9.84 3 No Shielding
CF24F75M004 18 AWG 4 4 Pole M Straight / 90º F 13.12 4 No Shielding
CF24F75M006 18 AWG 4 4 Pole M Straight / 90º F 19.68 6 No Shielding
