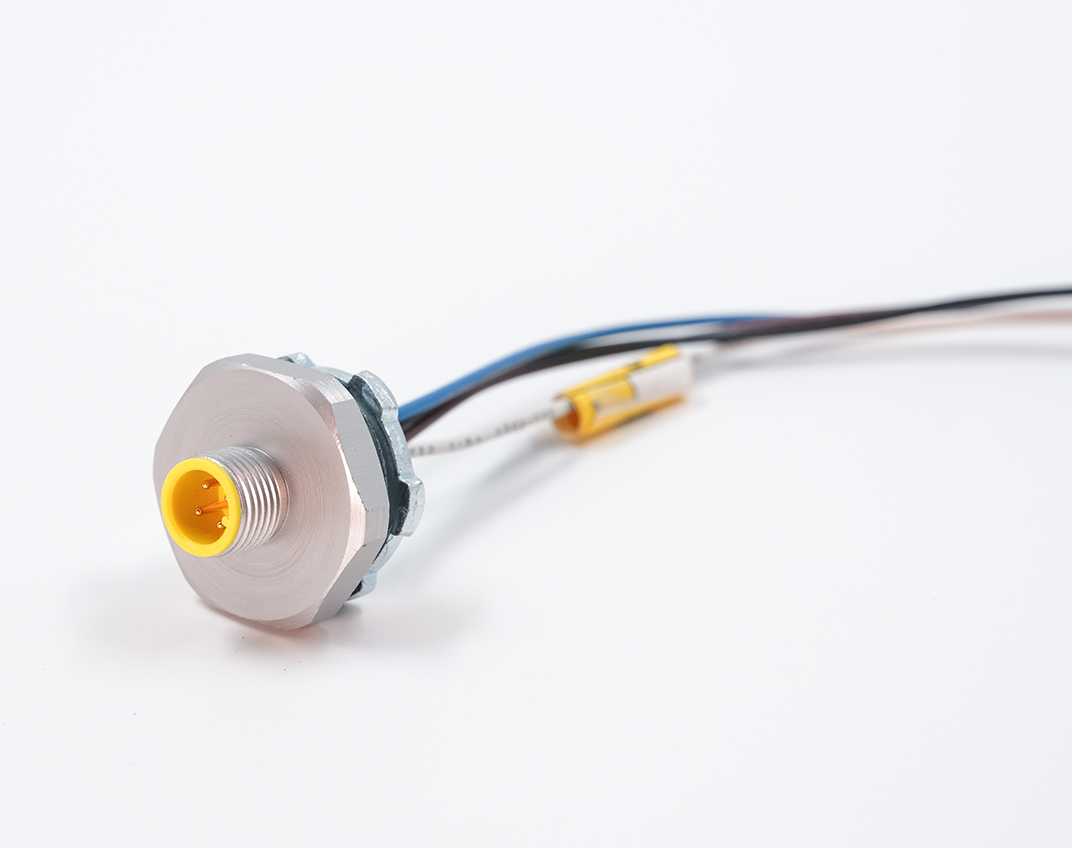

Quick-Connex® M12 DC Micro Receptacles 2_Web

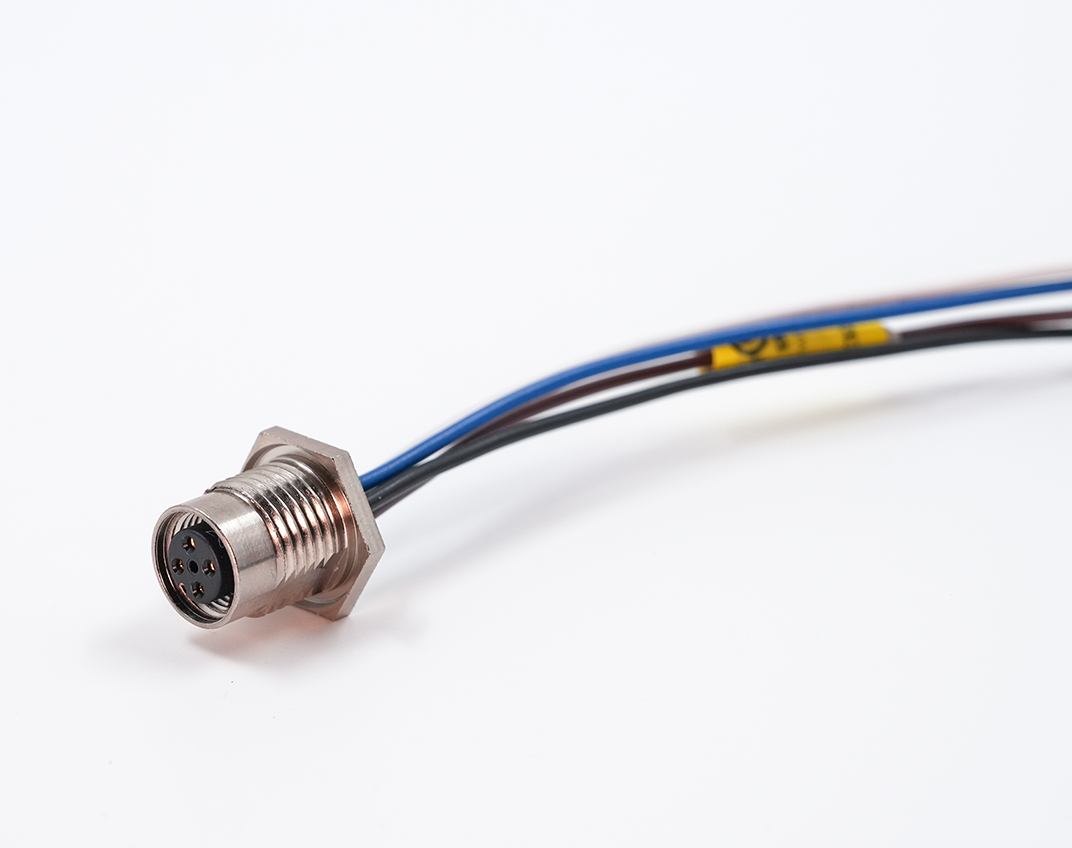

Quick-Connex® M12 DC Micro Receptacles 3_Web
Quick-Connex® M12 DC Micro Receptacles 4_Web

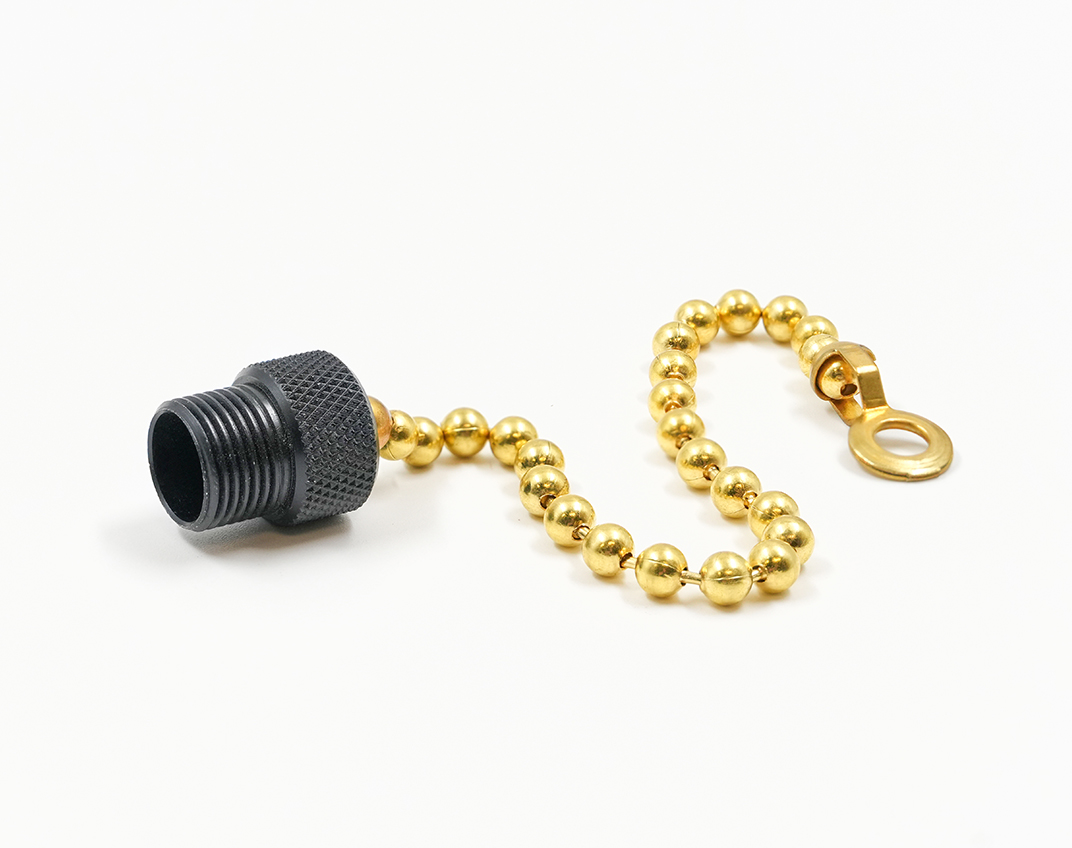

Quick-Connex® M12 DC Micro Receptables Closure Cap_Web

Quick-Connex® M12 DC Micro Receptacles

Quick-Connex® M12 DC Micro Receptacles are available in Female and Male, panel mount and back mount or switch body mount styles. O-Ring and locknut included. DC Micro closure caps with chain are sold separately.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

SPECIALLY COMPOUNDED THERMOPLASTIC ELASTOMER RECEPTACLE INSERT

Provides long flex-life, resists deterioration due to heat and oil exposure.

HARD COATED METAL ALLOY RECEPTACLE SHELL

Resists corrosion and provides quick and secure assembly.

MOLDED AND KEYED ASSEMBLY 

Provides rapid and secure connection and disconnect. Ensures water, oil, and dust tight seal.

NICKEL-COATED AND GOLD-PLATED SOLID BRASS CONTACT PINS MACHINED CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity DC applications.

RUBBER SEALING O-RING AND STEEL LOCKNUT

Seals out oil, chemicals, and other contaminants. Locknut included with each unit.

18 AWG STRANDED, TINNED COPPER PIGTAILS INSULATED WITH 105°C CROSS-LINKED POLYETHYLENE

Provides excellent oil and heat resistance.

MATING DIMENSIONS: M12 X 1.0 THREAD WITH ONE KEYWAY ON RECEPTACLE FACE

Industry standard for M12 DC Micro Receptacles.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own M12 Micro Cordsets

Ratings / Characteristics

  • UL Recognized

  • cUL

  • RoHS Compliant

  • 300V

  • IP69K Rated

  • Operating Temperature: -20­°C to 80°C

  • Oil and UV Resistant

Part Numbers

Part No. Part No. Conductor Size (AWG) Conductor/Pole Count Description Pigtail Length Shielding Type
63308 RF13Q24F004 18 AWG 3 3P Female Back Mount 48" No Shielding
63408 RF14Q25F004 18 AWG 4 4P Female Back Mount 48" No Shielding
63508 RF15Q26F004 18 AWG 5 5P Female Back Mount 48" No Shielding
63202 - 18 AWG 2 2P Female Panel Mount 48" No Shielding
63302 RF13T24F004 18 AWG 3 3P Female Panel Mount 48" No Shielding

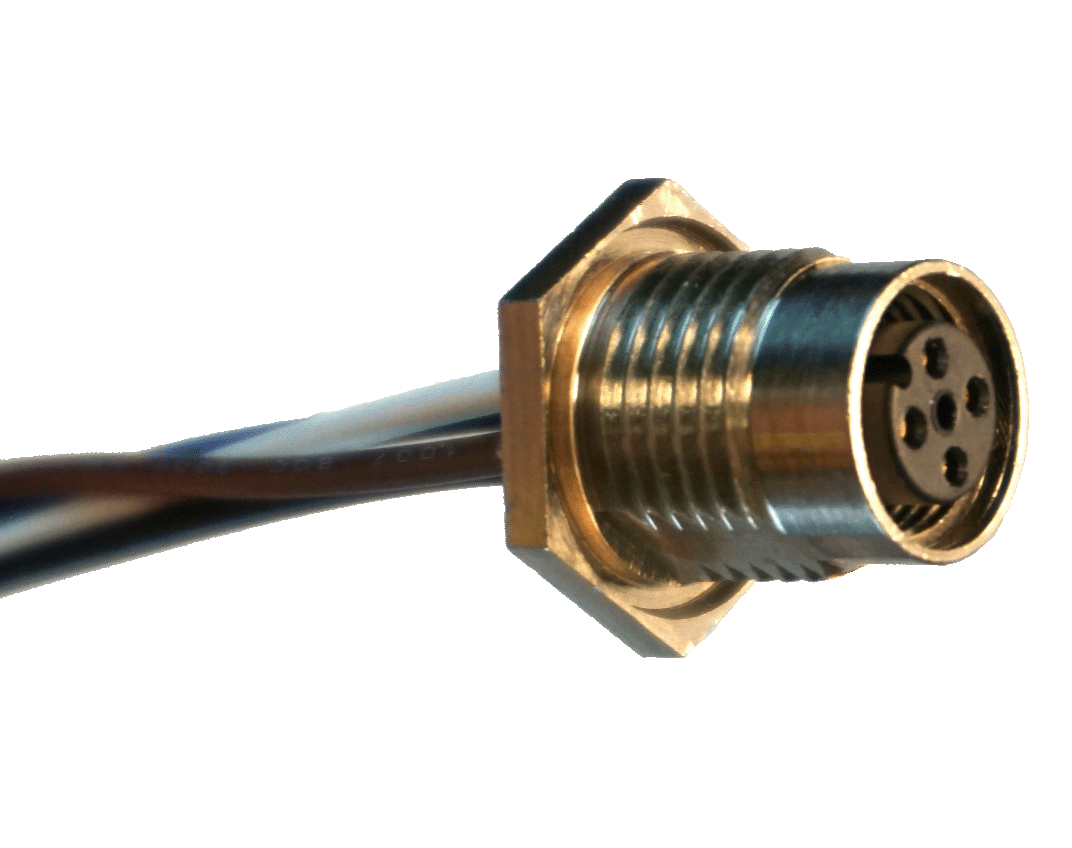

63402 RF14T25F004 18 AWG 4 4P Female Panel Mount 48" No Shielding
63502 RF15T26F004 18 AWG 5 5P Female Panel Mount 48" No Shielding
- RF18T60M001 18 AWG 8 8P F Panel Mt. (Unshielded) 1 m No Shielding
- RF18T61M001 18 AWG 8 8P F Panel Mt. (Shielded) 1 m Overall Shield
64202 - 18 AWG 2 2P Male Panel Mount 12" No Shielding
64302 RF13R24F001 18 AWG 3 3P Male Panel Mount 12" No Shielding
64402 RF14R25F001 18 AWG 4 4P Male Panel Mount 12" No Shielding
64502 RF15R26F001 18 AWG 5 5P Male Panel Mount 12" No Shielding
- RF13R24F004 18 AWG 3 3P Male Panel Mount 48" No Shielding
- RF14R25F004 18 AWG 4 4P Male Panel Mount 48" No Shielding
- RF15R26F004 18 AWG 5 5P Male Panel Mount 48" No Shielding
- RF18R60M001 18 AWG 8 8P Male Panel Mt. (Unshielded) 1 m No Shielding
- RF18R61M001 18 AWG 8 8P Male Panel Mt. (Shielded) 1 m Overall Shield
64207 - 18 AWG 2 2P Male Switch Body - No Shielding

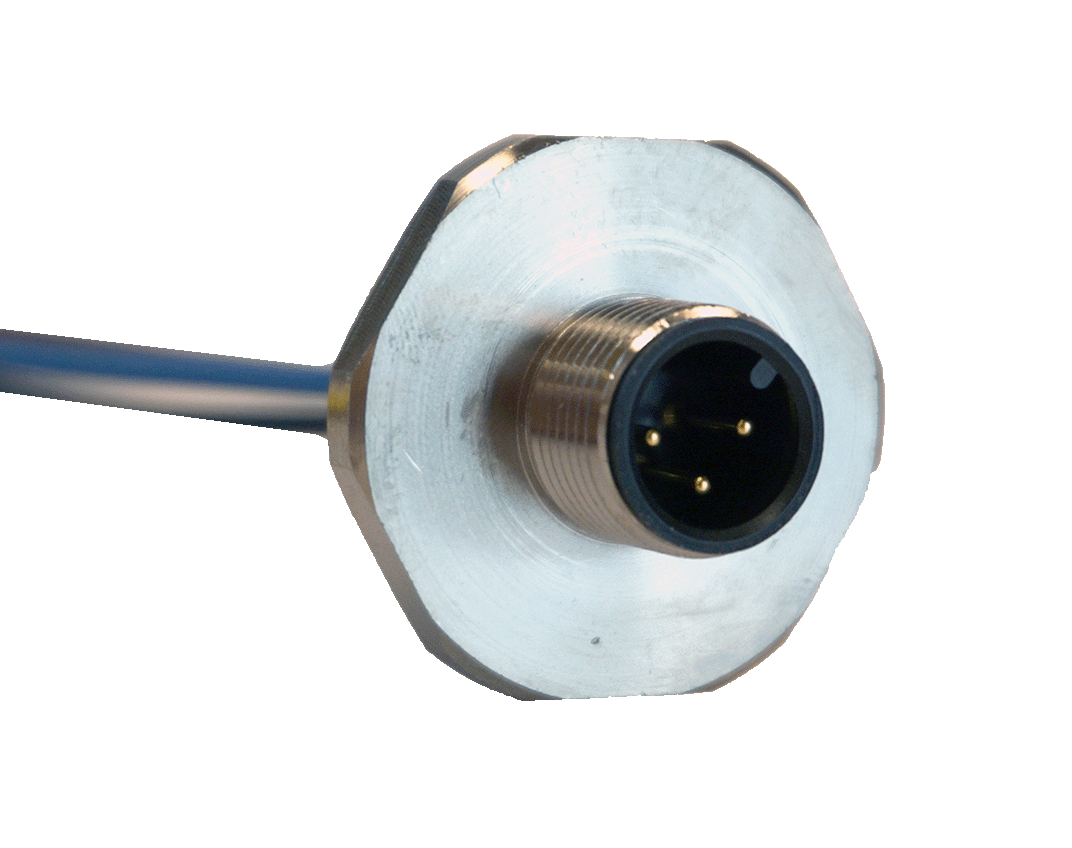

64307 RF13S24F001 18 AWG 3 3P Male Switch Body 12 in No Shielding
64407 RF14S25F001 18 AWG 4 4P Male Switch Body 12 in No Shielding
64507 RF15S26F001 18 AWG 5 5P Male Switch Body 12 in No Shielding
- RF13S24F004 18 AWG 3 3P Male Switch Body 48 in No Shielding
- RF14S25F004 18 AWG 4 4P Male Switch Body 48 in No Shielding
- RF15S26F004 18 AWG 5 5P Male Switch Body 48 in No Shielding
