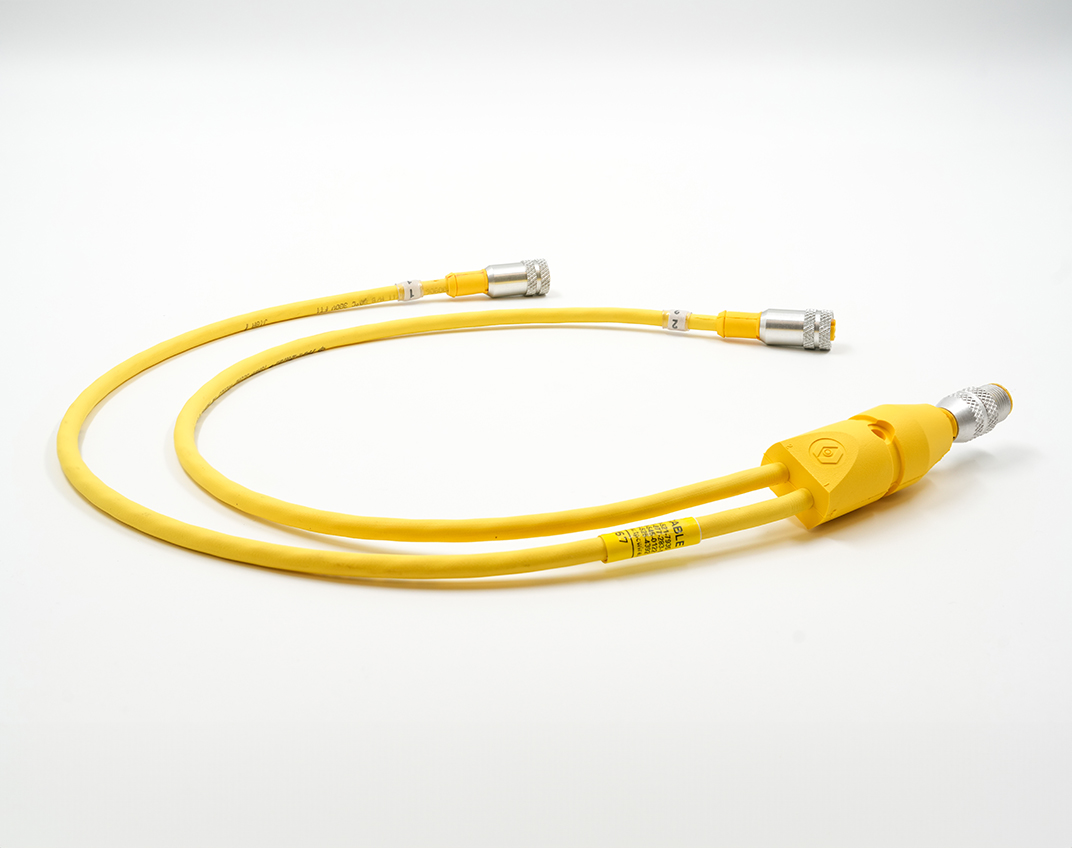

Quick-Connex® M12 DC Micro Y-Splitter Cordset 5_Web

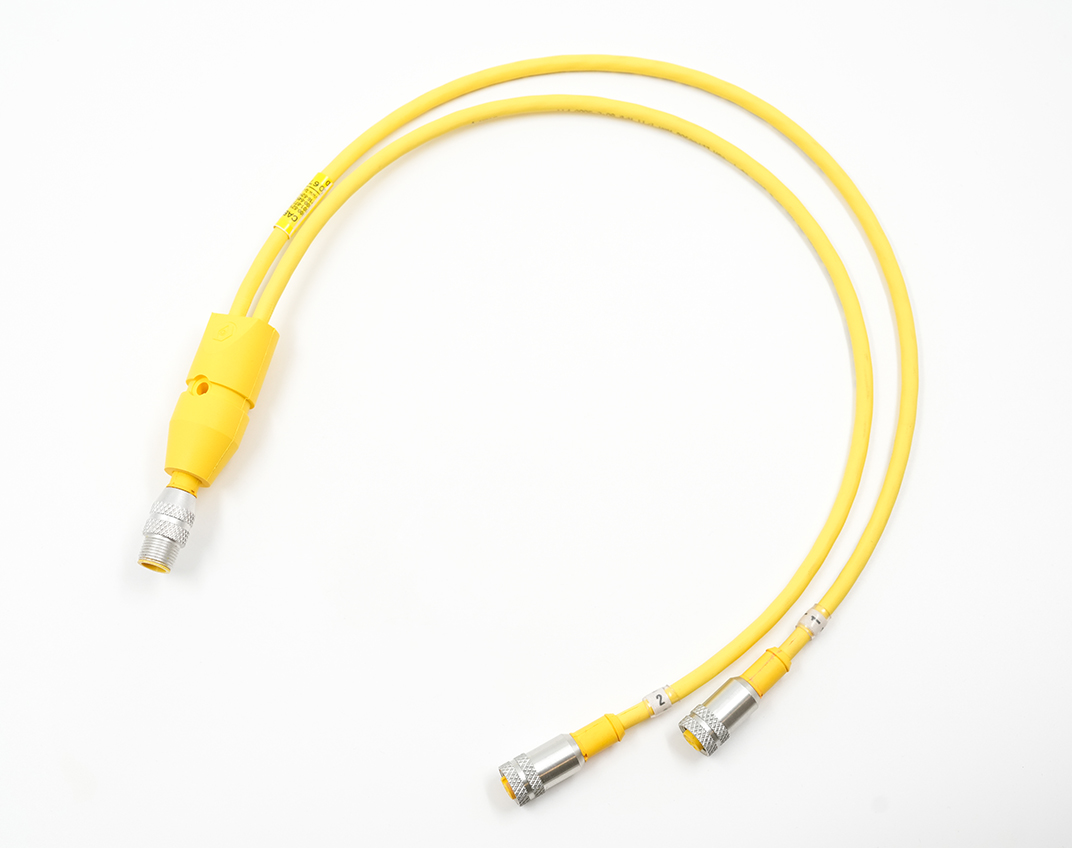

Quick-Connex® M12 DC Micro Y-Splitter Cordset 4_Web

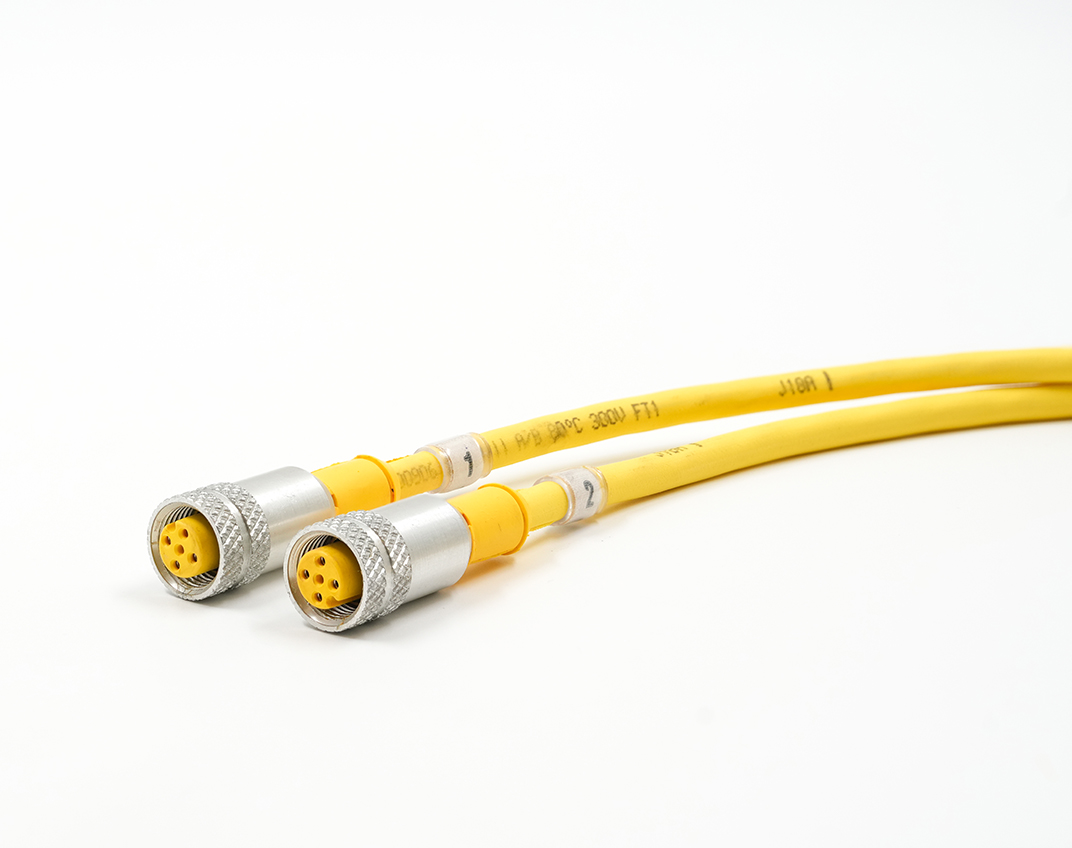

Quick-Connex® M12 DC Micro Y-Splitter Cordset 1_Web

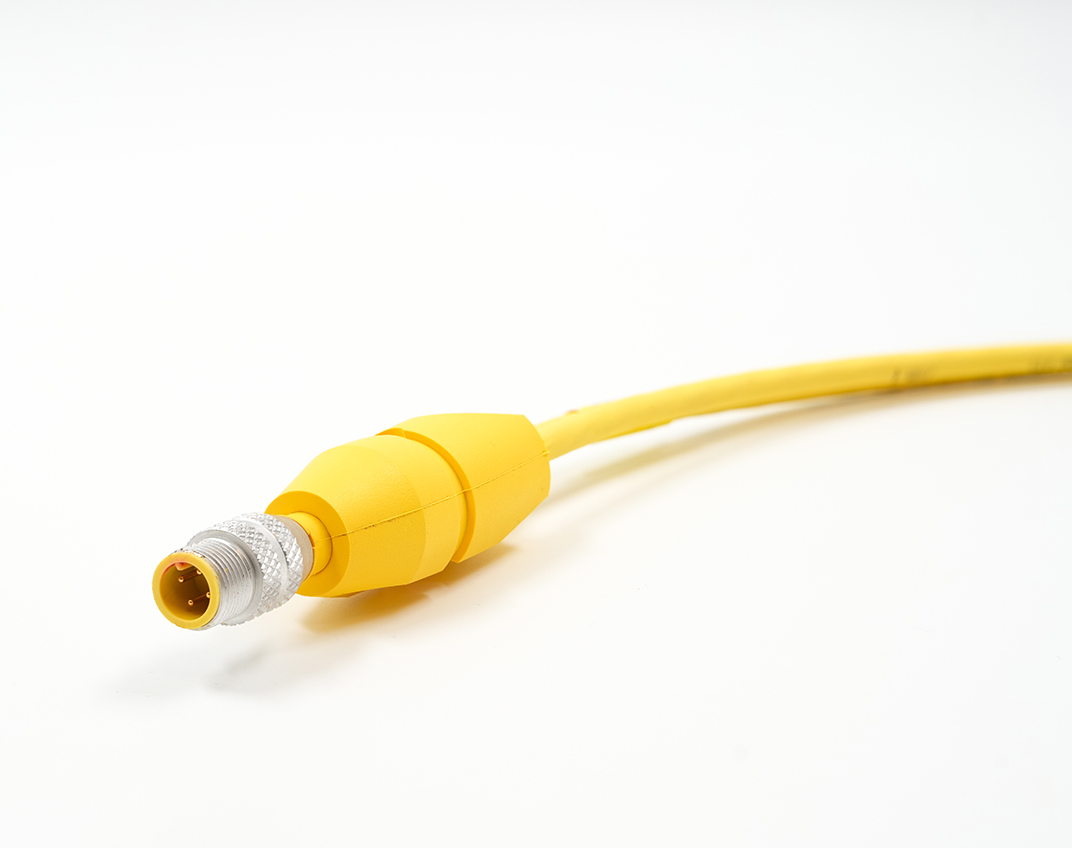

Quick-Connex® M12 DC Micro Y-Splitter Cordset 2_Web

Quick-Connex® Trex-Onics® Micro Y-Splitter Cordset

Quick-Connex® Trex-Onics® “Y” Splitter design is constructed using  ATPC’s Micro Quick-Connex® technology coupled with a one-piece focal point. The focal point unit is constructed of an oil, abrasion, impact, and chemical-resistant compound designed to protect the unit from hostile industrial environments. Each conductor lead is molded into the focal point. Each splitter is tested to ensure out-of-box performance. AC and DC variations are available.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Cordsets are Made with Trex-Onics® Control Cable, Rated 80°C

Designed for high cycle, constant motion applications for all weather flexibility. Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals.

Connector Body is Specially Compounded, Thermoplastic Elastomer

Provides long life, resists heat and oil deterioration.

Molded and Keyed Assembly

Provides rapid and secure connection and disconnect. Ensures a water, oil, and dust tight seal.

Solid Brass Contact Pins are Nickel Coated and Gold Plated, Machine Crimped to Conductors

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity in DC applications.

Hard Coated Metal Alloy Knurled Coupling Nut

Resists corrosion, provides quick and secure assembly.

Rubber O-Ring

Seals out oil, chemicals and other contaminants. Provides a positive seal on mated components.

Coupling Nut is M12 x 1.0 Thread with One Keyway for DC Micro, ½-20 Thread with Two Keyways for AC Micro

Industry standard for Micro connectors.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • 300 V

  • IP68 Rated

  • Max Conductor Temperature80°C

  • Operating Temperature: -20° to 80°C

  • UV Resistant

  • Oil Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor/Pole Count Conductor Size (AWG) Description In-Put Cord Length feet Shielding Type
64061 4 18 AWG AC Version, Single-End Configuration: 4 Pole Male 0.5 No Shielding
64062 4 18 AWG AC Version, Single-End Configuration: 4 Pole Male 1 No Shielding
64063 4 18 AWG AC Version, Single-End Configuration:4 Pole Male 1.5 No Shielding
64064 4 18 AWG AC Version, Single-End Configuration: 4 Pole Male 2 No Shielding
64066 4 18 AWG DC Version, Single-End Configuration: 4 Pole Male 1 No Shielding
64067 4 18 AWG DC Version, Single-End Configuration: 4 Pole Male 1.67 No Shielding
64068 4 18 AWG DC Version, Single-End Configuration: 4 Pole Male 2 No Shielding
64966 4 18 AWG DC Version, Single-End Configuration: 4 Pole Male 1 No Shielding
64061 3 18 AWG AC Version, Double End Side 1: 3 Pole Female 0.5 No Shielding
64062 3 18 AWG AC Version, Double End Side 1: 3 Pole Female 1 No Shielding
64063 3 18 AWG AC Version, Double End Side 1:3 Pole Female 1.5 No Shielding
64064 3 18 AWG AC Version, Double End Side 1:3 Pole Female 2 No Shielding
64066 3 18 AWG DC Version, Double End Side 1: 3 Pole Female 1 No Shielding
64067 3 18 AWG DC Version, Double End Side 1: 3 Pole Female 1.67 No Shielding
64068 3 18 AWG DC Version, Double End Side 1: 3 Pole Female 2 No Shielding
64966 3 18 AWG DC Version, Double End Side 1: 90¡/3 Pole Female 1 No Shielding
64061 3 18 AWG AC Version, Double End Side 2: 3 Pole Female 0.5 No Shielding
64062 3 18 AWG AC Version, Double End Side 2: 3 Pole Female 1 No Shielding
64063 3 18 AWG AC Version, Double End Side 2: 3 Pole Female 1.5 No Shielding
64064 3 18 AWG AC Version, Double End Side 2: 3 Pole Female 2 No Shielding
64066 3 18 AWG DC Version, Double End Side 2: 3 Pole Female 1 No Shielding
64067 3 18 AWG DC Version, Double End Side 2: 3 Pole Female 1.67 No Shielding
64068 3 18 AWG DC Version, Double End Side 2: 3 Pole Female 2 No Shielding
64966 3 18 AWG DC Version, Double End Side 2: 90¡/3 Pole Female 1 No Shielding
