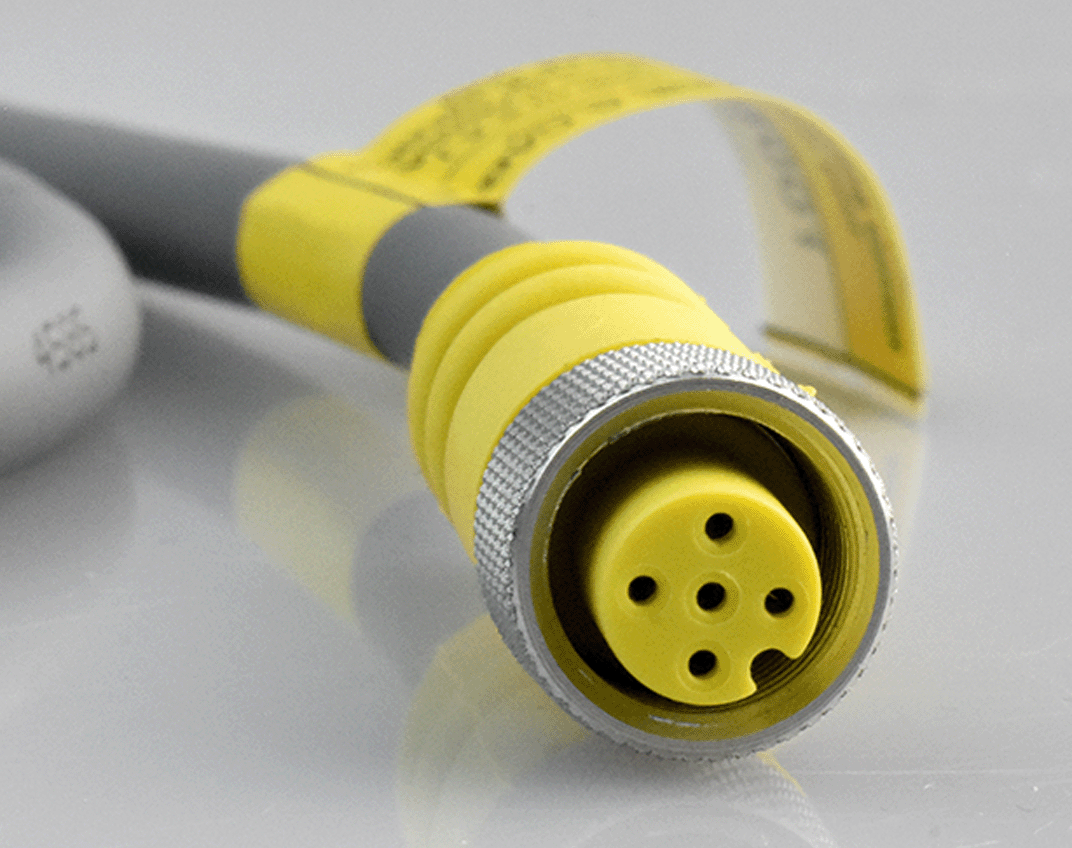

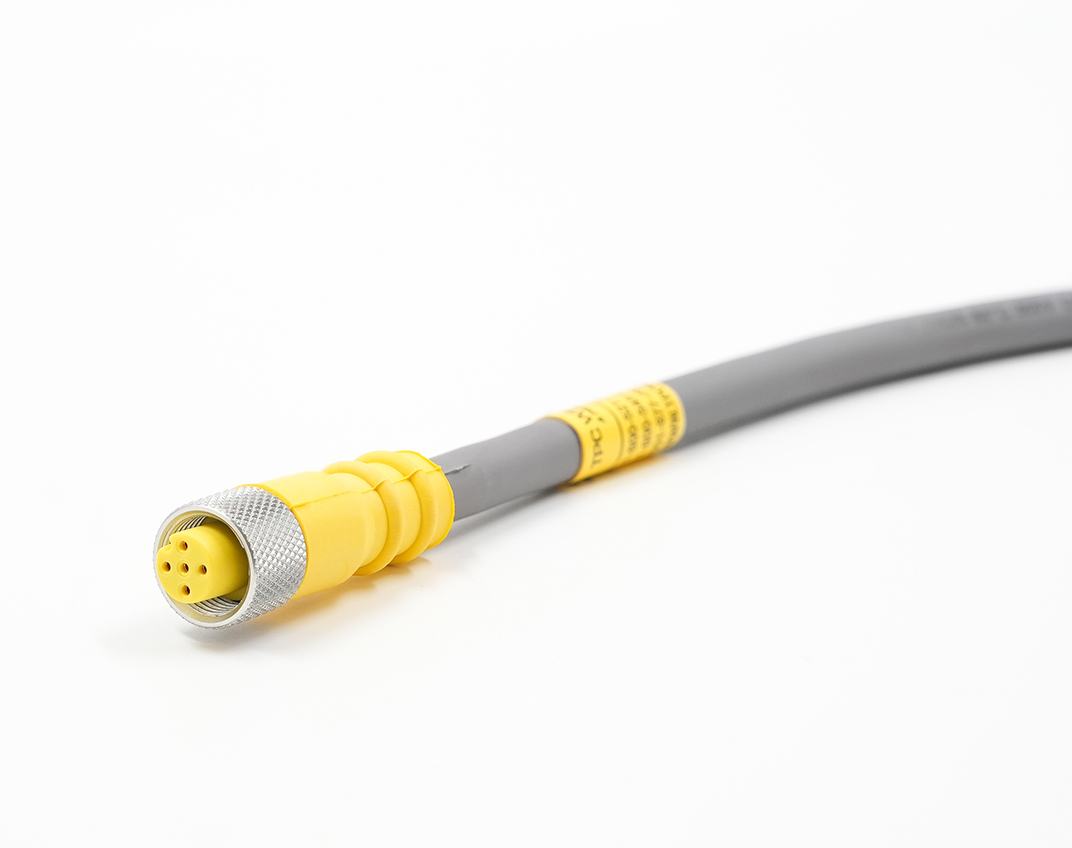

Quick-Connex® M12 Micro DeviceNetTM Flex-Net Cordsets Female_Web

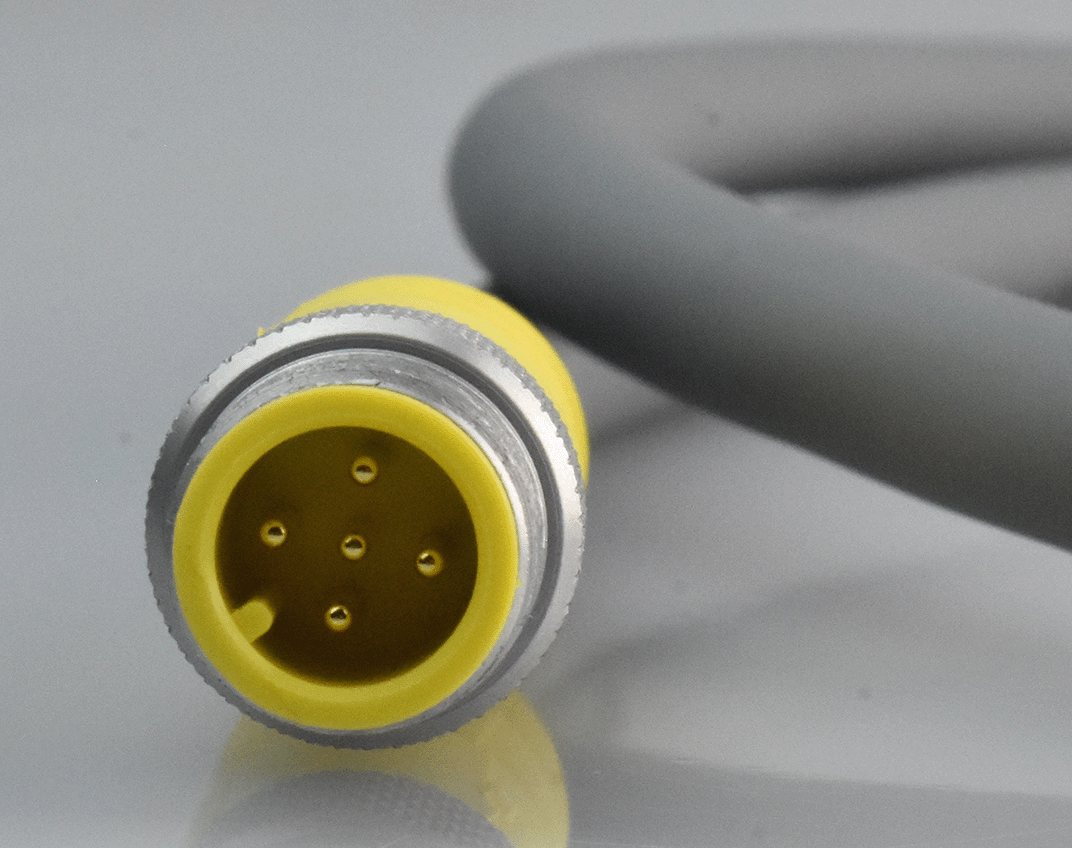

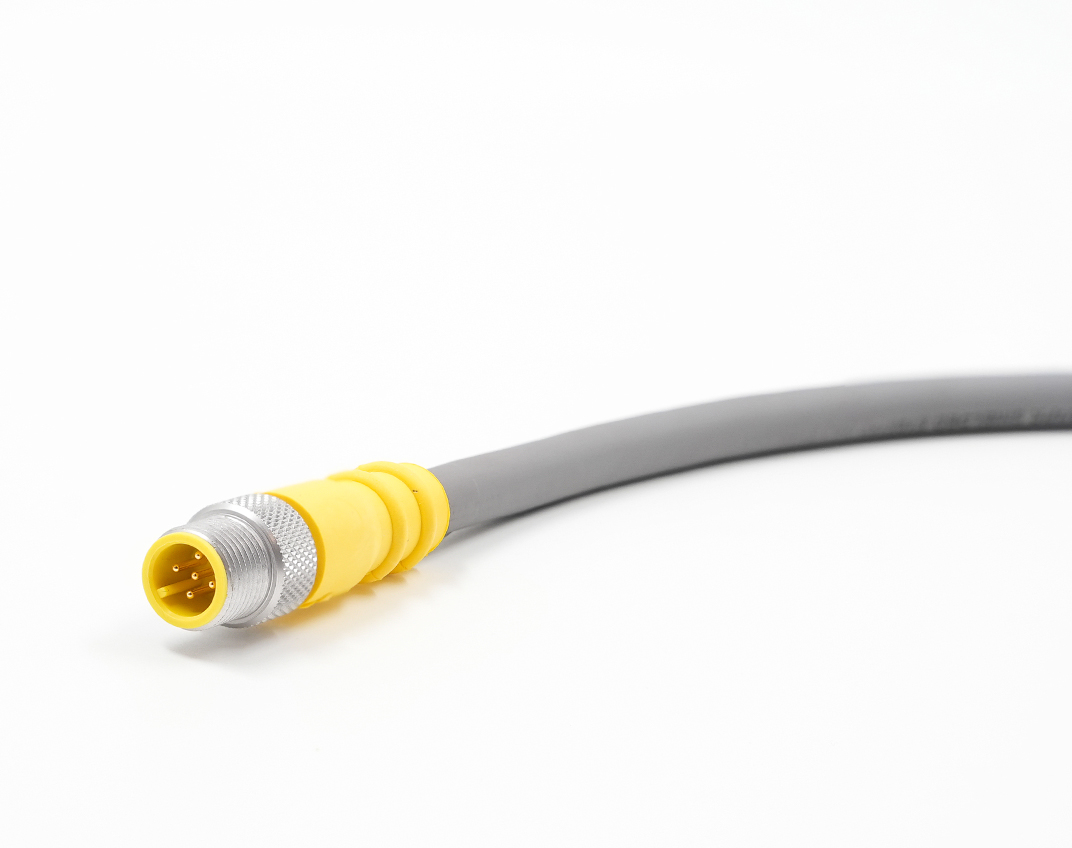

Quick-Connex® M12 Micro DeviceNetTM Flex-Net Cordsets Male_Web

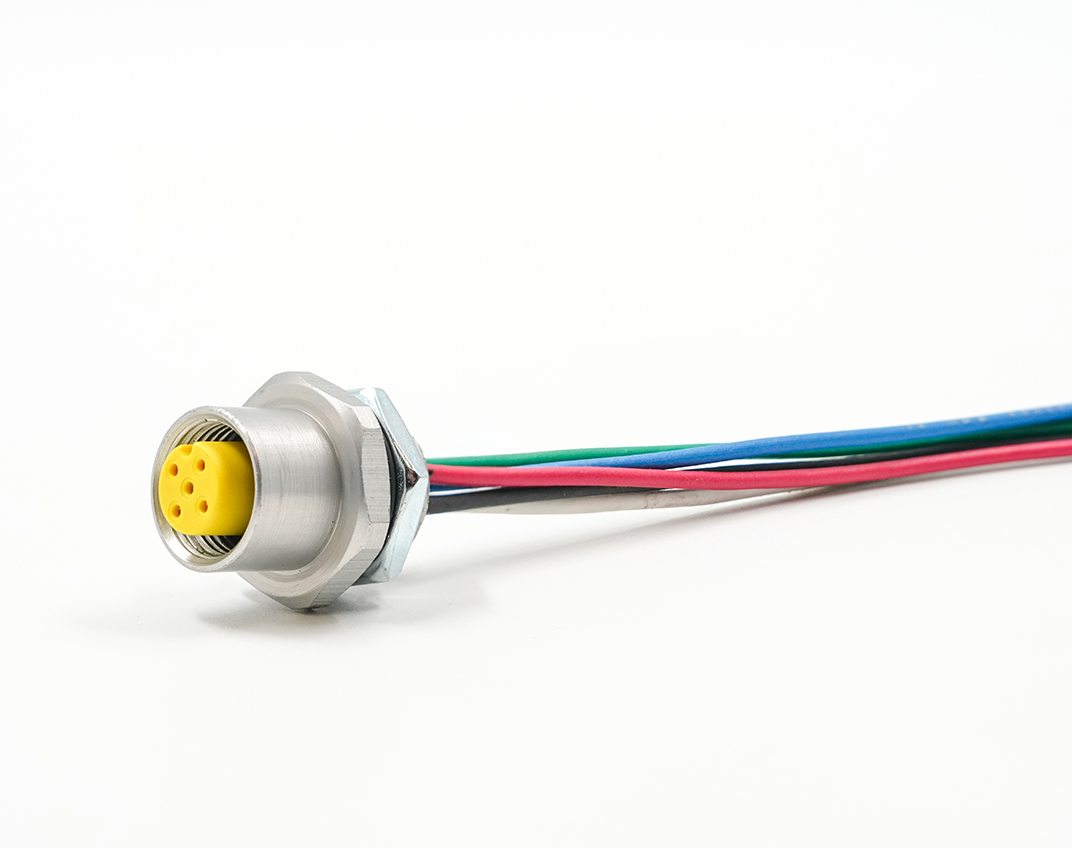

Quick-Connex® M12 Micro DeviceNetTM Flex-Net Cordsets Female Receptacle_Webbb

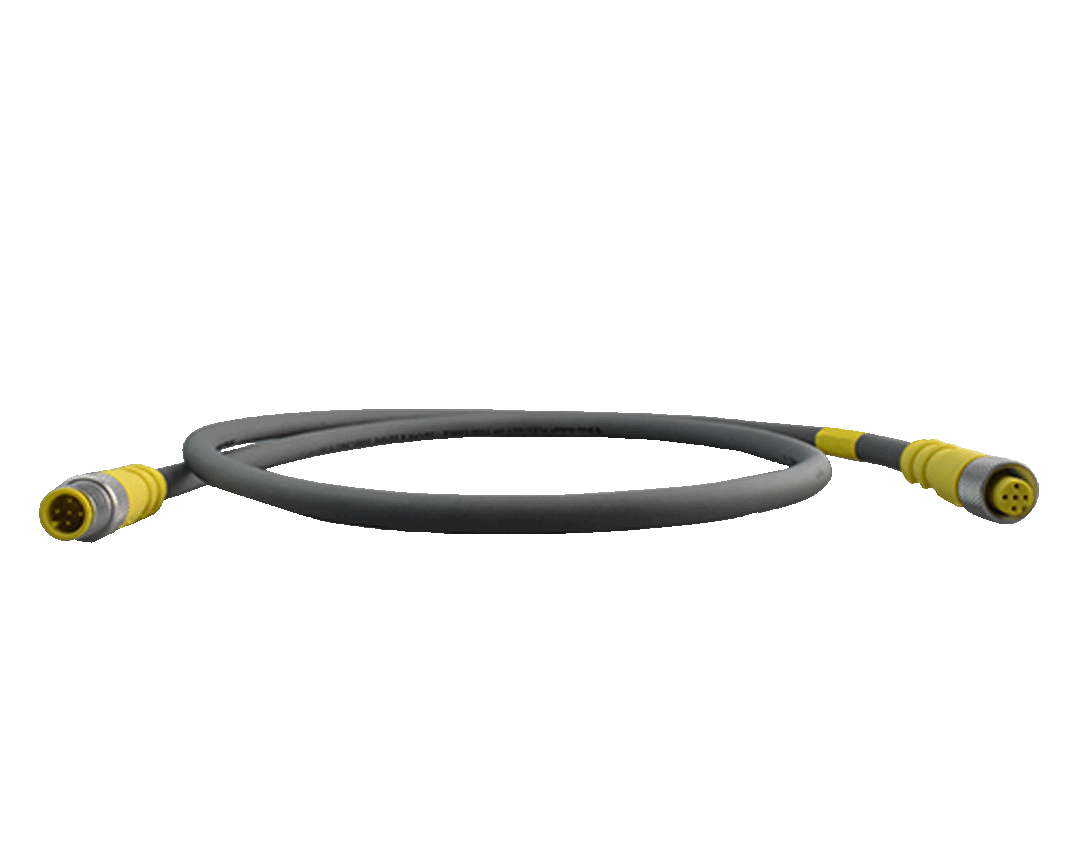

Quick-Connex™ M12 Micro DeviceNet™ Flex-Net Cordsets

Quick-Connex™ M12 Micro DeviceNet™ Flex-Net Cordsets take all the advantages of our Flex-Net Cable with its heavy-duty jacket and ultra-shield construction and add a molded micro head which is permanently bonded to the cable providing a superior water and chemical resistant seal. Our Micro connectors construction ensures electronic and electrical integrity over repeated insertions and extractions.

Intended for use in the DeviceNet Bus System in applications requiring Micro style Male and Female connectors, both single and double-ended. Applications include proximity, photo electric and limit switches.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Cordset Features & Benefits

Cordsets made with Trex-Onics®Device Net™ Flex-Net Thin High-Performance Cable Designed to meet the requirements of ODVA™

Fine stranding for reduced conductor fatigue, tinned copper braid shield for protection against EM and RF interference. Specially compounded TPU jacket offers first line defense against abrasion, oil and chemicals.

Fully Molded Connector Body

It provides a long flex life and resists heat and oil deterioration.

Molded and Keyed Assembly

Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.

Solid Brass Contact Pins are Nickel Coated and Gold Plated, Machine Crimped to Conductors

Provides long life, resists corrosion, easy positive engagement.

Anodized Aluminum Coupling Nut

Resists corrosion, provides quick and secure assembly.

Coupling Nut M12 x 1.0 Thread with One Keyway on Connector Face

Industry standard for M12 Micro connectors

BLACK ANODIZED ALUMINUM COUPLING NUTS

Resources

Specsheets

Product Overview

CustomCable

Build Your Own DeviceNet Flex-Net Cable Assemblies

Ratings / Characteristics

  • IP68 Rated

  • ODVA conformity™

  • RoHS Compliant

  • Max Conductor Temperature 70°C

  • Operating Temperature: -20° to 70°C

  • UV Resistant

  • All Weather Flexibility

  • Bend Radius of Trex-Onics® DeviceNet™ Flex-Net High Performance Thin Cable: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Meters feet Description Shielding Type
CT15A43M001 22 AWG, 24 AWG 5 1 3.3 Male Overall Shielded, Individually Shielded Pairs
CT15A43M002 22 AWG, 24 AWG 5 2 6.6 Male Overall Shielded, Individually Shielded Pairs
CT15A43M003 22 AWG, 24 AWG 5 3 9.8 Male Overall Shielded, Individually Shielded Pairs
CT15A43M004 22 AWG, 24 AWG 5 4 13.1 Male Overall Shielded, Individually Shielded Pairs
CT15A43M006 22 AWG, 24 AWG 5 6 19.7 Male Overall Shielded, Individually Shielded Pairs
CT15A43M012 22 AWG, 24 AWG 5 12 39.3 Male Overall Shielded, Individually Shielded Pairs
CT15A43M018 22 AWG, 24 AWG 5 18 59 Male Overall Shielded, Individually Shielded Pairs
CT15A43M024 22 AWG, 24 AWG 5 24 78.7 Male Overall Shielded, Individually Shielded Pairs
CT15A43M030 22 AWG, 24 AWG 5 30 98.4 Male Overall Shielded, Individually Shielded Pairs
CT15C43M001 22 AWG, 24 AWG 5 1 3.3 Female Overall Shielded, Individually Shielded Pairs
CT15C43M002 22 AWG, 24 AWG 5 2 6.6 Female Overall Shielded, Individually Shielded Pairs
CT15C43M003 22 AWG, 24 AWG 5 3 9.8 Female Overall Shielded, Individually Shielded Pairs
CT15C43M004 22 AWG, 24 AWG 5 4 13.1 Female Overall Shielded, Individually Shielded Pairs
CT15C43M006 22 AWG, 24 AWG 5 6 19.7 Female Overall Shielded, Individually Shielded Pairs
CT15C43M012 22 AWG, 24 AWG 5 12 39.3 Female Overall Shielded, Individually Shielded Pairs
CT15C43M018 22 AWG, 24 AWG 5 18 59 Female Overall Shielded, Individually Shielded Pairs
CT15C43M024 22 AWG, 24 AWG 5 24 78.7 Female Overall Shielded, Individually Shielded Pairs
CT15C43M030 22 AWG, 24 AWG 5 30 98.4 Female Overall Shielded, Individually Shielded Pairs
CT25E43M001 22 AWG, 24 AWG 5 1 3.3 Male/Female Overall Shielded, Individually Shielded Pairs
CT25E43M002 22 AWG, 24 AWG 5 2 6.6 Male/Female Overall Shielded, Individually Shielded Pairs
CT25E43M003 22 AWG, 24 AWG 5 3 9.8 Male/Female Overall Shielded, Individually Shielded Pairs
CT25E43M004 22 AWG, 24 AWG 5 4 13.1 Male/Female Overall Shielded, Individually Shielded Pairs
CT25E43M006 22 AWG, 24 AWG 5 6 19.7 Male/Female Overall Shielded, Individually Shielded Pairs
CT25E43M012 22 AWG, 24 AWG 5 12 39.3 Male/Female Overall Shielded, Individually Shielded Pairs
CT25E43M018 22 AWG, 24 AWG 5 18 59 Male/Female Overall Shielded, Individually Shielded Pairs
CT25E43M024 22 AWG, 24 AWG 5 24 78.7 Male/Female Overall Shielded, Individually Shielded Pairs
CT25E43M030 22 AWG, 24 AWG 5 30 98.4 Male/Female Overall Shielded, Individually Shielded Pairs
CT25G43M001 22 AWG, 24 AWG 5 1 3.3 Male 90°/Female Overall Shielded, Individually Shielded Pairs
CT25G43M002 22 AWG, 24 AWG 5 2 6.6 Male 90°/Female Overall Shielded, Individually Shielded Pairs
CT25G43M003 22 AWG, 24 AWG 5 3 9.8 Male 90°/Female Overall Shielded, Individually Shielded Pairs
CT25G43M004 22 AWG, 24 AWG 5 4 13.1 Male 90°/Female Overall Shielded, Individually Shielded Pairs
CT25G43M006 22 AWG, 24 AWG 5 6 19.7 Male 90°/Female Overall Shielded, Individually Shielded Pairs
CT25G43M012 22 AWG, 24 AWG 5 12 39.3 Male 90°/Female Overall Shielded, Individually Shielded Pairs
CT25G43M018 22 AWG, 24 AWG 5 18 59 Male 90°/Female Overall Shielded, Individually Shielded Pairs
CT25G43M024 22 AWG, 24 AWG 5 24 78.7 Male 90°/Female Overall Shielded, Individually Shielded Pairs
CT25G43M030 22 AWG, 24 AWG 5 30 98.4 Male 90°/Female Overall Shielded, Individually Shielded Pairs
CT25F43M001 22 AWG, 24 AWG 5 1 3.3 Male/Female 90° Overall Shielded, Individually Shielded Pairs
CT25F43M002 22 AWG, 24 AWG 5 2 6.6 Male/Female 90° Overall Shielded, Individually Shielded Pairs
CT25F43M003 22 AWG, 24 AWG 5 3 9.8 Male/Female 90° Overall Shielded, Individually Shielded Pairs
CT25F43M004 22 AWG, 24 AWG 5 4 13.1 Male/Female 90° Overall Shielded, Individually Shielded Pairs
CT25F43M006 22 AWG, 24 AWG 5 6 19.7 Male/Female 90° Overall Shielded, Individually Shielded Pairs
CT25F43M012 22 AWG, 24 AWG 5 12 39.3 Male/Female 90° Overall Shielded, Individually Shielded Pairs
CT25F43M018 22 AWG, 24 AWG 5 18 59 Male/Female 90° Overall Shielded, Individually Shielded Pairs
CT25F43M024 22 AWG, 24 AWG 5 24 78.7 Male/Female 90° Overall Shielded, Individually Shielded Pairs
CT25F43M030 22 AWG, 24 AWG 5 30 98.4 Male/Female 90° Overall Shielded, Individually Shielded Pairs
CT25H43M001 22 AWG, 24 AWG 5 1 3.3 Male 90°/Female 90° Overall Shielded, Individually Shielded Pairs
CT25H43M002 22 AWG, 24 AWG 5 2 6.6 Male 90°/Female 90° Overall Shielded, Individually Shielded Pairs
CT25H43M003 22 AWG, 24 AWG 5 3 9.8 Male 90°/Female 90° Overall Shielded, Individually Shielded Pairs
CT25H43M004 22 AWG, 24 AWG 5 4 13.1 Male 90°/Female 90° Overall Shielded, Individually Shielded Pairs
CT25H43M006 22 AWG, 24 AWG 5 6 19.7 Male 90°/Female 90° Overall Shielded, Individually Shielded Pairs
CT25H43M012 22 AWG, 24 AWG 5 12 39.3 Male 90°/Female 90° Overall Shielded, Individually Shielded Pairs
CT25H43M018 22 AWG, 24 AWG 5 18 59 Male 90°/Female 90° Overall Shielded, Individually Shielded Pairs
CT25H43M024 22 AWG, 24 AWG 5 24 78.7 Male 90°/Female 90° Overall Shielded, Individually Shielded Pairs
CT25H43M030 22 AWG, 24 AWG 5 30 98.4 Male 90°/Female 90° Overall Shielded, Individually Shielded Pairs
