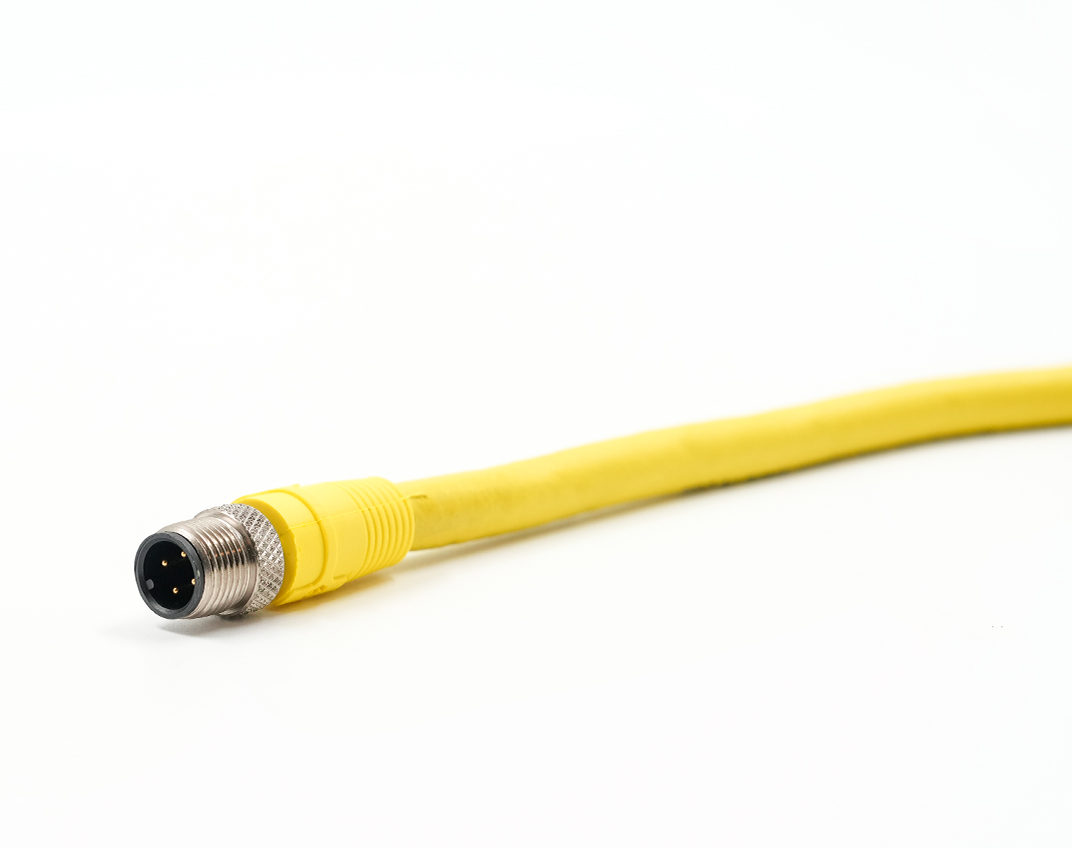

Quick-Connex® SJOO M12 DC Micro Cordsets Male_Web

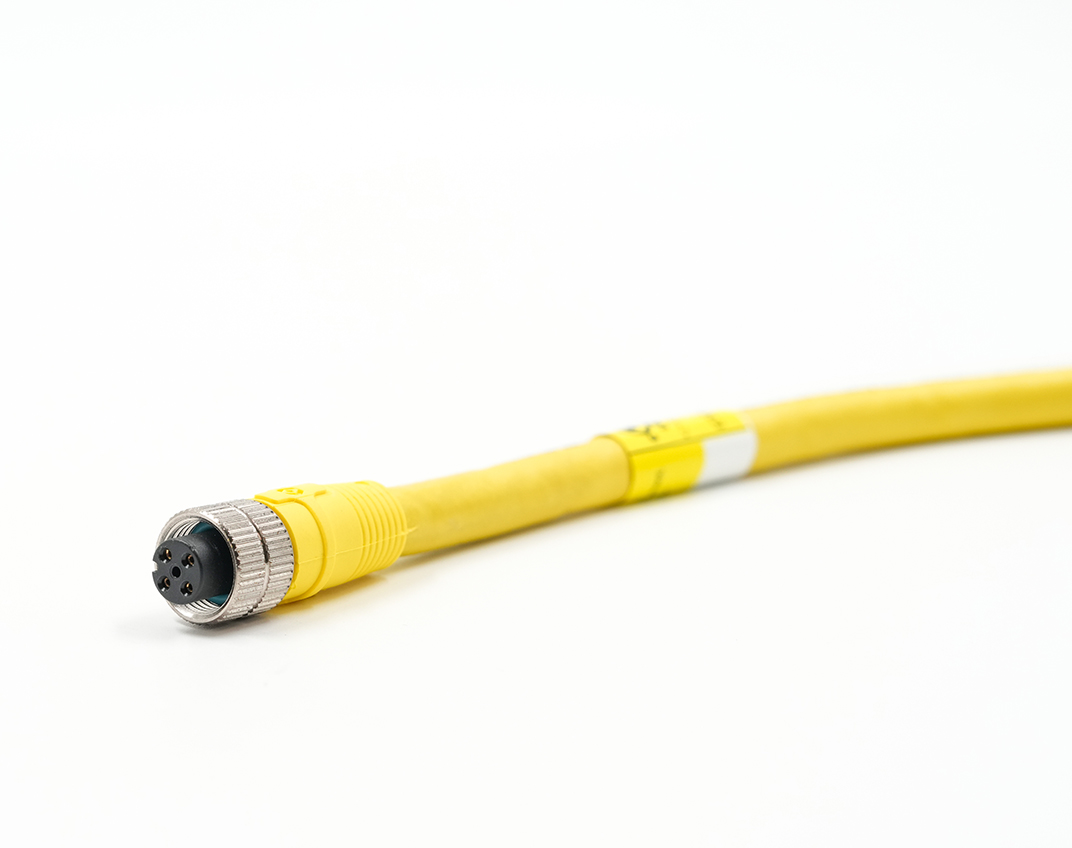

Quick-Connex® SJOO M12 DC Micro Cordsets Female_Web

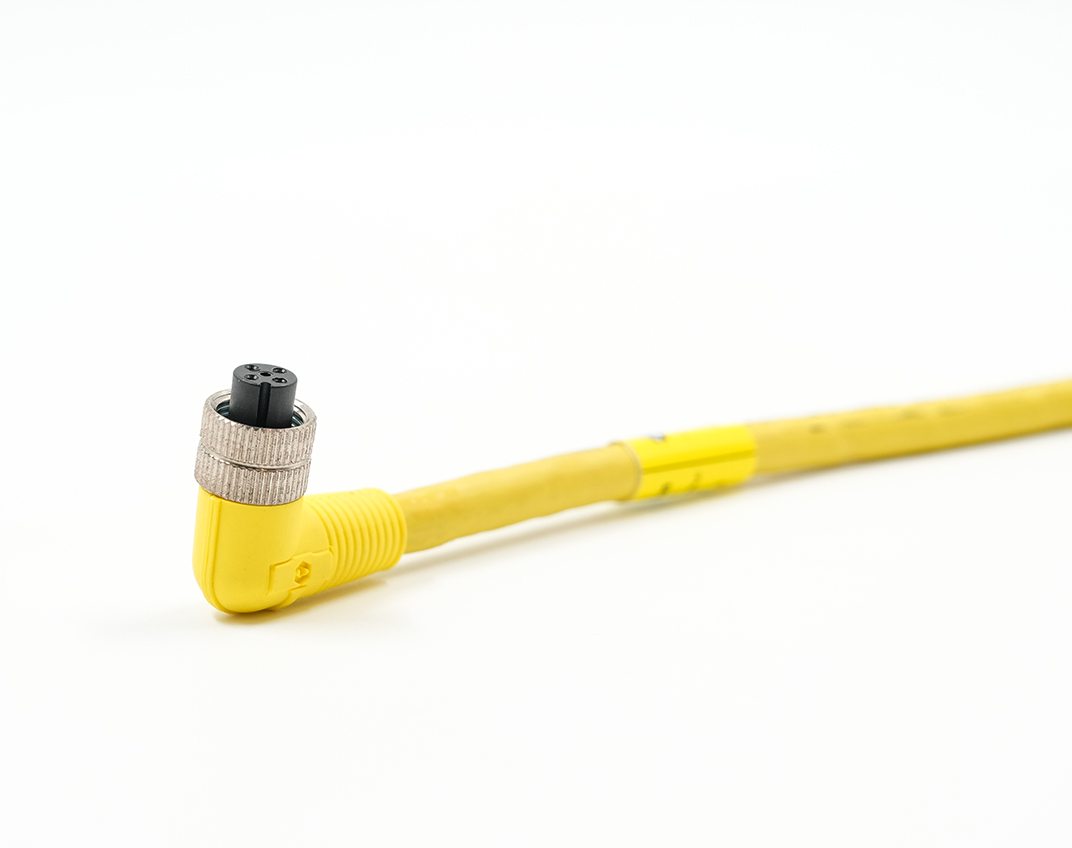

Quick-Connex® SJOO M12 DC Micro Cordsets 90_Web

Quick-Connex™ SJOO M12 DC Micro Cordsets

Quick-Connects™ SJOO M12 DC Micro Cordsets make replacement of electrical and electronic control devices quick and simple. Plug sets are made with Super-Trex® SJOO Ultra-Gard® Portable Cord, a superior first-line of defense against tearing, abrasion, impact, oil, ozone and most chemicals. Flame and heat resistant and offers extreme all-weather flexibility. The molded and keyed thermoplastic cordset provides rapid and secure connect and disconnect and ensures a water, oil and dust tight seal.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

PLUG SETS MADE WITH SUPER-TREX® TYPE SJOO ULTRA-GARD® PORTABLE CORD, RATED 90°C

Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

PLUG BODY IS SPECIALLY COMPOUNDED, THERMOPLASTIC ELASTOMER

Provides long life, resists heat and oil deterioration.

SOLID BRASS CONTACT PINS ARE NICKEL COATED AND GOLD PLATED

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity DC applications.

HARD COATED NICKEL PLATED BRASS KNURLED COUPLING NUT

Resists corrosion. Ensures a quick, secure connection in the toughest environments.

BUNA-N O-RING

Seals out oil, chemicals and other contaminants. Provides a positive seal on mated components.

COMPLETELY MOLDED DESIGN

Eliminates bonding agents between jacket and plug. Ensures a water, oil and dust tight seal that will not break down under repeated flexing

MOLDED AND KEYED ASSEMBLY

Industry standard M12 one keyway design provides rapid and secure connection.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Super-Trex SJOO Micro Cord Sets

Ratings / Characteristics

  • UL Recognized

  • cUL

  • Type SJOO

  • IP69K/IP68 Rated

  • RoHS Compliant

  • Max Conductor Temperature 90°C

  • Straight and 90° Configurations

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Size Stranding Ampacity Nominal O.D.
inches		 WT. per 1000'
lbs
87013 18/3 41/34 10 0.315 65
87014 18/4 41/34 7 0.345 88
87015 18/5 41/34 5.6 0.38 101

Part Numbers

Product no. Conductor Size (AWG) Conductor/Pole Count Feet Meters Description Shielding Type
CF13C24M001 18 AWG 3 1 3.27 Female Plug No Shielding
CF13C24M002 18 AWG 3 2 6.56 Female Plug No Shielding
CF13C24M004 18 AWG 3 4 13.08 Female Plug No Shielding
CF13C24M006 18 AWG 3 6 19.67 Female Plug No Shielding
CF13C24M010 18 AWG 3 10 31.8 Female Plug No Shielding
CF13C24M015 18 AWG 3 15 49.2 Female Plug No Shielding
CF13C24M020 18 AWG 3 20 65.6 Female Plug No Shielding
CF13C24M025 18 AWG 3 25 82 Female Plug No Shielding
CF13C24M030 18 AWG 3 30 98.4 Female Plug No Shielding
CF13D24M001 18 AWG 3 1 3.27 90° Female Plug No Shielding
CF13D24M002 18 AWG 3 2 6.56 90° Female Plug No Shielding
CF13D24M004 18 AWG 3 4 13.08 90° Female Plug No Shielding
CF13D24M006 18 AWG 3 6 19.67 90° Female Plug No Shielding
CF13D24M010 18 AWG 3 10 31.8 90° Female Plug No Shielding
CF13D24M015 18 AWG 3 15 49.2 90° Female Plug No Shielding
CF13D24M020 18 AWG 3 20 65.6 90° Female Plug No Shielding
CF13D24M025 18 AWG 3 25 82 90° Female Plug No Shielding
CF13D24M030 18 AWG 3 30 98.4 90° Female Plug No Shielding
CF23E24A020 18 AWG 3 0.5 1.63 M/F Ext. Set No Shielding
CF23E24M001 18 AWG 3 1 3.27 M/F Ext. Set No Shielding
CF23E24M002 18 AWG 3 2 6.56 M/F Ext. Set No Shielding
CF23E24M003 18 AWG 3 3 9.84 M/F Ext. Set No Shielding
CF23E24M004 18 AWG 3 4 13.08 M/F Ext. Set No Shielding
CF23E24M005 18 AWG 3 5 16 M/F Ext. Set No Shielding
CF23E24M006 18 AWG 3 6 19.67 M/F Ext. Set No Shielding
CF23E24M010 18 AWG 3 10 31.8 M/F Ext. Set No Shielding
CF23E24M015 18 AWG 3 15 49.2 M/F Ext. Set No Shielding
CF23E24M020 18 AWG 3 20 65.6 M/F Ext. Set No Shielding
CF23E24M025 18 AWG 3 25 82 M/F Ext. Set No Shielding
CF23E24M030 18 AWG 3 30 98.4 M/F Ext. Set No Shielding
CF23F24A020 18 AWG 3 0.5 1.63 M/90° F DC No Shielding
CF23F24M001 18 AWG 3 1 3.27 M/90° F DC No Shielding
CF23F24M002 18 AWG 3 2 6.56 M/90° F DC No Shielding
CF23F24M003 18 AWG 3 3 9.84 M/90° F DC No Shielding
CF23F24M004 18 AWG 3 4 13.06 M/90° F DC No Shielding
CF23F24M005 18 AWG 3 5 16 M/90° F DC No Shielding
CF23F24M006 18 AWG 3 6 19.67 M/90° F DC No Shielding
CF23F24M010 18 AWG 3 10 31.8 M/90° F DC No Shielding
CF23G24M001 18 AWG 3 1 3.27 M/90° F DC No Shielding
CF23G24M002 18 AWG 3 2 6.56 90° M/F DC No Shielding
CF23G24M004 18 AWG 3 4 13.08 90° M/F DC No Shielding
CF23G24M006 18 AWG 3 6 19.67 90° M/F DC No Shielding
CF23G24M010 18 AWG 3 10 31.8 90° M/F DC No Shielding
CF14C25M001 18 AWG 4 1 3.27 Female Plug No Shielding
CF14C25M002 18 AWG 4 2 6.56 Female Plug No Shielding
CF14C25M004 18 AWG 4 4 13.08 Female Plug No Shielding
CF14C25M006 18 AWG 4 6 19.67 Female Plug No Shielding
CF14C25M010 18 AWG 4 10 31.8 Female Plug No Shielding
CF14C25M015 18 AWG 4 15 49.2 Female Plug No Shielding
CF14C25M020 18 AWG 4 20 65.6 Female Plug No Shielding
CF14C25M025 18 AWG 4 25 82 Female Plug No Shielding
CF14C25M030 18 AWG 4 30 98.4 Female Plug No Shielding
CF14D25M001 18 AWG 4 1 3.27 90° Female Plug No Shielding
CF14D25M002 18 AWG 4 2 6.56 90° Female Plug No Shielding
CF14D25M004 18 AWG 4 4 13.08 90° Female Plug No Shielding
CF14D25M006 18 AWG 4 6 19.67 90° Female Plug No Shielding
CF14D25M010 18 AWG 4 10 31.8 90° Female Plug No Shielding
CF14D25M015 18 AWG 4 15 49.2 90° Female Plug No Shielding
CF14D25M020 18 AWG 4 20 65.6 90° Female Plug No Shielding
CF14D25M025 18 AWG 4 25 82 90° Female Plug No Shielding
CF14D25M030 18 AWG 4 30 98.4 90° Female Plug No Shielding
CF24E25A020 18 AWG 4 0.5 1.63 M/F Ext. Set No Shielding
CF24E25M001 18 AWG 4 1 3.27 M/F Ext. Set No Shielding
CF24E25M002 18 AWG 4 2 6.56 M/F Ext. Set No Shielding
CF24E25M003 18 AWG 4 3 9.84 M/F Ext. Set No Shielding
CF24E25M004 18 AWG 4 4 13.08 M/F Ext. Set No Shielding
CF24E25M005 18 AWG 4 5 16 M/F Ext. Set No Shielding
CF24E25M006 18 AWG 4 6 19.67 M/F Ext. Set No Shielding
CF24E25M010 18 AWG 4 10 31.8 M/F Ext. Set No Shielding
CF24E25M015 18 AWG 4 15 49.2 M/F Ext. Set No Shielding
CF24E25M020 18 AWG 4 20 65.6 M/F Ext. Set No Shielding
CF24E25M025 18 AWG 4 25 82 M/F Ext. Set No Shielding
CF24E25M030 18 AWG 4 30 98.4 M/F Ext. Set No Shielding
CF24F25A020 18 AWG 4 0.5 1.63 M/90° F DC No Shielding
CF24F25M001 18 AWG 4 1 3.27 M/90° F DC No Shielding
CF24F25M002 18 AWG 4 2 6.56 M/90° F DC No Shielding
CF24F25M003 18 AWG 4 3 9.84 M/90° F DC No Shielding
CF24F25M004 18 AWG 4 4 13.06 M/90° F DC No Shielding
CF24F25M005 18 AWG 4 5 16 M/90° F DC No Shielding
CF24F25M006 18 AWG 4 6 19.67 M/90° F DC No Shielding
CF24F25M010 18 AWG 4 10 31.8 M/90° F DC No Shielding
CF24G25M001 18 AWG 4 1 3.27 90° M/F DC No Shielding
CF24G25M002 18 AWG 4 2 6.56 90° M/F DC No Shielding
CF24G25M004 18 AWG 4 4 13.08 90° M/F DC No Shielding
CF24G25M006 18 AWG 4 6 19.67 90° M/F DC No Shielding
CF24G25M010 18 AWG 4 10 31.8 90° M/F DC No Shielding
CF15C26M001 18 AWG 5 1 3.27 Female Plug No Shielding
CF15C26M002 18 AWG 5 2 6.56 Female Plug No Shielding
CF15C26M004 18 AWG 5 4 13.08 Female Plug No Shielding
CF15C26M006 18 AWG 5 6 19.67 Female Plug No Shielding
CF15C26M010 18 AWG 5 10 31.8 Female Plug No Shielding
CF15C26M015 18 AWG 5 15 49.2 Female Plug No Shielding
CF15C26M020 18 AWG 5 20 65.6 Female Plug No Shielding
CF15C26M025 18 AWG 5 25 82 Female Plug No Shielding
CF15C26M030 18 AWG 5 30 98.4 Female Plug No Shielding
CF15D26M001 18 AWG 5 1 3.27 90° Female Plug No Shielding
CF15D26M002 18 AWG 5 2 6.56 90° Female Plug No Shielding
CF15D26M004 18 AWG 5 4 13.08 90° Female Plug No Shielding
CF15D26M006 18 AWG 5 6 19.67 90° Female Plug No Shielding
CF15D26M010 18 AWG 5 10 31.8 90° Female Plug No Shielding
CF15D26M015 18 AWG 5 15 49.2 90° Female Plug No Shielding
CF15D26M020 18 AWG 5 20 65.6 90° Female Plug No Shielding
CF15D26M025 18 AWG 5 25 82 90° Female Plug No Shielding
CF15D26M030 18 AWG 5 30 98.4 90° Female Plug No Shielding
CF25E26A020 18 AWG 5 0.5 1.63 M/F Ext. Set No Shielding
CF25E26M001 18 AWG 5 1 3.27 M/F Ext. Set No Shielding
CF25E26M002 18 AWG 5 2 6.56 M/F Ext. Set No Shielding
CF25E26M003 18 AWG 5 3 9.84 M/F Ext. Set No Shielding
CF25E26M004 18 AWG 5 4 13.08 M/F Ext. Set No Shielding
CF25E26M005 18 AWG 5 5 16 M/F Ext. Set No Shielding
CF25E26M006 18 AWG 5 6 19.67 M/F Ext. Set No Shielding
CF25E26M010 18 AWG 5 10 31.8 M/F Ext. Set No Shielding
CF25E26M015 18 AWG 5 15 49.2 M/F Ext. Set No Shielding
CF25E26M020 18 AWG 5 20 65.6 M/F Ext. Set No Shielding
CF25E26M025 18 AWG 5 25 82 M/F Ext. Set No Shielding
CF25E26M030 18 AWG 5 30 98.4 M/F Ext. Set No Shielding
CF25F26A020 18 AWG 5 0.5 1.63 M/90° F DC No Shielding
CF25F26M001 18 AWG 5 1 3.27 M/90° F DC No Shielding
CF25F26M002 18 AWG 5 2 6.56 M/90° F DC No Shielding
CF25F26M003 18 AWG 5 3 9.84 M/90° F DC No Shielding
CF25F26M004 18 AWG 5 4 13.06 M/90° F DC No Shielding
CF25F26M005 18 AWG 5 5 16 M/90° F DC No Shielding
CF25F26M006 18 AWG 5 6 19.67 M/90° F DC No Shielding
CF25F26M010 18 AWG 5 10 31.8 M/90° F DC No Shielding
CF25G26M001 18 AWG 5 1 3.27 90° M/F DC No Shielding
CF25G26M002 18 AWG 5 2 6.56 90° M/F DC No Shielding
CF25G26M004 18 AWG 5 4 13.08 90° M/F DC No Shielding
CF25G26M006 18 AWG 5 6 19.67 90° M/F DC No Shielding
CF25G26M010 18 AWG 5 10 31.8 90° M/F DC No Shielding
