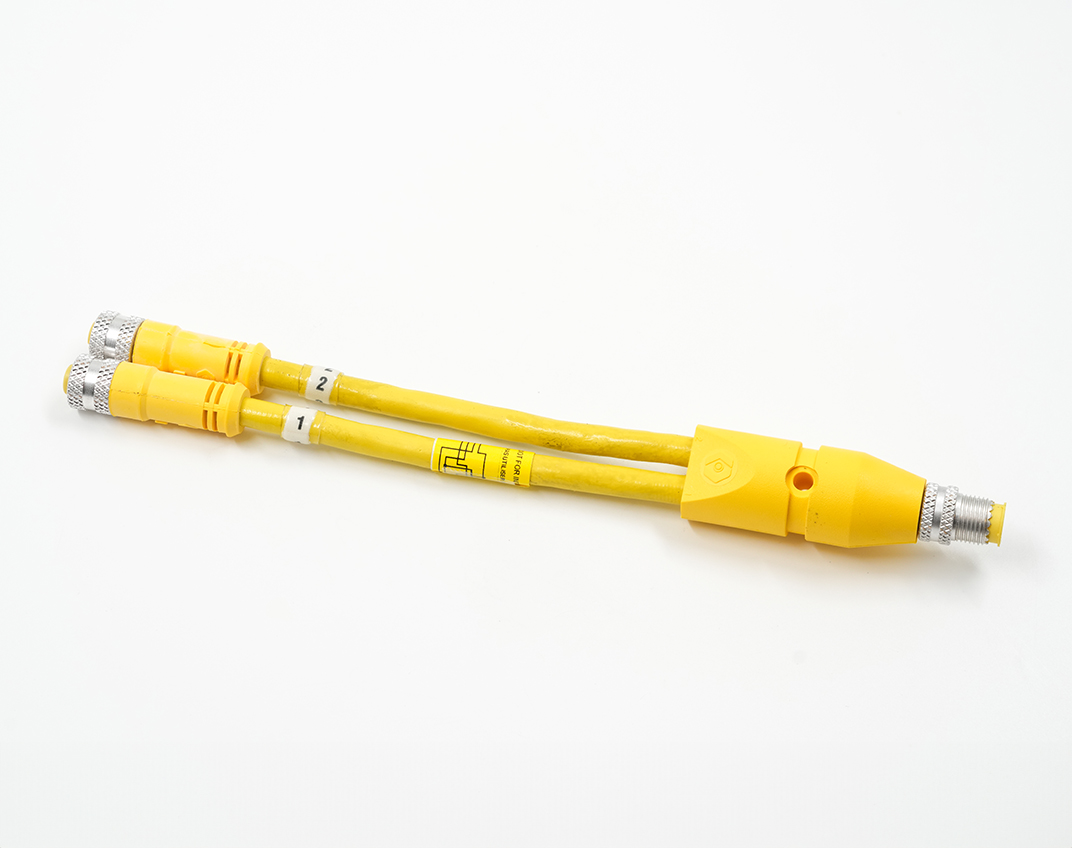

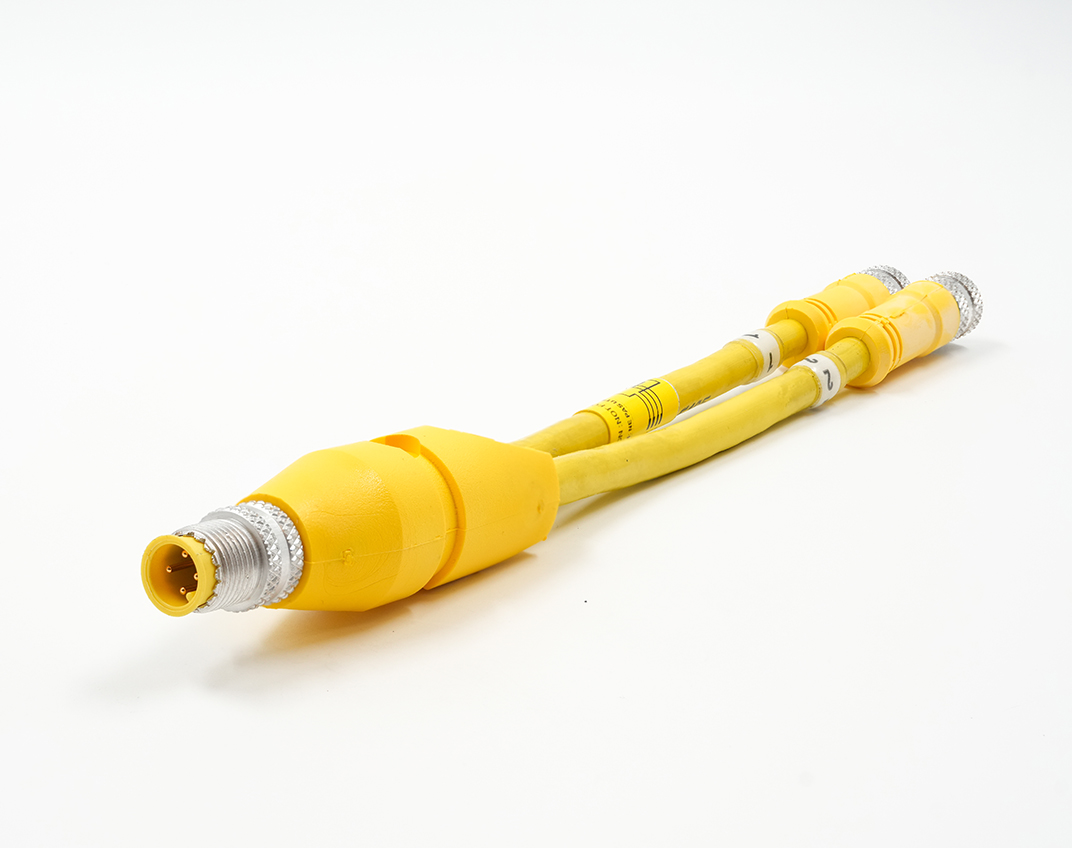

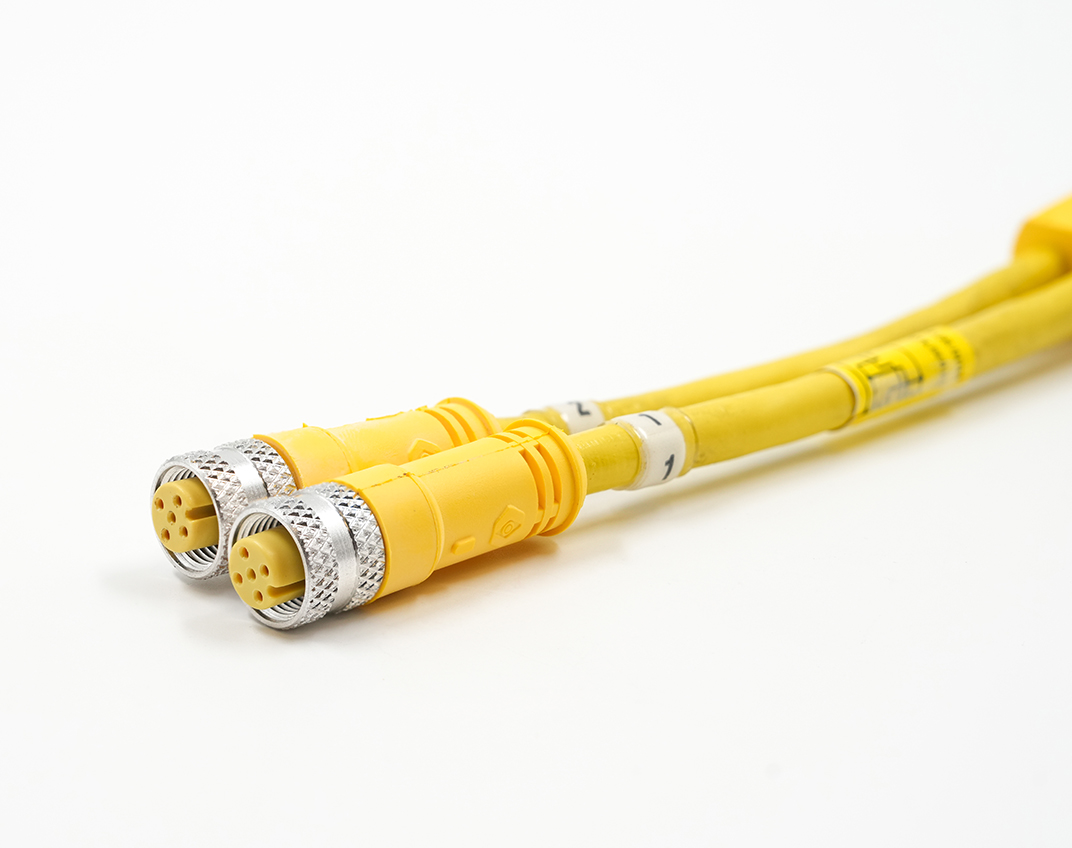

Quick-Connex® Super-Trex® SJOO M12 DC Micro Y-Splitter Cordset

Quick-Connex® Super-Trex® “Y” Splitter design is constructed using Amphenol TPC’s Micro Quick-Connex technology coupled with a one-piece focal point. The focal point unit is constructed of an oil, abrasion, impact, and chemical resistant compound designed to protect the unit from hostile industrial environments. Each conductor lead is molded into the focal point. Each splitter is tested to ensure out-of-box performance.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Cordsets are made with Super-Trex® SJOO Cable, Rated 90°C

Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

Connector Body is Specially Compounded, Thermoplastic Elastomer

Provides long life, resists heat and oil deterioration.

Molded and Keyed Assembly

Provides rapid and secure connection and disconnect. Ensures a water, oil, and dust tight seal.

Solid Brass Contact Pins are Nickel Coated and Gold Plated, Machined Crimped to Conductors

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity DC applications.

Hard Coated Anodized Aluminum Knurled Coupling Nut

Resists loosening caused by vibration and constant movement applications. Provides quick and secure assembly.

Rubber O-Ring

Seals out oil, chemicals and other contaminants. Provides a positive seal on mated components.

Coupling Nut M12 x 1.0 Thread with One Keyway on Connector Face

Industry standard for M12 DC Micro connectors.

Resources

Specsheets

Product Overview

Ratings / Characteristics

  • IP68 Rated

  • 300 V

  • Max Conductor Temperature 90°C

  • Operating Temperature: -20° to 80°C

  • UV Resistant

  • Oil Resistant

  • Bend Radius of Super-Trex® SJOO Cable: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part No. Description Conductor Size (AWG) Conductor/Pole Count In-Put Cord Length
feet		 Shielding Type
81401 Single-End Configuration: 4 Pole Male 18 AWG 4 0.5 No Shielding
81402 Single-End Configuration: 4 Pole Male 18 AWG 4 1 No Shielding
81404 Single-End Configuration: 4 Pole Male 18 AWG 4 2 No Shielding
81411 Single-End Configuration: 4 Pole Female 18 AWG 4 0.5 No Shielding
81412 Single-End Configuration: 4 Pole Female 18 AWG 4 1 No Shielding
81414 Single-End Configuration: 4 Pole Female 18 AWG 4 2 No Shielding
81401 Double End Side 1: 3 Pole Female 18 AWG 3 0.5 No Shielding
81402 Double End Side 1: 3 Pole Female 18 AWG 3 1 No Shielding
81404 Double End Side 1: 3 Pole Female 18 AWG 3 2 No Shielding
81411 Double End Side 1: 3 Pole Male 18 AWG 3 0.5 No Shielding
81412 Double End Side 1: 3 Pole Male 18 AWG 3 1 No Shielding
81414 Double End Side 1: 3 Pole Male 18 AWG 3 2 No Shielding
81401 Double End Side 2: 3 Pole Female 18 AWG 3 0.5 No Shielding
81402 Double End Side 2: 3 Pole Female 18 AWG 3 1 No Shielding
81404 Double End Side 2: 3 Pole Female 18 AWG 3 2 No Shielding
81411 Double End Side 2: 3 Pole Male 18 AWG 3 0.5 No Shielding
81412 Double End Side 2: 3 Pole Male 18 AWG 3 1 No Shielding
81414 Double End Side 2: 3 Pole Male 18 AWG 3 2 No Shielding
