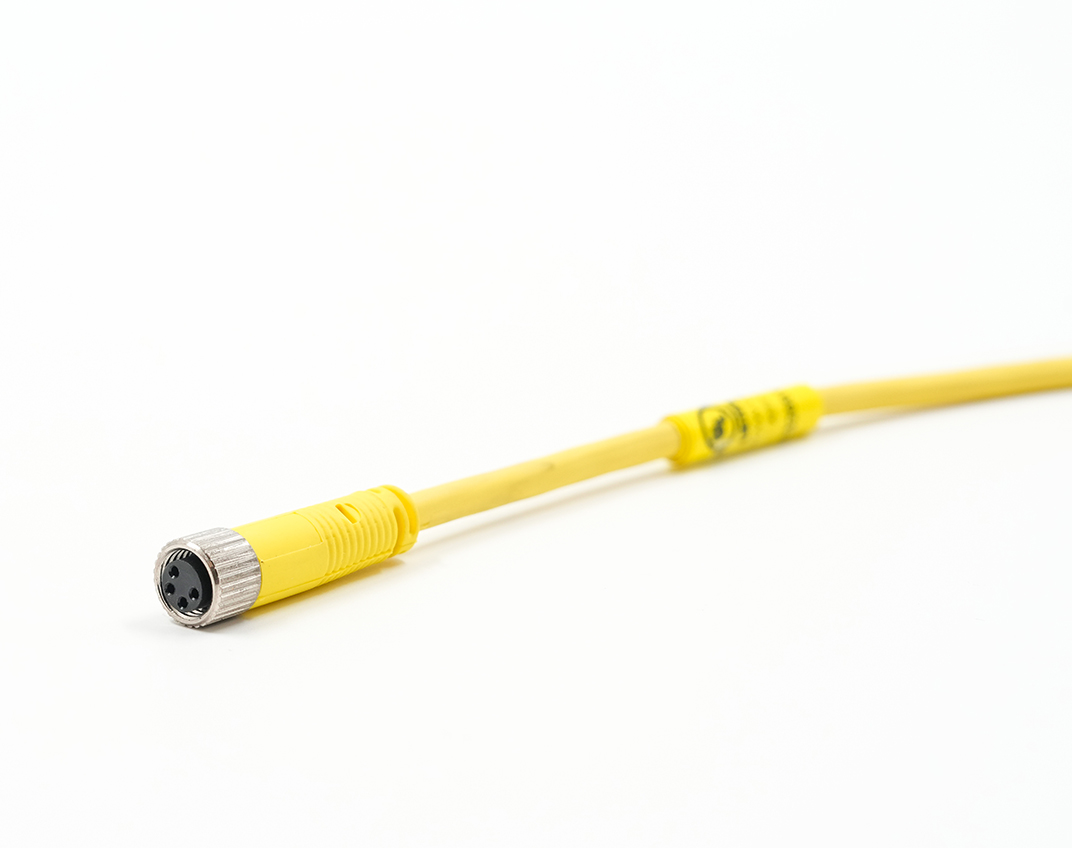

Quick-Connex® M8 Nano Cordsets Female_Web

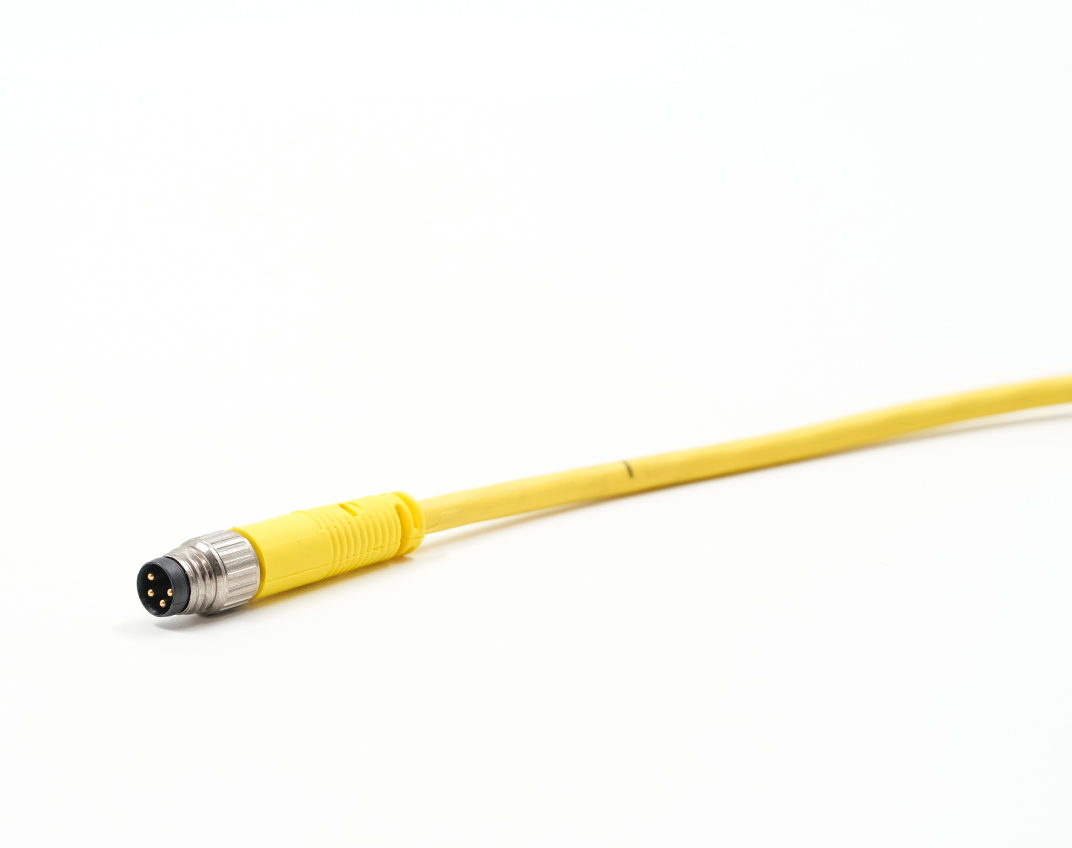

Quick-Connex® M8 Nano Cordsets Male_Web

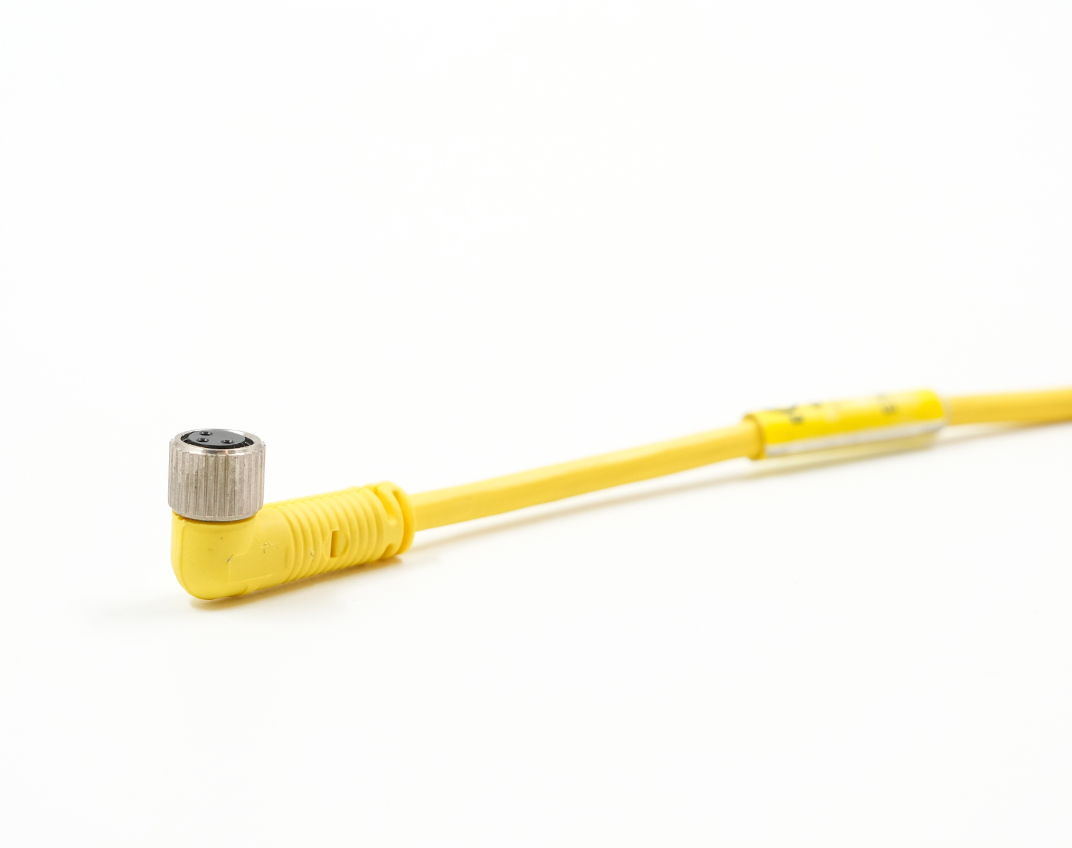

Quick-Connex® M8 Nano Cordsets 90_Web

Quick-Connex® M8 Nano Cordsets

Quick-Connex® M8 Nano cordsets make the replacement of electrical and electronic control devices quick and simple. Cordsets are made with Trex-Onics® 24 AWG cable designed for high cycle, constant motion applications and provides excellent defense against impact, cutting, abrasion, oil and chemicals. M8 Nano Cordsets are molded and keyed, provide rapid and secure connect and disconnect and ensures a water, oil, and dust-tight seal.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CORDSETS MADE WITH TREX-ONICS® 24 AWG NANO CABLE, RATED TO 90°C

Designed for high cycle, constant motion applications. Provides excellent defense against impact, cutting, abrasion, oil and chemicals.

CONNECTOR BODY IS SPECIALLY COMPOUNDED, THERMOPLASTIC ELASTOMER

Provides long flex life, resists heat and oil deterioration.

MOLDED AND KEYED ASSEMBLY

Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.

COPPER ALLOY CONTACT PINS ARE NICKEL COATED AND GOLD PLATED, MACHINE CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity in low voltage applications.

NICKEL PLATED BRASS COUPLING NUT

Resists corrosion, provides quick and secure assembly.

SPECIALLY COMPOUNDED RUBBER INSERT

Provides a superior seal against fluid and dust penetration.

COUPLING NUT M8 X 1.0 THREAD

Industry Standard for M8 Connectors

Resources

Specsheets

Product Overview

CustomCable

Build Your Own M8 Nano Cordsets

Ratings / Characteristics

  • UL Recognized

  • cUL

  • RoHS Compliant

  • 300V

  • Max Conductor Temperature 90°C

  • IP69K Rated

  • Operating Temperature Range -20°C to 90°C

  • Bend Radius of Trex-Onics® M8 Nano Cable: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

  • UV Resistant

  • Oil Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Cable Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Stranding Nominal O.D.
inches		 Color Code Shielding Type
62323 24 AWG 3 7/32 0.17 Brown, Black, Blue No Shielding
62324 24 AWG 4 7/32 0.18 Brown, White, Black, Blue No Shielding

Quick-Connex™ M8 Nano Cordsets Coupling

Part No. Conductor Size (AWG) Conductor/Pole Count Description Cord Length
feet		 Cord Length
meters		 Shielding Type
CA13C33M001 24 AWG 3 3 Pole Single Ended Straight Female – Threaded 3.3 1 No Shielding
CA13C33M002 24 AWG 3 3 Pole Single Ended Straight Female – Threaded 6.6 2 No Shielding
CA13C33M004 24 AWG 3 3 Pole Single Ended Straight Female – Threaded 13.1 4 No Shielding
CA13C33M005 24 AWG 3 3 Pole Single Ended Straight Female – Threaded 16.4 5 No Shielding
CA13C33M006 24 AWG 4 3 Pole Single Ended Straight Female – Threaded 19.7 6 No Shielding
CA14C34M001 24 AWG 4 4 Pole Single Ended Straight Female – Threaded 3.3 1 No Shielding
CA14C34M002 24 AWG 4 4 Pole Single Ended Straight Female – Threaded 6.6 2 No Shielding
CA14C34M004 24 AWG 4 4 Pole Single Ended Straight Female – Threaded 13.1 4 No Shielding
CA14C34M005 24 AWG 4 4 Pole Single Ended Straight Female – Threaded 16.4 5 No Shielding
CA14C34M006 24 AWG 4 4 Pole Single Ended Straight Female – Threaded 19.7 6 No Shielding
CA13A33M001 24 AWG 3 3 Pole Single Ended Straight Male – Threaded 3.3 1 No Shielding
CA13A33M002 24 AWG 3 3 Pole Single Ended Straight Male – Threaded 6.6 2 No Shielding
CA13A33M004 24 AWG 3 3 Pole Single Ended Straight Male – Threaded 13.1 4 No Shielding
CA13A33M005 24 AWG 3 3 Pole Single Ended Straight Male – Threaded 16.4 5 No Shielding
CA13A33M006 24 AWG 3 3 Pole Single Ended Straight Male – Threaded 19.7 6 No Shielding
CA14A34M001 24 AWG 4 4 Pole Single Ended Straight Male – Threaded 3.3 1 No Shielding
CA14A34M002 24 AWG 4 4 Pole Single Ended Straight Male – Threaded 6.6 2 No Shielding
CA14A34M004 24 AWG 4 4 Pole Single Ended Straight Male – Threaded 13.1 4 No Shielding
CA14A34M005 24 AWG 4 4 Pole Single Ended Straight Male – Threaded 16.4 5 No Shielding
CA14A34M006 24 AWG 4 4 Pole Single Ended Straight Male – Threaded 19.7 6 No Shielding
CA13D33M001 24 AWG 3 3 Pole Single Ended 90° Female – Threaded 3.3 1 No Shielding
CA13D33M002 24 AWG 3 3 Pole Single Ended 90° Female – Threaded 6.6 2 No Shielding
CA13D33M004 24 AWG 3 3 Pole Single Ended 90° Female – Threaded 13.1 4 No Shielding
CA13D33M005 24 AWG 3 3 Pole Single Ended 90° Female – Threaded 16.4 5 No Shielding
CA13D33M006 24 AWG 3 3 Pole Single Ended 90° Female – Threaded 19.7 6 No Shielding
CA14D34M001 24 AWG 4 4 Pole Single Ended 90° Female – Threaded 3.3 1 No Shielding
CA14D34M002 24 AWG 4 4 Pole Single Ended 90° Female – Threaded 6.6 2 No Shielding
CA14D34M004 24 AWG 4 4 Pole Single Ended 90° Female – Threaded 13.1 4 No Shielding
CA14D34M005 24 AWG 4 4 Pole Single Ended 90° Female – Threaded 16.4 5 No Shielding
CA14D34M006 24 AWG 4 4 Pole Single Ended 90° Female – Threaded 19.7 6 No Shielding

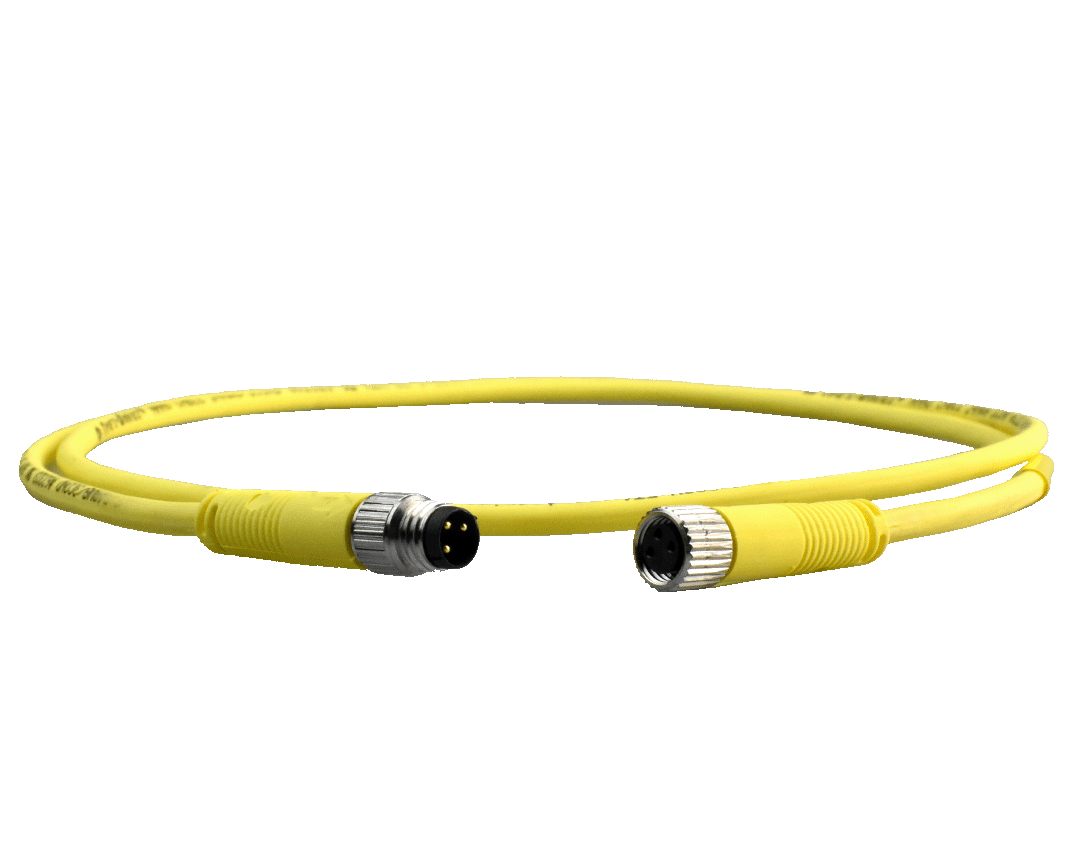

CA23E33M001 24 AWG 3 3 Pole Double Ended Straight F/M – Threaded 3.3 1 No Shielding
CA23E33M002 24 AWG 3 3 Pole Double Ended Straight F/M – Threaded 6.6 2 No Shielding
CA23E33M004 24 AWG 3 3 Pole Double Ended Straight F/M – Threaded 13.1 4 No Shielding
CA23E33M005 24 AWG 3 3 Pole Double Ended Straight F/M – Threaded 16.4 5 No Shielding
CA23E33M006 24 AWG 3 3 Pole Double Ended Straight F/M – Threaded 19.7 6 No Shielding
CA24E34M001 24 AWG 4 4 Pole Double Ended Straight F/M – Threaded 3.3 1 No Shielding
CA24E34M002 24 AWG 4 4 Pole Double Ended Straight F/M – Threaded 6.6 2 No Shielding
CA24E34M004 24 AWG 4 4 Pole Double Ended Straight F/M – Threaded 13.1 4 No Shielding
CA24E34M005 24 AWG 4 4 Pole Double Ended Straight F/M – Threaded 16.4 5 No Shielding
CA24E34M006 24 AWG 4 4 Pole Double Ended Straight F/M – Threaded 19.7 6 No Shielding
CA23F33M001 24 AWG 3 3 Pole Double Ended Straight M/90° F – Threaded 3.3 1 No Shielding
CA23F33M002 24 AWG 3 3 Pole Double Ended Straight M/90° F – Threaded 6.6 2 No Shielding
CA23F33M004 24 AWG 3 3 Pole Double Ended Straight M/90° F – Threaded 13.1 4 No Shielding
CA23F33M005 24 AWG 3 3 Pole Double Ended Straight M/90° F – Threaded 16.4 5 No Shielding
CA23F33M006 24 AWG 3 3 Pole Double Ended Straight M/90° F – Threaded 19.7 6 No Shielding
CA24F34M001 24 AWG 4 4 Pole Double Ended Straight M/90° F – Threaded 3.3 1 No Shielding
CA24F34M002 24 AWG 4 4 Pole Double Ended Straight M/90° F – Threaded 6.6 2 No Shielding
CA24F34M004 24 AWG 4 4 Pole Double Ended Straight M/90° F – Threaded 13.1 4 No Shielding
CA24F34M005 24 AWG 4 4 Pole Double Ended Straight M/90° F – Threaded 16.4 5 No Shielding
CA24F34M006 24 AWG 4 4 Pole Double Ended Straight M/90° F – Threaded 19.7 6 No Shielding

Related Products

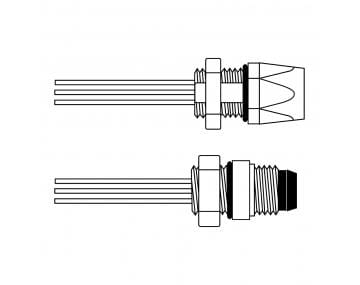

Quick-Connex® M8 Nano Receptacles_Web_Small

Quick-Connex™ M8 Nano Receptacles

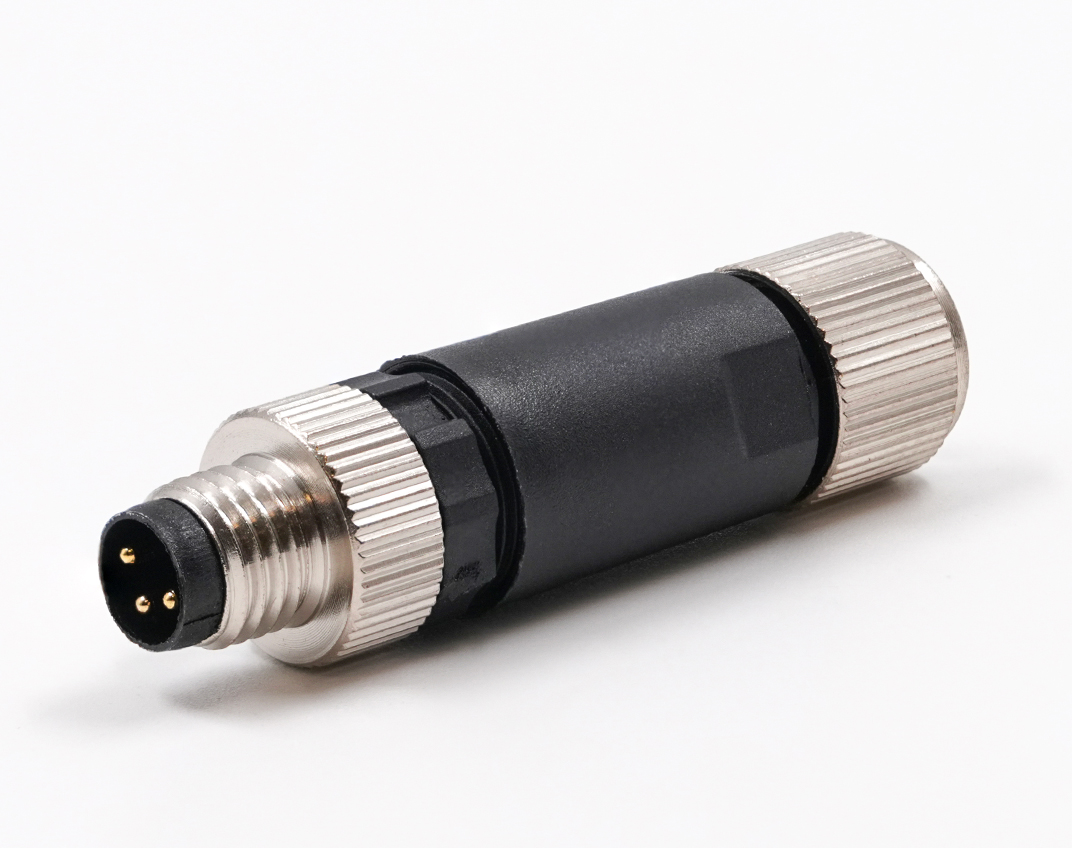

Quick-Connex® M8 Nano Field Installable Connectors 2_Web-1
