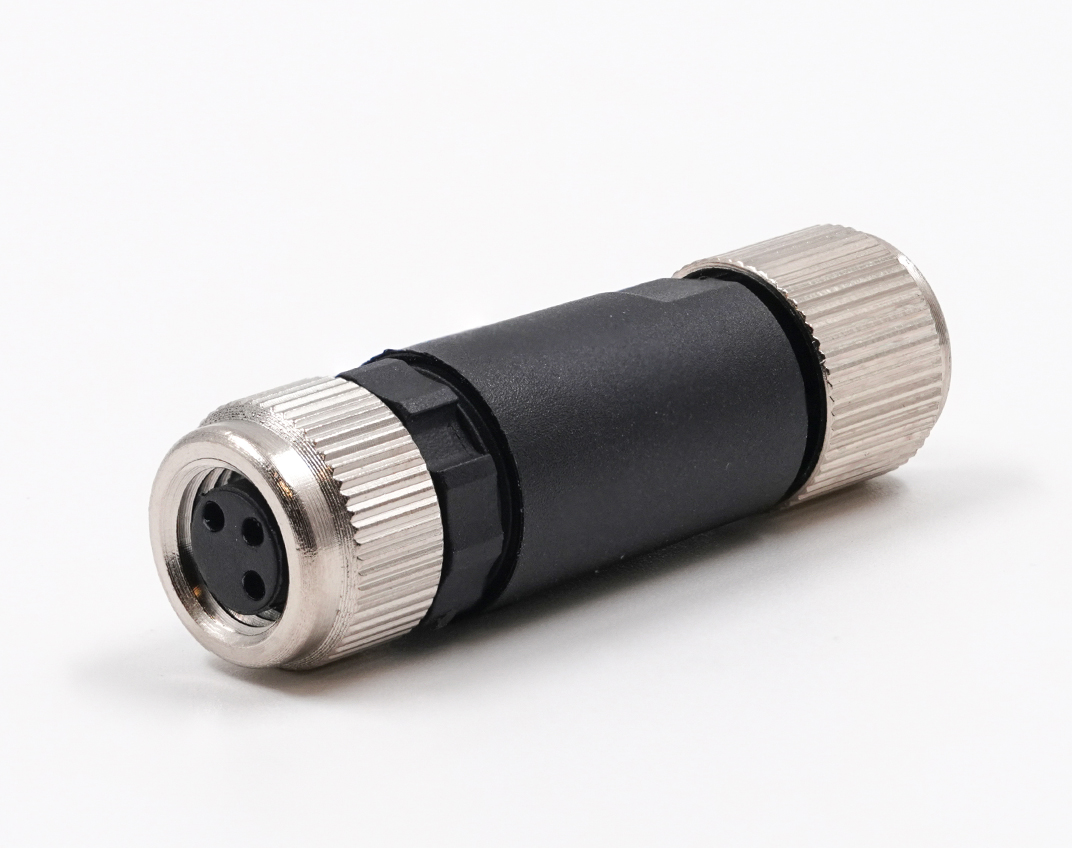

Quick-Connex™ M8 Nano Field Installable Connectors

Quick-Connex® M8 Nano Field Installable mechanical connectors can be paired with Trex-Onics® 24AWG cable to make ‘do-it-yourself’ cordsets. IP67 rated to provide a liquid-tight seal to protect the connection from dust and water contamination. Ideal for a quick on-site repair.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Cordsets can be made with Trex-Onics®24AWG Cables, Rated 80°C

Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Extreme all-weather flexibility.

Polyamide Connector Body, PVC Insert & Rubber Sealing Bushing

mpact and crush resistant with an IP67 rating to provide internal protection from dust and fluid spray.

Copper Alloy Pins are Gold Plated

Provides long life, resist corrosion, easy positive engagement.

Screw Locking System

Secure connection using only a screwdriver. Nylon pressing screw threads into body sleeve and compresses pinch ring and seal to grip cable to prevent conductors from pulling out of connector.

Nickel-Plated Brass Coupling Nut

Resists corrosion and gives quick, secure assembly.

Coupling Nuts are M8 x 1

Industry standard for M8 Nano connectors.

PRESSING SCREW

Nylon pressing screw threads into body sleeve and compresses pinch ring and seal to grip cable and prevent pull out

Resources

Specsheets

Product Overview

CustomCable

Build Your Own M8 Nano Cordsets

Ratings / Characteristics

  • RoHS Compliant

  • 30 V

  • 3 Amps

  • IP67 Rated

  • Temp Range: -40˚C to 85˚C

  • Fits Trex-Onics® Nano 24AWG cable

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Description Cord O.D. Range Shielding Type

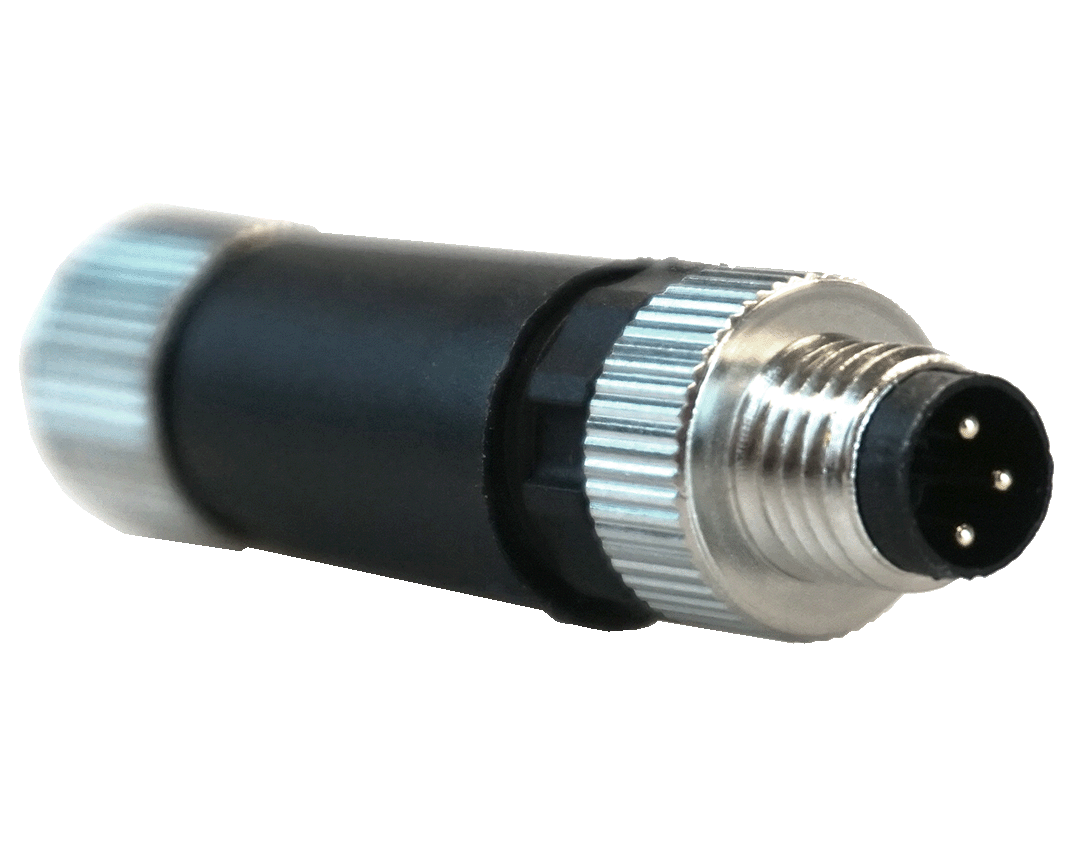

30810 24 AWG 3 3 Pole Male Straight 3 – 5mm / .118 - .197” No Shielding
30811 24 AWG 3 3 Pole Female Straight 3 – 5mm / .118 - .197” No Shielding
30812 24 AWG 4 4 Pole Male Straight 3 – 5mm / .118 - .197” No Shielding
30813 24 AWG 4 4 Pole Female Straight 3 – 5mm / .118 - .197” No Shielding

Cable Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Stranding Nominal O.D.
inches		 Color Code Shielding Type
62323 24 AWG 3 7/32 0.17 Brown, Black, Blue No Shielding
62324 24 AWG 4 7/32 0.18 Brown, White, Black, Blue No Shielding

Related Products

20-26-AWG-Nano-M8-Quick-Connex-Cord-Sets

Quick-Connex™ M8 Nano Receptacles

Request a Quote
