Quick-Connex™ M8 Nano Receptacles

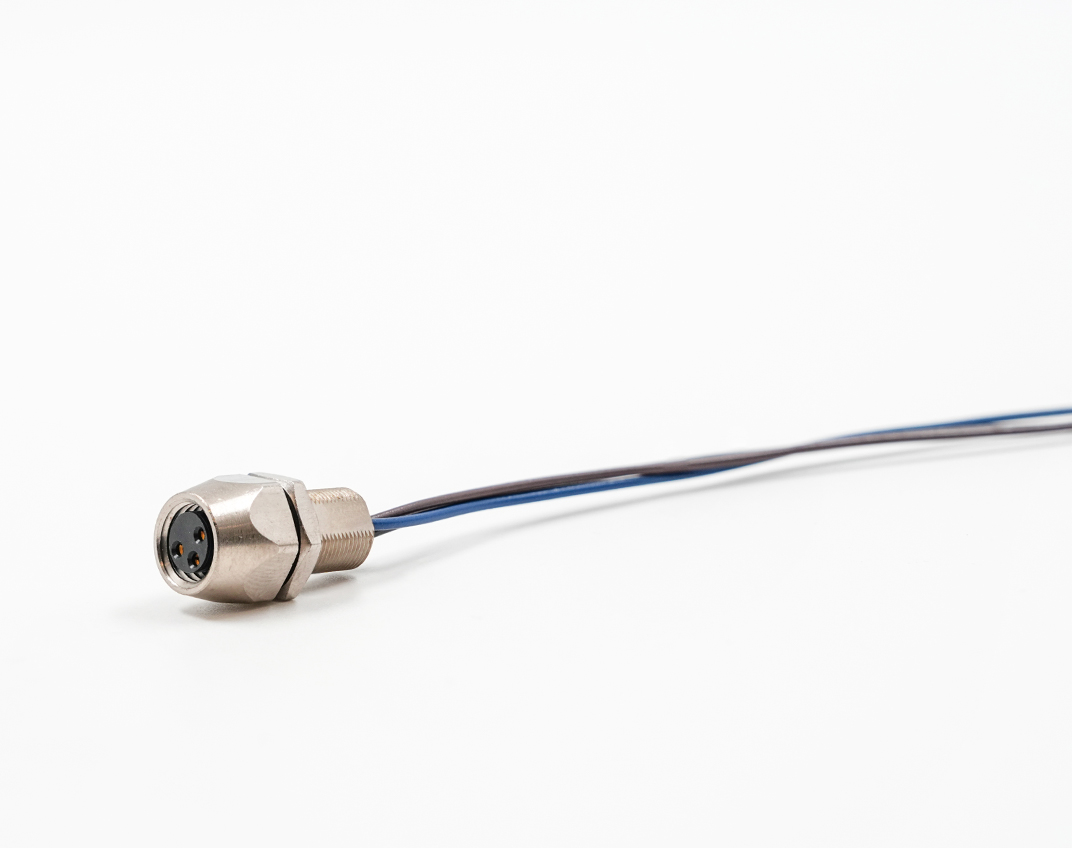

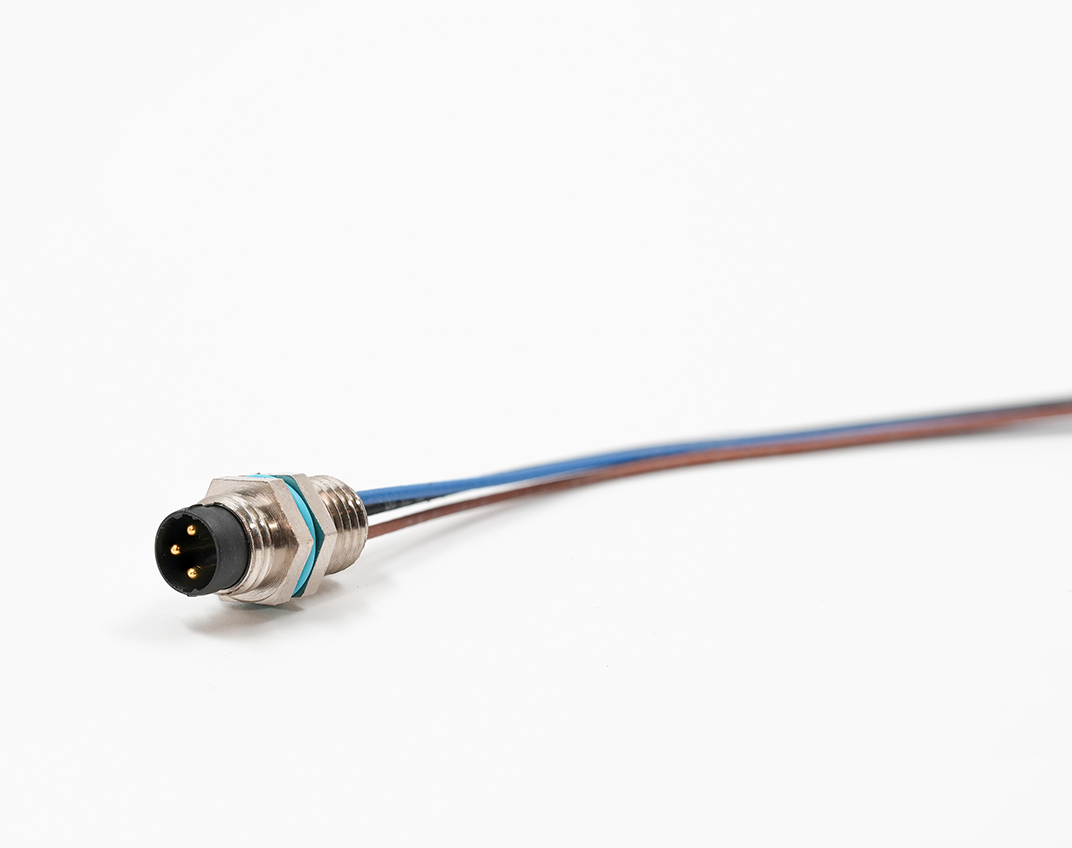

Quick-Connex® 24AWG M8 Nano Receptacles are available in both female and male panel mounted style. Female receptacles have 4-foot pigtails and male receptacles have 1-foot pigtails. An O-Ring and locknut included.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

Specially Compounded Thermoplastic Elastomer Receptacle Insert

Provides long flex-life, resists deterioration due to heat and oil exposure.

Hard Coated Metal Alloy Receptacle Shell

Resists corrosion and provides quick and secure assembly.

Molded and Keyed Assembly

Provides rapid and secure connection and disconnect. Ensures a water, oil, and dust tight seal.

Nickel-Coated and Gold-Plated Solid Brass Contact Pins Machined Crimped to Conductors

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity DC applications.

Nickel-Coated and Gold-Plated Solid Brass Contact Pins Machined Crimped to Conductors

Provides long life, resists corrosion, easy positive engagement. Ensures electrical integrity DC applications.

Rubber Sealing O-Ring and Steel Locknut

Seals out oil, chemicals, and other contaminants. Locknut included with each unit.

24 AWG Stranded, Tinned Copper Pigtails Insulated with 105°C Cross-Linked Polyethylene

Provides excellent oil and heat resistance.

Mating Dimensions: M8 x 1.0 Thread

Industry standard for M8 Nano Receptacles.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own M8 Nano Cordsets

Ratings / Characteristics

  • UL Listed

  • cUL

  • RoHS Compliant

  • 300 V

  • Max Conductor Temperature 90°C

  • IP69K Rated

  • Operating Temperature: -30° to 90°C

  • UV Resistant

  • Oil Resistant

Part Numbers

PART NO. Conductor Size (AWG) Conductor/Pole Count DESCRIPTION CORD LENGTH
feet		 CORD LENGTH
meters		 Shielding Type
RC13C33F004 24 AWG 3 3 Pole Female Panel Mount Receptacle 4 1.2 No Shielding
RC14C34F004 24 AWG 4 4 Pole Female Panel Mount Receptacle 4 1.2 No Shielding
RC13A33F001 24 AWG 3 3 Pole Male Panel Mount Receptacle 1 0.3 No Shielding
RC14A34F001 24 AWG 4 4 Pole Male Panel Mount Receptacle 1 0.3 No Shielding

Related Products

nano-m8-snap-lock_1

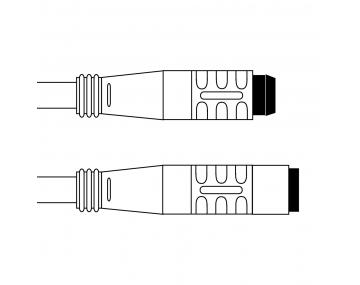

Quick-Connex™ M8 Nano Cordsets
