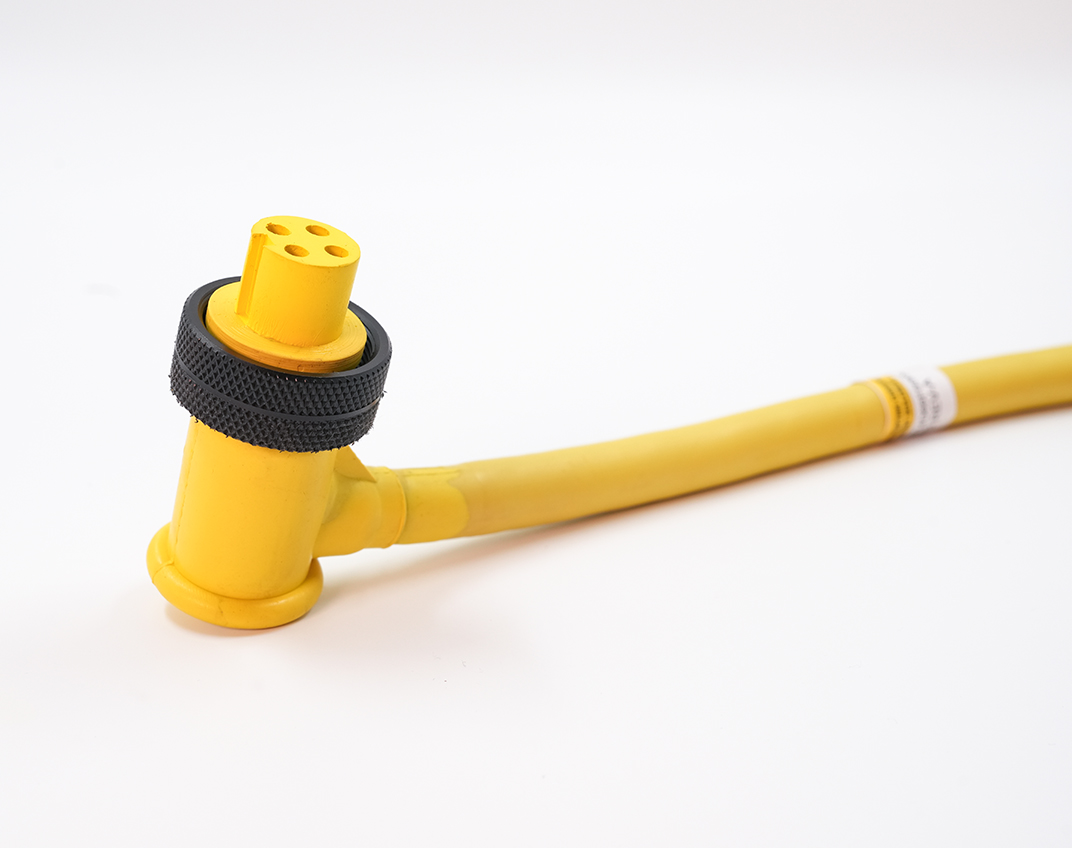

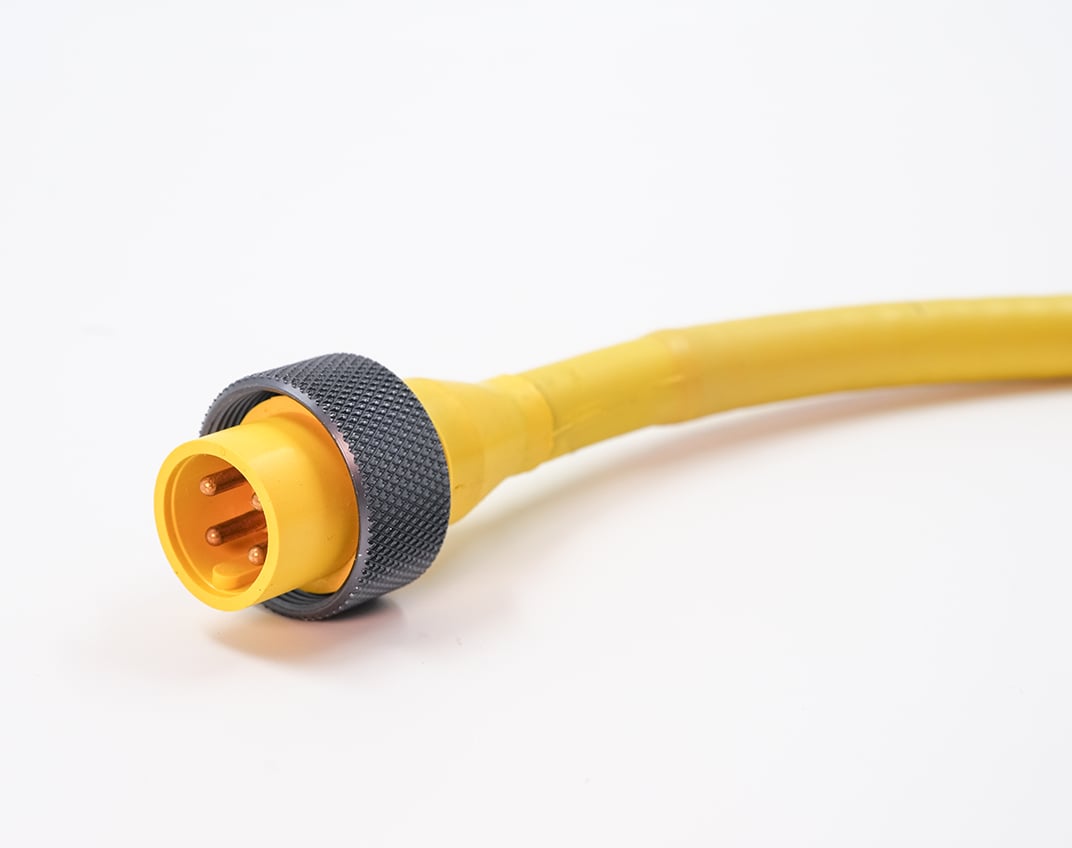

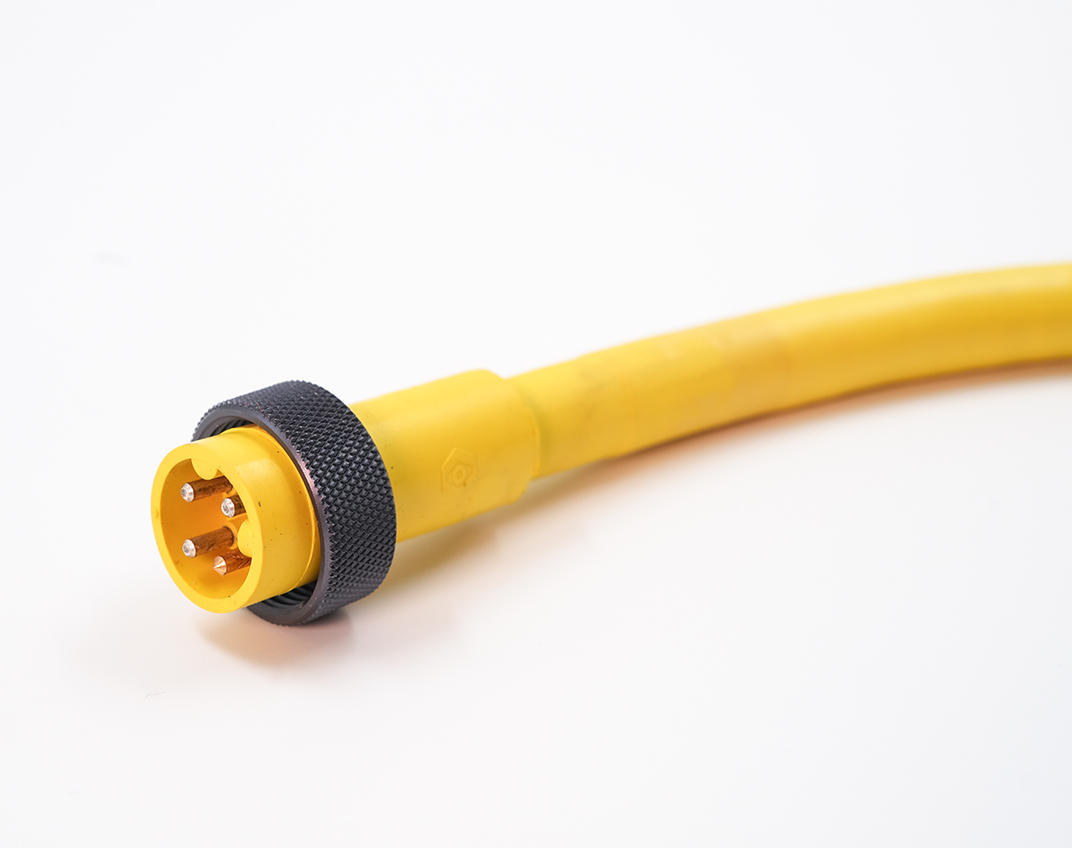

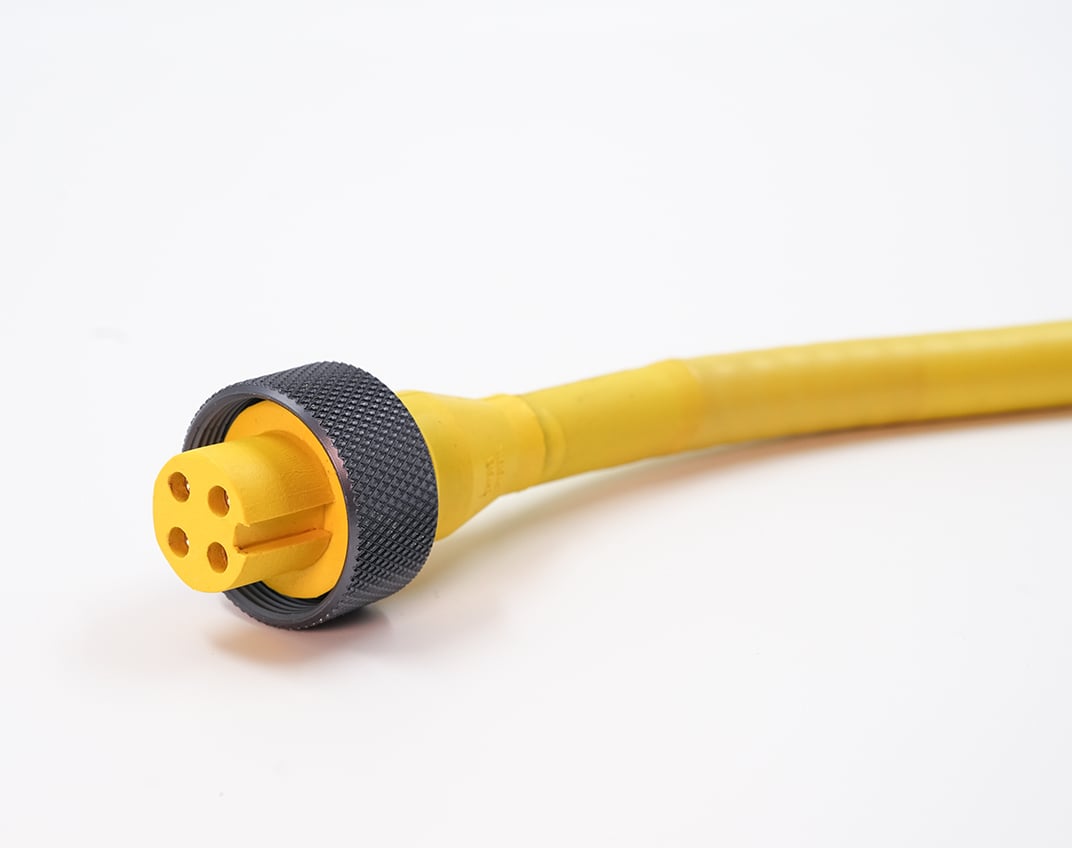

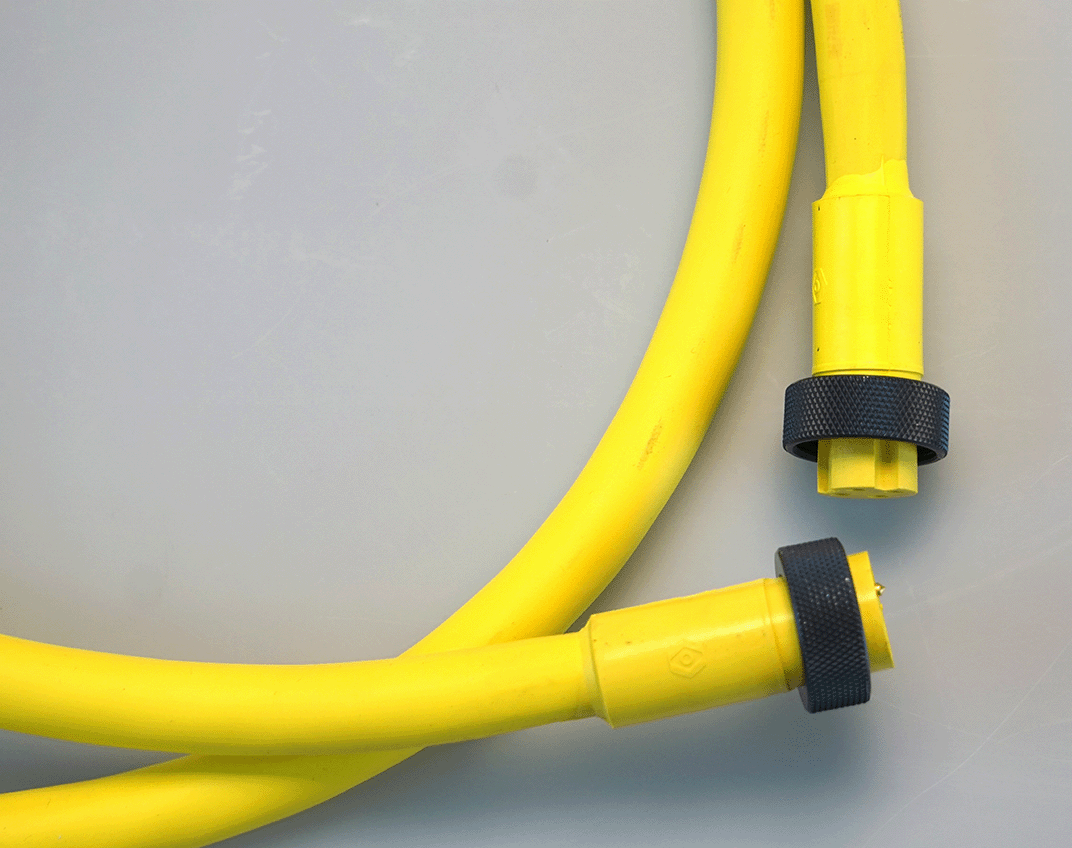

Quick-Connex® 10 & 12 AWG Cordsets 3 & 4 Pole make the replacement of electrical connections quick and simple. Each cordset is built with Super-Trex® Ultra-Gard® Portable Cord which provides a superior first-line of defense against tearing, abrasion, impact, oil, and most chemicals. The molded and keyed cordset provides rapid and secure connect and disconnect and ensures a water, oil, and dust-tight seal.
Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.
Provides long flex life, resists heat and oil deterioration.
Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.
Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.
Resists corrosion, provides quick and secure assembly.
Ensures first-in, last-out contact for safety.
Industry standard for 12 and 10 AWG Mini connectors.
| Product No. | Plug Description | Material | Conductor Size (AWG) | Conductor/Pole Count | feet | meters | Shielding Type |
|---|---|---|---|---|---|---|---|
| 84233A | 12 AWG Female | aluminum | 12 AWG | 3 | 3 | 0.91 | No Shielding |
| 84236A | 12 AWG Female | aluminum | 12 AWG | 3 | 6 | 1.83 | No Shielding |
| 84237A | 12 AWG Female | aluminum | 12 AWG | 3 | 12 | 3.66 | No Shielding |
| 84273A | 12 AWG Male | aluminum | 12 AWG | 3 | 3 | 0.91 | No Shielding |
| 84276A | 12 AWG Male | aluminum | 12 AWG | 3 | 6 | 1.83 | No Shielding |
| 84277A | 12 AWG Male | aluminum | 12 AWG | 3 | 12 | 3.66 | No Shielding |
| 84274A | 12 AWG Male/Female | aluminum | 12 AWG | 3 | 3 | 0.91 | No Shielding |
| 84275A | 12 AWG Male/Female | aluminum | 12 AWG | 3 | 6 | 1.83 | No Shielding |
| 84278A | 12 AWG Male/Female | aluminum | 12 AWG | 3 | 12 | 3.66 | No Shielding |
| 84279A | 12 AWG Male/Female | aluminum | 12 AWG | 3 | 20 | 6.1 | No Shielding |
| 84233N | 12 AWG Female | nylon | 13 AWG | 3 | 3 | 0.91 | No Shielding |
| 84236N | 12 AWG Female | nylon | 14 AWG | 3 | 6 | 1.83 | No Shielding |
| 84237N | 12 AWG Female | nylon | 15 AWG | 3 | 12 | 3.66 | No Shielding |
| 84273N | 12 AWG Male | nylon | 16 AWG | 3 | 3 | 0.91 | No Shielding |
| 84276N | 12 AWG Male | nylon | 17 AWG | 3 | 6 | 1.83 | No Shielding |
| 84277N | 12 AWG Male | nylon | 18 AWG | 3 | 12 | 3.66 | No Shielding |
| 84274N | 12 AWG Male/Female | nylon | 19 AWG | 3 | 3 | 0.91 | No Shielding |
| 84275N | 12 AWG Male/Female | nylon | 20 AWG | 3 | 6 | 1.83 | No Shielding |
| 84278N | 12 AWG Male/Female | nylon | 21 AWG | 3 | 12 | 3.66 | No Shielding |
| 84279N | 12 AWG Male/Female | nylon | 22 AWG | 3 | 20 | 6.1 | No Shielding |
| 84213A | 10 AWG Female | aluminum | 10 AWG | 4 | 3 | 0.91 | No Shielding |
| 84216A | 10 AWG Female | aluminum | 10 AWG | 4 | 6 | 1.83 | No Shielding |
| 84217A | 10 AWG Female | aluminum | 10 AWG | 4 | 12 | 3.66 | No Shielding |
| 84283A | 10 AWG Male | aluminum | 10 AWG | 4 | 3 | 0.91 | No Shielding |
| 84286A | 10 AWG Male | aluminum | 10 AWG | 4 | 6 | 1.83 | No Shielding |
| 84287A | 10 AWG Male | aluminum | 10 AWG | 4 | 12 | 3.66 | No Shielding |
| 84253A | 10 AWG Female/ Male | aluminum | 10 AWG | 4 | 3 | 0.91 | No Shielding |
| 84256A | 10 AWG Female/ Male | aluminum | 10 AWG | 4 | 6 | 1.83 | No Shielding |
| 84257A | 10 AWG Female/ Male | aluminum | 10 AWG | 4 | 12 | 3.66 | No Shielding |
| 84243A | 12 AWG Female | aluminum | 12 AWG | 4 | 3 | 0.91 | No Shielding |
| 84246A | 12 AWG Female | aluminum | 12 AWG | 4 | 6 | 1.83 | No Shielding |
| 84247A | 12 AWG Female | aluminum | 12 AWG | 4 | 12 | 3.66 | No Shielding |
| 84293A | 12 AWG Male | aluminum | 12 AWG | 4 | 3 | 0.91 | No Shielding |
| 84296A | 12 AWG Male | aluminum | 12 AWG | 4 | 6 | 1.83 | No Shielding |
| 84297A | 12 AWG Male | aluminum | 12 AWG | 4 | 12 | 3.66 | No Shielding |
| 84294A | 12 AWG Male/Female | aluminum | 12 AWG | 4 | 3 | 0.91 | No Shielding |
| 84295A | 12 AWG Male/Female | aluminum | 12 AWG | 4 | 6 | 1.83 | No Shielding |
| 84298A | 12 AWG Male/Female | aluminum | 12 AWG | 4 | 12 | 3.66 | No Shielding |
| 84299A | 12 AWG Male/Female | aluminum | 12 AWG | 4 | 20 | 6.1 | No Shielding |
| 84213N | 10 AWG Female | nylon | 10 AWG | 4 | 3 | 0.91 | No Shielding |
| 84216N | 10 AWG Female | nylon | 10 AWG | 4 | 6 | 1.83 | No Shielding |
| 84217N | 10 AWG Female | nylon | 10 AWG | 4 | 12 | 3.66 | No Shielding |
| 84283N | 10 AWG Male | nylon | 10 AWG | 4 | 3 | 0.91 | No Shielding |
| 84286N | 10 AWG Male | nylon | 10 AWG | 4 | 6 | 1.83 | No Shielding |
| 84287N | 10 AWG Male | nylon | 10 AWG | 4 | 12 | 3.66 | No Shielding |
| 84253N | 10 AWG Female/ Male | nylon | 10 AWG | 4 | 3 | 0.91 | No Shielding |
| 84256N | 10 AWG Female/ Male | nylon | 10 AWG | 4 | 6 | 1.83 | No Shielding |
| 84257N | 10 AWG Female/ Male | nylon | 10 AWG | 4 | 12 | 3.66 | No Shielding |
| 84243N | 12 AWG Female | nylon | 12 AWG | 4 | 3 | 0.91 | No Shielding |
| 84246N | 12 AWG Female | nylon | 12 AWG | 4 | 6 | 1.83 | No Shielding |
| 84247N | 12 AWG Female | nylon | 12 AWG | 4 | 12 | 3.66 | No Shielding |
| 84293N | 12 AWG Male | nylon | 12 AWG | 4 | 3 | 0.91 | No Shielding |
| 84296N | 12 AWG Male | nylon | 12 AWG | 4 | 6 | 1.83 | No Shielding |
| 84297N | 12 AWG Male | nylon | 12 AWG | 4 | 12 | 3.66 | No Shielding |
| 84294N | 12 AWG Male/Female | nylon | 12 AWG | 4 | 3 | 0.91 | No Shielding |
| 84295N | 12 AWG Male/Female | nylon | 12 AWG | 4 | 6 | 1.83 | No Shielding |
| 84298N | 12 AWG Male/Female | nylon | 12 AWG | 4 | 12 | 3.66 | No Shielding |
| 84299N | 12 AWG Male/Female | nylon | 12 AWG | 4 | 20 | 6.1 | No Shielding |
| Part No. | Conductor Size (AWG) | Conductor/Pole Count | Description | Shielding Type |
|---|---|---|---|---|
| 84250A2 | 10 AWG | 4 | 10 AWG Female Receptacles 4 Pole Aluminum 1/2" | No Shielding |
| 84250A4 | 10 AWG | 4 | 10 AWG Female Receptacles 4 Pole Aluminum 3/4" | No Shielding |
| 84250N2 | 10 AWG | 4 | 10 AWG Female Receptacles 4 Pole Nylon 1/2" | No Shielding |
| 84250N4 | 10 AWG | 4 | 10 AWG Female Receptacles 4 Pole Nylon 3/4" | No Shielding |
| 84210A2 | 10 AWG | 4 | 10 AWG Male Receptacles 4 Pole Aluminum 1/2" | No Shielding |
| 84210A4 | 10 AWG | 4 | 10 AWG Male Receptacles 4 Pole Aluminum 3/4" | No Shielding |
| 84210N2 | 10 AWG | 4 | 10 AWG Male Receptacles 4 Pole Nylon 1/2" | No Shielding |
| 84210N4 | 10 AWG | 4 | 10 AWG Male Receptacles 4 Pole Nylon 3/4" | No Shielding |
| 84231A2 | 12 AWG | 3 | 12 AWG Female Receptacles 3 Pole Aluminum 1/2" | No Shielding |
| 84231A4 | 12 AWG | 3 | 12 AWG Female Receptacles 3 Pole Aluminum 3/4" | No Shielding |
| 84231N2 | 12 AWG | 3 | 12 AWG Female Receptacles 3 Pole Nylon 1/2" | No Shielding |
| 84231N4 | 12 AWG | 3 | 12 AWG Female Receptacles 3 Pole Nylon 3/4" | No Shielding |
| 84241A2 | 12 AWG | 4 | 12 AWG Female Receptacles 4 Pole Aluminum 1/2" | No Shielding |
| 84241A4 | 12 AWG | 4 | 12 AWG Female Receptacles 4 Pole Aluminum 3/4" | No Shielding |
| 84241N2 | 12 AWG | 4 | 12 AWG Female Receptacles 4 Pole Nylon 1/2" | No Shielding |
| 84241N4 | 12 AWG | 4 | 12 AWG Female Receptacles 4 Pole Nylon 3/4" | No Shielding |
| 84230A2 | 12 AWG | 3 | 12 AWG Male Receptacles 3 Pole Aluminum 1/2" | No Shielding |
| 84230A4 | 12 AWG | 3 | 12 AWG Male Receptacles 3 Pole Aluminum 3/4" | No Shielding |
| 84230N2 | 12 AWG | 3 | 12 AWG Male Receptacles 3 Pole Nylon 1/2" | No Shielding |
| 84230N4 | 12 AWG | 4 | 12 AWG Male Receptacles 3 Pole Nylon 3/4" | No Shielding |
| 84240A2 | 12 AWG | 4 | 12 AWG Male Receptacles 4 Pole Aluminum 1/2" | No Shielding |
| 84240A4 | 12 AWG | 4 | 12 AWG Male Receptacles 4 Pole Aluminum 3/4" | No Shielding |
| 84240N2 | 12 AWG | 4 | 12 AWG Male Receptacles 4 Pole Nylon 1/2" | No Shielding |
| 84240N4 | 12 AWG | 4 | 12 AWG Male Receptacles 4 Pole Nylon 3/4" | No Shielding |
| 98160 | 10 AWG, 12 AWG | Aluminum Closure Cap for Receptacle 10 & 12 AWG | No Shielding | |
| 98159 | 10 AWG, 12 AWG | Aluminum Closure Cap for Plugs 10 & 12 AWG | No Shielding | |
| 98165 | 10 AWG, 12 AWG | Aluminum Adapter 10 & 12 AWG | No Shielding | |
| 98165N | 10 AWG, 12 AWG | Nylon Adapter for 10 & 12 AWG | No Shielding |
