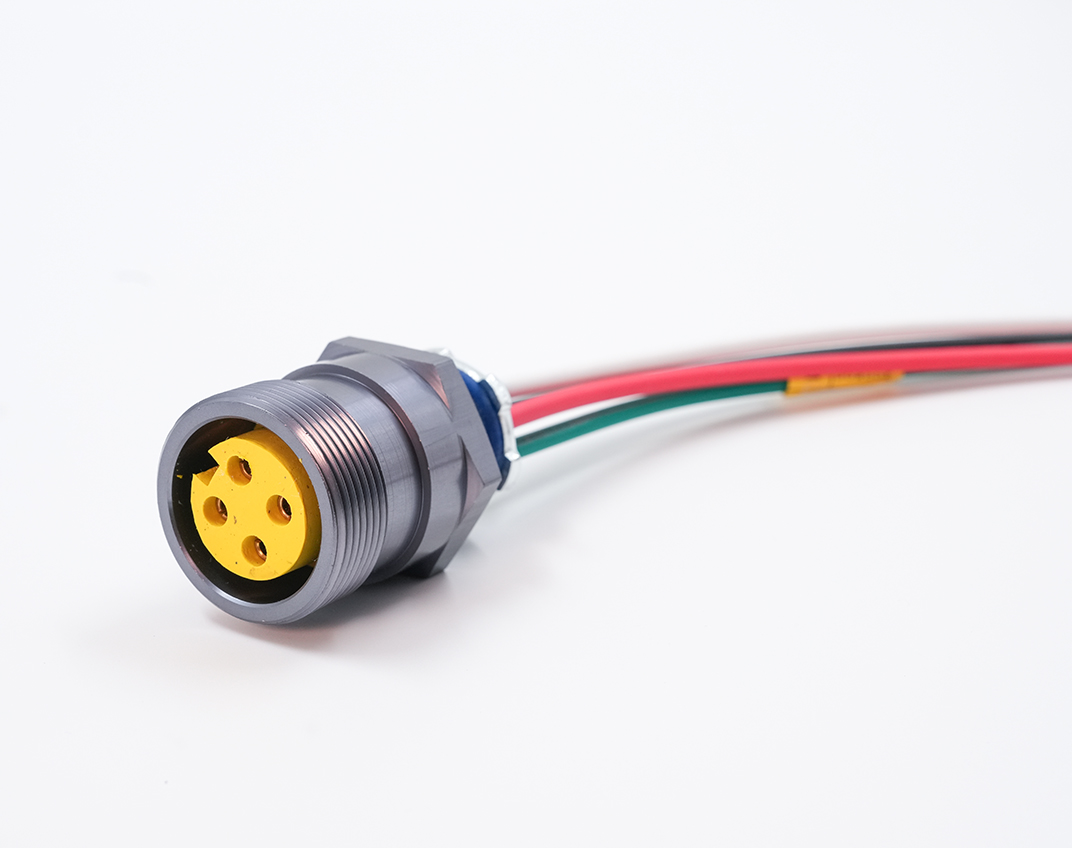

Quick-Connex® 10 & 12 AWG Mini Receptacles (3 & 4 Pole) FEM 3QV_Web

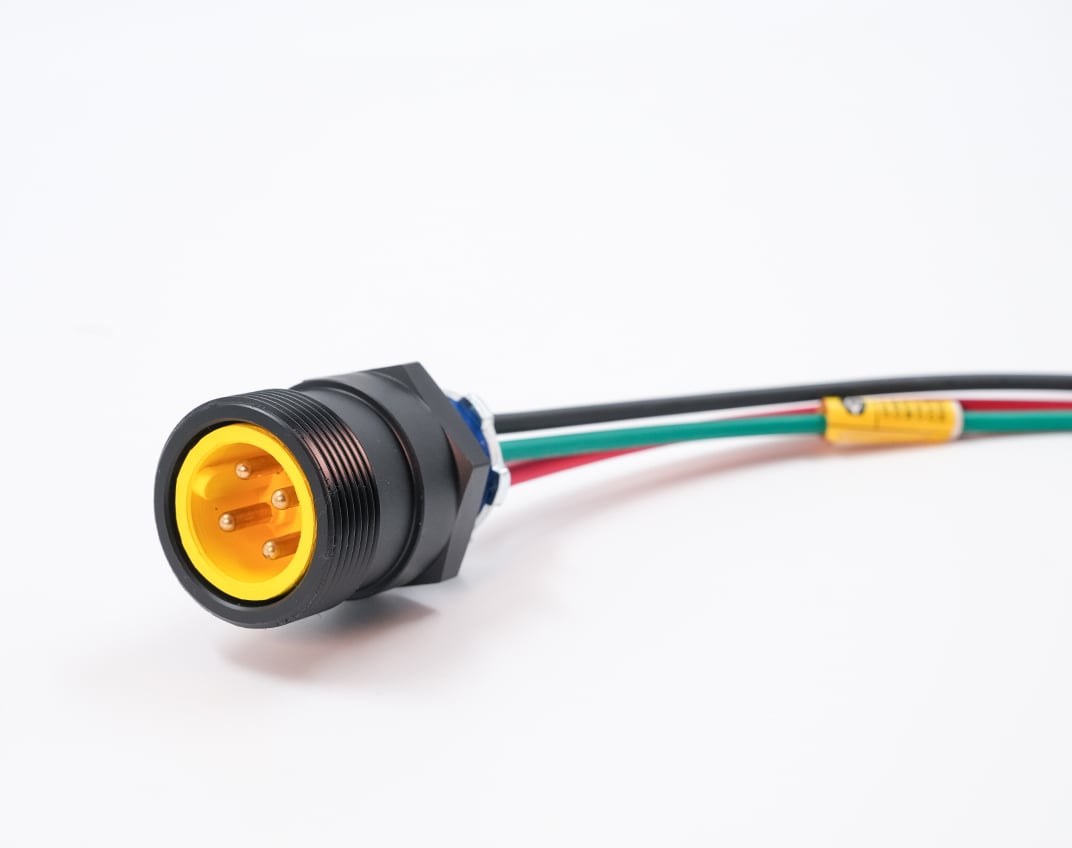

Quick-Connex® 10 & 12 AWG Mini Receptacles (3 & 4 Pole) MALE 3QV_Web

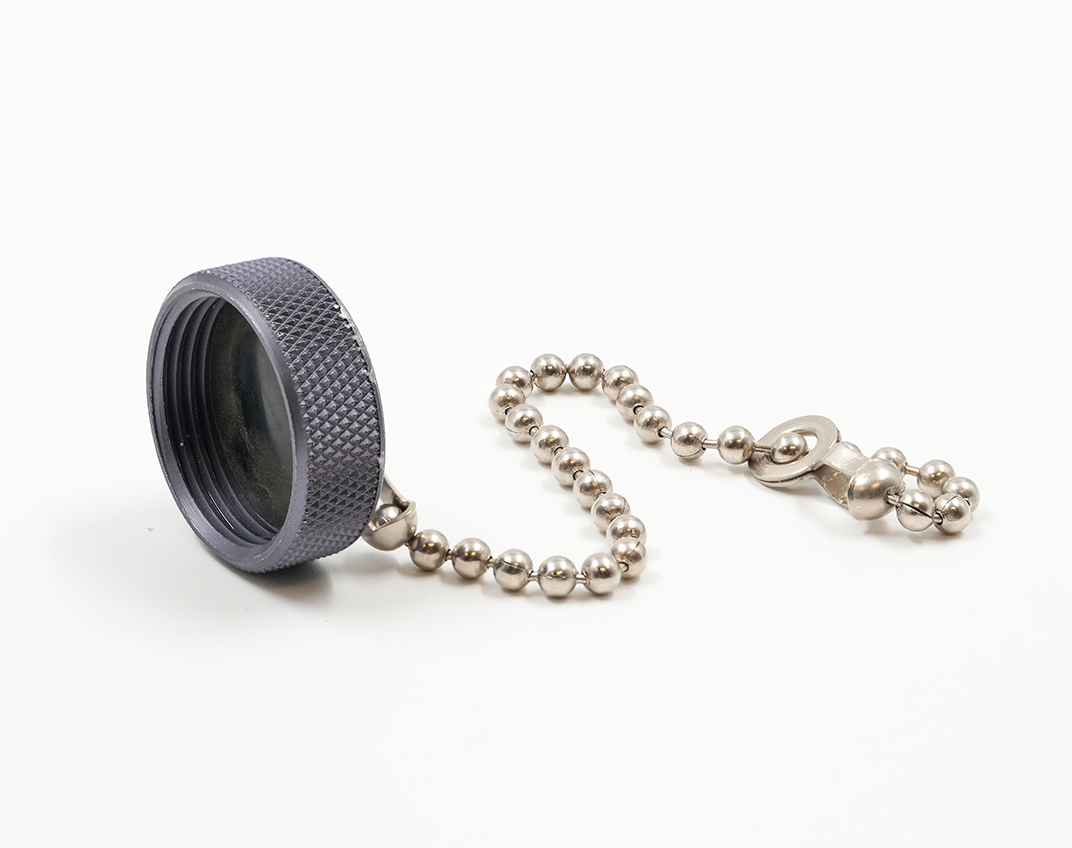

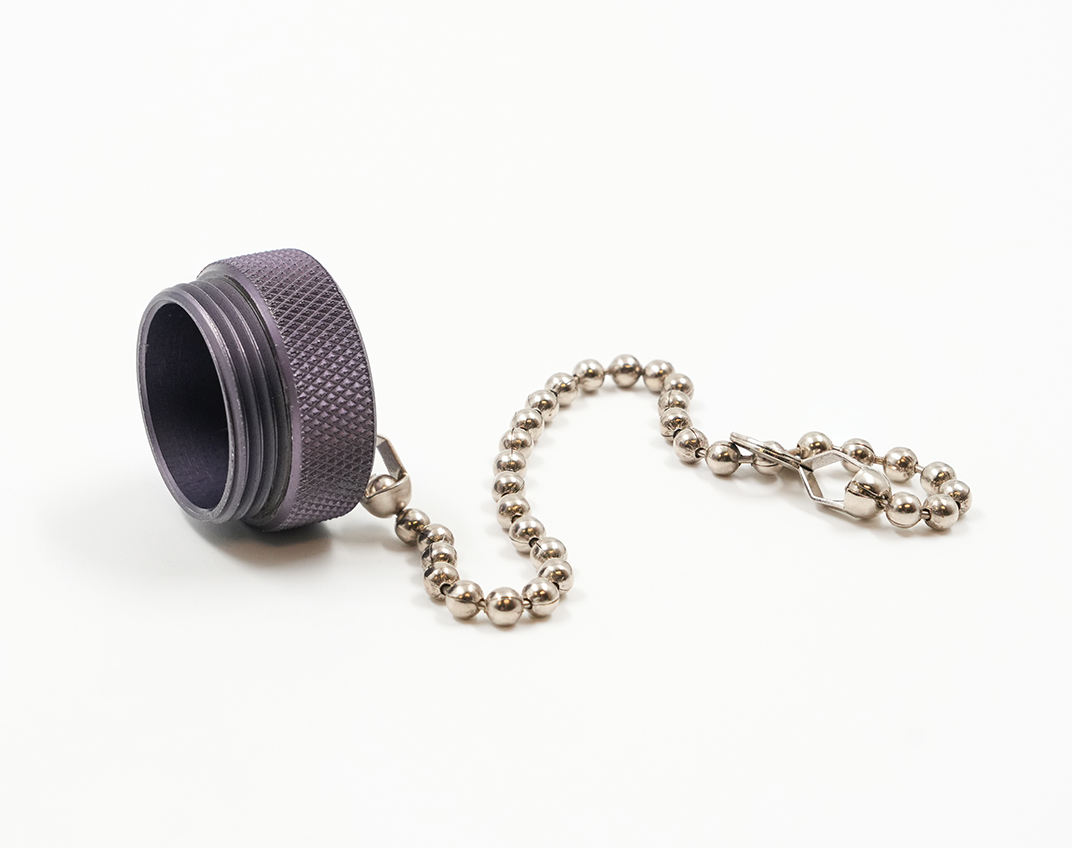

Quick-Connex® 10 & 12 AWG Mini Receptacles (3 & 4 Pole) Closure Cap 1_Web
Quick-Connex® 10 & 12 AWG Mini Receptacles (3 & 4 Pole) Closure Cap 2_Web

Quick-Connex® 10 & 12 AWG Mini Receptacles (3 & 4 Pole)

Quick-Connex® 10 & 12 AWG Mini Receptacles (3 & 4 Pole) are available in female and male straight, back mounted styles. Females have 4-foot pigtails and males with 1-foot pigtails. O-Ring and locknut included.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

SPECIALLY COMPOUNDED THERMOSET ELASTOMER RECEPTACLE INSERT

Ensures moisture tight seal. Provides long flex-life, resists deterioration due to heat and exposure.

HARD COATED ANODIZED ALUMINUM OR NYLON RECEPTACLE SHELL

Resists corrosion and provides quick and secure assembly.

MOLDED AND KEYED ASSEMBLY

Provides rapid and secure connection and disconnect. Ensures water, oil, and dust tight seal.

COPPER ALLOY CONTACT PINS ARE SILVER PLATED, MACHINE CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.

EXTRA LONG GROUNDING PIN

Ensures first-in, last-out contact for safety.

STRANDED COPPER PIGTAILS INSULATED WITH 125°C CROSS-LINKED POLYETHYLENE

Provide excellent oil and heat resistance.

MATING DIMENSIONS: 1-3/8”-16 UNF WITH ½”-14" OR ¾”-14 NPT MOUNT

Industry standard for 14AWG Mini connectors.

CLOSURE CAPS AND ADAPTERS

For sealing out moisture and chemicals when cordset is not in use. Available separately.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Mini Cordsets

Ratings / Characteristics

  • RoHS Compliant

  • 600V

  • IP69K Rated

  • Operating Temperature: -20° to 90°C

  • Oil and Heat Resistant

Applications

flexing-icon

Flexing

abrasions-icon

Abrasion

chemicals-icon

Chemicals

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Description Shielding Type
84250A2 10 AWG 4 10 AWG Female Receptacles 4 Pole Aluminum 1/2" No Shielding
84250A4 10 AWG 4 10 AWG Female Receptacles 4 Pole Aluminum 3/4" No Shielding
84250N2 10 AWG 4 10 AWG Female Receptacles 4 Pole Nylon 1/2" No Shielding
84250N4 10 AWG 4 10 AWG Female Receptacles 4 Pole Nylon 3/4" No Shielding
84210A2 10 AWG 4 10 AWG Male Receptacles 4 Pole Aluminum 1/2" No Shielding
84210A4 10 AWG 4 10 AWG Male Receptacles 4 Pole Aluminum 3/4" No Shielding
84210N2 10 AWG 4 10 AWG Male Receptacles 4 Pole Nylon 1/2" No Shielding
84210N4 10 AWG 4 10 AWG Male Receptacles 4 Pole Nylon 3/4" No Shielding
84231A2 12 AWG 3 12 AWG Female Receptacles 3 Pole Aluminum 1/2" No Shielding
84231A4 12 AWG 3 12 AWG Female Receptacles 3 Pole Aluminum 3/4" No Shielding
84231N2 12 AWG 3 12 AWG Female Receptacles 3 Pole Nylon 1/2" No Shielding
84231N4 12 AWG 3 12 AWG Female Receptacles 3 Pole Nylon 3/4" No Shielding
84241A2 12 AWG 4 12 AWG Female Receptacles 4 Pole Aluminum 1/2" No Shielding
84241A4 12 AWG 4 12 AWG Female Receptacles 4 Pole Aluminum 3/4" No Shielding
84241N2 12 AWG 4 12 AWG Female Receptacles 4 Pole Nylon 1/2" No Shielding
84241N4 12 AWG 4 12 AWG Female Receptacles 4 Pole Nylon 3/4" No Shielding
84230A2 12 AWG 3 12 AWG Male Receptacles 3 Pole Aluminum 1/2" No Shielding
84230A4 12 AWG 3 12 AWG Male Receptacles 3 Pole Aluminum 3/4" No Shielding
84230N2 12 AWG 3 12 AWG Male Receptacles 3 Pole Nylon 1/2" No Shielding
84230N4 12 AWG 4 12 AWG Male Receptacles 3 Pole Nylon 3/4" No Shielding
84240A2 12 AWG 4 12 AWG Male Receptacles 4 Pole Aluminum 1/2" No Shielding
84240A4 12 AWG 4 12 AWG Male Receptacles 4 Pole Aluminum 3/4" No Shielding
84240N2 12 AWG 4 12 AWG Male Receptacles 4 Pole Nylon 1/2" No Shielding
84240N4 12 AWG 4 12 AWG Male Receptacles 4 Pole Nylon 3/4" No Shielding
98160 10 AWG, 12 AWG Aluminum Closure Cap for Receptacle 10 & 12 AWG No Shielding
98159 10 AWG, 12 AWG Aluminum Closure Cap for Plugs 10 & 12 AWG No Shielding
98165 10 AWG, 12 AWG Aluminum Adapter 10 & 12 AWG No Shielding
98165N 10 AWG, 12 AWG Nylon Adapter for 10 & 12 AWG No Shielding

Related Products

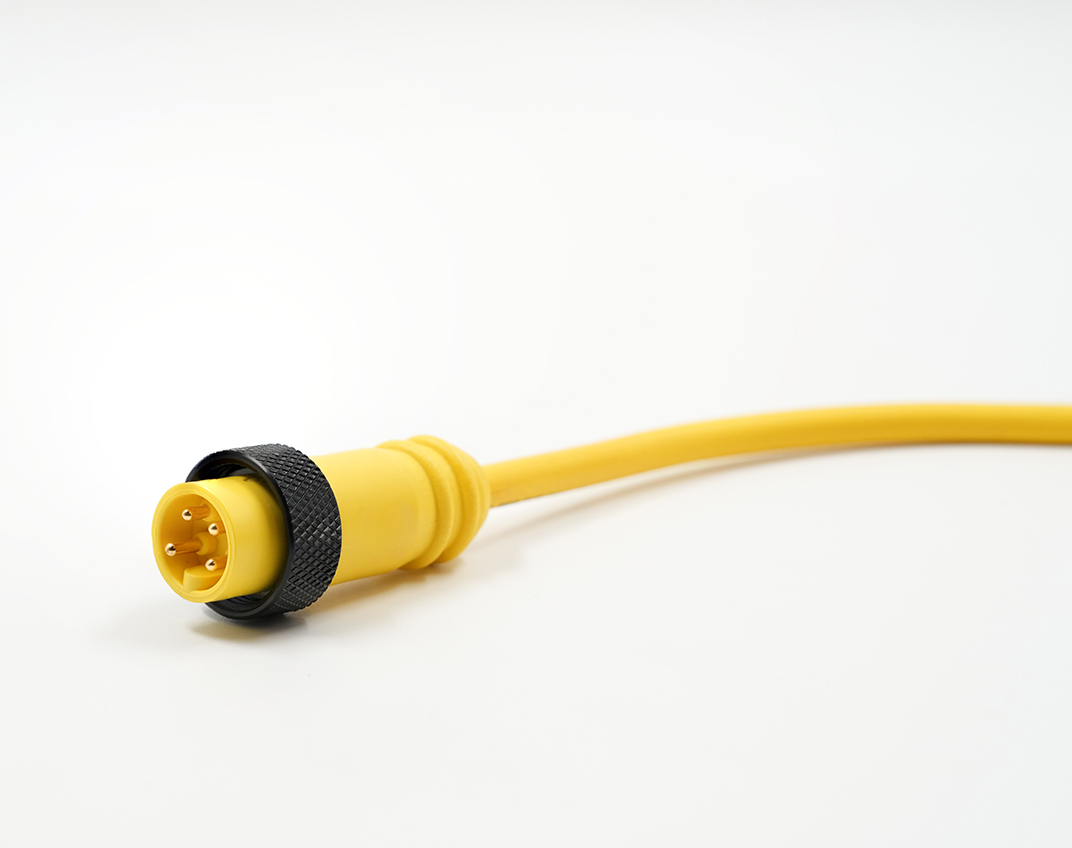

Quick-Connex® 16 AWG Retractile Mini Cordsets Male_Web

Quick-Connex™ 16 and 14 AWG Mini Cordsets and Receptacles

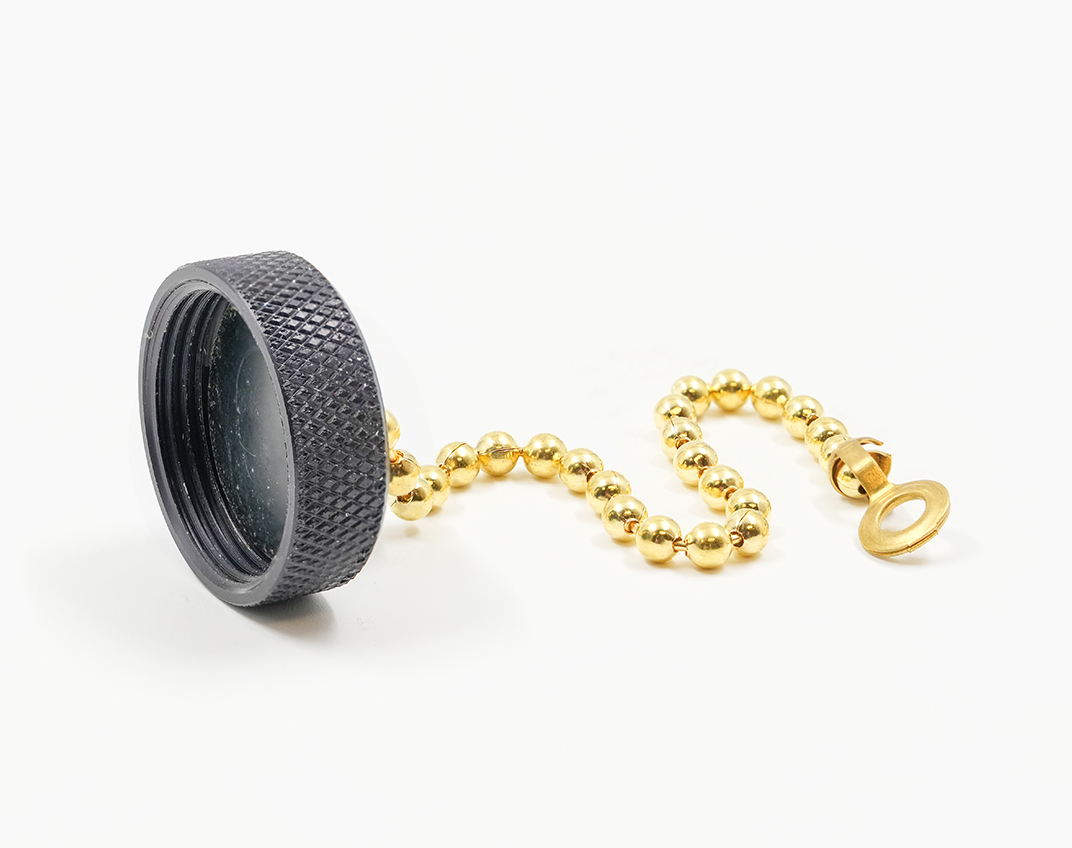

Quick-Connex® 16 AWG Mini Accessories 2_Web
