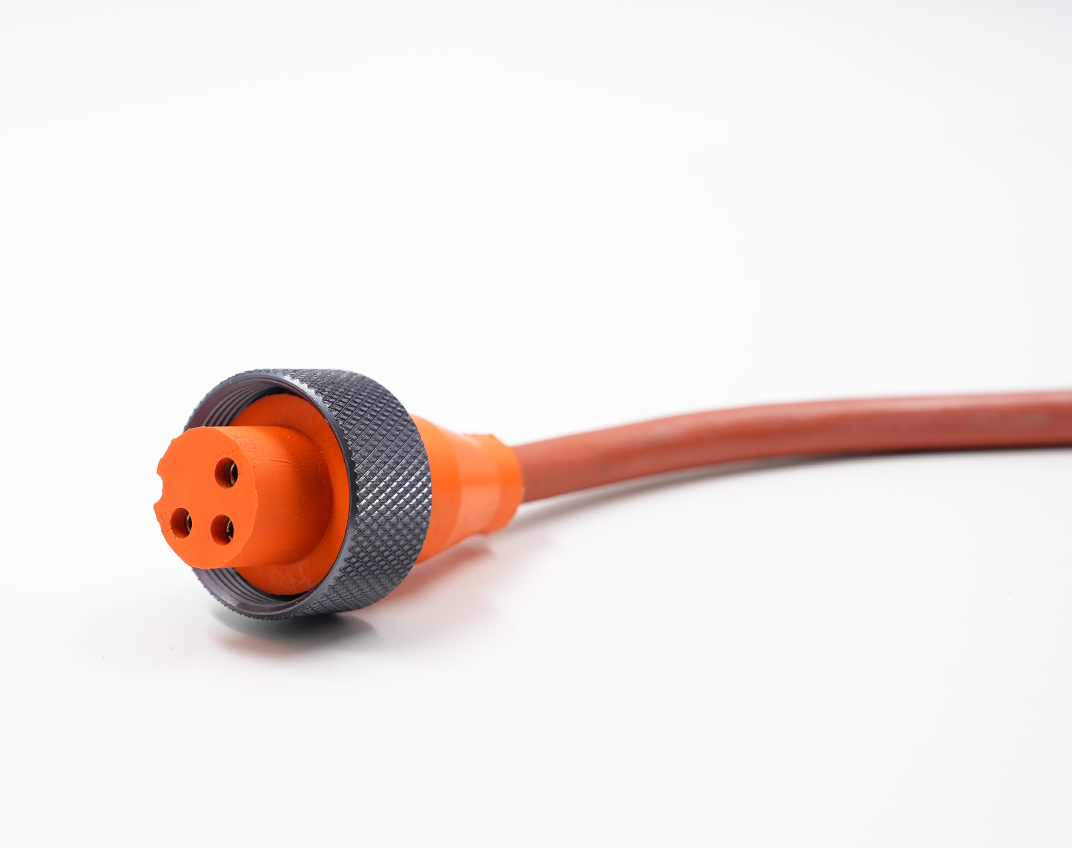

Quick-Connex® 12 AWG Mini High Temperature Cordsets Female_Web

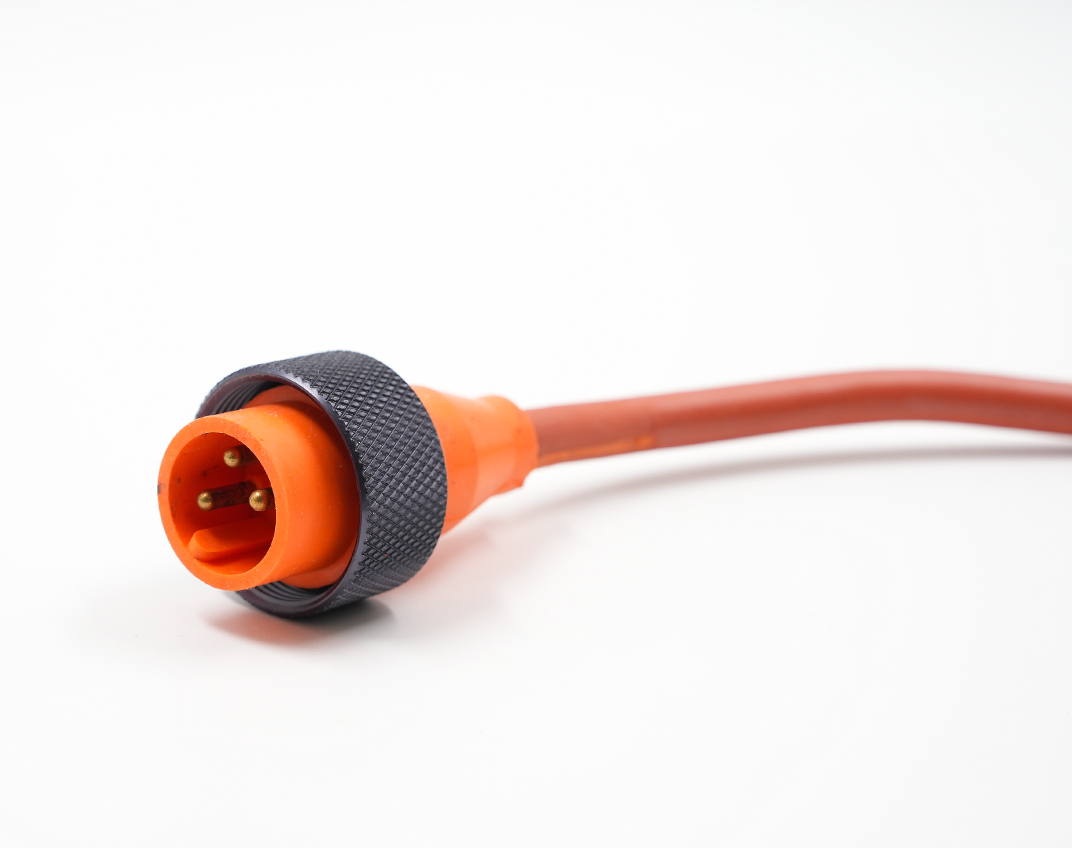

Quick-Connex® 12 AWG Mini High Temperature Cordsets Male_Web

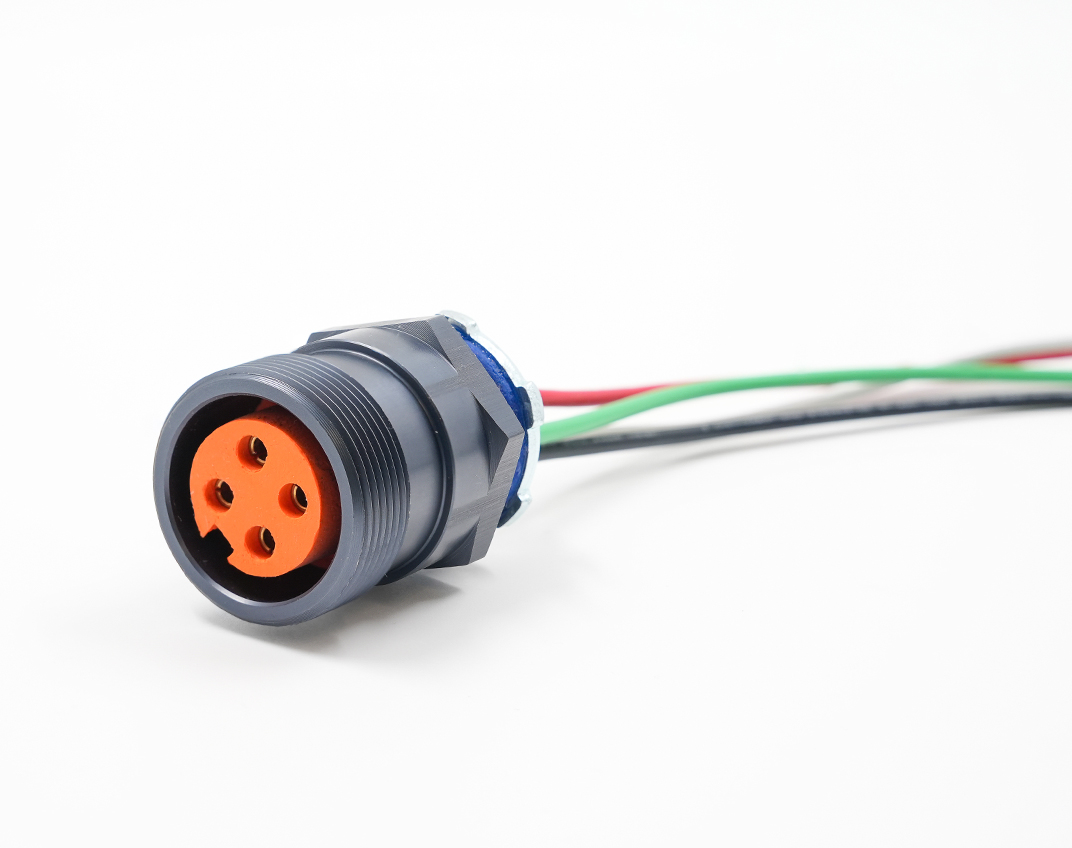

Quick-Connex® 12 AWG Mini High Temperature Cordsets Female Receptacle_Web

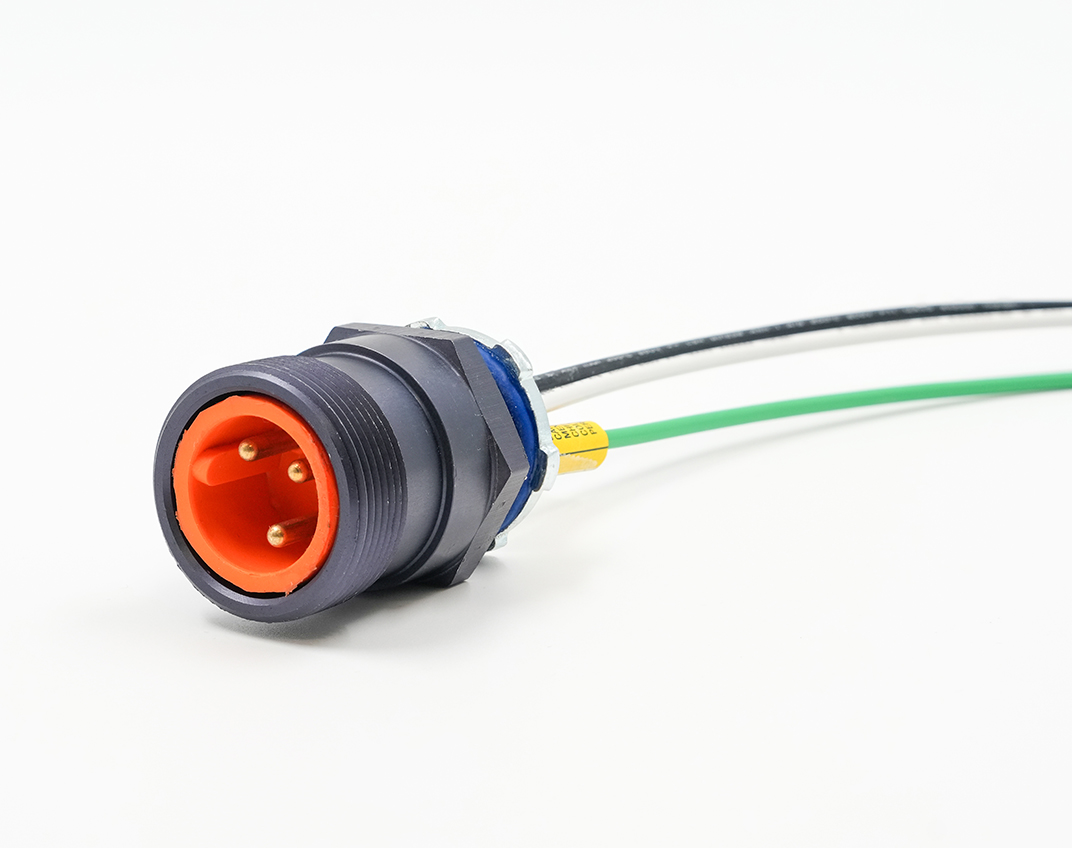

Quick-Connex® 12 AWG Mini High Temperature Cordsets Male Receptacle_Webb

Quick-Connex™ 12 AWG Mini High Temperature Cordsets

Quick-Connex® 12 AWG Mini cordsets make the replacement of electrical connections quick and simple. Each cordset is built with our Thermo-Trex® 500-Plus 12AWG High Temperature cable designed with a tear resistant silicone jacket and fully bonded silicone head providing IP68 seal against moisture. It is an ideal choice for applications exposed to high temperatures up to 180°C, chemicals, UV light and mechanical abuse.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Cordset Features

Connector Body is Specially Compounded Silicone Rubber

Provides long flex life, resists heat up to 180°C and oil deterioration.

Cordsets Made with Thermo-Trex® 500-Plus Silicone Cable, Rated 200°C

Superior first line of defense against high temperatures, oil and most chemicals. All weather flexibility.

Molded and Keyed Assembly

Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.

Solid Copper Alloy and Silver Plated Contact Pins

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.

Hard Coated Aluminum Coupling Nut

Resists corrosion, provides quick and secure assembly.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own Thermo-Trex 500-Plus Cordsets

Ratings / Characteristics

  • 600 V

  • RoHS Compliant

  • Operating Temperature up to 200°C

  • IP68 Rated

  • Operating Temperature: -40° to 180°C

  • UV Resistant

  • Chemical & Oil Resistant

  • Bend Radius of Thermo-Trex® 500-Plus Silicone Cable: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

heat-icon

Extreme Temperature

flexing-icon

Flexing

Part Numbers

Part No. Conductor Size (AWG) Conductor/Pole Count Description Amps Shielding Type
84273S 12 AWG 3 3 Pole 3' Male Plug 45 No Shielding
84276S 12 AWG 3 3 Pole 6' Male Plug 45 No Shielding
84277S 12 AWG 3 3 Pole 12' Male Plug 45 No Shielding
84293S 12 AWG 4 4 Pole 3' Male Plug 36 No Shielding
84296S 12 AWG 4 4 Pole 6' Male Plug 36 No Shielding
84297S 12 AWG 4 4 Pole 12' Male Plug 36 No Shielding
84233S 12 AWG 3 3 Pole 3' Female Plug 45 No Shielding
84236S 12 AWG 3 3 Pole 6' Female Plug 45 No Shielding
84237S 12 AWG 3 3 Pole 12' Female Plug 45 No Shielding
84243S 12 AWG 4 4 Pole 3' Female Plug 36 No Shielding
84246S 12 AWG 4 4 Pole 6' Female Plug 36 No Shielding
84247S 12 AWG 4 4 Pole 12' Female Plug 36 No Shielding
84274S 12 AWG 3 3 Pole 3' M/F Ext 45 No Shielding
84275S 12 AWG 3 3 Pole 6' M/F Ext 45 No Shielding
84278S 12 AWG 3 3 Pole 12' M/F Ext 45 No Shielding
84279S 12 AWG 3 3 Pole 20' M/F Ext 45 No Shielding
84294S 12 AWG 4 4 Pole 3' M/F Ext 36 No Shielding
84295S 12 AWG 4 4 Pole 6' M/F Ext 36 No Shielding
84298S 12 AWG 4 4 Pole 12' M/F Ext 36 No Shielding
84299S 12 AWG 4 4 Pole 20' M/F Ext 36 No Shielding
84230S2 12 AWG 3 3 Pole 1/2" NPT 12" Male Receptacle Silicone Molded w/High Temperature Wire 45 No Shielding
84230S4 12 AWG 3 3 Pole 3/4" NPT 12" Male Receptacle Silicone Molded w/High Temperature Wire 45 No Shielding
84240S2 12 AWG 4 4 Pole 1/2" NPT 12" Male Receptacle Silicone Molded w/High Temperature Wire 36 No Shielding
84240S4 12 AWG 4 4 Pole 3/4" NPT 12" Male Receptacle Silicone Molded w/High Temperature Wire 36 No Shielding
84231S2 12 AWG 3 3 Pole 1/2" NPT 48" Female Receptacle Silicone Molded w/High Temperature Wire 45 No Shielding
84231S4 12 AWG 3 3 Pole 3/4" NPT 48" Female Receptacle Silicone Molded w/High Temperature Wire 45 No Shielding
84241S2 12 AWG 4 4 Pole 1/2" NPT 48" Female Receptacle Silicone Molded w/High Temperature Wire 36 No Shielding
84241S4 12 AWG 4 4 Pole 3/4" NPT 48" Female Receptacle Silicone Molded w/High Temperature Wire 36 No Shielding
