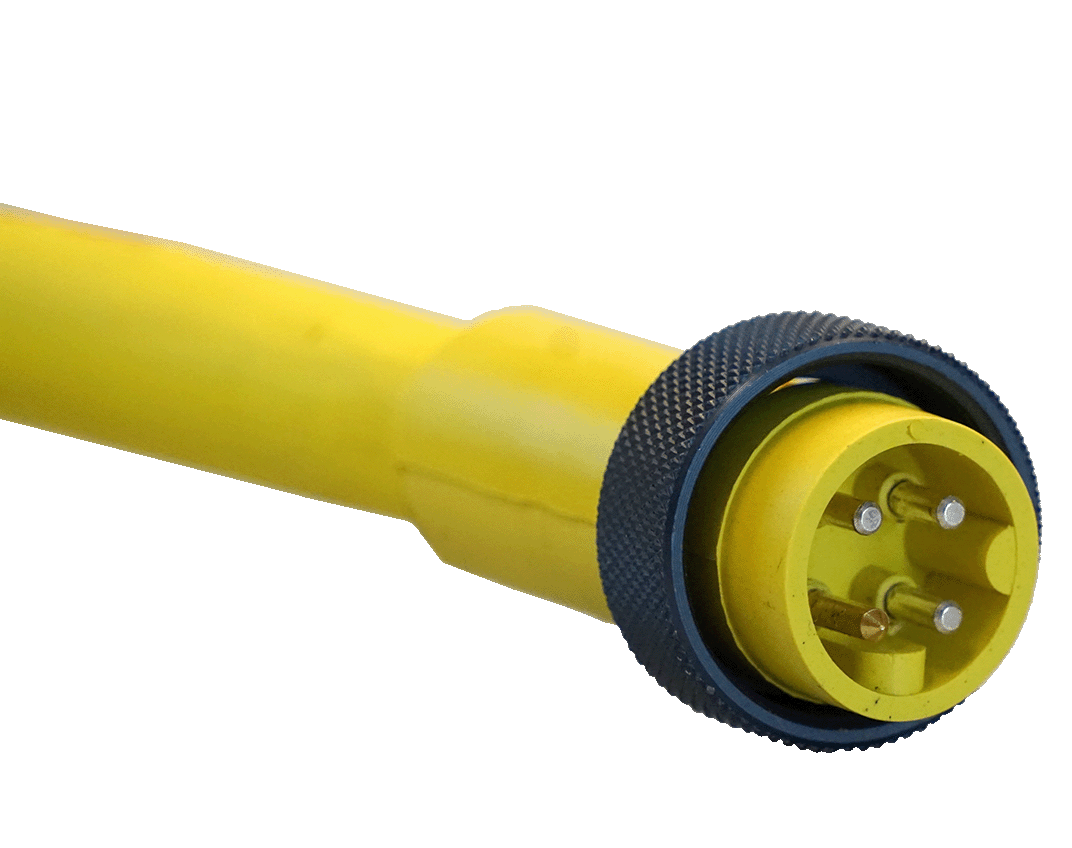

Quick-Connex® 14 AWG Mini Cordsets (3 & 4 Pole) MALE 3QV_Web

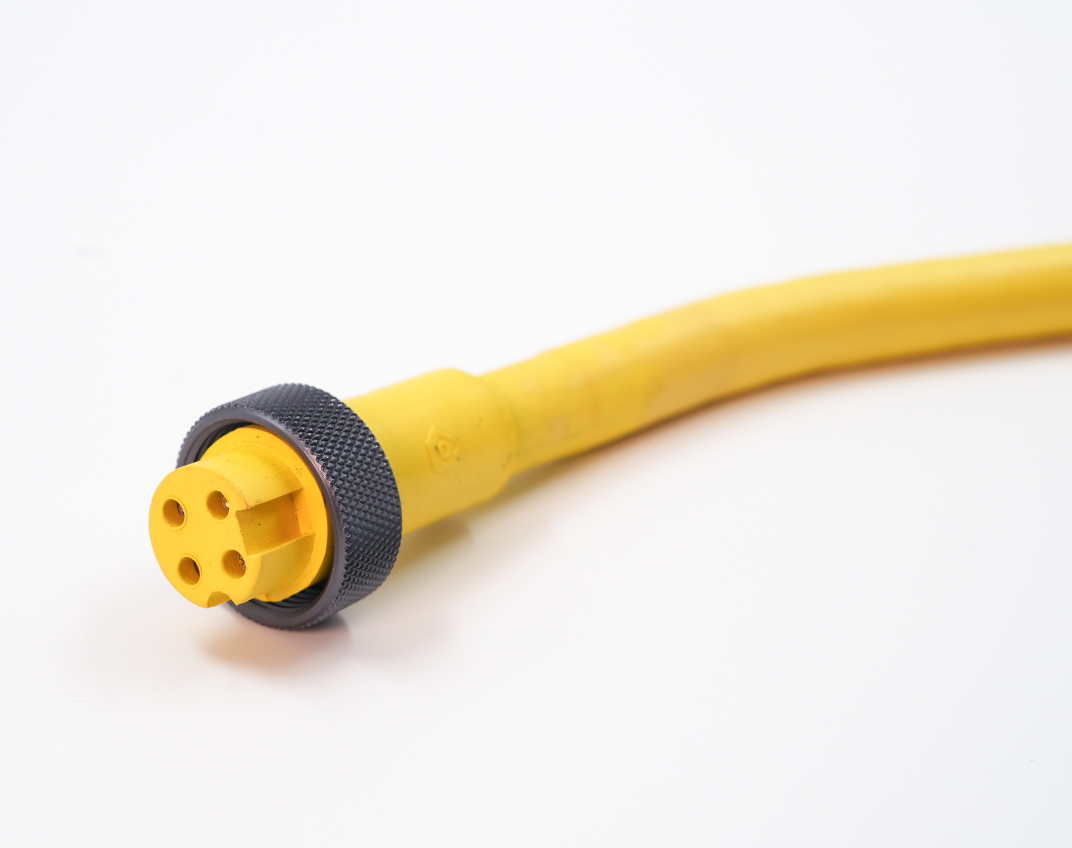

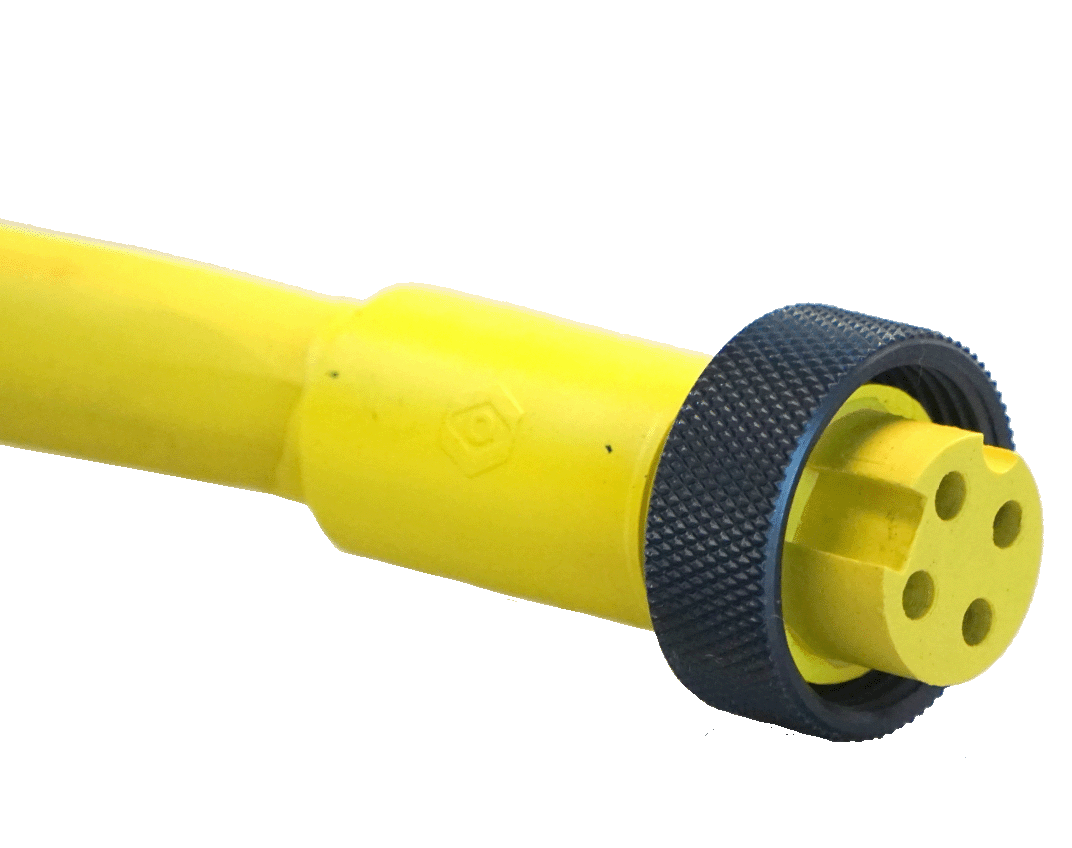

Quick-Connex® 14 AWG Mini Cordsets (3 & 4 Pole) FEM 3QV_Web

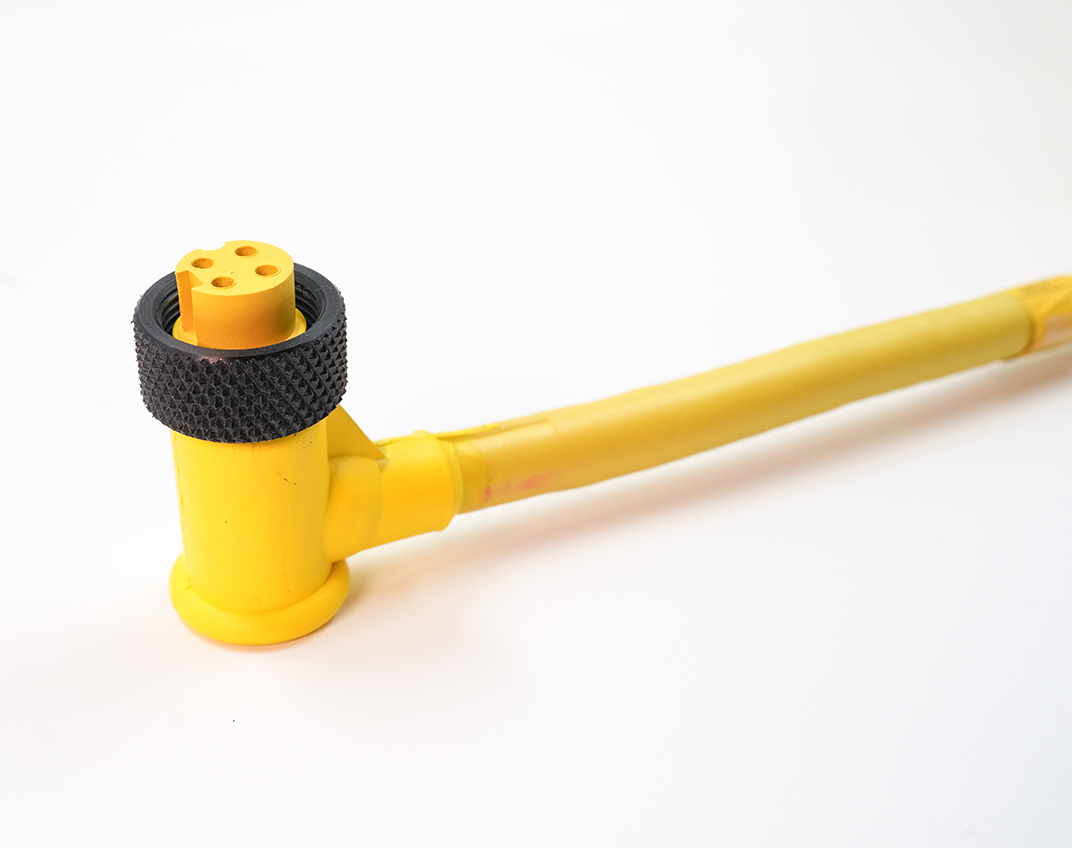

Quick-Connex® 14 AWG Mini Cordsets (3 & 4 Pole) 90 3QV_Web

Quick-Connex® 14 AWG Mini Cordsets (3 & 4 Pole)

Quick-Connex® 14 AWG Mini Cordsets D size 3 & 4 Pole make the replacement of electrical connections quick and simple. Each cordset is built with Super-Trex® Ultra-Gard® Portable Cord which provides a superior first-line of defense against tearing, abrasion, impact, oil, ozone and most chemicals. The molded and keyed cordset provides rapid and secure connect and disconnect and ensures a water, oil, and dust-tight seal.

Request a Quote Download Spec Sheet
Features
Resources
Ratings
Applications
Part Numbers
Related Products

Features

CORDSETS MADE WITH SUPER-TREX® ULTRA-GARD® PORTABLE CORD, RATED 90°C

Superior first-line defense against tearing, abrasion, impact, oil, ozone and most chemicals. Flame and heat resistant. Extreme all-weather flexibility.

CONNECTOR BODY IS SPECIALLY COMPOUNDED, THERMOSET ELASTOMER

Provides long flex life, resists heat and oil deterioration.

MOLDED AND KEYED ASSEMBLY

Provides rapid and secure connect and disconnect. Ensures a water, oil, and dust tight seal.

COPPER ALLOY CONTACT PINS ARE SILVER PLATED, MACHINE CRIMPED TO CONDUCTORS

Provides long life, resists corrosion, easy positive engagement. Excellent for high/low voltage and low-level signal applications.

ANODIZED ALUMINUM COUPLING NUT

Resists corrosion, provides quick and secure assembly.

EXTRA LONG GROUNDING PIN

Ensures first-in, last-out contact for safety.

COUPLING NUT IS 1”-16 UNF

Industry standard for 14AWG Mini connectors.

Resources

Specsheets

Product Overview

CustomCable

Build Your Own 14, 12 & 10 AWG Quick-Connex Cord Sets

Ratings / Characteristics

  • RoHS Compliant

  • 600V

  • IP69K Rated

  • Operating Temperature: -20° to 90°C

  • Bend Radius of Super-Trex® Ultra-Gard® Portable Cord: (Static) 6x Cable OD, (Dynamic) 8x Cable OD

  • UV Resistant

  • Oil Resistant

Applications

abrasions-icon

Abrasion

chemicals-icon

Chemicals

flexing-icon

Flexing

Part Numbers

Part NO. Conductor Size (AWG) Conductor/Pole Count Feet Meters Description Shielding Type
83303 14 AWG 3 3 0.91 Female No Shielding
83306 14 AWG 3 6 1.83 Female No Shielding
83403 14 AWG 4 3 0.91 Female No Shielding
83406 14 AWG 4 6 1.83 Female No Shielding
83312 14 AWG 3 12 3.66 Female No Shielding
83320 14 AWG 3 20 6.1 Female No Shielding
83412 14 AWG 4 12 3.66 Female No Shielding
83420 14 AWG 4 20 6.1 Female No Shielding
83336 14 AWG 3 6 1.83 Male/Female Ext. No Shielding
83321 14 AWG 3 12 3.66 Male/Female Ext. No Shielding
83426 14 AWG 4 6 1.83 Male/Female Ext. No Shielding
83421 14 AWG 4 12 3.66 Male/Female Ext. No Shielding
83322 14 AWG 3 20 6.1 Male/Female Ext. No Shielding
83422 14 AWG 4 20 6.1 Male/Female Ext. No Shielding
